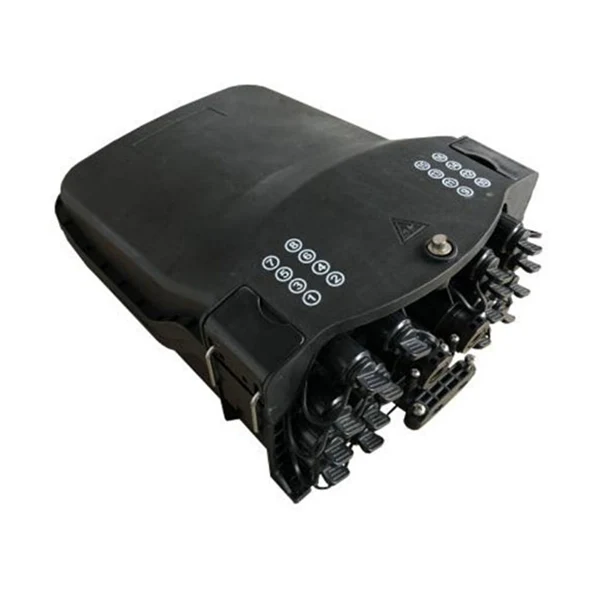

I-48 yeFiber Core eqhagamshelwe kwangaphambili Ibhokisi yeFiber Optic Cable Distribution

I-48 ye-Fiber Core-Pre-connectorized Fiber Optic Cable Distribution Box yi-Orientalfiber isisombululo sobuchwephesha esilungiselelwe ukulungelelanisa ukuthunyelwa kwenethiwekhi ye-FTTX. Njengemveliso ye-flagship ye-Jiangsu Xuben Photoelectric Technology Co., Ltd, le bhokisi yokuhambisa idibanisa i-fiber splicing, ukwahlula, kunye nokudibanisa i-terminal ibe yindawo enye, ehlala ixesha elide.

Thumela uMbuzo

Ingcaciso yeMveliso

I-48-Core Pre-connectorized Fiber Optic Cable Distribution Box yenzelwe ngokukodwa iimeko zobunjineli bonxibelelwano lomnxeba lwangaphandle. Iphuhliswe ngokuhambelana nemigangatho yobunjineli yomvelisi waseTshayina Orientalfiber, ibeka ugxininiso oluphambili ekuthembekeni kwesakhiwo kunye nokuzinza kwexesha elide lokusebenza. Indawo ebiyelweyo yemveliso yakhiwe ukusuka kumandla aphezulu wePP okanye iPC + ABS izinto, enikezela ukuxhathisa okuqinileyo emanzini, uthuli, kunye nokuguga. Ngomlinganiselo wokhuseleko we-IP65, iqinisekisa uzinzo loqhagamshelo lwangaphakathi lwefiber optic nangaphakathi kwimo engqongileyo entsonkothileyo kunye nebango. Ulwakhiwo lwangaphakathi luye lwaphuculwa ukuququzelela ulawulo olusebenzayo lwefiber bend radius kunye nocwangco lwentambo yomzila; ineeadaptha eziqhagamshelwe kwangaphambili kwaye ixhasa ulungelelwaniso olwahlukeneyo lwetreyi yokudibanisa, ngaloo ndlela iphucula impumelelo yofakelo kunye nokwenza lula iinkqubo zolondolozo. Ukuxhasa iindlela ezininzi zokufakela-kubandakanywa ukunyuswa kwepali, ukuthunyelwa kwe-aerial, kunye nokunyuka kwendonga-le bhokisi yokusabalalisa ifaneleka ngokufanelekileyo kwizicelo ze-FTTH kunye noluhlu olubanzi lweemfuno zokuthunyelwa kwe-fiber optic network yangaphandle.

IiNgcaciso zobuNjineli kunye neMfezeko yeMathiriyeli

Kwiziseko zonxibelelwano zonxibelelwano lwangaphandle, ubomi obude bezinto eziphathekayo bubalulekile. IIfayibha yaseMpuma I-48 yeFiber Core eqhagamshelwe kwangaphambili Ibhokisi yeFiber Optic Cable Distributionyenzelwe ukumelana noxinzelelo olwahlukeneyo lokusingqongileyo ngaphandle kokuthotywa.

Izinto zeNdlu: Ukwakhiwa kwi-PP (i-Polypropylene) enempembelelo ephezulu okanye i-PC + ABS (i-Polycarbonate kunye ne-Acrylonitrile Butadiene Styrene) idibanisa ukukhuselwa komatshini ophezulu.
Ukomelela kokusiNgqongileyo: Yenzelwe ukuba ikhuseleke ukufuma, ingangeni manzi, ingangenwa luthuli, kwaye inqande ukuguga.
Ukukhuselwa kwe-Ingress: Inqanaba lokukhusela lifikelela kwi-IP65, ukuqinisekisa ukuba amacandelo angaphakathi ahlala omile kwaye asebenza ngexesha lemvula enkulu okanye iimeko zomswakama ophezulu.

UbuGcisa boBugcisa kunye noLawulo lwesakhono

Uyilo lwangaphakathi lweI-48 yeFiber Core eqhagamshelwe kwangaphambili Ibhokisi yeFiber Optic Cable Distributionigxile ekukhuselweni kweradiyasi egobileyo kunye nokulungelelaniswa kwentambo ukuthintela ukuthomalalisa umqondiso kunye nokudinwa kokugcinwa.

I-Inlet / Outlet Configuration: Iimpawu ze-1 ye-oval optical cable entry point kunye ne-2 yamangeno ekhebula yesebe, iququzelela ulawulo lwentambo yomqolo we-backbone.
I-Adapter Interface: Ixhotywe ngee-adapters ze-16 ezixhunyiwe ngaphambili, ukunciphisa kakhulu ixesha elifunekayo lofakelo lwentsimi kunye neendleko zomsebenzi weengcali.
Ukhetho lweTreyi yeSplice: Iintlobo ezimbini ezahlukeneyo zeetreyi ezidityanisiweyo ziyafumaneka ukulungiselela imikhwa eyahlukeneyo yokudityaniswa kokudibanisa kunye nokuxinana kwefayibha.
Ugcino lweCable ye-Drop: Yenzelwe ukuba igcine itreyi yokugcina intambo yokulahla, ekwaziyo ukulawula ukuya kutsho kwiimitha ezingama-50 zentambo engqukuva eyi-5mm, eyimfuneko ekugcineni ukucoceka kwesiza kufakelo lwe-FTTH yokuhlala.

Iimeko zokusasazwa okuNinzi

Ifayibha yaseMpumaiqinisekisa ukuba iI-48 yeFiber Core eqhagamshelwe kwangaphambili Ibhokisi yeFiber Optic Cable Distributioniqhelanisa neziseko ezingundoqo ezikhoyo endaweni yokufuna uhlengahlengiso oluxabisa kakhulu. Inkxaso yeendlela ezininzi zokunyuka ivumela ukusetyenziswa kwe-hardware engaguqukiyo kwiindawo ezahlukeneyo:

Inyuswe ngepali: Ilungiselelwe ukusasazwa emaphandleni okanye kwipali yoncedo.
I-Aerial-mounted: Ilungele izikhewu zentambo ezingaphezulu phakathi kwezakhiwo.
Ifakwe eludongeni: Yenzelwe ii-MDU zasezidolophini (iiYunithi zokuHlala ezininzi) okanye iifacade zezakhiwo zemizi-mveliso.

Inkcazo

Ibhokisi yokusabalalisa i-optical yangaphambili idityaniswe njengeyona ndlela iphambili ye-FTTX yezixhobo ze-node yokusabalalisa inethiwekhi, ukubonelela ngokukhawuleza kunye nokunxibelelana okuthembekileyo, ukhuseleko oluhle kunye nolawulo lwenethiwekhi ye-FTTX.

Imigangatho iyathotyelwa

I-fiber core ye-48 ye-fiber engundoqo yebhokisi yokuhambisa i-fiber optic kwangaphambili idityaniswe, yenziwe kwaye yavavanywa ngokwemigangatho ngolu hlobo lulandelayo:

ITU-T G.652	Iimpawu yefiber ye-optical mode enye
I-IEC 60794-1-1	I-Optical iintambo zefayibha-icandelo 1-1: Inkcazo-Jikelele
I-IEC 60794-1-2	I-Optical iintambo zefiber-icandelo 1-2: Ukucaciswa kweGeneric-Basic optical cable test inkqubo

Iinkcukacha

Umzekelo: XB-16SX	Iinkcukacha	Phawula

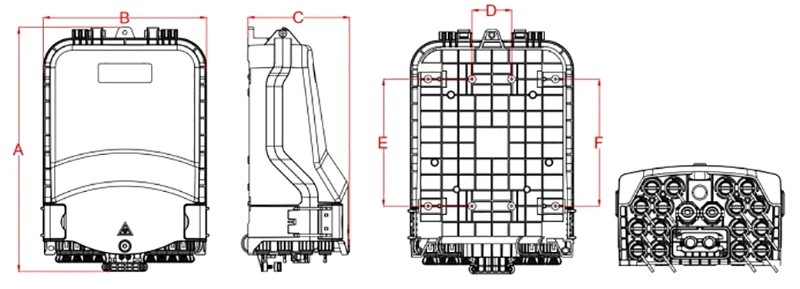

Ngaphandle umyinge(mm)	319.3214133(ABC)
Ukuhlohla indawo yomngxuma(mm)	52166166(DxExF)
Umbala	IPANTONE 428C	Customizable
Ubungakanani kunye nobuninzi bomngxuma wentambo ye-optical	I-1 oval optical cable entry, i-2 yesebe i-optical cable entries kunye ne-16 iadaptha ezixhunyiwe ngaphambili
Ukudibanisa umthamo (Max)	48	Itreyi A ,12x4=48, 2 umaleko we umkhono wokukhusela i-splice otshisayo.
	64	Itreyi B, 8x8=64, umaleko oyi-1 we umkhono wokukhusela i-splice otshisayo.
	96	Itreyi C, 8x12=96, umaleko o-1 we umkhono wokukhusela i-splice otshisayo.
	96	Itreyi D, iTreyi E, 24x4=96, 2 umaleko we umkhono wokukhusela i-splice otshisayo.
Micro I-PLC Splitter	1x2	Ubungakanani bokuqhekeza: 60x7x4mm. Inokufakwa kuhlobo A kunye nohlobo I-E splicing tray, i-1 PC ngetreyi yokudibanisa.
	1x4
	1x8
	1*16	Ubungakanani bokuqhekeza: 60x12x4mm. Inokufakwa kuhlobo lwe-A-1, kunye uhlobo E-1 splicing itreyi, 1 PC ngetreyi yokudibanisa.
Into eyona dayamitha yentambo enkulu (mm)	8~18
Ubuninzi ubungakanani bomngxuma wesebe(mm)	ᴓ16
IP inqanaba lokhuselo	IP65
Ukutsha	HB(Eqhelekileyo)	ingenziwa ngokwezifiso ngokwe iimfuno
Ngaphakathi uvavanyo lwesitshizi setyuwa (NSS)	48 h	ingenziwa ngokwezifiso ngokwe iimfuno

48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box
