Inokufakwa ngaphandle kokuvala amandla
Nqula e-Sheath, ngentsebenzo entle yokulandela umkhondo
Ubunzima bokukhanya kunye nenqanaba elincinci lentambo lunciphisa ifuthe lomkhenkce kunye nomoya kunye nomthwalo kwi-towers kunye nenkxaso
Ubude obuninzi bendawo kunye neyona ndawo inkulu ingaphezulu kwe-1000m
Amandla e-suble kunye neempawu zobushushu
Ixesha lobomi bokuphila ngaphezulu kweminyaka engama-30
Uyilo lwayo yonke iDeectric Ukuzixhasa nge-Arhember fiber ye-fiber optic ithathela ingqalelo imeko yemigca yamandla kwaye ilungele imigca yothungelwano oluninzi lwamanqanaba. I-10KV kunye ne-35kv imigca yamandla, iPolythylene (PE) inokusetyenziswa; Kwimigca yamandla ayi-110KV kunye ne-220kv Imigca yamandla, indawo yokuxhoma yecabhu yekhephu kufuneka igqitywe ngokubala amandla entsimi yombane kunye nokusebenzisa i-sheath sheath. Kwangelo xesha, inani le-ARAMID kunye nenkqubo yokujija efanelekileyo yenzelwe ngononophelo ukuhlangabezana neemfuno zesicelo seska ezahlukeneyo.
Intambo ye-ADSS ihambelana nemigangatho ye-IETE 1222 kunye ne-IEC 60794-1.

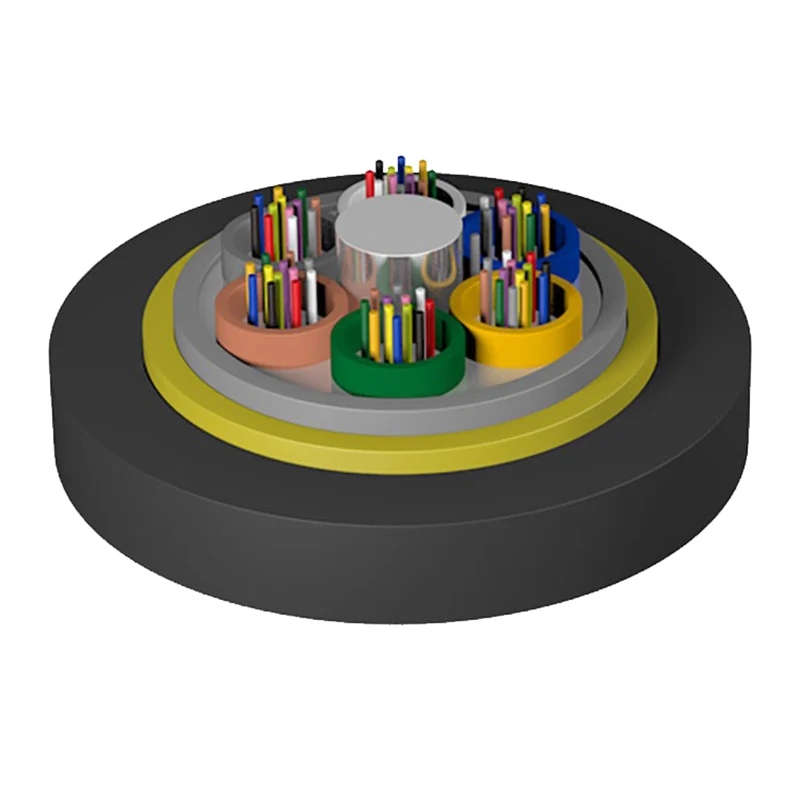

1. Ilungu lamandla e-FRP
I-2. Ifibwe
3. I-Tube yokugcwalisa i-tube
I-4. Ityhubhu ekhululekileyo
5. Intambo yokugcwalisa intambo
I-6. I-Sheith yangaphakathi
7. I-Aramid Yarn
I-8. Pe / kwi-sheath engaphandle
|
Ref. Ububanzi be-Ouper (mm) |
Ref. Ubunzima (kg / km) |
Cer. Mihla le. Ukusebenza kokusebenza (KN) |
I-max evunyelweyo (KN) |
Qhekeza amandla (KN) |
Ilungu le-curngngtt Csa (Mm2) |
Imodyuli ye-elasticy (KN / mM2) |
Ukwanda kobushushu obuzenzekelayo × 10-6 / k |
Ixesha elifanelekileyo (I-NESC iMigangatho, m) |
||||
|
Peath |
Kwi-sheath |
A |
B |
C |
D |
|||||||
|
11.8 |
117 |
124 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
12.0 |
121 |
129 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
12.3 |
126 |
134 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
12.6 |
133 |
141 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
12.8 |
138 |
145 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
13.1 |
145 |
153 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
13.5 |
155 |
163 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
13.8 |
163 |
171 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
14.4 |
177 |
186 |
9.0 |
26 |
60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
|
14.6 |
182 |
191 |
10.5 |
28 |
70 |
33.0 |
19.6 |
0.1 |
800 |
560 |
800 |
560 |
|
14.8 |
195 |
204 |
12.75 |
34 |
85 |
40.0 |
20.1 |
0.1 |
880 |
650 |
880 |
650 |
Ukugcina / ubushushu bokusebenza ::40 ℃ - + 70 ℃
|
Uhlobo lwe-fiber optic |
(+ 20) |
bandwidth |
I-Aperture |
Sika i-wavelength yentambo yethuba |
||||
|
@ 850NM |
@ 1300nmm |
@ 1310NM |
@ 1550NM |
@ 850NM |
@ 1300nmm |
|||
|
G.652 |
--- |
--- |
≤0.36DB / km |
≤0.22DDB / Km |
--- |
--- |
--- |
≤1260NMM |
|
G.655 |
--- |
--- |
≤0.40DB / km |
≤0.23dB / km |
--- |
--- |
--- |
≤1450NM |
|
50/1μm |
≤3.3DDB / km |
≤1.2DDB / km |
--- |
--- |
≥500mhzzz |
≥500mhzzz |
I-0.200 ± 0.015 sele |
--- |
|
I-62.5 / 1200m |
≤3.5db / km |
≤1.2DDB / km |
--- |
--- |
¶200mhzz |
≥500mhzzz |
I-0.275 ± 0.015 sele |
--- |
Phawula:
a. Yinxalenye yelungu le-ADSS idweliswe kwitafile, iintambo ze-ADS ngezinye iindawo zinokuba yifom yokuthengisa abantu abathengisi.
b. Inkcazo kwitheyibhile ifumene imeko yokuba akukho mahluko okhulisa kwaye i-SAG ye-SAG yi-1%
c. I-fiber ukubala yi-2 ukuya kwi-72, ukuchongwa kwee-fibers ezihambelana nomgangatho wesizwe
