I-SC / APC-LC / LC / APC 1.6mm patch cords

Isicelo:● Amaziko eDatha● Ukusetyenziswa kwe-Ethernet● Izicelo zeSteyiti● I-BackBone, iPhezulu kwaye iphakame isebenza● Ividiyo, idatha kunye neenkonzo zelizwi● Izicelo zokuvavanyaIimbonakalo:● Isinxibelelanisi sokuchaneka● I-APC yokuphela kwePoland● I-SC, yonke i-fiber enye ye-fiber● Ubude obuhlewe......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Amaziko eDatha

● Ukusetyenziswa kwe-Ethernet

● Izicelo zeSteyiti

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Ividiyo, idatha kunye neenkonzo zelizwi

● Izicelo zokuvavanya

Iimbonakalo:

● Isinxibelelanisi sokuchaneka

● I-APC yokuphela kwePoland

● I-SC, yonke i-fiber enye ye-fiber

● Ubude obuhleweyo bufumaneka

● I-100% yomzi-mveliso iphela kwaye ihlolwe

● I-rohs iyahambelana

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
Imowudi ye-fiber		Imowudi enye: itu-t g657a2
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ibanga lesiQhagamshelo (il)		Ibanga B
Ukufakwa kwelahleko	db	≤0.25 (ty.l: ≤0.12)
Buyisela ilahleko	db	≥55 (I-RL ye-RL: ≥60)
Buffer fiber diameter	Nye	I-900
I-Buffer fiber umbala		Mhlophe
Umbala wentambo yentambo		Lubhelu
I-jable yentambo		I-LSZH
Ububanzi be-leble	mm	1.6 ± 0.20
Ubude	m	1 + 0.1 / 0 3 + 0.1 /0 I-5 + 0.2 /0 30 + 0.5 /0 okanye ukuzalisa ngokwezifiso
Uhlobo lomnxibelelanisi		Izibuko: I-SC / APC (iluhlaza) B Port: I-LC / APC (iluhlaza)
Ipolishi yokuphela		I-apc
Izinto ze-Ferrule		I-ceramic
Ukuphindaphinda ukuphindaphinda		> Amaxesha angama-800
Ubuncinci be-radius	mm	≥10
I-fiber / yokugcinwa kwentambo	N	I-50n ± 2n kwi-5n / s i-120s ixesha
Iqondo lokusebenza		-2 ° C ~ + 70 ℃
Iqondo lokugcina		-40 ℃ ~ + 85 ℃

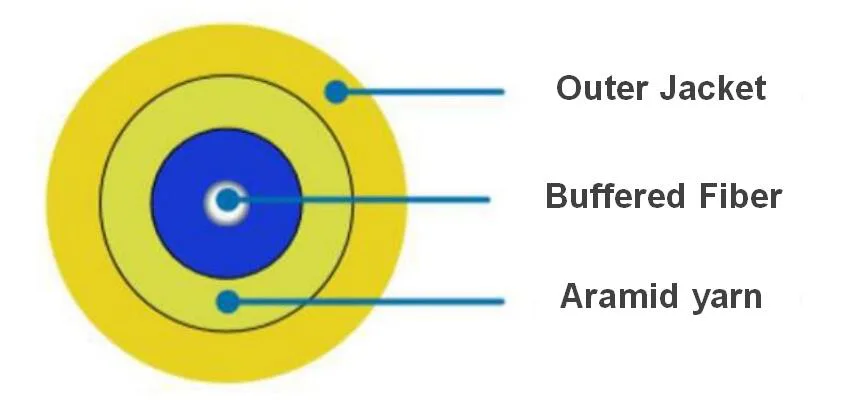

Ulwakhiwo lwentambo:

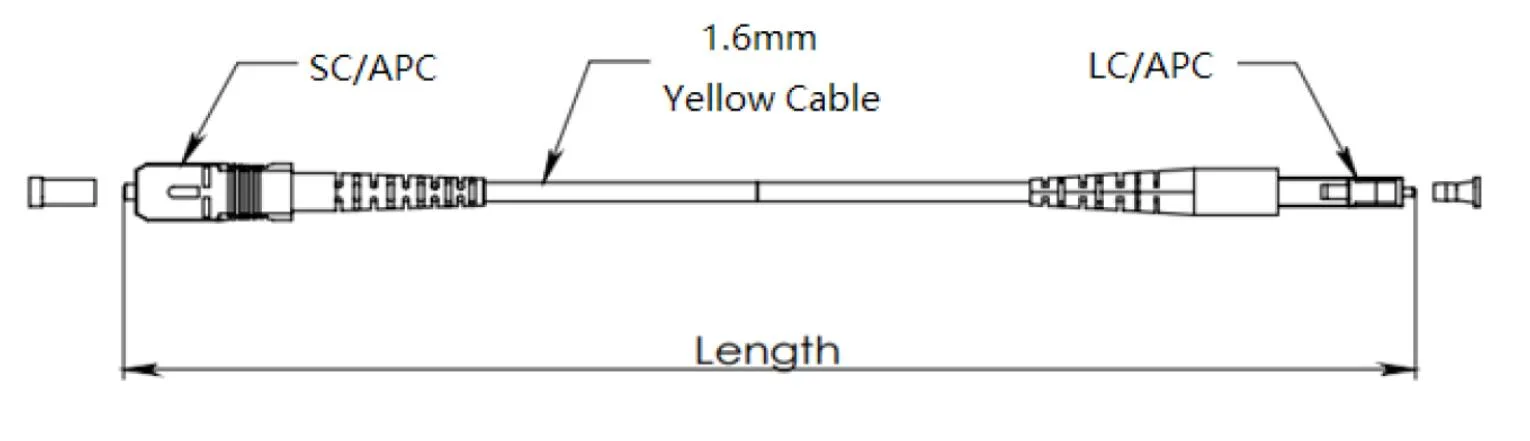

Umzobo wobungakanani:

Iipropathi zoomatshini:

Into	Iimvavanyo ezifunekayo	Iimfuneko
Iqondo lokushisa (IEC 61300-2-22 ed.2)	-25 ° C ukuya kwi +7 ° C Ixesha eligqithisiweyo lobushushu: 60 imiz I-1 ° C / imigangatho yotshintsho Imijikelezo ye-12	Ngokwe IEC 61753-1
Ubushushu owomileyo (IEC 61300-218)	Iqondo lokushisa: +70 ° C Ixesha: 96 h
Ubushushu obububushushu (uCyclic) (IEC 61300-2--46)	Iqondo lokushisa: +25 ° C ukuya kwi +55 ° C Ukufuma:> 90% rh Imijikelezo emi-6 (i-24 h / umjikelo)
Vibration (sinudoidal) (IEC 61300)	Uluhlu lokuhamba rhoqo: i-HZ ukuya kwi-55 hz Inani le-sweeps: 15 ukutshayela (10 - 55 - 10) Hz nge-axis nganye Ixabiso le-frequency tshintsha: i-octave / min Inani le-axes: 3 kunye ne-axes ye-perpesper I-AMLLX: 0,75 mm
Ukuqina kwamathandabuzo (IEC 61300-2-2)	Imijikelezo engama-200

Iphakheji:

I-1. Ingxowa yeValve

Iithegi ezishushu: I-SC / APC-LC / LC / APC 1.6mm patch cords
