I-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTS

I-Hybrid Optical kunye ne-Electrical Stranded Loose Tube Cable GDTS yenzelwe amandla adibeneyo kunye nokuhanjiswa kwesignali, ukudibanisa iifibers ze-optical kunye nee-conductor zethusi kwintambo enye. Yenziwe yi-Orientalfiber, i-China-based supplier kunye nomvelisi, le ntambo ye-GDTS ibonisa ilungu lamandla entsimbi ephakathi, iityhubhu ezikhululekile ezizaliswe ngamachiza okukhusela, kunye nentsimbi yentsimbi yesikrweqe, zonke zikhuselwe yi-PE engaphandle ye-PE. Yenzelwe ukusebenza okuthembekileyo kwiimeko ezinzima kwaye ixhasa zombini i-duct kunye nofakelo oluphezulu, ukwenza lula ukuhanjiswa kweenkqubo zesikhululo esisasazwayo kunye nothungelwano lwemizi-mveliso ngelixa kuncitshiswa ukuthenga kunye neendleko zokwakha.

Thumela uMbuzo

Ingcaciso yeMveliso

Ifayibha yaseMpuma ibonelelaI-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTS, isisombululo esikhethekileyo esenzelwe ukudibanisa ukuhanjiswa kwedatha yesantya esiphezulu kunye nokunikezelwa kwamandla okuthembekileyo kwiyunithi enye yesakhiwo. Le ntambo ihlanganisiweyo yenzelwe ukukhawulelana neemfuno eziguquguqukayo zeziseko zonxibelelwano zala maxesha, ngakumbi apho ukufaneleka kwendawo kunye nofakelo olulungelelanisiweyo lubalulekile.

Isishwankathelo seMveliso kunye nokuBunjwa kwezinto

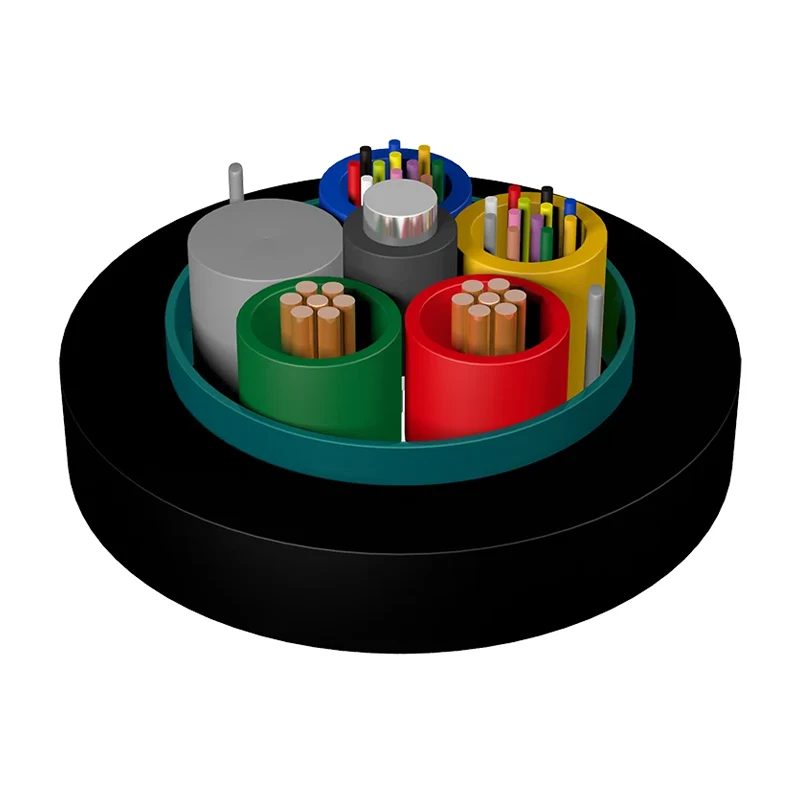

II-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTSisebenzisa uyilo oluphucukileyo lwemigangatho emininzi. Kwisiseko salo, ilungu lokuqinisa isinyithi linika amandla ayimfuneko. Ukujikeleza eli ziko kukho iibhubhu ezivulekileyo ezenziwe ngeplastiki ephezulu yemodulus, izindlu zemicu ye-optical kunye nezixhobo zokuzalisa ezikhuselayo.

Idityaniswe ecaleni kwale mibhobho kukho iingcingo zobhedu ezigqunyiweyo, ezilungiselelwe iimfuno ezithile zombane. Le ndibano engundoqo ikhuselwe isikrweqe setape yentsimbi edibeneyo, enika ukhuseleko oluqinileyo kwimpembelelo yomatshini kunye nomonakalo weempuku. Isakhiwo sonke sigqitywe nge-polyethylene ehlala ixesha elide (PE) i-sheath yangaphandle, iqinisekisa ukuzinza kwexesha elide kwiimeko ezinzima zokusingqongileyo.

Izinto eziluncedo kwezobuGcisa eziphambili

Amandla aManyanisiweyo kunye noMqondiso:Ngokudibanisa abaqhubi bobhedu kunye nemicu ye-optical, iI-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTSkuphelisa imfuno yeentambo zombane ezahlukeneyo, ukwenza lula ulwakhiwo lweekhebhuli.
Ukomelela koomatshini:I-corrugated tape ye-armoring kunye nelungu lamandla ensimbi livumela ukusebenza okuthembekileyo kwiindawo ezinoxinzelelo oluphezulu, kubandakanywa umbhobho kunye nofakelo olungaphezulu.
Uzinzo lokusiNgqongileyo:Idizayini yetyhubhu evulekileyo kunye nezixhobo zokuzalisa umswakama ezinganyangekiyo zikhusela iifiber ukusuka ekuguquguqukeni kweqondo lokushisa kunye nokungena kwamanzi.
Ubuchule bokusebenza:Ukufaka umbane kumbindi wezixhobo ezikude kunciphisa imfuno yolungelelwaniso lwesiza sombane kwaye lwenza lula iishedyuli zesiqhelo zokulondolozwa.

Iimeko zeSicelo esiPhambili

IiNkqubo zeSikhululo esiSasaziweyo (i-BBU ukuya kwi-RRU)

Imeko yokusetyenziswa ephambili yeIfayibha yaseMpuma's GDTS cable ludibaniso phakathi kweBuilding Baseband Unit (BBU) kunye neRemote Radio Unit (RRU) kwiinkqubo zobonelelo lwamandla ezikude zeDC. Ivumela ukuhanjiswa kwangaxeshanye kweempawu eziphezulu ze-bandwidth kunye nokuhanjiswa kwamandla ombane ayimfuneko kwiiyunithi ze-antenna ezikude.

Iziseko zophuhliso ezidolophini kunye noThungelwano lwezoShishino

Ngaphaya kwezonxibelelwano, okuI-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTSisasazwa kuthutho lukaloliwe, iindlela zokubeka iliso zendlela, kunye nonikezelo lwamandla egridi ehlakaniphile apho imithombo yamandla yasekhaya ingafumanekiyo okanye kunzima ukuyifaka.

Ukuphunyezwa kweProjekthi kunye noLawulo lweeNdleko

Ukusebenzisa iI-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTSinegalelo ekuncipheni okubonakalayo kwinkcitho yeprojekthi iyonke. Ngokunciphisa umthamo wezinto ezifunekayo kunye nokunciphisa ixesha lokufakela, abaqhubi banokufikelela kwiindleko eziphantsi zokuthengwa kunye nokwakhiwa. Le ndlela ilungelelanisiweyo ikwanciphisa unyawo olubonakalayo kwimibhobho exineneyo kunye neetreyi zentambo.

Malunga ne-Orientalfiber (Jiangsu Xuben Photoelectric Technology)

Njengenxalenye yeqela leJiangsu Xuben Photoelectric Technology Co., Ltd,Ifayibha yaseMpumaisebenza ngaphakathi kwe-15,000 yesiseko semitha yesikwele esinikezelwe ekuveliseni iintambo zangaphakathi / zangaphandle kunye namacandelo e-ODN. Ngexabiso lemveliso yonyaka ye-20 yezigidi ze-USD, inkampani ibambelela kwimigangatho engqongqo yamazwe ngamazwe, kuquka i-ISO9001 kunye ne-ISO45001. Iinkqubo zethu zokuvelisa zijolise ekuchanekeni nasekuzinzeni kwinqanaba lobuchwephesha, ukuxhasa iiprojekthi ezinkulu zobunjineli kwihlabathi liphela.

Imibuzo ebuzwa qho

1. Ngaba iinkcukacha zocingo lobhedu zinokwenziwa ngokwezifiso?

Ewe, inani kunye negeyiji yabaqhubi bobhedu ngaphakathiI-Hybrid Optical kunye ne-Electrical Stranded Loose Cable Cable GDTSinokulungiswa ngokusekwe kumbane okhethekileyo kunye neemfuno zangoku zesixhobo esikude.

2. Yiyiphi imida yokufakela le ntambo?

Intambo engumxube ye-GDTS inomsebenzi omninzi, eyilelwe yomibini imibhobho (umbhobho) wofakelo kunye nofakelo olungaphezulu (lwe-eriyeli), ngaphandle kokuba kusetyenziswe ihardware yoxinzelelo efanelekileyo.

3. Isikrweqe seteyiphu yentsimbi sichaphazela njani ukuguquguquka?

Ngelixa i-tape yensimbi edibeneyo inika ukhuseleko olubalulekileyo malunga nokutyumzwa, intambo igcina i-radius ye-bend ebaliweyo evumela ukuba kusetyenziswe ukufakwa okusemgangathweni kwimibhobho yonxibelelwano yasezidolophini.

Iimbonakalo

● Ukusebenza kakuhle koomatshini kunye nobushushu;

● Uyilo oluxutyiweyo lwe-Optical-electric lusombulula unikezelo lwamandla kunye neengxaki zokuhanjiswa komqondiso, kwaye lubonelela ngokubeka iliso kwindawo esembindini kunye nokugcinwa kobonelelo lwamandla kwizixhobo;

● Ukuphucula ulawulo lobonelelo lwamandla, ukunciphisa ulungelelwaniso nokugcinwa kombane;

● Ukunciphisa iindleko zokuthenga nokugcina iindleko zokwakha;

● Isetyenziswa ikakhulu kuqhagamshelo phakathi kwe-BBU ne-RRU kwisikhululo esisasazwayo se-DC kwiinkqubo zobonelelo lwamandla olukude;

● Ilungele ukufakwa kombhobho kunye nokufakwa phezulu

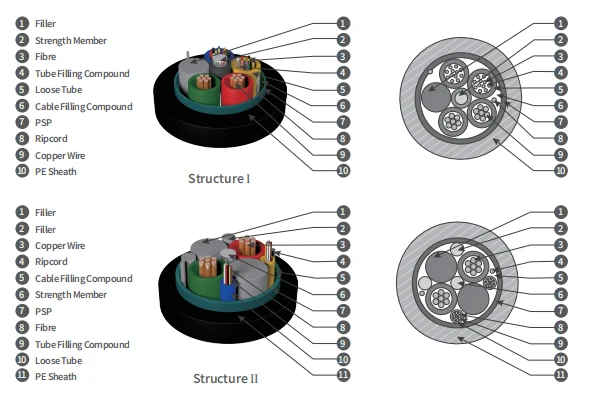

Hybrid Optical and Electrical Stranded Loose Tube Cable GDTS

Iimpawu zobuGcisa

Uhlobo	O.D. (mm)	Ubunzima (Kg/km)	Tensile strength Ixesha elide/elifutshane (N)	Ukutyumza Ixesha elide/elifutshane (N/100mm)	Ulwakhiwo
GDTS-02-24Xn+2×1.5	11.6	157	600/1500	300/1000	Ulwakhiwo I
GDTS-02-24Xn+2×2.5	12.5	190	600/1500	300/1000	Ulwakhiwo I
GDTS-02-24Xn+2×4.0	14.6	241	600/1500	300/1000	Ulwakhiwo II
GDTS-02-24Xn+2×5.0	15.0	282	600/1500	300/1000	Ulwakhiwo II
GDTS-02-24Xn+2×6.0	15.7	300	600/1500	300/1000	Ulwakhiwo II
GDTS-02-24Xn+2×8.0	16.9	383	600/1500	300/1000	UlwakhiwoII

Phawula:

1. Xn ibhekisa kudidi lwefibre.

2. 2 * 1.5/2 * 2.5/2 * 4.0/2 * 6.0/2 * 8.0 ibonisa inani kunye nobukhulu beengcingo zobhedu.

3. Iintambo zeHybrid ezinamanani ahlukeneyo kunye neesayizi zeengcingo zobhedu zinokubonelelwa xa ziceliwe.

4. Iintambo zeHybrid ezinamanani ahlukeneyo osinga zinokubonelelwa xa ziceliwe.

Ukusebenza koMbane kweConductor

Indawo yokudlula (mm2)	Max. Ukuxhathisa kwe-DC yomqhubi omnye (20 ℃)(Ω/km)	Ukuxhathisa kwi-Insulation (20℃)(MΩ.km)	Amandla eDielectric KV, DC 1min Amandla eDielectric KV, DC 1min
Indawo yokudlula (mm2)	Max. Ukuxhathisa kwe-DC yomqhubi omnye (20 ℃)(Ω/km)	Phakathi komqhubi ngamnye kunye nezinye amalungu metal edityaniswe cable	Phakathi abaqhubi	Phakathi komqhubi kunye nezixhobo zentsimbi	Phakathi komqhubi kunye nocingo lwentsimbi
1.5	13.3	Akukho ngaphantsi kwama-5,000	5	5	3
2.5	7.98
4.0	4.95
5.0	3.88
6.0	3.30
8.0	2.47
