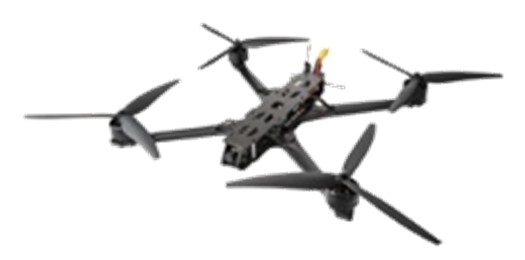

I-13-intshi ye-UAV

I-13-intshi ye-UAV yimveliso eqhelekileyo enokuthi ixhotyiswe nge-20 km ye-fiber-optic drum kunye ne-3 kg yokuhlawula, okanye usebenzise ulawulo olungenacingo kwi-6 ~ 7 kg yokuhlawula. Isebenzisa i-20000mAh Li-ion ibhetri enexabiso eliphantsi, inika ukuya kuthi ga kwimizuzu engama-20 yexesha lokubhabha kumthwalo omkhulu. I-UAV ithatha ukuthembeka okuphezulu kwezixhobo ze-elektroniki kunye namanye amacandelo ane-coating engenamanzi phezu komhlaba; I-airframe inzima kwaye inokusebenza kwiimeko ezinzima, iqinisekisa impumelelo yobuthunywa.

Thumela uMbuzo

Ingcaciso yeMveliso

IsisekoIulwazi

Into	Speukucaciswa
IFlight Firmware	I-Betaflight 4.4.3
Top Plate Ukutyeba	3 mm
Ukutyeba kwepleyiti ephakathi	3 mm
Ukutyeba kwepleyiti engezantsi	3 mm
Izinto zesakhelo	T300 carbon fiber
Ukutyeba kwengalo	8 mm
Isiseko samavili	430 mm
Ubunzima	1860 g
Lawula Ukuphindaphinda	915 MHz
Ukuphindaphindwa kwevidiyo	4.9 - 6.2 GHz
Uluhlu lokulawula	20 km
Umvuzo ocetyiswayo	6kg
Ubukhulu bentlawulo	7kg
Isantya esiphezulu	I-150 km/h
Isantya esiphezulu sokunyuka	20 m/s
Isantya esiphezulu sokwehla	25 m/s
Ukuphakama kweFlight ephezulu	6000 m
Ubushushu bokusebenza	-20 °C ukuya +45 °C
Max Ukumelana noMoya	15 m/s
Ibhetri eCetyisiweyo	20000mAh Ibhetri yeLi-ion

UmbaneIsiqeameters

Into	Inkcazo
Umthamo woNgeniso oluPhezulu	35.6 V
Min Input Voltage	22.2 V
I-Input Voltage ecetyiswayo	35.6 V
Ubuninzi bangoku (ngemoto nganye)	79 A
Amandla aphezulu (ngemoto nganye)	Ngowe-1990 W

HardwziUluhlu

Into	Inkcazo
Isakhelo	13-intshi SE version
Umlawuli weFlight	STM32F405 ICM42688P FC
I-ESC	AM32 100 A 4-in-1 ESC
Imoto	4214 660 kV
Ikhamera	Umbono wasebusuku 1500 TVL
VTX	4.9-6.2 GHz 3 W
IGPS	I-M10 GPS enekhampasi
Umamkeli	ELRS 915 MHz
I-antenna	4.9-6.2 GHz 150 mm RHCP SMA
Ipropeller	1309-3 iincakuba
Itheminali yeFayibha yomoya	Ukhetho

UkhethoalIkhithi

256×192 umfanekiso oshushu, 640×512 umfanekiso oshushu
I-10–20 km ye-fiber-optic tether system
Umamkeli oqhelekileyo / iVTX
Isidluliseli sevidiyo esinamaqela amabini
