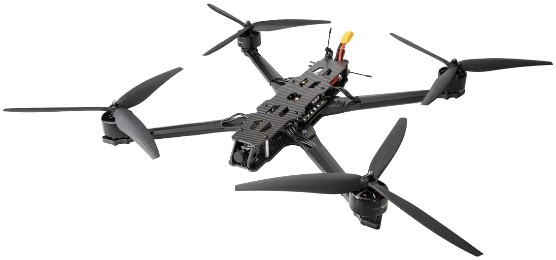

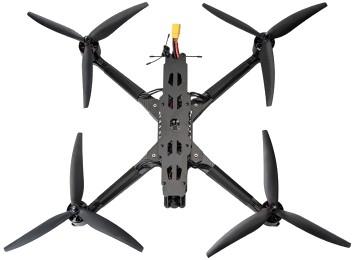

I-15-intshi ye-UAV

I-15-intshi ye-UAV yi-platform ye-UAV ethembekileyo ephuhliswe kwi-flight ekude kunye nokuhlawula okuphakathi. I-airframe yayo isebenzisa i-ultra-high-strength T300 carbon fiber, inika yonke i-fuselage i-resonance ephantsi kakhulu kunye nokuzinza okugqwesileyo. Idityaniswe nezixhobo ze-elektroniki ezisebenza kakhulu, iyakwazi ukwenza imisebenzi enzima.

Thumela uMbuzo

Ingcaciso yeMveliso

IsisekoIulwazi

Into	Speukucaciswa
IFlight Firmware	I-Betaflight 4.4.3
Top Plate Ukutyeba	3 mm
Ukutyeba kwepleyiti ephakathi	4 mm
Ukutyeba kwepleyiti engezantsi	4 mm
Izinto zesakhelo	T300 carbon fiber
Ukutyeba kwengalo	9 mm
Isiseko samavili	650 mm
Ubunzima	2850 g
Lawula Ukuphindaphinda	915 MHz
Ukuphindaphindwa kwevidiyo	4.9 - 6.2 GHz
Uluhlu lokulawula	20 km
Umvuzo ocetyiswayo	8kg
Ubukhulu bentlawulo	10 kg
Isantya esiphezulu	I-130 km/h
Isantya esiphezulu sokunyuka	15 m/s
Isantya esiphezulu sokwehla	15 m/s
Ukuphakama kweFlight ephezulu	6000 m
Ubushushu bokusebenza	-20 °C ukuya +45 °C
Max Ukumelana noMoya	15 m/s
Ibhetri eCetyisiweyo	35000mAh Ibhetri yeLi-ion

UmbaneIsiqeameters

Into	Inkcazo
Umthamo woNgeniso oluPhezulu	33.6 V
Min Input Voltage	21.6 V
I-Input Voltage ecetyiswayo	33.6 V
Ubuninzi bangoku (ngemoto nganye)	90 A
Amandla aphezulu (ngemoto nganye)	3020 W

HardwziUluhlu

Into	Inkcazo
Isakhelo	15-intshi SE version
Umlawuli weFlight	STM32F405 ICM42688P FC
I-ESC	I-BLS 4-8S eqhubekayo 120A (igqabhuke 150A) 4IN1 ESC
Imoto	4720 480 kV
Ikhamera	Umbono wasebusuku 1500 TVL
VTX	4.9-6.2 GHz 3 W
IGPS	Akukho nanye
Umamkeli	ELRS 915 MHz
I-antenna	4.9-6.2 GHz 150 mm RHCP SMA
Ipropeller	1507 -3 iincakuba
Itheminali yeFayibha yomoya	Ukhetho

UkhethoalIkhithi

256×192 umfanekiso oshushu, 640×512 umfanekiso oshushu
I-10–20 km ye-fiber-optic tether system
Umamkeli oqhelekileyo / iVTX
Isidluliseli sevidiyo esinamaqela amabini
