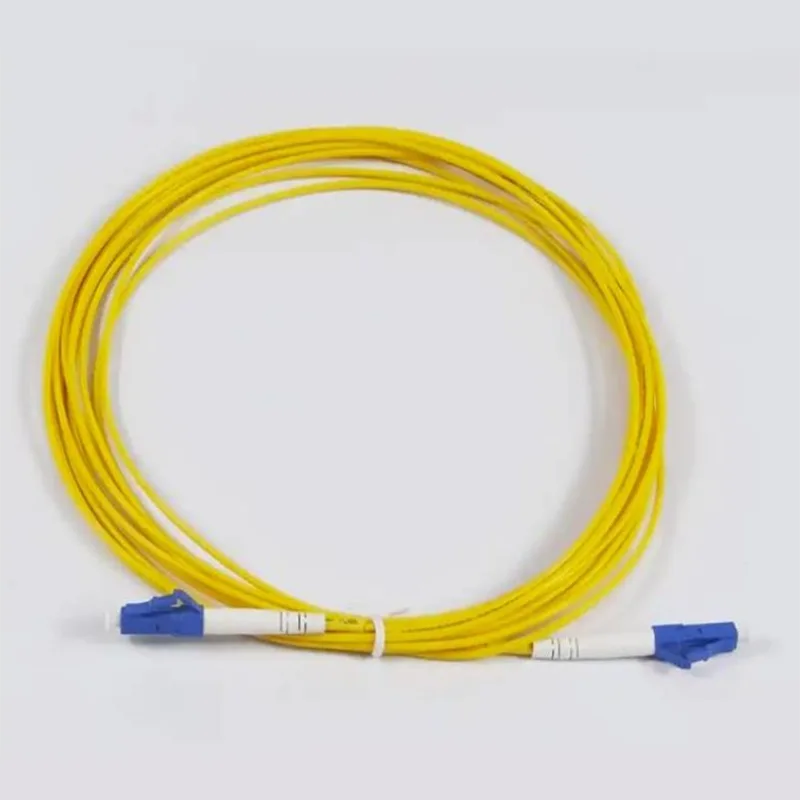

3mm Round Cable LC/UPC- LC/UPC Patch Cords

Orientalfiber Factory’s 3mm Round Cable LC/UPC-to-LC/UPC Patch Cords are designed utilizing G657A1 single-mode fiber and high-precision LC/UPC connectors. With a primary focus on controlling insertion loss and return loss, these cords ensure stable, high-speed transmission performance while guaranteeing a return loss of ≥50dB. The 3.0mm LSZH outer jacket enhances tensile and compressive strength, making the product suitable for a wide range of applications, including server room cabling, FTTH deployments, and industrial communications. Supporting over 800 repeated insertions and extractions with a minimum bending radius of ≥20mm, these patch cords undergo 100% factory testing to ensure an optimal balance between signal stability and practical installation durability.

Thumela uMbuzo

Ingcaciso yeMveliso

IOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordszizinto eziyimfuneko zoxinaniso oluphezulu lwefiber optic zokusingqongileyo. Eyenziwe yi-Orientalfiber, uphawu phantsi kweqela le-Jiangsu Xuben Photoelectric Technology, ezi ntambo ze-patch zizuza kwisiseko sokuvelisa i-15,000-square-square-meter kunye neenkqubo zokuvelisa eziphambili. Ngokukhetha umthombo weOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cords, iinjineli zenethiwekhi zifumana imveliso exhaswa yi-ISO9001 kunye ne-ISO45001 izatifikethi, ukuqinisekisa ukusebenza okuthembekileyo kumaziko eenkcukacha ezibalulekileyo kunye nee-hubs zonxibelelwano kwihlabathi jikelele.

Uyilo lobuGcisa kunye neMfezeko yoMqondiso

Ubunjineli ngasemva kweOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsigxile ekuchanekeni okuphezulu kunye nokunciphisa umqondiso ophantsi. Isebenzisa i-G657A1 i-fiber yemowudi enye, ezi ntambo zenzelwe ukujongana neemfuno zomzimba zomzila wentambo zanamhlanje.

Amacandelo achanekileyo kunye noKwakha uMgangatho

I-LC / UPC i-High-Precision Connectors: Iifom ezincinci ze-LC izixhumi zivumela ukunyuka kwe-port density ekutshintsheni kunye neepaneli zokupakisha. I-UPC (i-Ultra Physical Contact) i-polish iqinisekisa ukulahlekelwa kwembuyekezo ye-≥50dB, esemgangathweni kwizicelo ze-Ethernet ze-high-speed.
3.0mm LSZH Jacket: Ngokungafaniyo thinner 2.0mm ezinye iindlela, intambo 3mm ngeenxa zonke inikeza ukhuseleko ngoomatshini eyongeziweyo. I-Low Smoke Zero Halogen (LSZH) imathiriyeli iqinisekisa ukuthotyelwa kokhuseleko kufakelo lwangaphakathi, ngokukodwa kwi-riseer kunye ne-horizontal cabling.
ITekhnoloji yeCeramic Ferrule: Isidibanisi ngasinye sinomgangatho ophezulu we-ceramic ferrule egcina ulungelelwaniso oluchanekileyo ngaphezulu kwemijikelo yokukhwelana engama-800.
Ukugoba Ukungabi namvakalelo: Ngomlinganiselo omncinci wokugoba we-≥20mm, ezi ntambo zigcina imfezeko yomqondiso naxa zihamba ngeekona ezixineneyo kwiirekhi zeseva ezixineneyo.

Izicelo zoShishino oluNinzi

Ukusetyenziswa kweOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsinqumla kumacandelo amaninzi, inika umaleko womzimba ozinzileyo ofunekayo kwiinkonzo ze-bandwidth ephezulu.

AmaZiko eeNkcukacha zeShishini kunye neeNkqubo ze-Ethernet

Kwisiseko sothungelwano, ezi ntambo ze-patch zidibanisa ii-transceivers zesantya esiphezulu kwizakhelo zokusasaza. Ijacket ye-LSZH etyheli ibonelela ngokuchongwa okucacileyo konxibelelwano lwefayibha yendlela enye, iququzelela ukugcinwa lula kunye nokusombulula ingxaki.

I-FTTH kunye ne-Broadband Infrastructure

Njengokhetho oluphambili lwe-Fiber-to-the-Home (FTTH) ukuthunyelwa, ukuqina kwentambo ye-3mm kwenza ukuba ilungele ukudibanisa phakathi kwe-terminal network optical (ONT) kunye nebhokisi yokusabalalisa. Ixhasa ukuhanjiswa okungenamthungo kwevidiyo, idatha, kunye neenkonzo zelizwi kubasebenzisi bokugqibela.

UQhagamshelwano lwezoShishino nezoThutho

Ngaphaya kwe-IT eqhelekileyo, iimveliso ze-Orientalfiber zidityaniswe kwiigridi zamandla ombane kunye neenkqubo zonxibelelwano lukaloliwe. Ulwakhiwo olomeleleyo lweOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsiqinisekisa ukuba banokumelana nokungcangcazela kunye nokuguquguquka kokusingqongileyo okufunyanwa kuqhagamshelo lwangaphambili lweshishini.

Imibuzo Ebuzwa Rhoqo (FAQ)

Yintoni are iingenelo eziphambili zedayamitha ye-3mm kwezi ntambo zokuvala i-LC/UPC?

I-3mm ye-diameter inika amandla aphezulu okuqina kunye nokumelana nokutyumza xa kuthelekiswa neentambo ezinqabileyo ezinqabileyo. Oku kwenza iOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsifaneleke ngakumbi umqolo kunye nekheyibhili ethe tyaba apho intambo inokuthi ixhomekeke ekuphathweni okungaphezulu komzimba.

Ngaba i-LC/UPC isinxibelelanisi siyakuxhasa ukuhanjiswa kwedatha ngesantya esiphezulu?
Ewe. I-LC/UPC isinxibelelanisi ngumgangatho weshishini we-fiber-mode-mode applications. Ngokulahlekelwa kokubuya kwe-≥50dB kunye nokulahlekelwa okuphantsi kokufakwa, ihambelana ngokupheleleyo ne-10G, 40G, kunye ne-100G izicelo ze-Ethernet.

Ngaba ezi ntambo zinokusetyenziswa kwindawo enokuguquguquka okubanzi kobushushu?
IOrientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordszilinganiswe ukusebenza phakathi kwe -25 ° C kunye + 65 ° C, zizenza zithembeke kuwo omabini amaziko edatha alawulwa yimozulu kunye neendawo ezivaliweyo zonxibelelwano lomnxeba.

Ngaba ezi ntambo zombane zivavanyiwe?
Ewe, iyunithi nganye ine-100% yefektri iyekisiwe kwaye ivavanywa ngokuqatha ukuqinisekisa ukuba iyahlangabezana nemigangatho echaziweyo yokubona kunye neyomatshini phambi kokuba iziswe kumthengi.

Isicelo:

● Amaziko eenkcukacha

● Usetyenziso lwe-Ethernet

● FTTH izicelo

● Umqolo, othe tye kunye nokunyuka kwezicelo

● Ividiyo, idatha kunye neenkonzo zelizwi

● Uvavanyo lwezixhobo zokusebenza

Iimbonakalo:

● Isinxibelelanisi esichanekileyo

● I-UPC&APC yokuphelisa ipolishi yobuso

● I-SC, i-LC, yonke i-fiber connector eyodwa

● Ubude obulungiselelweyo buyafumaneka

● I-100% yomzi-mveliso iyekisiwe kwaye yavavanywa

● I-ROHS iyahambelana

Inkcazo yobuGcisa:

Ulwakhiwo	Iyunithi	Iinkcazelo
Imowudi yeFayibha		Imowudi enye: ITU-T G657A1
Ukubalwa kweFayibha		Simplex
Ubude bamaza	nm	1310/1550
Ilahleko yokuFaka	dB	≤0.30
Buyisela Ilahleko	dB	≥50(UPC)
I-Tight-Buffer Fiber Diameter	um	900
Umbala weFayibha yesithintelo esinzima		Mhlophe
Umbala weBhatyi yeCable		Lubhelu
Izinto zebhatyi yeCable		I-LSZH
I-Cable Diameter	mm	Φ3.0 ±0.20
Ubude	m	3.0 +0.1/-0
Uhlobo lwesidibanisi		LC/UPC (Blue)
Ipolishi yobuso bokuphela		UPC
Izinto zeFerrule		I-Ceramic
Uqhagamshelo Ukuphinda-phinda		> 800 amaxesha
Iradiyasi yokugoba encinci	mm	≥20
Intlanganiso yogcino lweFibre/intambo	N	50N±2N kwi-5N/s 120s ubude bexesha
Ubushushu bokusebenza	℃	-25℃ ~ +65 ℃
Ubushushu boGcino	℃	-25℃ ~ +65 ℃

Umzobo omde:

3mm Round Cable LC/UPC- LC/UPC Patch Cords

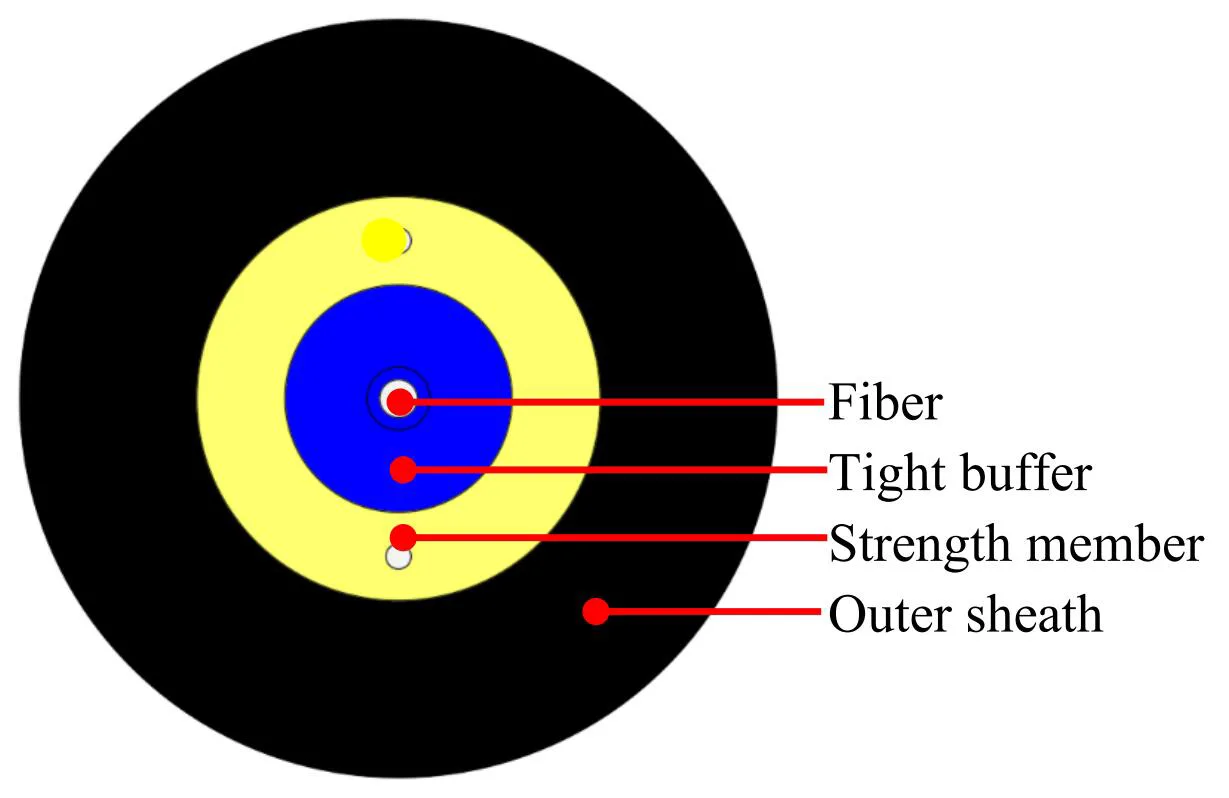

Ulwakhiwo lweCable:

3mm Round Cable LC/UPC- LC/UPC Patch Cords

Izinto		Iinkcukacha
Ifayibha eqinileyo	Ukubalwa kweFayibha	1
	Uhlobo lweFayibha	G.657A1
	Umbala weFayibha	Luhlaza
	Izinto eziphathekayo	I-LSZH
	Ububanzi	Φ0.9 ± 0.05mm
	Isithinteli esiqinileyo Umbala	Mhlophe
Ukomelela ilungu	Izinto eziphathekayo	Umsonto wepolyester
Isingxobo sangaphandle	Izinto eziphathekayo	I-LSZH
	Ububanzi	Φ3.0 ± 0.2 mm
	Isingxobo sangaphandle Umbala	Lubhelu
Uphawu lwe-inki	Umbala	Mnyama

Iimpawu zeFayibha:

Zonke iimpawu zentambo yentambo (i-fiber yentambo egqityiweyo) iya kuba, ubuncinane, ngokuhambelana ne-ITU-T Recommendation G.657A1 kwaye iya kuba ngolu hlobo lulandelayo.

Into	Inkcazo
Uhlobo lweFayibha	Imowudi enye
Izinto zeFayibha	I-silica edibeneyo
I-coefficient yokunciphisa @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Ikhebula esikiweyo ubude bobude	≤ 1260 nm
Ubude obungange-dispersion waveleng	1300 ~ 1324 nm
Ithambeka le-Zero-dispersion	≤ 0.092 ps/(nm².km)
PMD @ 1550 nm	≤0.1 ps/km^1/2
Ukusasazwa kweChromatic @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Imowudi yentsimi yedayamitha @ 1310 nm	8.8±0.4um
Undoqo / impazamo yokujonga izinto	≤ 0.5 um
Idayamitha yokugquma	125.0 ± 0.7 um
Ukugquma okungeyo-circularity	≤5%
Idayamitha yokuqala yokwaleka	242 ± 7 um
Concentricity Primary Coating / Coating	≤10µm
Ukwaleka non-setyhula	≤0.7%
Ukuthomalalisa ngeCable egoba Ilahleko I-1 ijike i-1 radius 10mm I-10 ijika i-1 ireyidi eyi-15mm	1550nm ≤Δ0.75dB/km 1625nm ≤Δ1.5dB/km 1550nm ≤Δ0.25dB/km 1625nm ≤Δ1.0dB/km
