I-6 Channel Consect Cwwm (CCWDM)

IiparamithaIsimboliIntsebenzoIyunithiI-Wavelength yoluhluWr1260 ~ 1620nmI-Channel Centre wavelengthCwI-1271 ~ 1371 & 1371 ~ 1271 (Mux & deux)I-1471 ~ 1571 & 1571 ~ 1471 (MUX & DEMUX)nmIsithuba seSitishiSp20nmI-Bandwidth Patwidth @ -1dbPbI-LC ± 6.5nmI-Passband RippleI-0.5dbUkufak......

Thumela uMbuzo

Ingcaciso yeMveliso

Iiparamitha	Isimboli	Intsebenzo	Iyunithi
I-Wavelength yoluhlu	Wr	1260 ~ 1620	nm
I-Channel Centre wavelength	Cw	I-1271 ~ 1371 & 1371 ~ 1271 (Mux & deux) I-1471 ~ 1571 & 1571 ~ 1471 (MUX & DEMUX)	nm
Isithuba seSitishi	Sp	20	nm
I-Bandwidth Patwidth @ -1db	Pb	I-LC ± 6.5	nm
I-Passband Ripple		I-0.5	db
Ukufakwa kwelahleko	Il	Isitishi sokuqala: ≤0.50	db
Ukufakwa kwelahleko	Il	Isitishi sokugqibela: ≤1.80	db
Indawo yokubekwa ecaleni kwendawo	Enkulu	≥ 30	db
I-On-Sheation yoKhetho	ILAYITILE	40	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤ 0.15	db
Buyisela ilahleko	Rl	≥ 55	db
Ngqondo	Dir	≥ 50	db
Ukusasazeka kwemozulu	Pmd	≤ 0.1	db
Amandla okuphuma	P	≤ 300	mw
Iqondo lokusebenza	Phezulu	-2 ~ +70	℃
Iqondo lokugcina	I-tsp	-40 ~ +85	℃
Uhlobo lweFiber		Corning smf-28ltra fiber (G657 A1), i-fiber ye-fiber
Ubude befibeber		≥1.2	m
Ubukhulu bephakeji	Pkg	I-44X28X6X6X6X6X6X6X6X6X6X6X6X6X6X6X6X6X6X6x6	mm

Qaphela: 1. Yonke into echaziweyo ngaphandle kwe-quadries.

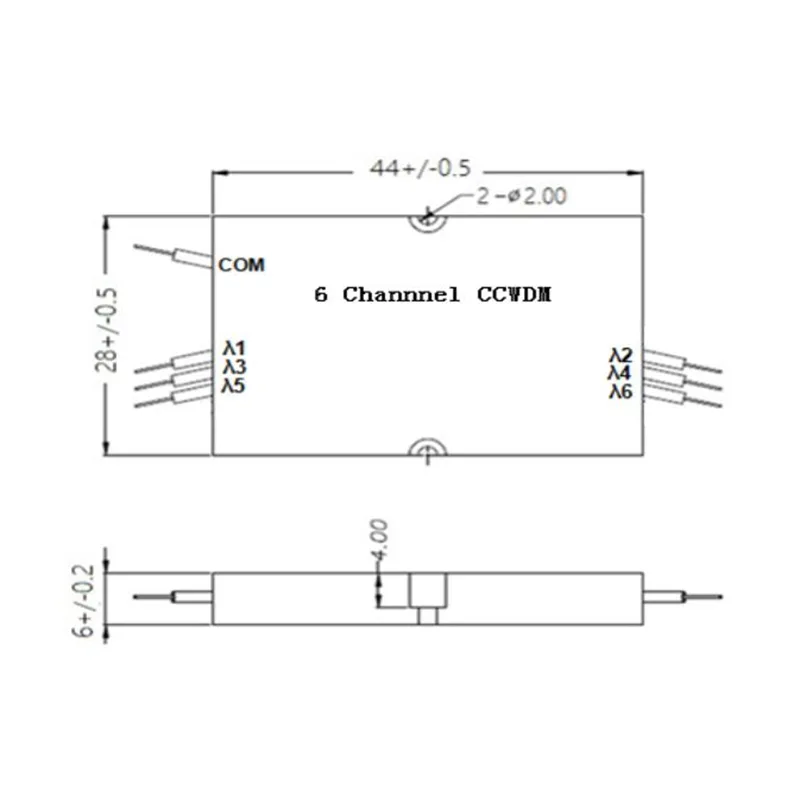

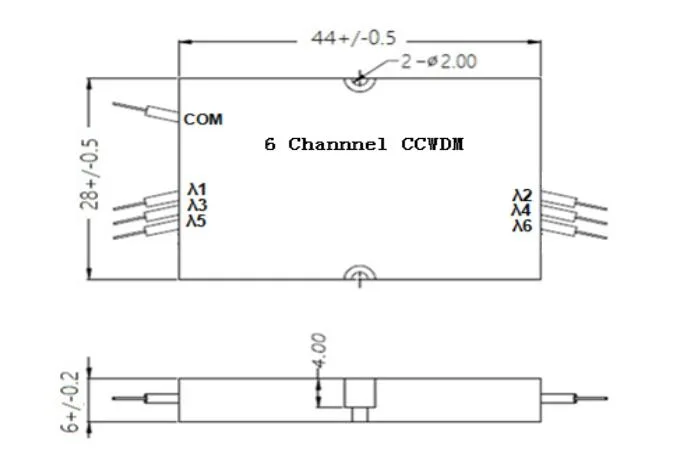

Umzobo woomatshini (iyunithi: mm)

6 Channel Compact CWDM (CCWDM)
