Itshaneli yeCDD ye-CWDM ye-CWDM (1x2)

IiparamithaIsimboliIntsebenzoIyunithiI-Wavelength yoluhluWr1260 ~ 1620nmI-Channel Centre wavelengthCwI-1271,1291,1311, 1331, 1351,1371I-1471,1491,1511, 1531, 1551,1571nmIsithuba seSitishiSp20nmI-Bandwidth Patwidth @ -1dbPbI-LC ± 6.5nmUkufakwa kwelahlekoIlI-Passband: ≤0.40dbUkucingisisa: ≤0.40db......

Thumela uMbuzo

Ingcaciso yeMveliso

Iiparamitha	Isimboli	Intsebenzo	Iyunithi
I-Wavelength yoluhlu	Wr	1260 ~ 1620	nm
I-Channel Centre wavelength	Cw	I-1271,1291,1311, 1331, 1351,1371 I-1471,1491,1511, 1531, 1551,1571	nm
Isithuba seSitishi	Sp	20	nm
I-Bandwidth Patwidth @ -1db	Pb	I-LC ± 6.5	nm
Ukufakwa kwelahleko	Il	I-Passband: ≤0.40	db
Ukufakwa kwelahleko	Il	Ukucingisisa: ≤0.40	db
Indawo yokubekwa ecaleni kwendawo	Enkulu	≥ 30	db
I-On-Sheation yoKhetho	ILAYITILE	40	db
Ukucingisisa indawo yodwa	Isor	≥ 13	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤ 0.1	db
Buyisela ilahleko	Rl	≥ 50	db
Ngqondo	Dir	≥ 50	db
Ukusasazeka kwemozulu	Pmd	≤ 0.1	db
Amandla okuphuma	P	≤ 300	mw
Iqondo lokusebenza	Phezulu	-2 ~ +70	℃
Iqondo lokugcina	I-tsp	-40 ~ +85	℃
Uhlobo lweFiber		Corning smf-28 i-iltra ye-iltra ye-iltra (G657 A1), i-fiber ye-fiber
Ubude befibeber		≥1.2	m
Ubukhulu bephakeji	Pkg	Φ4.0 × 30 Φ5.5 × 35 okanye φ5.5 × 38	mm

Qaphela: 1. Yonke into echaziweyo ngaphandle kwe-quadries.

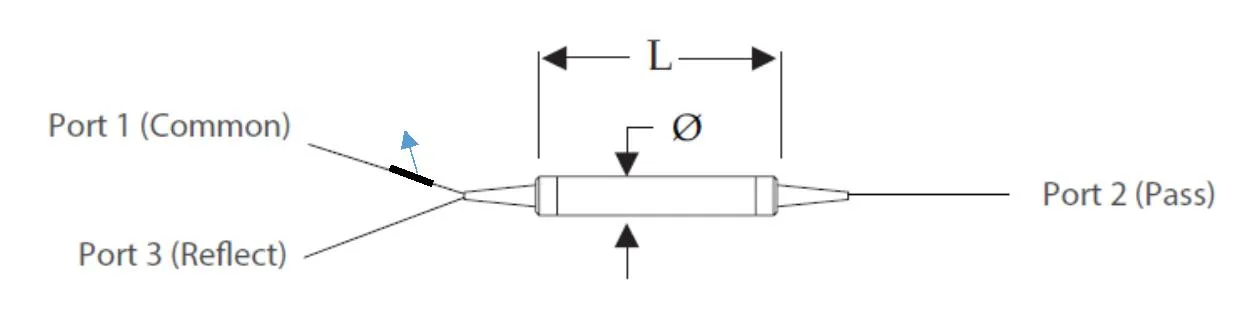

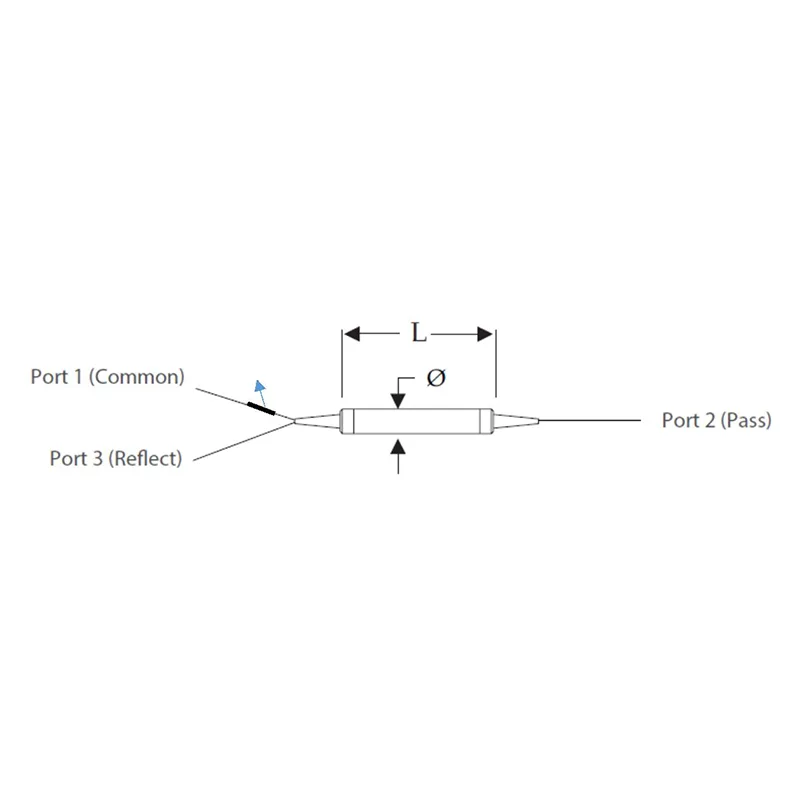

Umzobo woomatshini (iyunithi: mm)

Single Channel CWDM Series (1x2)
