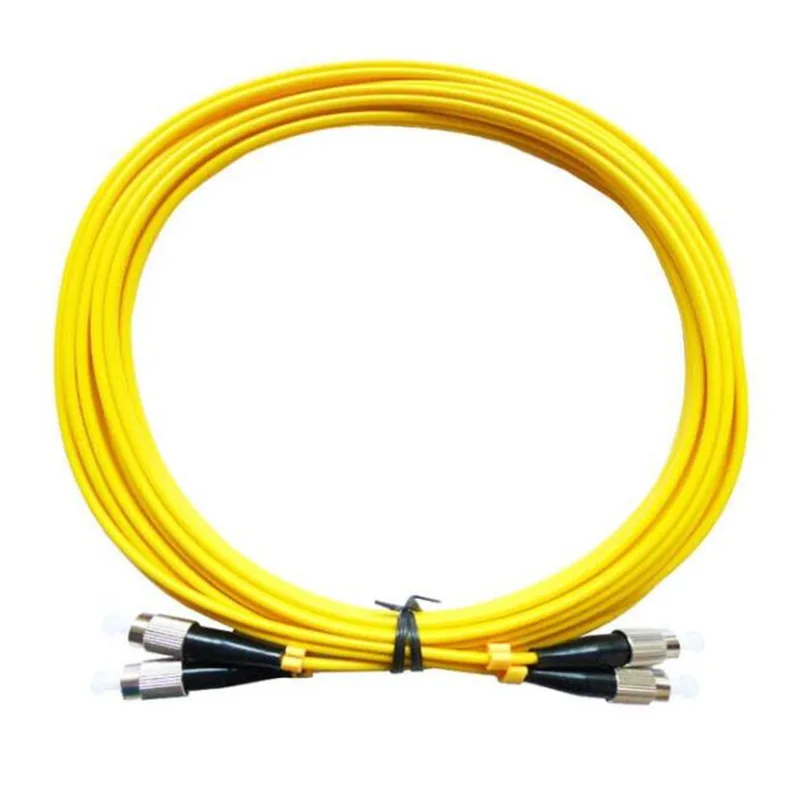

I-duppex fc / i-upc-fc / i-upc 3.0mm patch cords

Isicelo:● Amaziko eDatha● Ukusetyenziswa kwe-Ethernet● Izicelo zeSteyiti● I-BackBone, iPhezulu kwaye iphakame isebenza● Ividiyo, idatha kunye neenkonzo zelizwi● Izicelo zokuvavanyaIimbonakalo:● Isinxibelelanisi sokuchaneka● I-PEC SEP PRIST● Ubude obuhleweyo bufumaneka● I-100% yomzi-mveliso iphela kw......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Amaziko eDatha

● Ukusetyenziswa kwe-Ethernet

● Izicelo zeSteyiti

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Ividiyo, idatha kunye neenkonzo zelizwi

● Izicelo zokuvavanya

Iimbonakalo:

● Isinxibelelanisi sokuchaneka

● I-PEC SEP PRIST

● Ubude obuhleweyo bufumaneka

● I-100% yomzi-mveliso iphela kwaye ihlolwe

● I-rohs iyahambelana

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		I-duppex
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.25
Buyisela ilahleko	db	≥50 (i-upc)
Buffer fiber diameter	Nye	I-900
I-Buffer fiber umbala		Mhlophe kunye nohlaza okwesibhakabhaka
Umbala wentambo yentambo		Lubhelu
Ububanzi be-leble	mm	6.0 ± 0.2 x 3.0 ± 0.15
Ubude	m	I-0.5 + 0.1 / 0 1.0 + 0.1 / 0 2.0 + 0.2 /0 5.0 + 0.3 /0
Uhlobo lomnxibelelanisi		I-Port: FC / i-OPC (emnyama) B port: fc / upc (emnyama)
Ipolishi yokuphela		I-upc
Izinto ze-Ferrule		I-ceramic
Ukuphindaphinda ukuphindaphinda		> Amaxesha angama-800
Imowudi ye-fiber		Imowudi enye: itu-t g652D
I-jable yentambo		Umsi ophantsi we-zero halogn (lszh)
Ubuncinci be-radius	mm	≥40
I-fiber / yokugcinwa kwentambo	N	I-50n ± 2n kwi-5n / s i-120s ixesha
I-polay		A-B, B-A (tia-568.3-D)
Iqondo lokusebenza		-2 ° C ~ + 70 ℃
Iqondo lokugcina		-40 ℃ ~ + 85 ℃

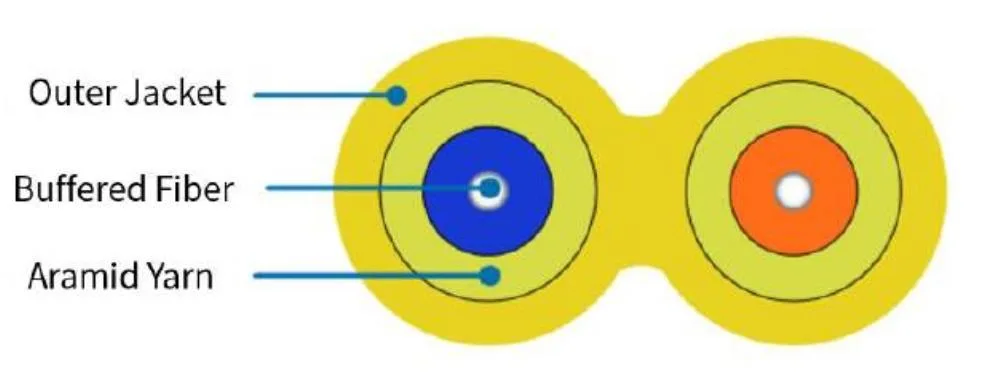

Ulwakhiwo lwentambo:

Duplex FC/UPC-FC/UPC Patch Cords

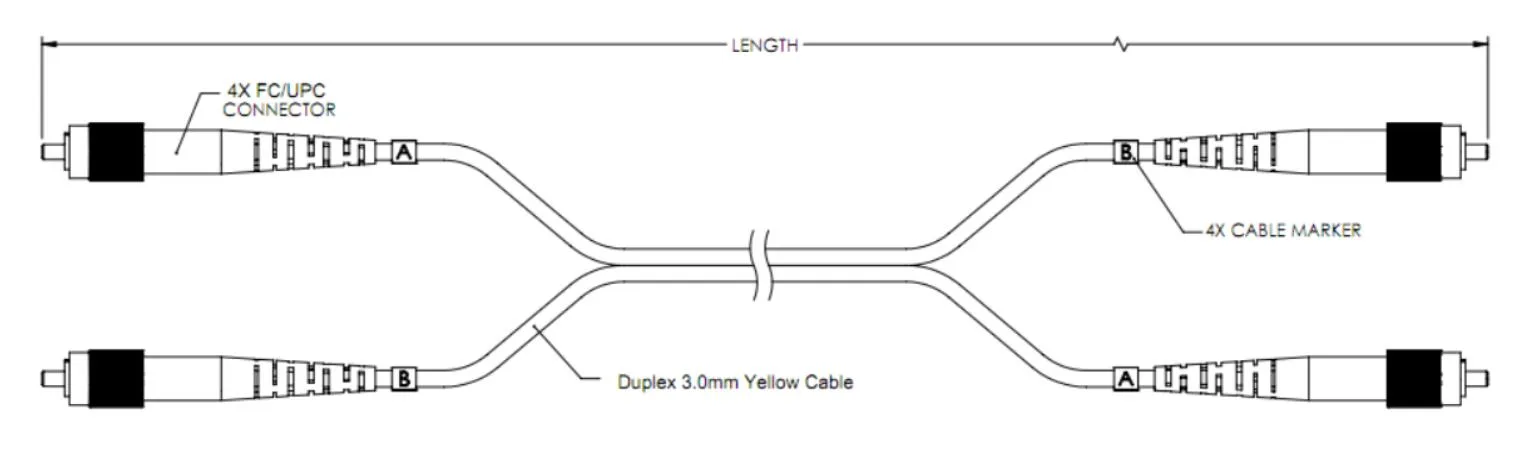

Umzobo wobungakanani:

Duplex FC/UPC-FC/UPC Patch Cords

Iithegi ezishushu: I-duppex fc / i-upc-fc / i-upc 3.0mm patch cords
