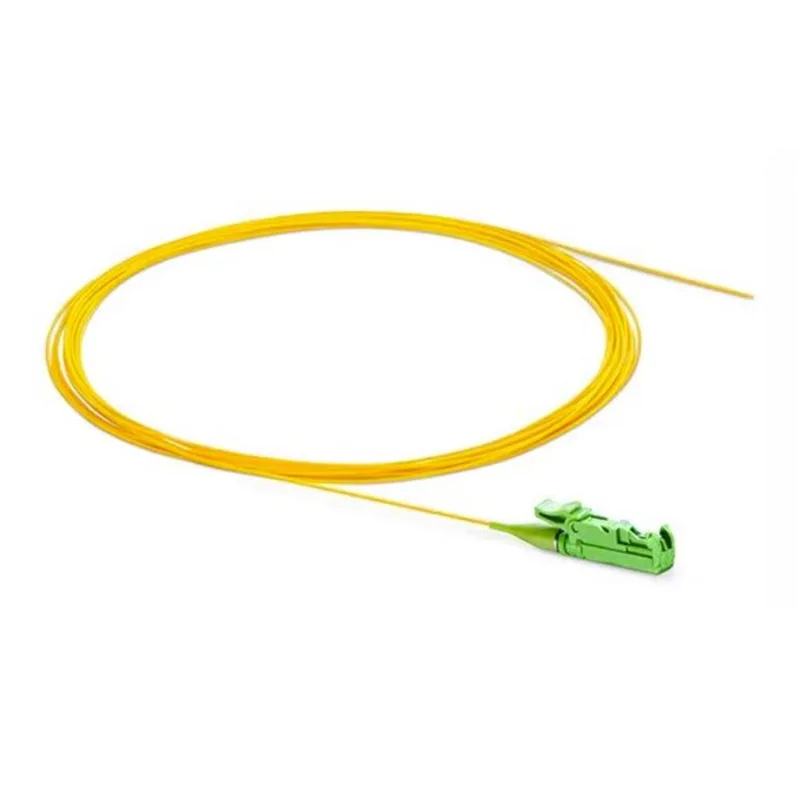

I-E2000 / APC 0.9mm ye-fiber fiber pigtail

Iimbonakalo:● Ifumaneka nge-900um irefwe kwaye i-20, i-3.0mm fibers● Ukuguquguquka kakhulu ekuhambeni● Isinxibelelanisi sokuchaneka● I-EPC APC SEP PRIST● I-LC, i-MU, SC, FC, i-ST, E2000, sonke isinxibelelanisi seFiber esinye● Ubude obuhleweyo bufumaneka● I-100% yomzi-mveliso iphela kwaye ihlolwe● I-......

Thumela uMbuzo

Ingcaciso yeMveliso

Iimbonakalo:

● Ifumaneka nge-900um irefwe kwaye i-20, i-3.0mm fibers

● Ukuguquguquka kakhulu ekuhambeni

● Isinxibelelanisi sokuchaneka

● I-EPC APC SEP PRIST

● I-LC, i-MU, SC, FC, i-ST, E2000, sonke isinxibelelanisi seFiber esinye

● Ubude obuhleweyo bufumaneka

● I-100% yomzi-mveliso iphela kwaye ihlolwe

● I-rohs iyahambelana

Izicelo:

● Ukuphumla kwe-headend ukuya kwi-fiber "i-backbone"

● Ukupheliswa kweenkqubo ze-fiber rack

● Ukuhanjiswa kwamanqanaba amaninzi apho khetha i-fibers isetyenziswa kumgangatho ngamnye

● I-Intranga ye "Ukubuyela umva"

● Iinkqubo zeZiko leDatha

Inkcazo ngokubanzi:

Ukwakha	Iinkcazo	Iyunithi
I-fiber ibala	1f
Imowudi ye-fiber	Imowudi enye: G.652D
Umbala wefibre (250um)	Kucace
Wavelength	1310/1550	nm
Ukufakwa kwelahleko	≤0.30	db
Buyisela ilahleko	≥55	db
I-jable yentambo	I-lszh (ye-semi-tightred)
Umbala wentambo yentambo	Mhlophe
Uhlobo lwe-fiber tube	Ilulaxx
I-fiber tube dia. (Mm)	Φ0.9	mm
Ubude beFibber * 1	I-0.6 + 0.1 / 0	m
Uhlobo lomnxibelelanisi	I-E2000 / APC (iluhlaza)
Ferrule	I-Zircocia Ceramic
Iqondo lokusebenza	-25 ~ + 65	℃
Iqondo lokugcina	-25 ~ + 65	℃

Qaphela: Ubude bobude bungafaki nxibelelwano.

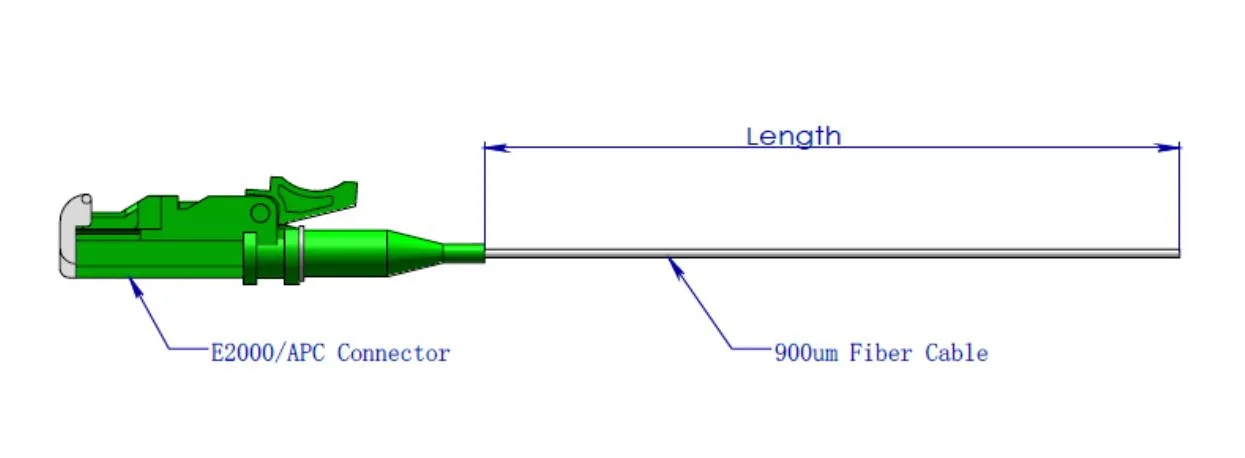

Umzobo wesksimko:

E2000/APC Optical Fiber Pigtail

Iithegi ezishushu: I-E2000 / APC 0.9mm ye-fiber fiber pigtail
