Ingcaciso yeMveliso

1. Ngokubanzi

1.1 Inkcazo

Izixhobo zisetyenziswa njengendawo yokuphela kwendawo yekhephu yehlelo ukunxibelelana ne-onurd yangaphakathi yendlu ye-FTTX yoNxibelelwano lweNethiwekhi yoNxibelelwano lweNethiwekhi. I-fiber i-fiber ingenziwa kule bhokisi, kwaye inika ukhuseleko oluqinileyo nolawulo lwesakhiwo senethiwekhi yeFTTX.

Uhlobo lwemveliso	Ukwahlulahlula
I-GFS-1F	I-fiber optic proble ye-ternel ternel

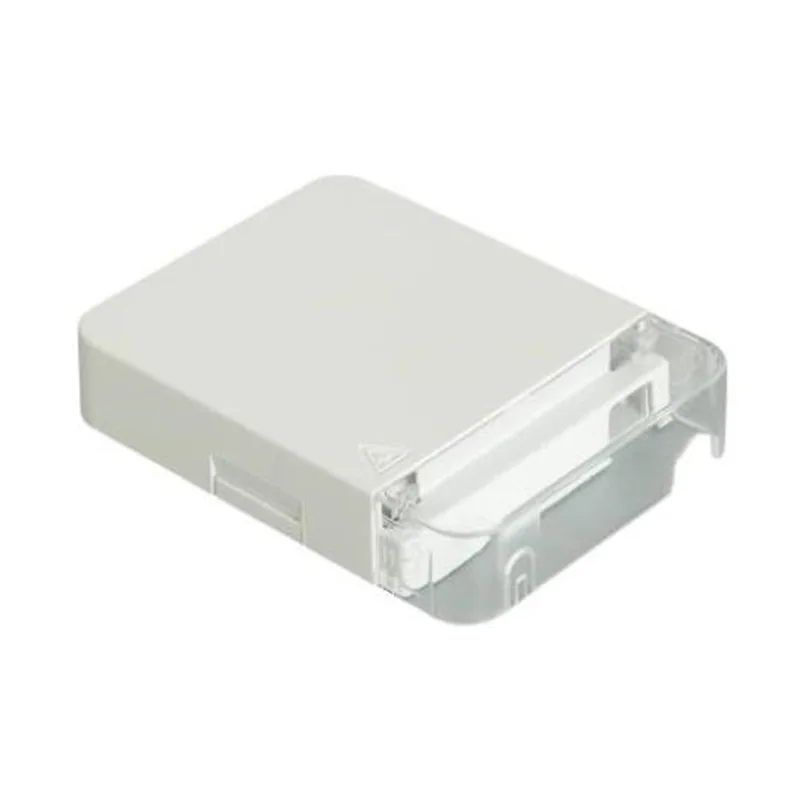

Imbonakalo ye-GFS-1F

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

IEC61300-2	I-fiber optic uqhagamshelo lwe-piber optic Izixhobo kunye nezinto ezihambayo-zovavanyo olusisiseko kunye neenkqubo zokulinganisa
IEC60068-2	IINKQUBO ZOKUVAVANYA KWIMveliso yoMbane kunye ne-Elektroniki

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 60 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-45ºC ~ + 65 ºc

2. Iimpawu

1. Isetyenziselwa indawo yomsebenzi wosapho, gqibezela ukufikelela kwe-fiber enye okanye i-fiber ye-fiber ye-fiber kunye nemveliso, inokuhlangabezana ngokupheleleyo neemfuno zokugoba i-fiber, kwaye ukhusele ukufikelela kwi-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fible, ukubonelela ngokhuseleko lwe-fiber.

2. Ukufakwa ngokulula, ukusebenza kakuhle kunye nokugcinwa.

I-3. Ngokweemfuno zabathengi zinokuprintwa.

4. Yenziwe nge-Abs + PC esemgangathweni esemgangathweni weplastiki esemgangathweni.

5. Ungafaka i-sc disapter.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Into	Inkcazo	Intetho
Ubungakanani bangaphandle (mm)	I-115 * 86 * 23
Umbala	Mhlophe
Inani lezibuko elingenelelayo	3
Ububanzi be-fiber ye-fible yezibuko le-Imputer (MM)	Φ2 ~ ~3, 2 * 3
Umthamo (uMax)	I-2 cores
Inqanaba lokukhusela i-IP	IP20
Ukuvutha	Il94-HB	Inokwenziwa ngokwezifiso ngokweemfuno.

Fiber Optic Cable Access Terminal Panel GFS-1F

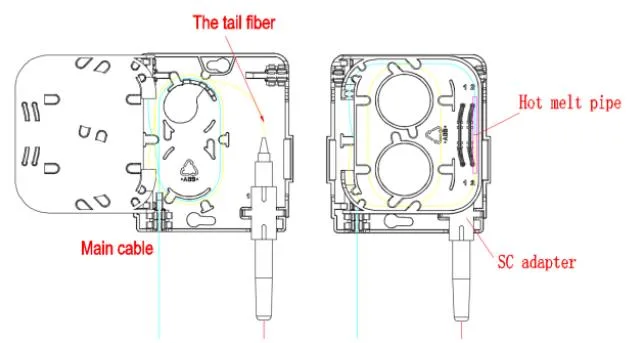

I-GFS-1F Imephu ye-GFS-1F

3.2 Inkcazo ye-Optical

Into	Indlela yovavanyo	Ukucaciswa
Ukufakwa kwelahleko (i-DB)	IEC61300-4-4-4 - Indlela B	Ithetha ukuthi-0.1db, ubuninzi
Ilahleko yelahleko (DB)	IEC61300-3-6-Indlela 1	I-APC≥60DB, UPC≥50DLB
Unxibelelwano olungacwangciswanga	IEC61300-4-4-4-4-4	Ithetha ukuthi
Ukuphindaphinda	IEC 61300-2-2 Imijikelezo engama-500	Ngexesha lovavanyo umahluko phakathi komlinganiso wokuqala kunye nomlinganiso ngamnye emva komjikelo omnye kufuneka ungabi ngaphantsi kwe-0.20 DB, kwaye kufuneka ucocwe ngenye indlela, ngomda wokucoca ama-25

3.3. Ukufakwa kweWall

Drill imingxunya emi-2 eludongeni ngokobungakanani kwiTheyibhile 2, Beka iplagi yokwanda kweplagi

Fiber Optic Cable Access Terminal Panel GFS-1F

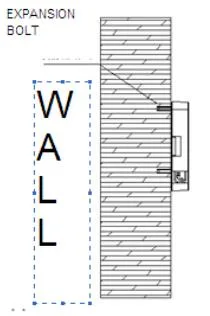

I-Pic.5 kufakelwe ufakelo lwe-Wall

4. Isimo

4.1 Icandelo lokuFikelela

Igama lenxalenye	Iyunithi	Ubungakanani	Phawula
Izikrelem kunye neeplagi zerabha	seta	2	I-M4 * 25 I-FIPIP SCRCW, φ6 * 30 Iplagi yerabha
Ubushushu buncitshise umkhono okhuselayo	IiPC	1	L = 45mm

5.Cackage

Ibhokisi esemgangathweni ePhezulu yeCorrugan, i-520 * 360 * 39mm, 200 kwi-TARON, malunga ne-19,5kg.

Iithegi ezishushu: I-fiber optic ye-piber teble ternel ternel ye-GFS-1F
