iFlethi yeFayibha iribhoni yeFiber Optic Cable

Kumhlaba oguqukayo okhawulezayo wothumelo lwedatha enoxinaniso oluphezulu, iFlat Fiber Ribbon Fiber Optic Cable ngumthengisi we-Orientalfiber umi njengesisombululo esibalulekileyo kuyilo lwenethiwekhi yanamhlanje. Yenziwe nguJiangsu Xuben Photoelectric Technology Co., Ltd, le ntambo yenzelwe ukunyusa ukusebenza kakuhle kwendawo kwiindlela ezixineneyo kunye namaziko edatha. Ngokusebenzisa ulwakhiwo lweribhoni oluchanekileyo olulungelelanisiweyo, luvumela ukubalwa kwefiber ephezulu ngaphakathi kweprofayili ehlangeneyo, iqinisekisa ukuba abaqhubi bezonxibelelwano ngefowuni kunye namashishini amashishini anokulinganisa umda wabo ngaphandle kokwandisa iziseko ezingundoqo.

Thumela uMbuzo

Ingcaciso yeMveliso

Inkcazo yeMveliso kunye neNkcazo yoBugcisa

I-Flat Fiber Ribbon Fiber Optic Cable yi-high-density optical transmission medium apho iintsinga ezininzi zidityaniswe kunye kumqolo osicaba, olungelelanisiweyo. Lo ngundoqo weribhoni ukhuselwe ngumaleko we-premium aramid yarn, esebenza njengeyunithi eqiniswe ngamandla ukubonelela amandla afunekayo okunyamezela ukufakela kunye nokusebenza kwexesha elide. Ukuhlangabezana neentlobo ezahlukeneyo zokhuseleko kunye neemfuno zokusingqongileyo, intambo igqitywe nge-sheath yangaphandle eyomeleleyo eyenziwe nge-Polyvinyl Chloride (PVC) okanye i-Low-Smoke Zero-Halogen (LSZH) impahla.

Iimpawu eziphambili kunye nezinto eziluncedo ezingundoqo

Uyilo oluDityanisiweyo oluPhezulu lweRibhoni: Ijiyometri ecaba ilungelelanisa iintsinga zibe ngamaqela, ivumela idiameter yentambo encinci kakhulu xa kuthelekiswa nolungelelwaniso lwesiqhelo lombhobho.

Ukuqiniswa kwe-Aramid: Ukubandakanywa kwentambo ye-aramid ephezulu ye-modulus inikezela i-Flat Fiber Ribbon Fiber Optic Cable ngamandla afunekayo ekutsaleni okuthe nkqo kunye nokuthe tye ngaphandle kokubeka ingozi kwiintsimbi zeglasi.

Ukomelela kokusiNgqongileyo: Ibhatyi yangaphandle yenziwe ukuba ikwazi ukumelana nomhlwa, ingangenwa ngamanzi, kwaye ikwazi ukumelana ne-UV, iqinisekisa ukusebenza okuzinzileyo kwiindawo ezahlukeneyo zangaphakathi nezikhuselweyo ngaphandle.

Ukuthotyelwa koKhuseleko: Ngeenketho zejacket ze-LSZH, intambo idibana nemigangatho ye-flame-retardant yamazwe ngamazwe (IEC 60332-1 okanye i-IEC 60332-3C), eyenza ifaneleke kwizakhiwo eziphezulu kunye neenkqubo zokuhamba.

IiNgcaciso zobuGcisa

Uhlobo lweFiber: Iyahambelana ne-Single-mode (G.652D, G.657A) kunye ne-Multimode (OM1 ukuya kwi-OM4) iifayili.

IYunithi yokuQinisa: Imisonto emininzi yeAramid.

Izinto ze-Outer Sheath: I-PVC (idibana ne-UL OFNR / i-OFNP iimfuno) okanye i-LSZH (i-Low-Smoke, i-Halogen-Free).

IMigangatho yeMishini: Ihambelana ngokupheleleyo neYD / T 1258.5, ICEA-596, GR-409, kunye ne-IEC 60794-2-30.

Uluhlu lobushushu: Yenzelwe ukusebenza okuthembekileyo kumaqondo obushushu obume bonxibelelwano ngocingo.

Iinkalo ezahlukeneyo zeSicelo

Ukuguquguquka kweFlat Fiber Ribbon Fiber Optic Cable iyenza ibe lolona khetho lukhethwayo kumashishini amaninzi:

Amaziko eeNkcukacha: Akulungele ukudibanisa ii-racks ze-server eziphakamileyo zisebenzisa i-MPO / MTP iteknoloji yokuphelisa.

Ukusasazwa kwangaphakathi: Isetyenziselwa ukwenza i-backbone cabling kwizakhiwo zeeofisi zorhwebo kunye neeofisi zotshintshiselwano oluphakathi.

Izixhobo zoNxibelelwano: Isebenza njengolona nxibelelwano luphambili phakathi kwezixhobo ezichanekileyo kunye nehardware yenethiwekhi.

IiNkqubo zezoShishino: Ibonelela ngamakhonkco edatha athembekileyo kwiigridi zamandla ombane, ukujongwa kohambo lukaloliwe, kunye neenkqubo zonxibelelwano lweendlela.

Amandla okuVelisa: Jiangsu Xuben Photoelectric Technology Co., Ltd

Umgangatho we-Flat Fiber Ribbon Fiber Optic Cable ixhaswa ngumlinganiselo wezoshishino kunye nobuchule bobugcisa be-Jiangsu Xuben Photoelectric Technology Co., Ltd.

Iziseko zophuhliso: Eli qela lisebenza kwiifektri ezine ezikhethekileyo kuwo wonke ummandla we-15,000 square metres.

Ixabiso leMveliso: Ngexabiso lemveliso yonyaka ye-20 yezigidi zeedola zaseMelika, inkampani igcina amandla okubonelela ngeeprojekthi zobunjineli zehlabathi ezinkulu.

Ulawulo loMgangatho: Eli ziko lifumene i-ISO9001 kunye ne-ISO45001 isatifikethi, siqinisekisa ukuba yonke imitha yentambo ibambelela kweyona mimoya iphezulu yobugcisa.

Udumo lwehlabathi jikelele: Iimveliso ze-Orientalfiber zisetyenziswa ngabaqhubi be-telecom kunye neenkokeli zemizi-mveliso kwihlabathi liphela, zamkelwa ukwenziwa kwazo okusulungekileyo kunye nokungaguquguquki kobuchwephesha.

Izinto eziluncedo ngaphezu kweeNdlela ezizezinye ezisemgangathweni

Xa kuthelekiswa noyilo lwefiber yemveli, isisombululo seribhoni ye-Orientalfiber siyabonelela:

I-Mass Splicing Efficiency: Iingcali ziyakwazi ukudibanisa ii-fibers ze-12 ngaxeshanye, zinciphisa kakhulu iindleko zokufakela.

I-Airflow engcono: I-compact, i-flat profile ye-Flat Fiber Ribbon Fiber Optic Cable ivumela umoya ongcono kwiitreyi zentambo kunye neekhabhinethi zeseva.

Ukhuseleko oluthembekileyo: Ngokungafaniyo nolunye uhlahlo lwabiwo-mali, ukusebenzisa kwethu i-aramid yodidi oluphezulu iqinisekisa ukuba intambo ayihexi okanye yolule ngokuhamba kwexesha kwizicelo zokunyuka ezithe nkqo.

Iimpawu

Uyilo lweribhoni yefayibha edityanisiweyo ephezulu

Into yokuqinisa i-Aramid inika intambo amandla agqwesileyo okuqina

Izinto zangaphandle azikwazi ku-corrosion, zingenwa ngamanzi, ziyakwazi ukumelana ne-UV, azikwazi ukumelana nedangatye kwaye zinobuhlobo nokusingqongileyo.

Usetyenziso

Ukuhanjiswa kwentambo zangaphakathi

Uqhagamshelwano phakathi kwezixhobo, izixhobo zonxibelelwano

I-Patchcord kunye ne-pigtail

Imigangatho

Ukuthobela i-Standard YD / T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, njl., kunye nentambo ye-PVC ihlangabezana neemfuno ze-UL yokuvunywa kwe-OFNR kunye ne-OFNP: Ijacket ye-LSZH eyahlukileyo idibana ne-IEC 60332-1or IEC 60332-IEC 60332.

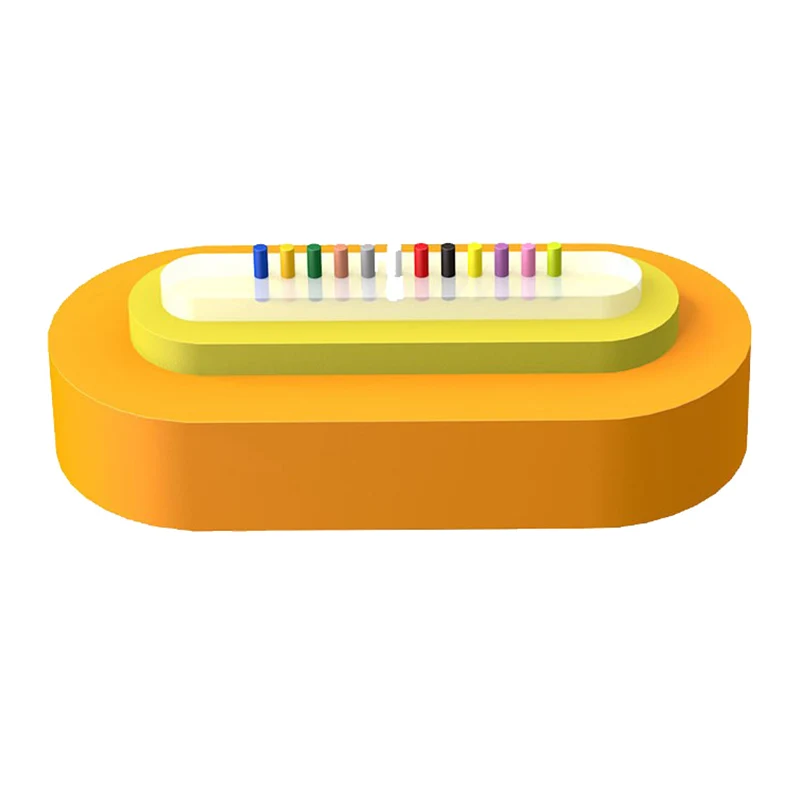

Umzobo wesakhiwo

1. Ifayibha

2. IRibhoni yeFayibha

3. Umsonto weAramid

4. Ibhatyi

Flat Fiber Ribbon Fiber Optic Cable

IiParameters zobuGcisa

Imodeli yeCable	Ukubalwa kweFayibha	Ubunzima beCable (Ref) (kg/km)	Tensile strength Ixesha elide/elifutshane	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
4	(3.7±0.3)*(2.3±0.3)	4 IRibhoni yeFayibha	4.7	6.6	80/150	300/1000	25D/12.5D
6	(4.2±0.4)*(2.5±0.2)	6 IRibhoni yeFayibha	5.1	7.3
12	(4.8±034)*(2.3±0.3)	12 IRibhoni yeFayibha	5.9	8.0

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukuthotywa				OFL	Uluhlu lwendlela esebenzayo	I-10 Gbit/s Ethernet Ubude bekhonkco	Ubuncinci Bend Radius
Imeko	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Imeko	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Ezothutho/ UGcino/Ubushushu bokusebenza: -20℃-+60℃, Ubushushu boFakelo: -5℃-+50℃

Flat Fiber Ribbon Fiber Optic Cable

Iithegi ezishushu: iFlethi yeFayibha iribhoni yeFiber Optic Cable
