IRibhoni yangaphakathi yeRibhoni yeFiber Optic Cable

I-Orientalfiber ibonelela nge-Indoor Ribbon Fiber Optic Cable ekumgangatho ophezulu njengesisombululo esipheleleyo se-fiber optic network. Le ntambo ithatha i-fiber optic ribbon njengendlela yokuhambisa, ebonisa ukuhlanganiswa okuphezulu, ukuhanjiswa kwesignali okuzinzileyo, kunye nokufakwa lula. Isetyenziswa ngokubanzi kunikezelo lwangaphakathi, uqhagamshelo lwezixhobo, kunye neenkqubo zonxibelelwano.

Thumela uMbuzo

Ingcaciso yeMveliso

IRibhoni yangaphakathi yeRibhoni yeFiber Optic Cable isebenzisa iribhoni yefiber optic njengendawo yokuhambisa i-optical transmission. Iribhoni yefiber optic ifakwe kwityhubhu ekhululekileyo eyenziwe ngezinto eziphezulu zemodulus kwaye emva koko igqunywe ngomaleko we-aramid yokuqinisa. Umaleko ongaphandle ukhutshelwe ngepolyvinyl chloride (PVC) sheath. Olu yilo lwesakhiwo luqinisekisa ukusebenza okuthembekileyo kunye nokusebenza kakuhle kwiindawo zangaphakathi.

Ezona mpawu

Uyilo lweribhoni yefayibha edityanisiweyo ephezuluIsakhiwo se-fiber ribhoni senza ukuba i-fiber density high in a compact form, lula ulawulo kunye nokufakwa. Ixhasa uxhulumaniso olusebenzayo kunye nezixhumi zeMT / MTP, ezifanelekileyo kwimiba yocingo oluphezulu.

Amandla okuqina agqwesileyo Ukuxhotyiswa nge-aramid yokuqinisa, ikhebula linika ukuxhathisa okuqinileyo kokumelana namandla angaphandle ngexesha lokwakhiwa kunye nokusetyenziswa, ukuqinisekisa ukuzinza komqondiso.
Izinto zangaphandle ezihlala ixesha elide I-sheath yangaphandle ayinyibiliki, ayinamanzi, ayinyangeki kwi-UV, ayingenwa ngumlilo, kwaye ihambelana nokusingqongileyo. Ihlangabezana neemfuno zokhuseleko lwangaphakathi kwaye iqhelana neendawo ezahlukeneyo zokusebenza.
Ukufakela okulula kunye nokugcinwa Intambo iguquguquka ngokusebenza kakuhle kokugoba, kulula ukuhamba kwiindawo ezimxinwa ezifana neetreyi zentambo kunye nee-conduits. Ayifuni igrisi yokuthambisa, ukuququzelela ukwakhiwa ngokukhawuleza kunye nokudibanisa.

IiNgcaciso zobuGcisa

Ipharamitha	Inkcazo
Uhlobo lweFayibha	Imowudi enye (G.652D/G.657A1) / Iimowudi ezininzi (50/125μm, 62.5/125μm)
Ukubala okungundoqo	4, 6, 8, 12, 24 cores (customizable)
Ulwakhiwo lweCable	I-Ribbon fiber kwityhubhu ekhululekile + ukuqinisa i-aramid + i-PVC sheath
Ububanzi bangaphandle	Ukwenziwa ngokwezifiso (ngokuqhelekileyo 3.0–6.0mm)
Ukuthotywa	≤0.36 dB / km kwi-1310nm; ≤0.22 dB/km kwi-1550nm (imowudi enye)
Tensile strength	Ixesha elifutshane: ≥1500N; Ixesha elide: ≥600N
Ukugoba iRadiyosi	I-Static: ≥10× ububanzi bentambo; Dynamic: ≥20× intambo ububanzi
Ubushushu bokusebenza	-20°C ukuya +60°C
Sheath Material	I-PVC (umsi ophantsi we-halogen-free ukukhetha)
Ukuthobela	ISO9001, IEC 60794-1-21, TIA/EIA-598-B

Usetyenziso

Ukuhanjiswa kwentambo zangaphakathi Isetyenziswa kumaziko edatha, kwizakhiwo zeofisi, kudederhu lweevenkile, kunye neendawo zokuhlala kwiingcingo ezithe tyaba kunye nezithe nkqo, ukuqinisekisa ukuhanjiswa komqondiso ngokufanelekileyo ngaphakathi kuthungelwano.
Uqhagamshelwano phakathi kwezixhobo kunye nezixhobo zonxibelelwano Isebenza njengeentambo ze-patch okanye i-jumper cables zokudibanisa iiseva, iiswitshi, ii-routers, kunye nezinye izixhobo zonxibelelwano, ukubonelela ngedatha ezinzileyo kunye nesantya esiphezulu.
Imizi-mveliso kunye neemeko ezizodwa Ukusetyenziswa kwiinkqubo zamandla, ukuhamba ngololiwe, kunye nobunjineli bendlela enkulu kwiimfuno zoqhagamshelo lwangaphambili, ukuziqhelanisa nemekobume yeshishini elibukhali kunye nokusebenza okuthembekileyo.

Iingenelo

Ukuthembeka okuphezulu Isakhiwo esilungisiweyo kunye nezinto ezikumgangatho ophezulu ziqinisekisa ukuhanjiswa komqondiso ozinzile kunye nobomi benkonzo ende, ukuhlangabezana neemfuno ezingqongqo zeeprojekthi ezahlukeneyo.
Isebenza kakuhle emalini Ukuhlanganiswa okuphezulu kunciphisa inani leentambo kunye nexesha lokufakela, ukunciphisa iindleko zeprojekthi jikelele. Iimpawu ezilungelelanisiweyo zivumela izisombululo ezilungiselelwe usetyenziso oluhlukeneyo.
Ulawulo lomgangatho olubanzi Jiangsu Xuben Photoelectric Technology Co., Ltd. ilandela ngokungqongqo imigangatho yolawulo lomgangatho ISO9001. I-Indoor Ribbon Fiber Optic Cable ivavanywa ngamandla ukuqinisekisa ukusebenza okufanayo kunye nokuthembeka.

Iimpawu

Uyilo lweribhoni yefayibha edityanisiweyo ephezulu

Into yokuqinisa i-Aramid inika intambo amandla agqwesileyo okuqina

Izinto zangaphandle azikwazi ku-corrosion, zingenwa ngamanzi, ziyakwazi ukumelana ne-UV, azikwazi ukumelana nedangatye kwaye zinobuhlobo nokusingqongileyo.

Usetyenziso

Ukuhanjiswa kwentambo zangaphakathi

Uqhagamshelwano phakathi kwezixhobo, izixhobo zonxibelelwano

Imigangatho

Ukuthobela i-Standard YD / T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, njl.

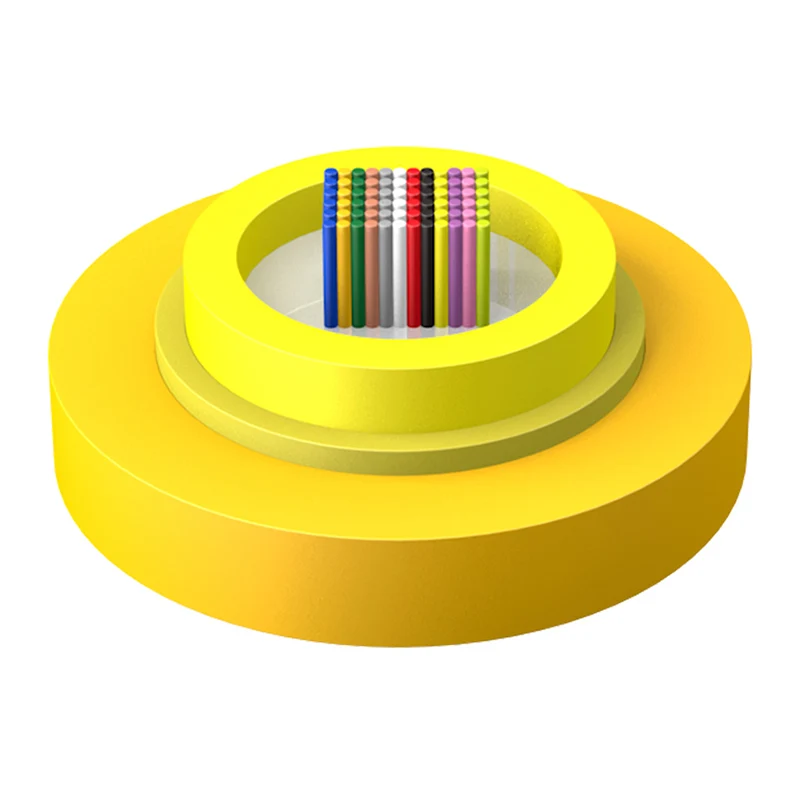

Umzobo wesakhiwo

1. IRibhoni yeFayibha

2. Umbhobho okhululekileyo

3. Umsonto weAramid

4. Ibhatyi yokuphuma

Indoor Ribbon Fiber Optic Cable

IiParameters zobuGcisa

Imodeli yeCable	Ukubalwa kweFayibha	Ubunzima beCable (Ref) (kg/km)	Tensile strength Ixesha elide/elifutshane	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
GJFDV-48	12F×4	84	200/660	300/1000	25D/12.5D
GJFDV-72	12F×6	90	200/660	300/1000	25D/12.5D
GJFDV-96	12F×8	100	200/660	300/1000	25D/12.5D
I-GJFDV-144	12F×12	125	200/660	300/1000	25D/12.5D

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukuthotywa				OFL	Uluhlu lwendlela esebenzayo	I-10 Gbit/s Ethernet Ubude bekhonkco	Ubuncinci Bend Radius
Imeko	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Imeko	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Ezothutho/ UGcino/Ubushushu bokusebenza: -20℃-+60℃, Ubushushu boFakelo: -5℃-+50℃
