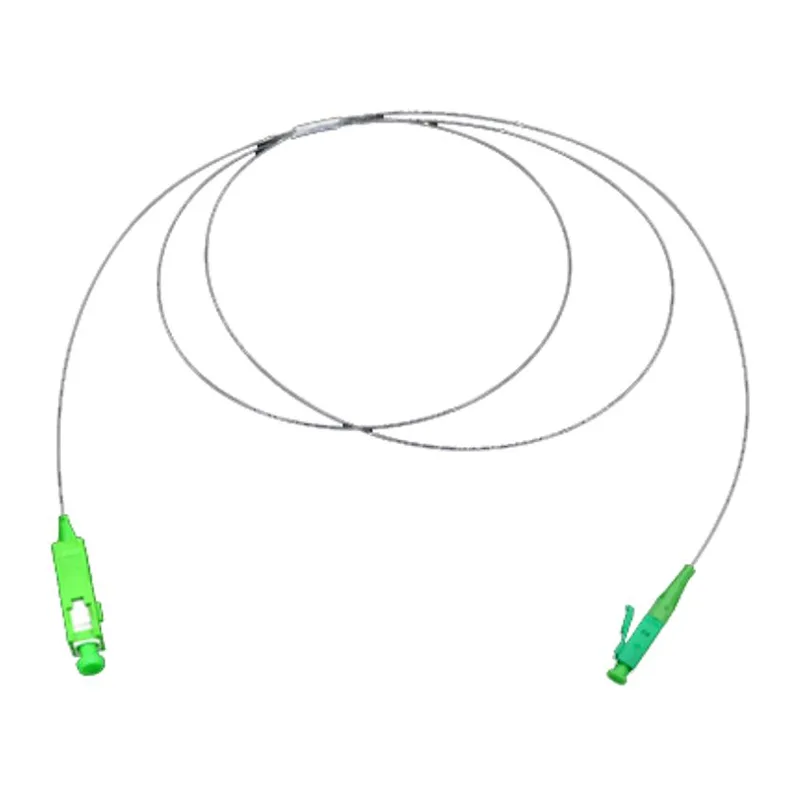

I-SC / APC-LC-lc / apc 0.9mm patch cords

Isicelo:● I-cabling yangaphakathi● ftti (ifibre ekhayeni)● Iyunithi yentambo yohlobo lokuhlaIimbonakalo:● I-compact kunye nobunzima obukhanyisiweyo● engabonakali kwaye ayinasiphumo kumhlobiso wengaphakathi● Ukubonelela ngentsebenzo egqwesileyo● Ubude obuhleweyo bufumaneka● I-100% yomzi-mveliso iphel......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● I-cabling yangaphakathi

● ftti (ifibre ekhayeni)

● Iyunithi yentambo yohlobo lokuhla

Iimbonakalo:

● I-compact kunye nobunzima obukhanyisiweyo

● engabonakali kwaye ayinasiphumo kumhlobiso wengaphakathi

● Ukubonelela ngentsebenzo egqwesileyo

● Ubude obuhleweyo bufumaneka

● I-100% yomzi-mveliso iphela kwaye ihlolwe

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
Imowudi ye-fiber		Imowudi enye: Itu-T g657 b3
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥55 (APC)
Ububanzi be-leble	mm	I-0.9 ± 0.05
Umbala wentambo yentambo		Kucace
I-jable yentambo		Nylon
Ubude	m	I-10 + 0.5/10, 20 + 0.5 /0, 30 + 1.0 / 0, 40 + 1.0 /0,
Uhlobo lomnxibelelanisi		Izibuko: I-SC / APC (iluhlaza) B Port: I-LC / APC (iluhlaza)
Ipolishi yokuphela		I-apc
Izinto ze-Ferrule		I-ceramic
Ukuphindaphinda ukuphindaphinda		> Amaxesha angama-500
Iqondo lokusebenza		-20 ° C ~ + 60 ℃
Iqondo lokugcina		-20 ℃ ~ + 60 ℃

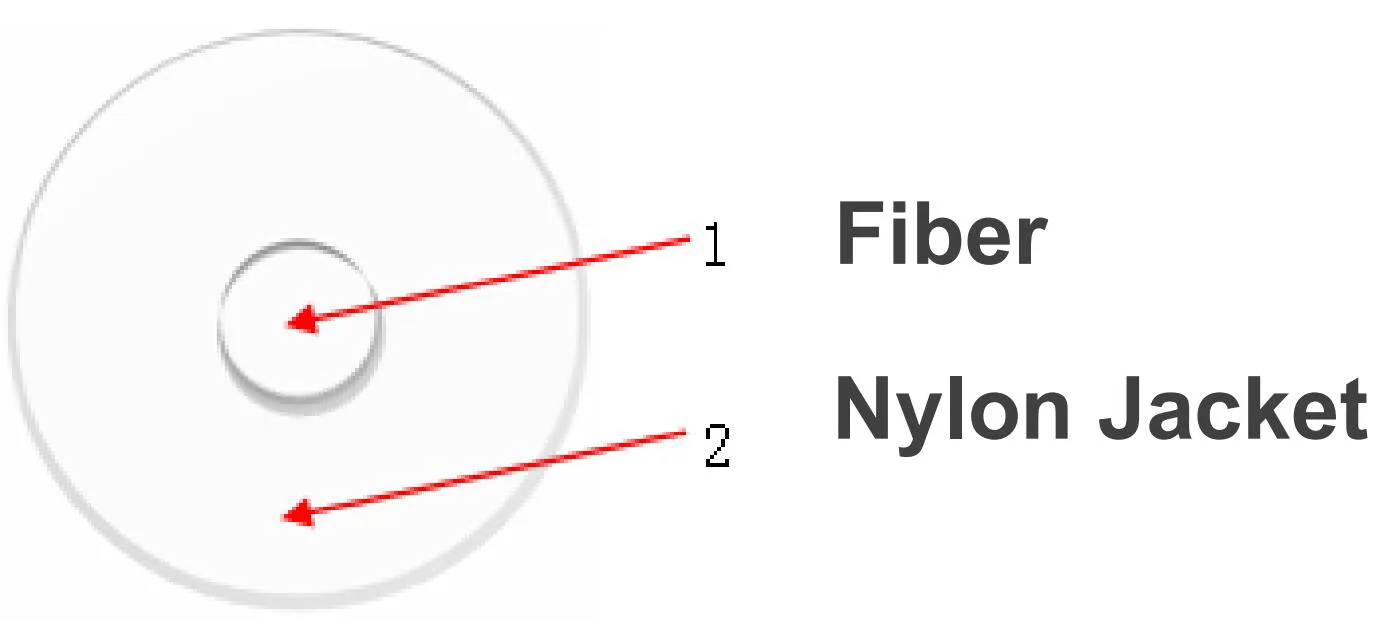

Ulwakhiwo lwentambo:

Invisible SC/APC-LC/APC Patch Cords

I-Cable yeNtlawulo:

Uhlobo lwentambo	Ububanzi	Tensile strength		Ukunganyangeki		Ukugoba iradius (B6A)		Ukugoba i-radius (B6B)
		Ixesha elide ikota	Mfutshane ikota	Ixesha elide ikota	Mfutshane ikota	Stic	I-Dynamic	Stic	I-Dynamic
	(Mm)	(N)		(N / 100mm)		(Mm)		(Mm)
Φ 0.9 mm	I-0.9 ± 0.05	5	20	100	500	15	30	5	20

I-fiber phrist:

Uhlobo lweFiber	I-ATTIONIST (UMax)		I-Macro Bell Ilahleko (Max)
	I-1310NM	I-1550NM	Φ30mm Ukujika kwe-10	Φ20mm 1turn	Φ15mm 1turn	Φ10mm 1turn
	(DB / KM)		(DB)
G.657b3b3b3	0.40	0.30	N / A	I-0.03 @ 1550NM I-0,10 @ 1625nmm	I-0.08 @ 1550NM I-0.25 @ 1625nm	I-0.15 @ 1550NM I-0.45 @ 1625nm

Ukusebenza kwendalo:

Ukuhamba kunye nokuGcina	Ufakelo	Ukusebenza	Amagqabantshintshi
-20 ℃ - + 60 ℃	-10 ℃ - + 50 ℃	-20 ℃ - + 60 ℃	Rohs

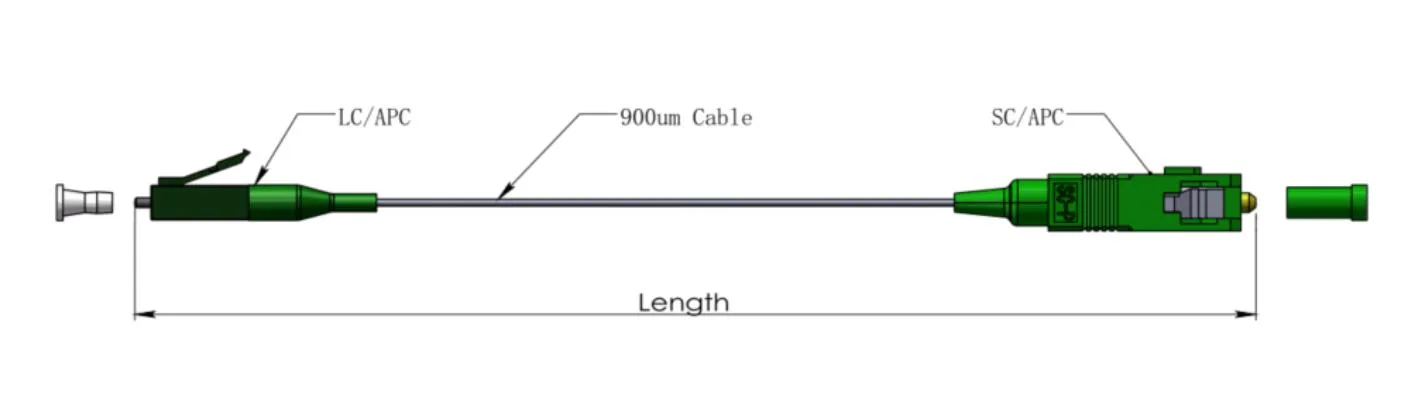

Umzobo wobungakanani:

Invisible SC/APC-LC/APC Patch Cords

Iithegi ezishushu: I-SC / APC-LC-lc / apc 0.9mm patch cords
