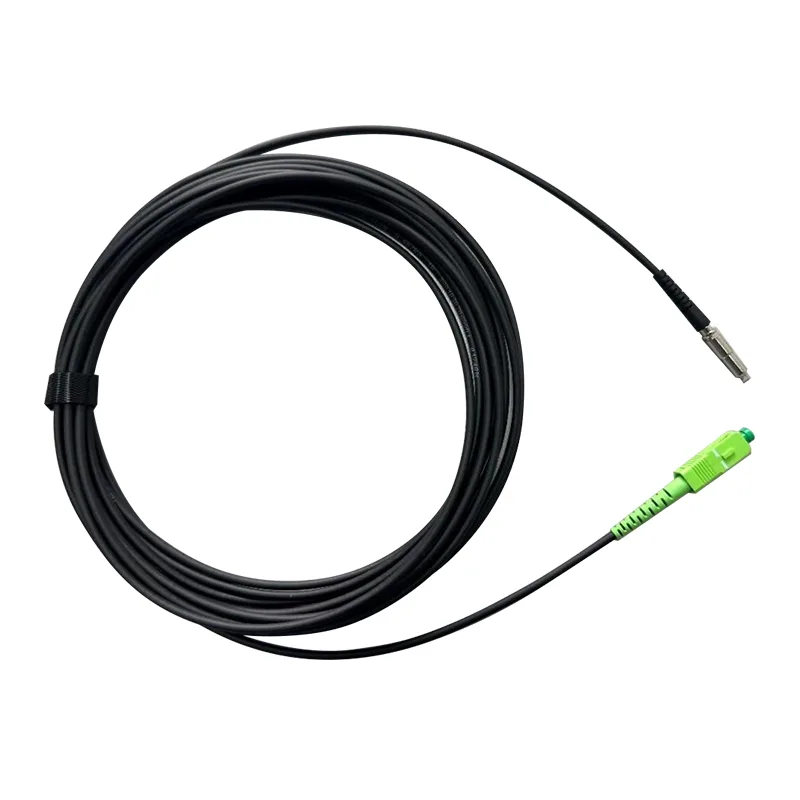

Mini SC / APC Patch Cord

The Orientalfiber Mini SC/APC Patch Cord is a professional optical patch solution from our China-based factory, designed for high-performance network connectivity. This patch cord is suitable for FTTX, FTTH, Ethernet, and CATV applications, offering reliable signal distribution and simple installation. As a leading Orientalfiber supplier, we ensure our Mini SC/APC Patch Cord meets industry standards and supports fast deployment for both commercial and residential networks.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Mini SC / APC Patch Cord yintambo yokudibanisa i-fiber optical kunye ne-compact SC / APC isixhumi. Yenzelwe ukubonelela ngelahleko ephantsi yokufaka kunye nelahleko ephezulu yokubuya, iqinisekisa imfezeko yesignali kuluhlu olubanzi lweenethiwekhi ze-optical. Imveliso yethu yenziwa phantsi kolawulo olungqongqo lomgangatho ukuhlangabezana neemfuno zeenkqubo zala maxesha zeFTTX/FTTH kunye nothungelwano lwe-passive optical network (PON).

Usetyenziso oluphambili

Iinkqubo zeFTTX / FTTH

IiNethiwekhi ze-Ethernet

CATV Links

Ukwabiwa koMqondiso obonakalayo

Uthungelwano lwe-Passive Optical (PON)

Iimpawu zobuGcisa

Ilahleko yokufaka ephantsi, ilahleko ephezulu yokubuya

Ukuphindaphinda okuphezulu kunye nokutshintshiselana

I-100% ivavanyelwe ukufakwa, ukulahleka kokubuyisela, ubuso bokuphela, kunye nokuphazamiseka

Ukunyamezela komatshini okunamandla

Ihambelana nemigangatho yeTelcordia GR-326-Core

Ufakelo olukhawulezayo nolulula kwiingcingo eziphuma eludongeni

Igcina ukusebenza okuzinzileyo kwiindawo ezixineneyo zeekhebhuli

Inkcazo yobuGcisa:

Ulwakhiwo	Iyunithi	Iinkcazelo
Ukubalwa kweFayibha		Simplex
Ubude bamaza	nm	1310/1550
Ilahleko yokuFaka	dB	≤0.30
Buyisela Ilahleko	dB	≥60 (APC)
Umbala weBhatyi yeCable		Mnyama, okanye Customizable
I-Cable yangaphandle yeDayimitha	mm	φ3.0±0.1
Imowudi yeFayibha		Imowudi enye: G657 B3
Izinto zebhatyi yeCable		TPU, UVessin.
Ubunzima bekhebula	kg/km	8.5 (malunga)
Imixholo yoshicilelo		Customizable
Ubude	m	80 okanye Customizable (Ukunyamezela: ±0.5m)
Uhlobo lwesidibanisi		Igalelo:	Mini SC/APC Isidibanisi
		Isiphumo:	SC/APC Isidibanisi
Ubushushu bokusebenza	℃	-20°C ~ +60℃
Ubushushu boGcino	℃	-40℃ ~ +85℃

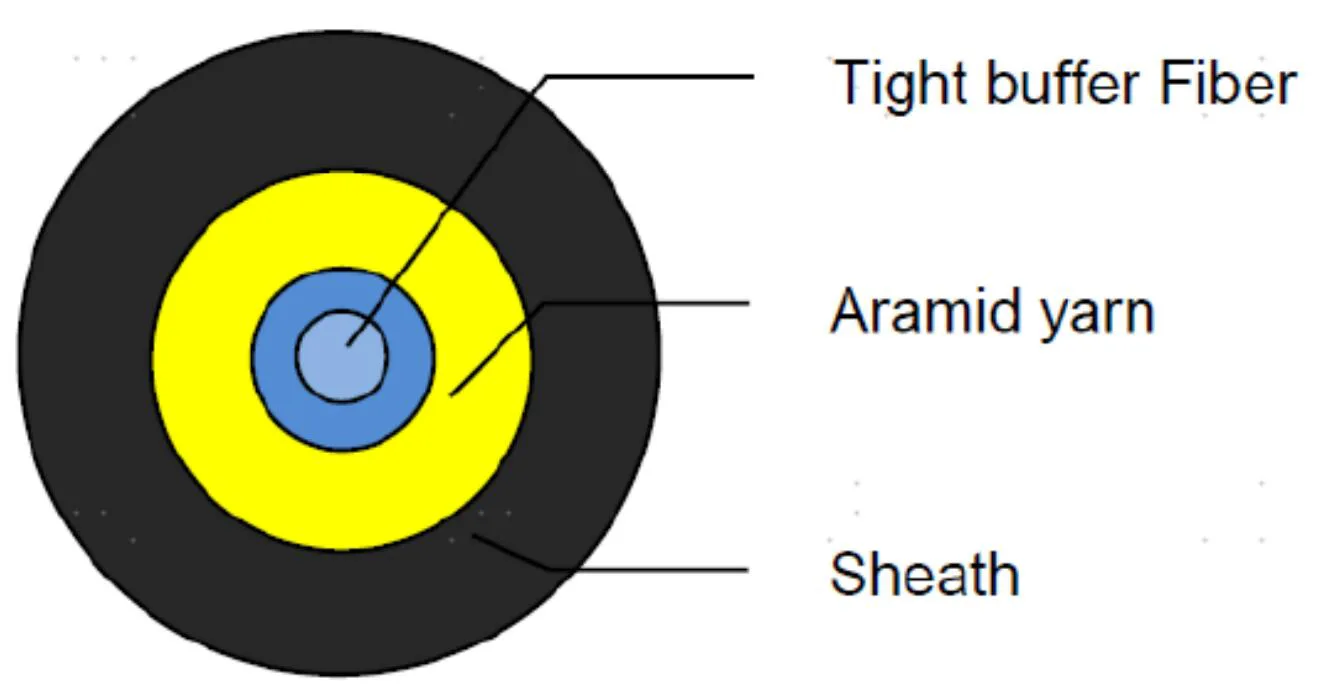

Ulwakhiwo lweCable:

Mini SC/APC Patch Cord

Izinto		Iinkcazelo
Ifayibha yamehlo	Uhlobo lweFayibha	ITU-T G.657B3 imowudi enye
	Idayamitha engundoqo(μm)	8-11μm
	Idayamitha yokugquma (μm)	125.0±0.7μm
	Idayamitha yokwambathisa (μm)	245±10μm(Ngaphambi koMbala) 250±15μm(Mbala)
	Imodi yedayamitha yebala	8.6~8.8±0.4μm @1310nm 9.6~9.8±0.5μm @1550nm
	Ukusebenza kwamaza	1260~1625nm
	Umbala	Luhlaza
	Ukuncitshiswa kwekhebula	≤0.35dB/km λ= 1310 nm ≤0.25dB/km λ = 1550 nm ≤0.26dB/km λ = 1625 nm
	Ukubalwa kweFayibha	1
	umenzi weglasi
Ifayibha eqinileyo	Ububanzi	0.90±0.05mm
	Umbala	Luhlaza
	Izinto eziphathekayo	I-LSZH
Ibhatyi yangaphandle	Ububanzi	3.0±0.1mm
	Ukutyeba	0.8±0.1mm
	Umbala	Mnyama
	Izinto eziphathekayo	TPU, UV ukumelana.
Ukomelela ilungu	Izinto eziphathekayo	Umsonto weAramid
Ispan	1	80m
Ukufakela i-sag	/	1%
Isantya esiphezulu	/	50km/h
Ubunzima	/	8.4kg/km
Operation traction tension	1	200N
Uxinzelelo olukhulu	/	1000N
Isicelo sentambo	/	Ngaphandle, I-eriyali, ukufakwa kombhobho Ukuzixhasa

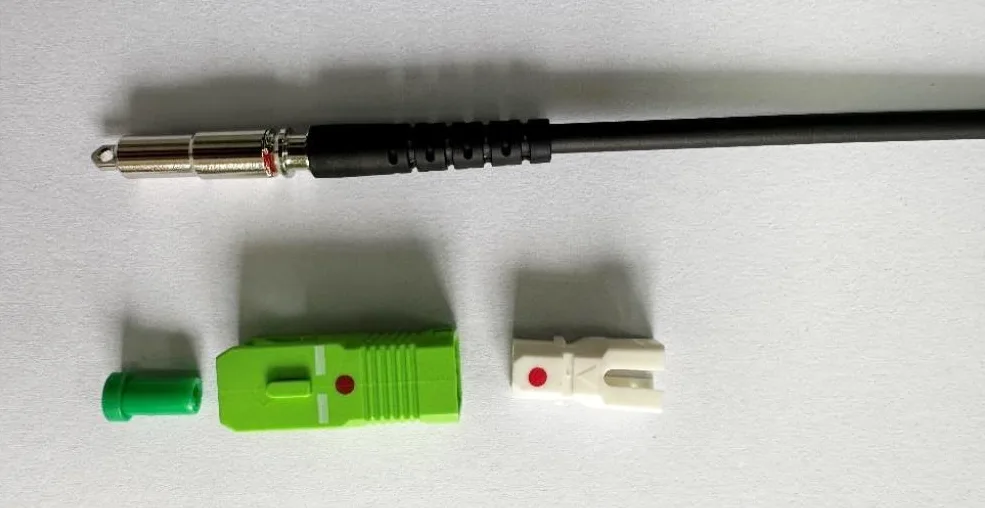

Isazobe seMveliso:

Mini SC/APC Patch Cord

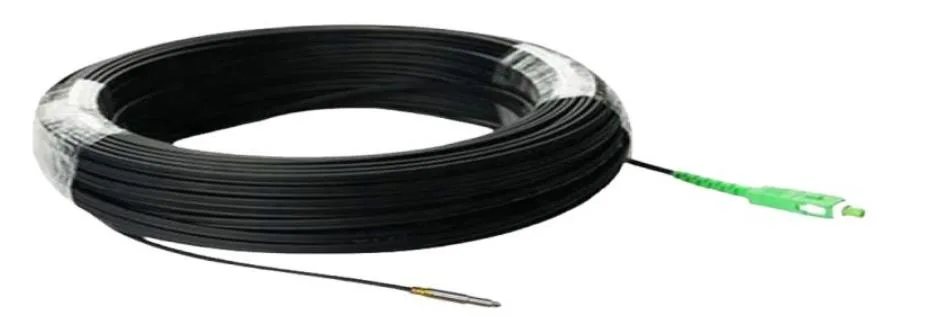

Umqulu:

Mini SC/APC Patch Cord

Izinto eziluncedo kwezobuGcisa

Ukupholisha okuchanekileyo

Iziqhagamshelo zethu ezincinci ze-SC / APC zingena kwi-angle-polishi echanekileyo ukuze ibonakaliswe ngasemva kunye nokusebenza okuphezulu kwamehlo.

Ukuqina kunye nokuthembeka

Ibhatyi yekhebula yenzelwe ukuxhathisa ukugoba, uxinzelelo, kunye nokunxitywa kwendalo, iqinisekisa ubomi obude ekufakeni okunyanzelisayo.

Ukuhlanganiswa okulula

Intambo yesiqwenga ixhasa ukusasazwa okukhawulezayo kunye nohlengahlengiso, ilungele ababoneleli ngenkonzo, abadibanisi benethiwekhi, kunye noseto lweshishini.

Ukuqinisekisa umgangatho

Yonke i-Orientalfiber Mini SC/APC Patch Cord ivavanywa nge-100% yokulahleka kokufaka, ukulahleka kokubuyisela, kunye nokuhlolwa kobuso bokuphela ngaphambi kokushiya umzi-mveliso, iqinisekisa ukusebenza okufanayo.

Isikhokelo soFakelo

Chonga izibuko zenethiwekhi kunye nobude bentambo efunekayo.

Qhagamshela izihlanganisi ze-SC/APC ngokuqinileyo kwizixhobo ezichongiweyo.

Kuphephe ukugoba ngokugqithisileyo okanye ukujijeka ukuze ugcine umgangatho wophawu oluphezulu.

Sebenzisa ulawulo olufanelekileyo lwekhebula ukucwangcisa iintambo ezininzi kwiindawo ezinoxinano oluphezulu.

FAQ

Umbuzo: Ngaba iMini SC / APC Patch Cord ingasetyenziswa ngaphandle?

A: Ewe, usebenzisa i-LSZH okanye ibhatyi elinganiswe ngaphandle, inokumelana neemeko eziqhelekileyo zangaphandle.

Umbuzo: Zeziphi iintlobo zefiber ezixhaswayo?

A: Intambo yokupakisha isekela zombini i-G.657 kunye ne-G.652 i-fibers ye-single-mode, esetyenziswa ngokuqhelekileyo kwi-FTTX kunye ne-PON networks.

Umbuzo: Ngaba singakwazi ukwenza ngokwezifiso ubude bentambo?

A: Ewe, ubude ukusuka kwi-0.5 yeemitha ukuya kwi-20 yeemitha buyafumaneka. Qhagamshelana nathi ngeemfuno ezithile.
