IiNjongo ezininzi zoSasazo lweFiber Optic Cable (≥24f)

Njengomvelisi oqeqeshiweyo kunye nomboneleli e-China, i-Orientalfiber inikezela ngomgangatho ophezulu we-Multi-Purpose Distribution Fiber Optic Cable (≥24f) eyenzelwe ukuxinana okuphezulu kunye ne-multi-scenario deployments. Iquka i-multi-core sub-units (Φ900μm tight-buffered optical fiber, aramid yarn) kunye nelungu le-non-metallic central force, le ntambo ifumaneka nge-PVC okanye i-LSZH sheaths ukwenzela ukuba i-flame retardancy egqwesileyo, ukumelana kwamanzi, kunye nokukhuselwa kwe-UV.

Thumela uMbuzo

Ingcaciso yeMveliso

Wamkelekile kwi-Orientalfiber, umthengisi ohamba phambili we-Multi-Purpose Distribution Fiber Optic Cable (≥24f) esekelwe e-China. Ifektri yethu ivelisa iintambo ukusuka kwi-24 ukuya kwi-144 fibers, ixhasa i-G652D, i-G657A1 / A2, i-OM3, i-OM4, kunye neentlobo ze-multimode. Le ntambo yokusabalalisa i-multi-core isebenzisa i-tight-buffered fibers, intambo ye-aramid njengamalungu anamandla, kunye ne-non-metallic central reinforcement ukuhambisa amandla okunyamezela ixesha elide / elifutshane ukuya kwi-400 / 1320N kunye nokuxhatshazwa kwe-300 / 1000N / 100mm. Ukuba ufuna ukuthenga intambo yokusabalalisa i-fiber optic yokwakhiwa kwe-backbone distribution okanye i-high-density patching, imveliso yethu iqinisekisa i-radius eguquguqukayo yokugoba ye-20D kunye ne-10D engatshintshiyo, esebenza ngokuthembekileyo ukusuka -20 ° C ukuya + 60 ° C.Qhagamshelana ne-Orientalfibernamhlanje ukuthenga i-Multi-Purpose Distribution Fiber Optic Cable (≥24f) ngokuthe ngqo kumzi-mveliso wethu ngexabiso lokhuphiswano kunye nenkxaso yobugcisa.

Iimpawu

Ulwakhiwo lwamalungu angeyontsimbi oludityanisiweyo luqinisekisa ukuba intambo inyamezela ukomelela okukhulu

Ifayibha eyomeleleyo inomsebenzi ogqwesileyo wokunqanda amadangatye

Umsonto weAramid njengelungu lokuqina lenza intambo ibe namandla abalaseleyo okuqina

Izinto zangaphandle azikwazi ku-corrosion, zingenwa ngamanzi, ziyakwazi ukumelana ne-UV, azikwazi ukumelana nedangatye kwaye zinobuhlobo nokusingqongileyo.

Usetyenziso

Injongo yokuhanjiswa kwentambo

Intambo yokuhambisa umqolo kwisakhiwo

Multi optical fiber patchcord

Imigangatho

Hlangana nemigangatho ye-YD / T 1258.4, ICEA-596, GR-409, IEC 60794-2-20 / 21, njl. Ukongeza kwiimveliso eziqhelekileyo zePVC, kukho neemveliso eziphumelele i-UL OFNR kunye ne-OFNP izitifiketi. Iimveliso ze-LSZH zisebenzisa izixhobo ezahlukeneyo ukuhlangabezana ne-IEC60332-1 okanye i-IEC60332-3C.

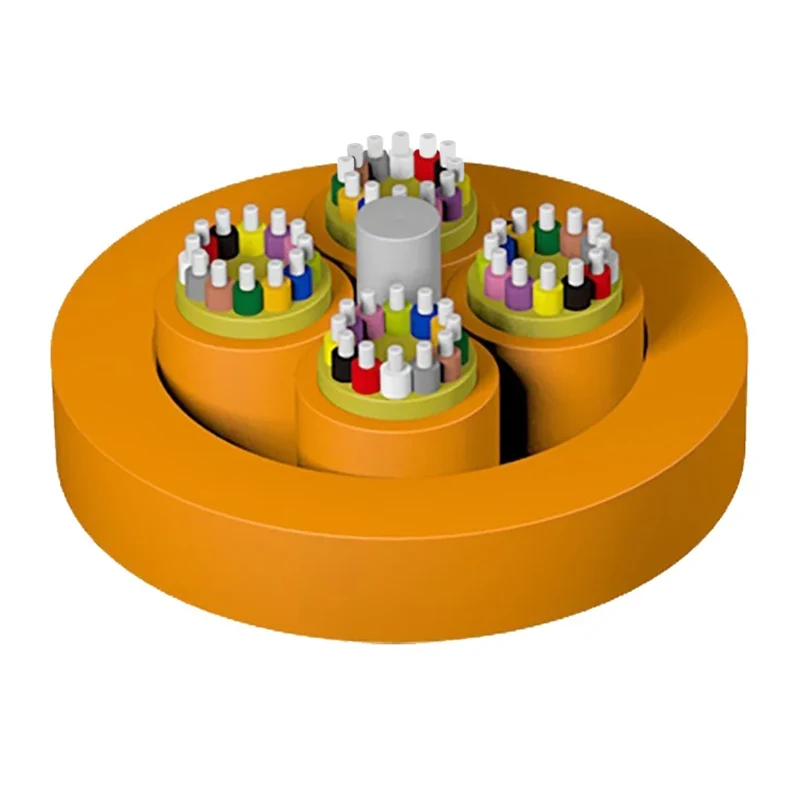

Umzobo wesakhiwo

1. Ifayibha

2. Iyunithi engaphantsi

3. Umsonto weAramid

4. Ilungu leCentral Strength

5. Ibhatyi

Multi-Purpose Distribution Fiber Optic Cable (≥24f)

Iiparamitha zobuGcisa

Umzekelo weCable	I-Cable Diameter (Ref) (mm)	Ubunzima beCable (Ref) (kg/km)		Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
Umzekelo weCable	I-Cable Diameter (Ref) (mm)	Ibhatyi yePVC	Ibhatyi yeLSZH	Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
24	12.3±0.5	117	124	200/660	300/1000	20D/10D
36	14.5±0.5	171	180	200/660	300/1000	20D/10D
48	14.8±0.5	161	170	400/1320	300/1000	20D/10D
72	17.5±0.5	244	254	400/1320	300/1000	20D/10D
96	20.7±0.5	351	366	400/1320	300/1000	20D/10D
144	24.8±0.5	443	451	400/1320	300/1000	20D/10D

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukuthotywa				OFL	Uluhlu lwendlela esebenzayo	I-10 Gbit/s Ethernet Ubude bekhonkco	Ubuncinci Bend Radius
Imeko	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Ixabiso eliqhelekileyo	Ixabiso eliphezulu	Ixabiso eliqhelekileyo	Ixabiso eliphezulu		850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Ezothutho/ UGcino/Ubushushu bokusebenza: -20℃-+60℃, Ubushushu boFakelo: -5℃-+50℃

Multi-Purpose Distribution Fiber Optic Cable (≥24f)
