Intambo yeFayibha ye-Optic yeNjongo ezininzi (≤24f)

I-Orientalfiber Multi-Purpose Distribution Fiber Optic Cable (≤24F) isebenzisa i-Φ900μm i-flame-retardant i-tight-buffered fibers kunye ne-aramid reinforcement kunye ne-PVC okanye i-LSZH ye-sheath yokuhanjiswa kwe-optical ethembekileyo yangaphakathi. Njengomvelisi wentambo ye-fiber optic ye-China kunye nomthengisi, i-Orientalfiber ibonelela ngezisombululo zentambo ye-fiber optic ehlala ixesha elide ye-FTTH, amaziko edatha, uthungelwano lwe-telecom kunye neeprojekthi ze-cabling ezicwangcisiweyo kunye ne-OEM / ODM kunye nenkxaso ye-wholesale.

Thumela uMbuzo

Ingcaciso yeMveliso

Umgangatho wethu ophezulu we-Multi-Purpose Distribution Fiber Optic Cable (≤24f) zonke zenziwe e-China. I-Orientalfiber yingcali ye-Multi-Purpose Distribution Fiber Optic Cable (≤24f) umenzi kunye nomthengisi e-China. Unokuzithenga kumzi-mveliso wethu. Ukuze ufumane inkcazelo engakumbi, qhagamshelana nathi ngoku.

Iimpawu

Ifayibha eqinileyo yefiber kulula ukuyihlubula

Ifayibha eyomeleleyo inomsebenzi ogqwesileyo wokunqanda amadangatye

Umsonto weAramid njengelungu lokuqina lenza intambo ibe namandla abalaseleyo okuqina

Izinto zangaphandle azikwazi ku-corrosion, zingenwa ngamanzi, ziyakwazi ukumelana ne-UV, azikwazi ukumelana nedangatye kwaye zinobuhlobo nokusingqongileyo.

Usetyenziso

Ngaphakathi nayiphi na injongo yokusasazwa kwentambo

Intambo yokuhambisa umqolo

Multi optical fiber jumper

Imigangatho

Hlangana nemigangatho ye-YD / T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, njl. Ukongeza kwiimveliso eziqhelekileyo zePVC, kukho neemveliso ezigqithise i-ULOFNR kunye ne-OFNP izitifiketi: Iimveliso ze-LSZH zisebenzisa izinto ezahlukeneyo ukuhlangabezana ne-IEC160336-IEC160332.

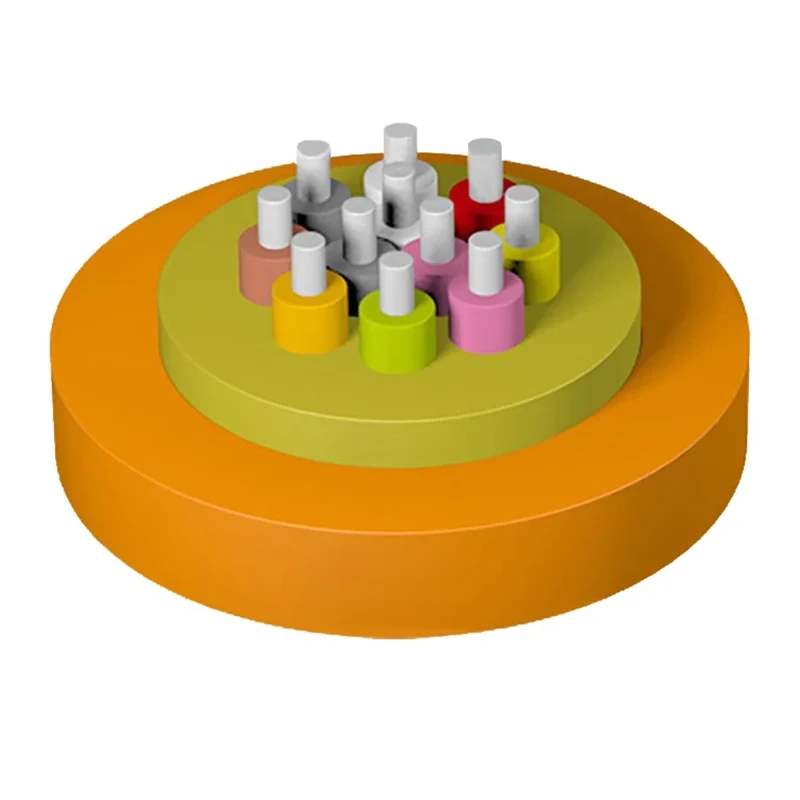

Umzobo wesakhiwo

1. Isithinteli esiQinisekileyo

2. Umsonto weAramid

3. Ibhatyi

Multi-Purpose Distribution Fiber Optic Cable (≤24f)

Iiparamitha zobuGcisa

Umzekelo weCable	I-Cable Diameter (Ref) (mm)	Ubunzima beCable (Ref) (kg/km)		Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
Umzekelo weCable	I-Cable Diameter (Ref) (mm)	Ibhatyi yePVC	Ibhatyi yeLSZH	Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi Dynamic/Static (mm)
04	4.8±0.3	16	18	130/440	300/1000	20D/10D
06	5.1±0.3	20	23	130/440	300/1000	20D/10D
08	5.6±0.3	27	31	130/440	300/1000	20D/10D
12	6.2±0.3	32	36	130/440	300/1000	20D/10D
24	8.1±0.3	53	57	200/660	300/1000	20D/10D

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukuthotywa				OFL	Uluhlu lwendlela esebenzayo	I-10 Gbit/s Ethernet Ubude bekhonkco	Ubuncinci Bend Radius
Imeko	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Imeko	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	Ixabiso eliqhelekileyo	Ixabiso eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Ezothutho/ UGcino/Ubushushu bokusebenza: -20℃-+60℃, Ubushushu boFakelo: -5℃-+50℃

Multi-Purpose Distribution Fiber Optic Cable (≤24f)
