1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEART njengeyona ncwadi iphambili yokusasaza i-FTTX yenethiwekhi, ukubonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwenethiwekhi ye-FTTX.

Uhlobo lwemveliso	Ukwahlulahlula
I-GFS-004-002C	Ibhokisi yokuhambisa i-fiber fib

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

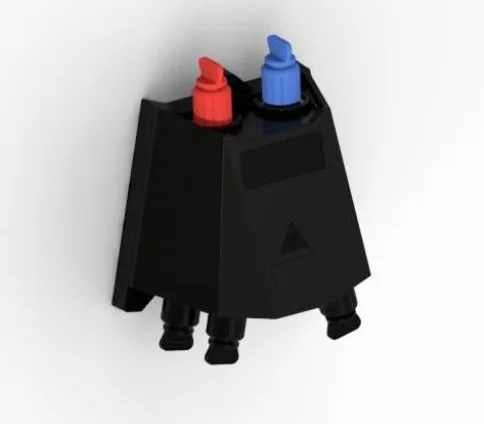

Ukubonakala kwe-GFS-004-002C

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

I-TY-T G.652	Iimpawu zemowudi enye ye-fiber yokukhanya
IEC 60794-1-1	I-fible yefibre ye-fiber-Icandelo 1-1: Ukulungiswa kwe-generic-geqe
IEC 60794-1-2	I-fible ye-fiber ye-fiber-Icandelo 1-2: I-generic fildition yenkqubo yovavanyo lwentambo

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 65 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-40ºc ~ + 65 ºc
Uxinzelelo lwe-otmospheric	I-70 ~ 106Kpa
Ubuntu bezizalwane	≤93% (+ 40 ℃)

2. Iimpawu

I-1. Iqokobhe elingezantsi kunye nekhali elingaphezulu likhutshiwe ngeplate eshushu yedyling, engachaphazelekanga.

2. Impahla: PP + gf.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

5. I-Inter Inter ixhotywe nge-1x2 fbt splitter + 1x4 plc splitter okanye i-1x4 plcter splitter.

I-6. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poerial enyukayo, i-Wall-ikhuselwe.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Into	Inkcazo	Intetho
Izixhobo zeZindlu	I-PP + gf
Izixhobo zentsimbi	Intsimbi ephakathi ye-Staight
Ubungakanani bangaphandle (mm)	I-157 * 139 * 75mm
Umbala	Mnyama
Isikhundla seHick Hole (MM)	122 * 104
Inani leeadaptha zangaphambili	10
Hlula	I-1x2 fbt splitter + 1x4 plc splitter
Ibanga le-IP	IP68
Ukuvutha	Il94-HB	Ukungagqibeki
I-Pict Sprey (NS)	48h	Ukungagqibeki

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

4. Isimo

Iiparameter eziphambili

Hlula	(DB)		I-RL (DB)	(DB)	Indlela yovavanyo
Hlula	Hlula			Ibhokisi yokuhambisa	Indlela yovavanyo
I-1 * 2 fbt (90/10) + 1 * 4 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (90%)	≤1	≥55	≤1.2	Il: IEC61300-41-4 INDLELA B I-RL: IEC61300-3-6 - 26 Indlela yoku-1
	I-1 * 2 fbt (10%) + 1 * 4 plc	≤18.60	≥55	≤18.80
I-1 * 2 fbt (80/20) + 1 * 4 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (80%)	¶1. 40	≥55	≤1.6
	I-1 * 2 fbt (20%) + 1 * 4 plc	≤15.5	≥55	≤15.7
1 * 2 fbt (70/30) + 1 * 4 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (70%)	≤2.1	≥55	≤2.5
	I-1 * 2 fbt (30%) + 1 * 4 plc	¶13.4	≥55	≤13.6
I-1 * 2 fbt (60/40) + 1 * 4 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (60%)	≤2.8	≥55	≤3
	I-1 * 2 fbt (40%) + 1 * 4 plc	≤12.3	≥55	≤12.5
I-1 * 2 fbt (50/50) + 1 * 4 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (50%)	≤3.7	≥55	≤3.9
	I-1 * 2 fbt (50%) + 1 * 4 plc	≤11.2	≥55	≤11.4
I-1 * 4 plc spyterter, ngesinxibelelanisi se-SCAPC	1 * 4 plc	≤7.1	≥55db	≤7.3

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

I-1 * 2 fbt + 1 * 4 plc splittle zentambo

5.2 Izinto

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi
3	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi
4	Ikhithi yePole		seta	1	Inketho njengesicelo somthengi
5	Inyuka i-aerial ikhithi		seta	1	Inketho njengesicelo somthengi

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-Mercury, i-biphenyl ye-biphenyl (PBBE) kunye ne-Polybimined Deten Ether Other (PBDE) ayigqithi kumda.

7. Ukufakwa

7.1. Ukufakwa kweWall

Drill imingxunya emi-3 eludongeni ngokobungakanani, beka iplagi yokwanda kweplagi φ7.5 * 40, Beka ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uqinisekise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Ukufakwa kodonga

7.2. Ukufakwa kwePlale

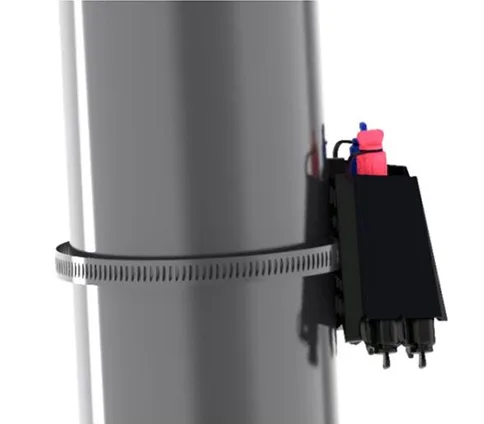

Dlula i-ring ye-hoop nge-slot yeplate yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

I-Pole ikhuselwe

7.3. Isakhiwo esingaphezulu

Bopha i-chassis ye-chassis yentloko egudileyo e-wire, kwaye emva koko ibotshwe, thintele ityala.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Isakhiwo esingaphezulu

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

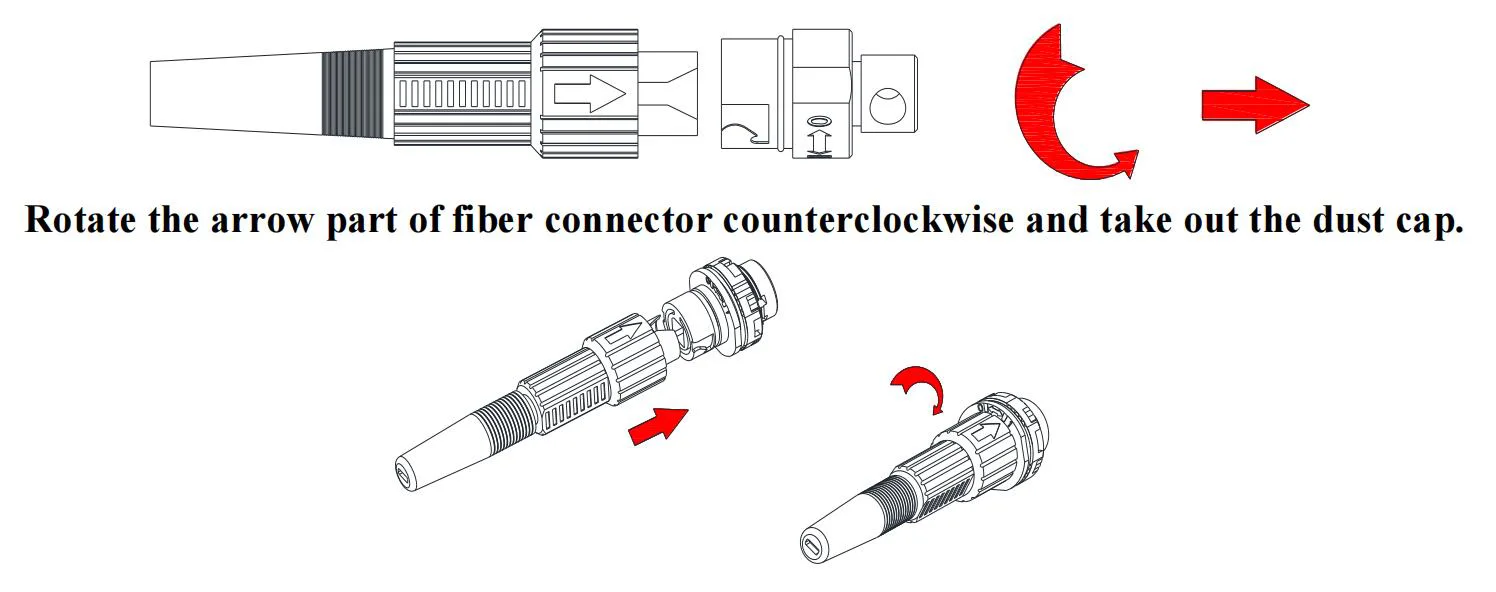

Inxalenye ye-faprect ye-fiber chagring ingaphezulu, faka i-fiber qunuctor kwisokethi kwaye ijikeleze inxenye yesolo.

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.6 I-Adaptha engaphambi kokuba i-Adapter -f (i-SC)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.7 I-adaptha engaphambi kokuba idityaniswe-G

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

9. Iphakheji

Into	Izixhobo	Ubungakanani (mm)	Ubungakanani	Ubunzima bomzimba (kg)
Ukupakishwa kwemveliso ezimeleyo	Ibhokisi	I-170x150X85	1	0.6
Ibhokisi yokupakisha yangaphandle	Ibhokisi	I-360X320X465	20	13
Qaphela: Ngaphandle kwetreyi yokugcina intambo
