Ingcaciso yeMveliso

1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEART njengeyona ncwadi iphambili yokusasaza i-FTTX yenethiwekhi, ukubonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwenethiwekhi ye-FTTX.

Uhlobo lwemveliso	Ukwahlulahlula
I-I-GFS-008-029C	Ibhokisi yokuhambisa i-fiber fib

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

I-I-GFS-008-029C

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

IEC61300-2	I-fiber optic uqhagamshelo lwe-piber optic Izixhobo kunye nezinto ezihambayo-zovavanyo olusisiseko kunye neenkqubo zokulinganisa
IEC60068-2	IINKQUBO ZOKUVAVANYA KWIMveliso yoMbane kunye ne-Elektroniki

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 65 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-40ºc ~ + 65 ºc
Uxinzelelo lwe-otmospheric	I-70 ~ 106Kpa
Ubuntu bezizalwane	≤93% (+ 40 ℃)

2. Iimpawu

I-1. Iqokobhe elingezantsi kunye nekhali elingaphezulu likhutshiwe ngeplate eshushu yedyling, engachaphazelekanga.

2. Impahla: PP + gf.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

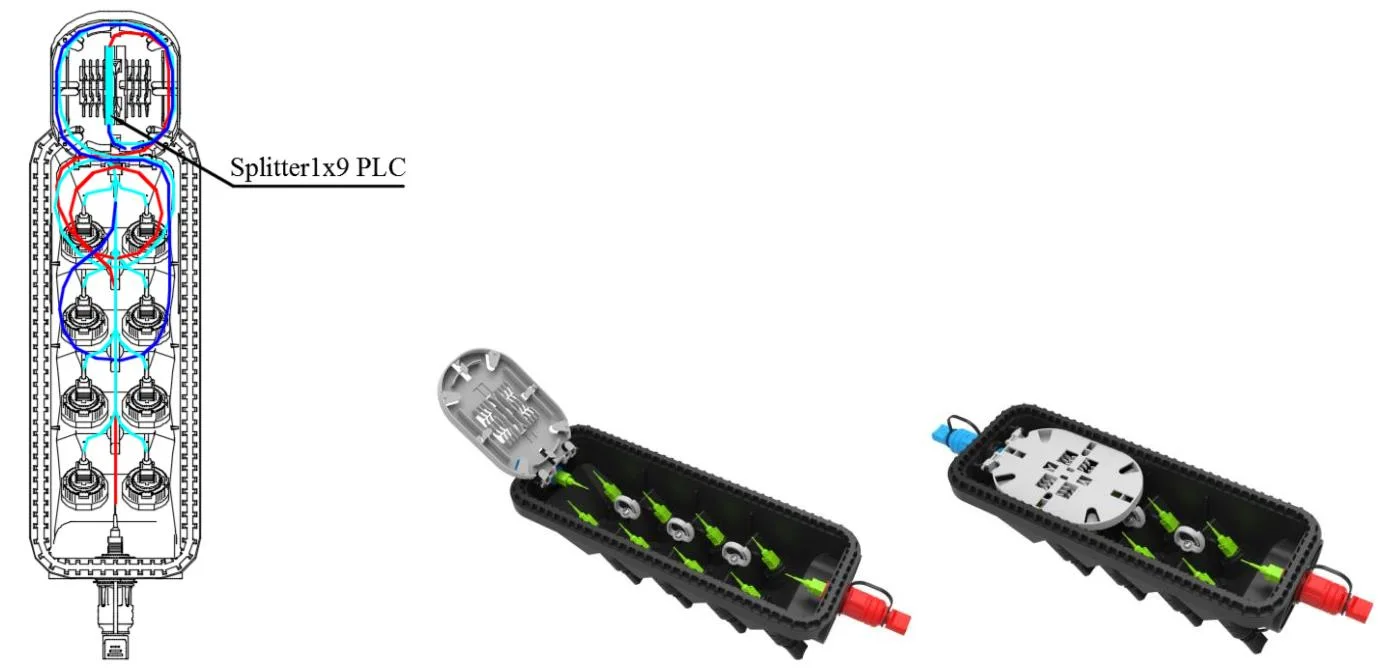

I-5. I-Inter Inrim ixhotywe nge-1x2 fbt splitter + 1x8 plcter splitter okanye i-1x9 plcter splitter.

I-6. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poerial enyukayo, i-Wall-ikhuselwe.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Into	Inkcazo	Intetho
Izixhobo zeZindlu	Iplastiki yePP eguqulweyo
Izixhobo zezinto zangaphakathi	I-PC + ABS / ABS
Izixhobo zentsimbi	Intsimbi ephakathi ye-Staight

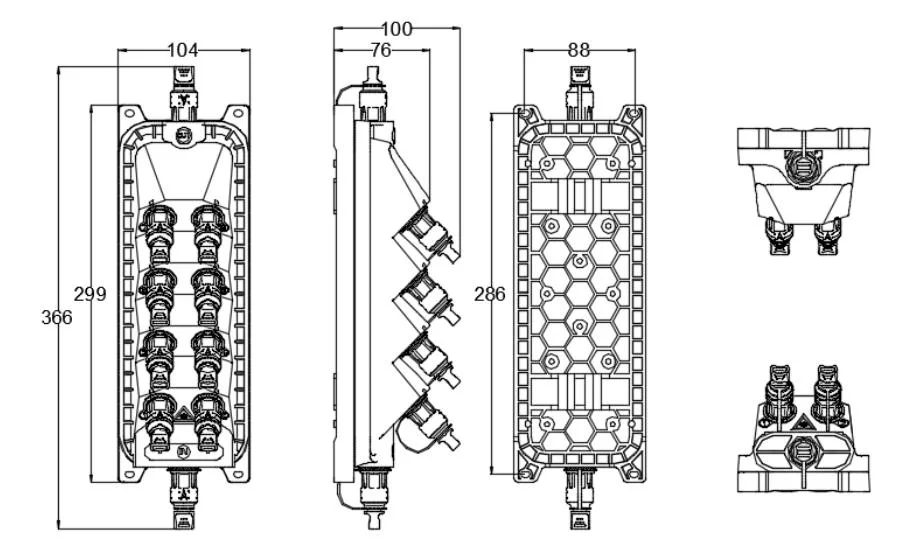

Ubungakanani bangaphandle (mm)	299 * 104 * 76mm	Ngaphandle kweadaptha
Umbala	Mnyama
Isikhundla seHick Hole (MM)	286 * 88
Inani leeadaptha zangaphambili	10	I-1 ebomvu, 1 iblowu, 8 Mnyama
Hlula	I-1x2 fbt splitter + 1x8 plc splitter
Ibanga le-IP	IP68
Ukuvutha	Il94-HB	Inokwenziwa ngokwezifiso ngokweemfuno.
I-Pict Sprey (NS)	48h	Inokwenziwa ngokwezifiso ngokweemfuno.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

4. Isimo

Iiparameter eziphambili

Hlula	(DB)		I-RL (DB)	(DB)	Indlela yovavanyo
Hlula	Hlula			Ibhokisi yokuhambisa	Indlela yovavanyo
I-pigtail-sc / apc-00-sm-sx (1c1F) -D0.9mm-pvc-g657a2-yentambo Umbala (ukusilela) -indoor-rohs-1.5m	Ipigetail	≤0.3	≥55db	≤0.5	Il: IEC61300-41-4 INDLELA B I-RL: IEC61300-3-6 - 26 Indlela yoku-1
I-1x2 plc spyterter, ngesinxibelelanisi se-SCAPC	1 * 2 plc	≤4.0	≥55db	≤4.2
I-1x4 plc spyterter, ngesinxibelelanisi se-SCAPC	1 * 4 plc	≤7.4	≥55db	≤7.6
I-1x8 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 8 plc	≤10.5	≥55db	≤10.7
I-1X2 FBT (90/10) I-1x8 plcter spyter, ngesinxibelelanisi se-SCAPC	I-1X2 FBT (90%)	≤0.83	≥55db	≤1.03
	I-1X2 fbt (10%) + 1x8 plc	≤21.7	≥55db	≤21.9
I-1X2 FBT (80/20) I-1x8 plcter spyter, ngesinxibelelanisi se-SCAPC	I-1X2 fbt (80%)	≤1.4	≥55db	≤1.6
	I-1X2 fbt (20%) + 1x8 plc	≤18.3	≥55db	≤18.5
I-1X2 FBT (70/30) I-1x8 plcter spyter, ngesinxibelelanisi se-SCAPC	I-1X2 fbt (70%)	≤2.1	≥55db	≤2.3
	I-1X2 FBT (30%) + 1x8 plc	≤16.5	≥55db	≤16.7
I-1X2 FBT (60/40) I-1x8 plcter spyter, ngesinxibelelanisi se-SCAPC	I-1X2 FBT (60%)	≤2.8	≥55db	≤3.0
	I-1X2 FBT (40%) + 1x8 plc	≤15.2	≥55db	≤15.4
I-1X2 FBT (50/50) I-1x8 plcter spyter, ngesinxibelelanisi se-SCAPC	I-1X2 FBT (50%)	≤3.8	≥55db	≤4.0
	I-1X2 FBT (50%) + 1x8 plc	≤14.3	≥55db	≤14.5

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

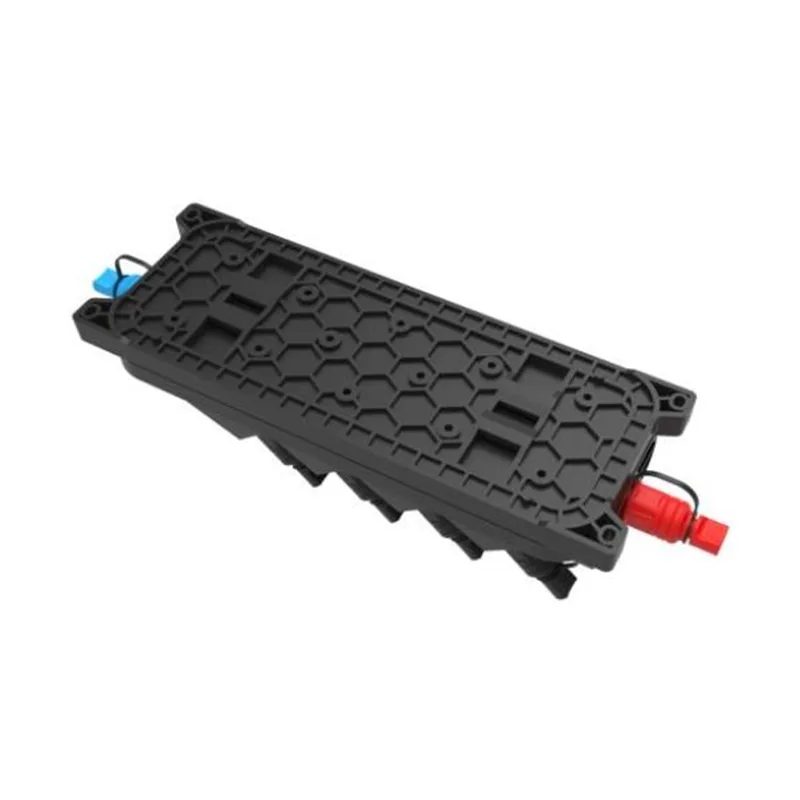

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

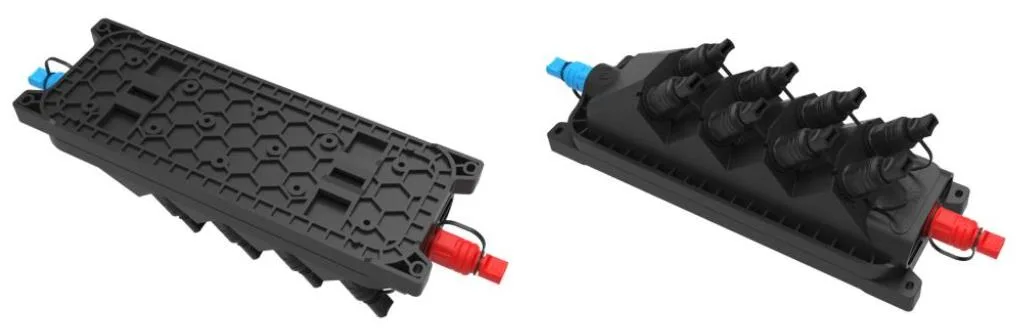

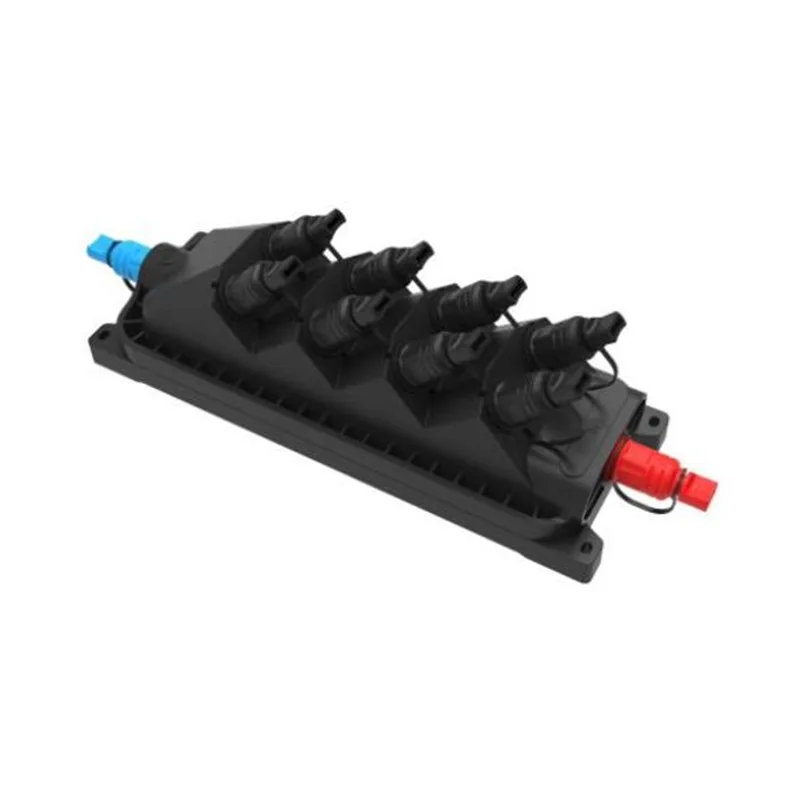

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

I-GFS-008-029C Imveliso yeMveliso

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-pplium ye-biphenyl (pbb) i-biphhenyl (pbb) kunye ne-Polybde i-Polybimied I-Ether (PBDE) ayigqithi kumda.

7. Ukufakwa

7.1. Ukufakwa kweWall

Drill imingxunya emi-4 eludongeni esekwe kubungakanani kwiTheyibhile 1, Beka i-bolt yokwandiswa φ8 * 40, yibeka ibhokisi ukuze utshatise imingxunya kwaye usebenzise i-bolt to feat.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

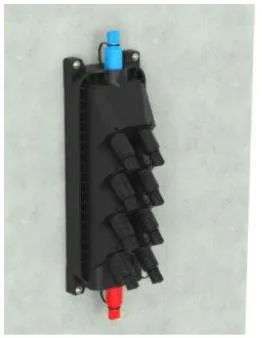

Ukufakwa kodonga

7.2. Ukufakwa kwePlale

Lungisa i-1 iseti ye-ring ye-pole kwi-Telecom Pole

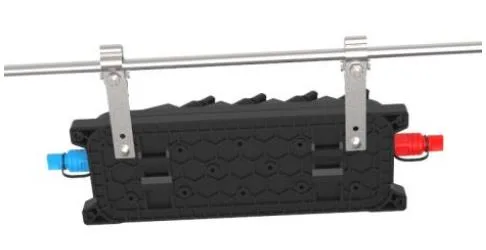

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

I-Pole ikhuselwe

7.3. Isakhiwo esingaphezulu

Bopha ezi zinto zibini ezifakwe kwi-chassis yentloko egudileyo kwi-wire, kwaye emva koko ibotshwe, thintela ityala.

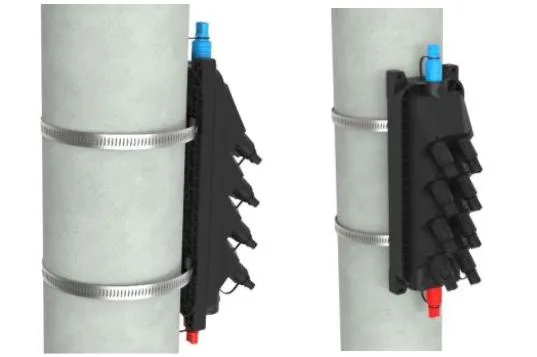

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

Isakhiwo esingaphezulu

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.6 I-Adaptha engaphambi kokuba i-Adapter -f

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.7 I-adaptha engaphambi kokuba idityaniswe-G

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.8 I-Adaptha engaphambi kokuba i-adaptha-h-1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

8.9 I-adaptha engaphambi kokuba i-Adapter-J-1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

9. Iphakheji

Into	Izixhobo	Ubungakanani (mm)	Ubungakanani	Ubunzima bomzimba (kg)
Ukupakishwa kwemveliso ezimeleyo	Ibhokisi	I-375 * 115 * 110	1	0.7
Ibhokisi yokupakisha yangaphandle	Ibhokisi	485 * 395 * 575	20	15
Qaphela: Ukupakishwa kulungiselelwe kuphela, kwaye ukuxhomekeka okwahlukileyo kuyahambelana nobukhulu obahlukeneyo kunye nobunzima
