1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEXACHEATATION njengoko uninzi lwezixhobo zenethiwekhi ze-FTTX zenethiwekhi zihamba phambili, zibonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwe-FTTX inethiwekhi.

Uhlobo lwemveliso	Ukwahlulahlula
I-GFS-016-009c	Ibhokisi yokuhambisa i-fiber fib

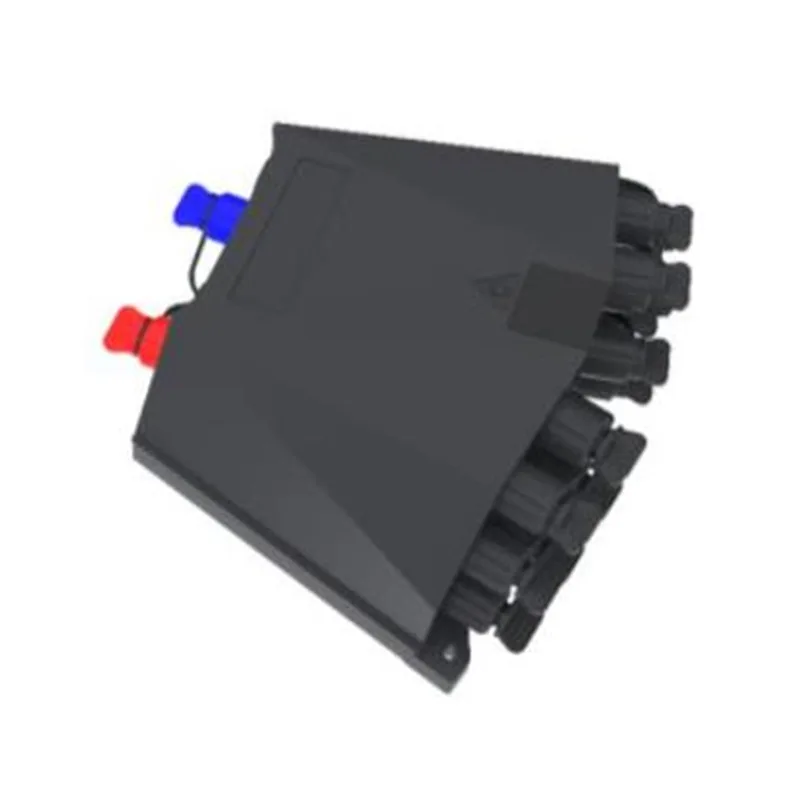

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

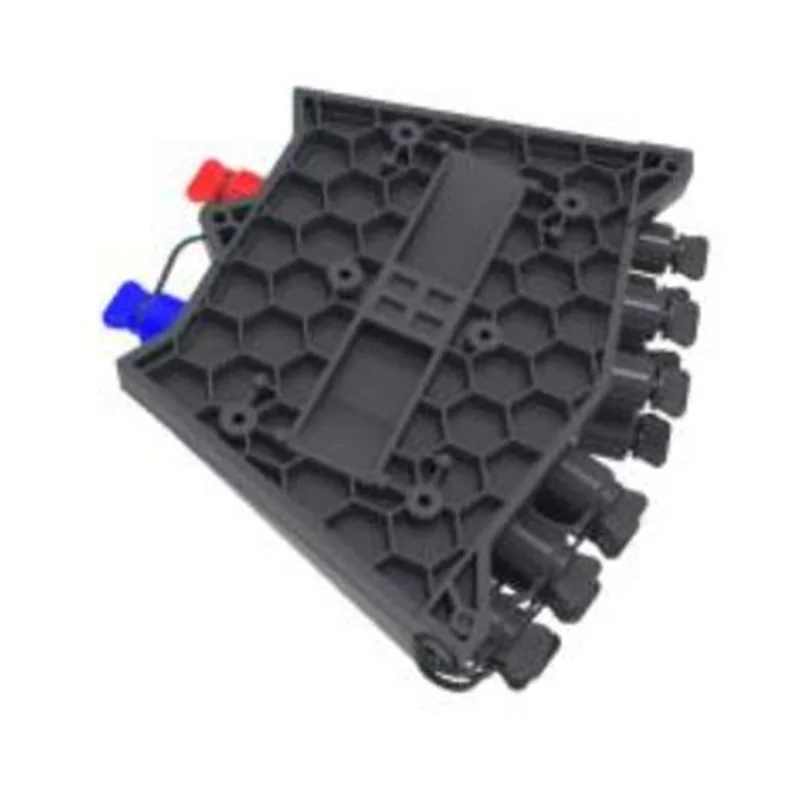

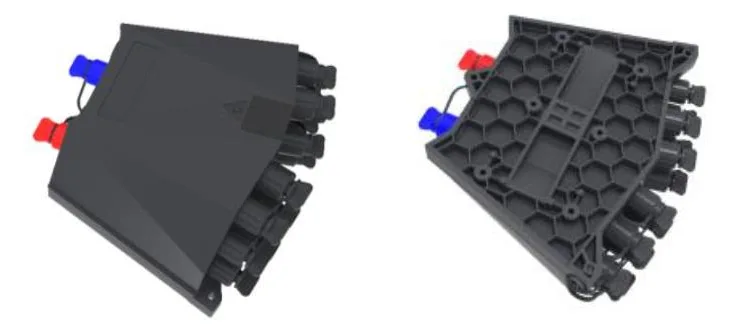

Imbonakalo ye-GFS-016-00C

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

I-TY-T G.652	Iimpawu zemowudi enye ye-fiber yokukhanya
IEC 60794-1-1	I-fible yefibre ye-fiber-Icandelo 1-1: Ukulungiswa kwe-generic-geqe
IEC 60794-1-2	I-fible ye-fiber ye-fiber-Icandelo 1-2: I-generic fildition yenkqubo yovavanyo lwentambo

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 65 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-40ºc ~ + 65 ºc
Uxinzelelo lwe-otmospheric	I-70 ~ 106Kpa
Ubuntu bezizalwane	≤93% (+ 40 ℃)

2. Iimpawu

I-1. Iqokobhe elingezantsi kunye nekhali elingaphezulu likhutshiwe ngeplate eshushu yedyling, engachaphazelekanga.

2. Impahla: PP + gf.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

5. I-Inter Inrim ixhotywe nge-1X2 FBT Splitter + 1x16 plcter splitter okanye i-1x16 plcter splitter.

I-6. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poerial enyukayo, i-Wall-ikhuselwe.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Into	Inkcazo	Intetho
Izixhobo zeZindlu	I-PP + gf
Izixhobo zentsimbi	Intsimbi ephakathi ye-Staight

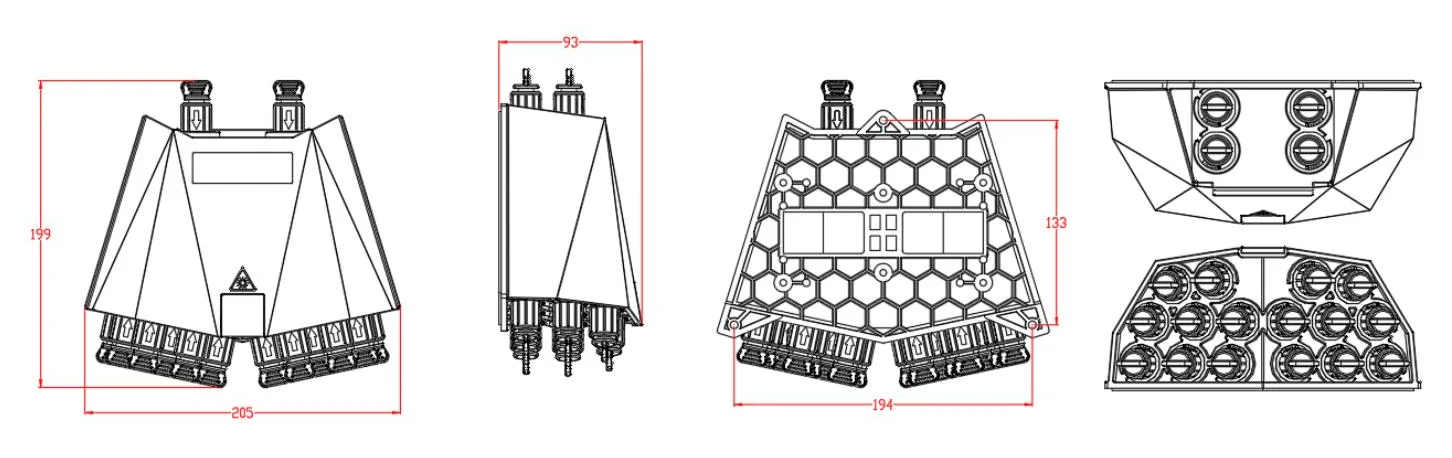

Ubungakanani bangaphandle (mm)	205 * 199 * 93MM
Umbala	Mnyama
Isikhundla seHick Hole (MM)	Ngo-194 * 133
Inani leeadaptha zangaphambili	18
Hlula	I-1x2 fbt splitter + 1x16 plcter splitter
Ibanga le-IP	IP68
Ukuvutha	Il94-HB	Ukungagqibeki
I-Pict Sprey (NS)	48 h	Ukungagqibeki

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

4. Isimo

4.1 Iiparameter eziphambili

Hlula	(DB)		I-RL (DB)	(DB)	Indlela yovavanyo
Hlula	Hlula			Ibhokisi yokuhambisa	Indlela yovavanyo
I-1 * 2 fbt (90/10) + 1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (90%)	≤1	≥55	≤1.2	Il: IEC61300-4-4-4-4-4 Indlela B I-RL: IEC61300-3-6 Indlela yoku-1
	I-1 * 2 fbt (10%) + 1 * 16 plc	≤24.8	≥55	≤25
I-1 * 2 fbt (80/20) + 1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (80%)	¶1. 4	≥55	≤1.6
	I-1 * 2 fbt (20%) + 1 * 16 plc	≤21.6	≥55	≤21.8
I-1 * 2 fbt (70/30) + 1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (70%)	≤2.1	≥55	≤2.3
	I-1 * 2 fbt (30%) + 1 * 16 plc	≤19.6	≥55	≤19.8
I-1 * 2 fbt (60/40) + 1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (60%)	≤2.8	≥55	≤3.0
	I-1 * 2 fbt (40%) + 1 * 16 plc	≤18.3	≥55	≤18.5
I-1 * 2 fbt (50/50) + 1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (50%)	≤3.7	≥55	≤3.9
	I-1 * 2 fbt (50%) + 1 * 16 plc	≤17.2	≥55	¶17.4
I-1 * 16 plc spyterter, ngesinxibelelanisi se-SCAPC	1 * 16 plc	≤13.5	≥55db	≤13.7

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

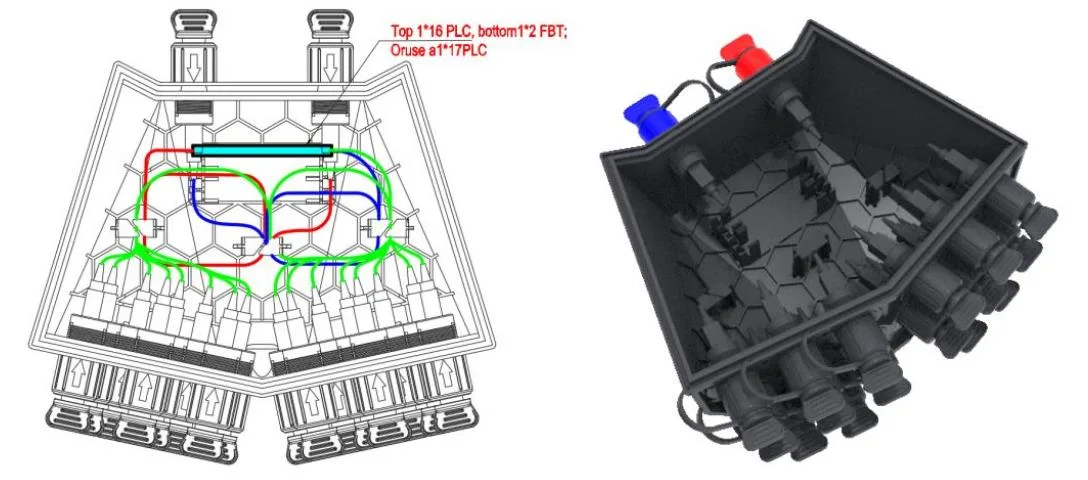

I-1 * 2 fbt + 1 * 16 plc splittle yeendlela zentambo

5.2 Izinto

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi

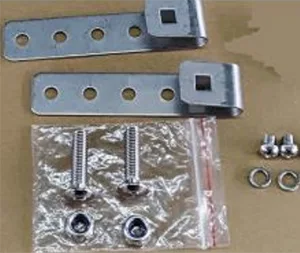

3	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi
4	Ikhithi yePole		seta	1	Inketho njengesicelo somthengi
5	Ikhithi ye-aerial enyukayo		seta	1	Inketho njengesicelo somthengi

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-Mercury, i-biphenyl ye-biphenyl (PBBE) kunye ne-Polybimined Deten Ether Other (PBDE) ayigqithi kumda.

7. Ukufakwa

7.1. Ukufakwa kweWall

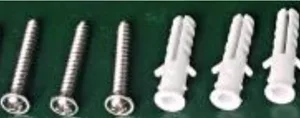

Drill imingxunya emi-3 eludongeni ngokobungakanani, beka iplagi yokwanda kweplagi φ7.5 * 40, Beka ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uqinisekise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

Ukufakwa kodonga

7.2. Ukufakwa kwePlale

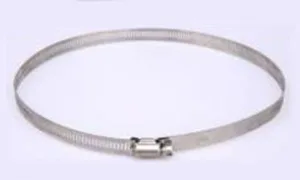

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

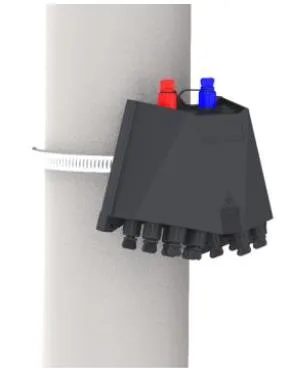

I-Pole ikhuselwe

7.3 Isakhiwo esingaphezulu

Bopha i-chassis ye-chassis yentloko egudileyo e-wire, kwaye emva koko ibotshwe, thintele ityala.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-016-009C

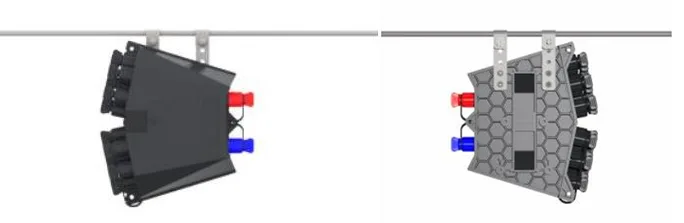

Isakhiwo esingaphezulu

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Pre-connected adapter - A（ E）

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

Pre-connected adapter - A（ E）

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

Pre-connected adapter - B（XL）

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

Pre-connected adapter - C

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

Pre-connected adapter - C

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

Pre-connected adapter - C

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

Pre-connected adapter - D

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

Pre-connected adapter - D

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

Pre-connected adapter - E ( A )

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

Pre-connected adapter - E ( A )

8.6 I-Adaptha engaphambi kokuba i-Adapter -f

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

Pre-connected adapter -F<

8.7 I-adaptha engaphambi kokuba idityaniswe-G

Pre-connected adapter - G

9. Iphakheji

Into	Izixhobo	Ubungakanani (mm)	Ubungakanani	Ubunzima bomzimba (kg)
Ukupakishwa kwemveliso ezimeleyo	Ibhokisi	I-225x210x115	1	0.8
Ibhokisi yokupakisha yangaphandle	Ibhokisi	I-470x440x615	20	17
Qaphela: Ngaphandle kwetreyi yokugcina intambo
