I-fiber fible ye-fiber optic ye-piber of thebhile yebhokisi ye-GFS-16QX

1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEART njengeyona ncwadi iphambili yokusasaza i-FTTX yenethiwekhi, ukubonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwenethiwekhi ye-FTTX.

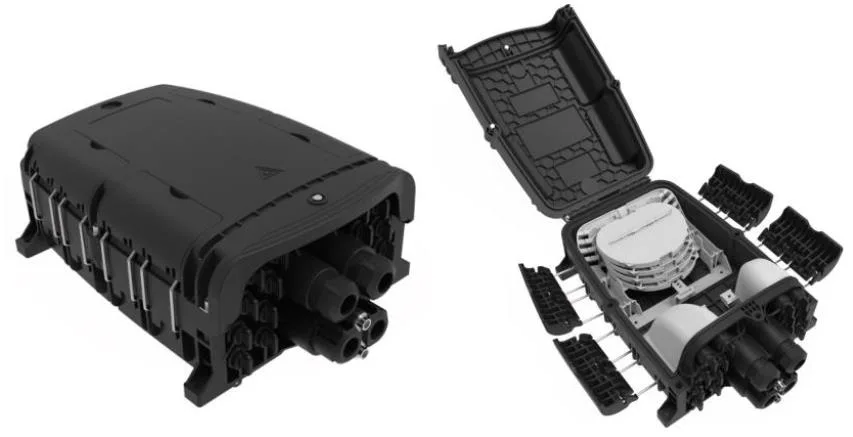

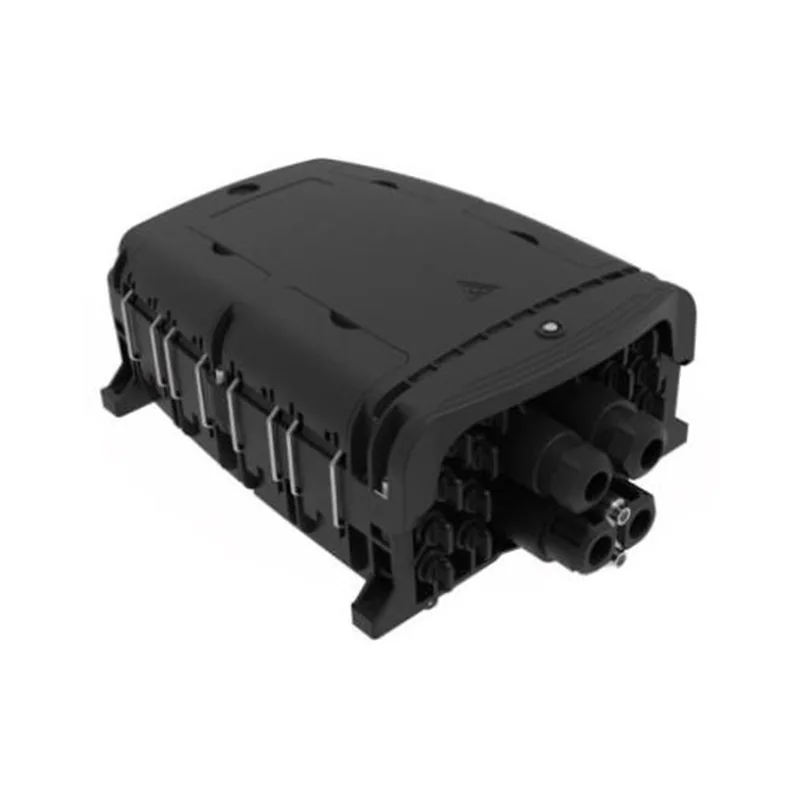

Imbonakalo ye-gfs-16QX

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

1.3 Imeko yezicelo

2. Iimpawu

1. Uyilo oluphambili, umsebenzi olulula kunye nokuhamba ngendlela efanelekileyo.

2. Impahla: PP + gf.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

I-5. I-1 Oval Cable yokungena kwentambo, isebe eli-2 lokungenisa intambo yentambo kunye neeadaptha zangaphambi kokuba zidityaniswe.

I-6. 2 Chwetheza itreyitha ye-splice.

I-7. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poelial-I-Wall-ikhuselwe.

3. Iinkcukacha

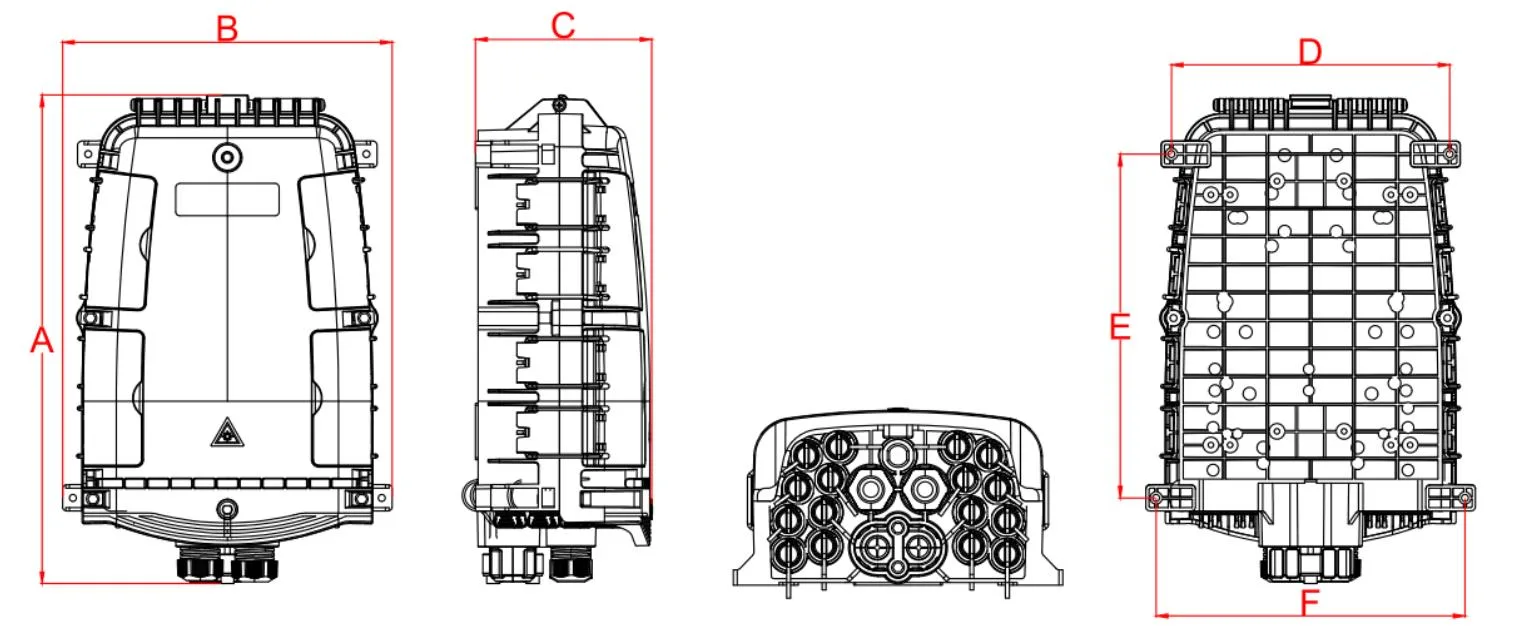

3.1 Inkcazo ngoomatshini

4. Isimo

4.1 Iiparameter eziphambili

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

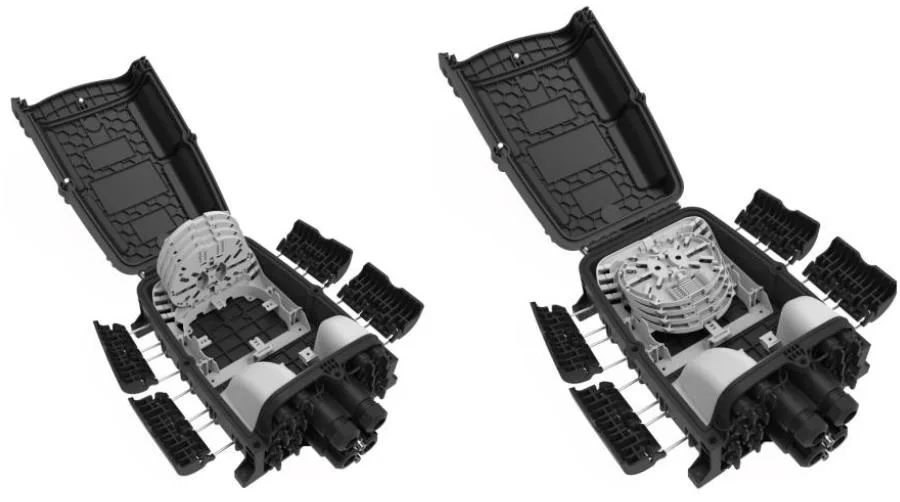

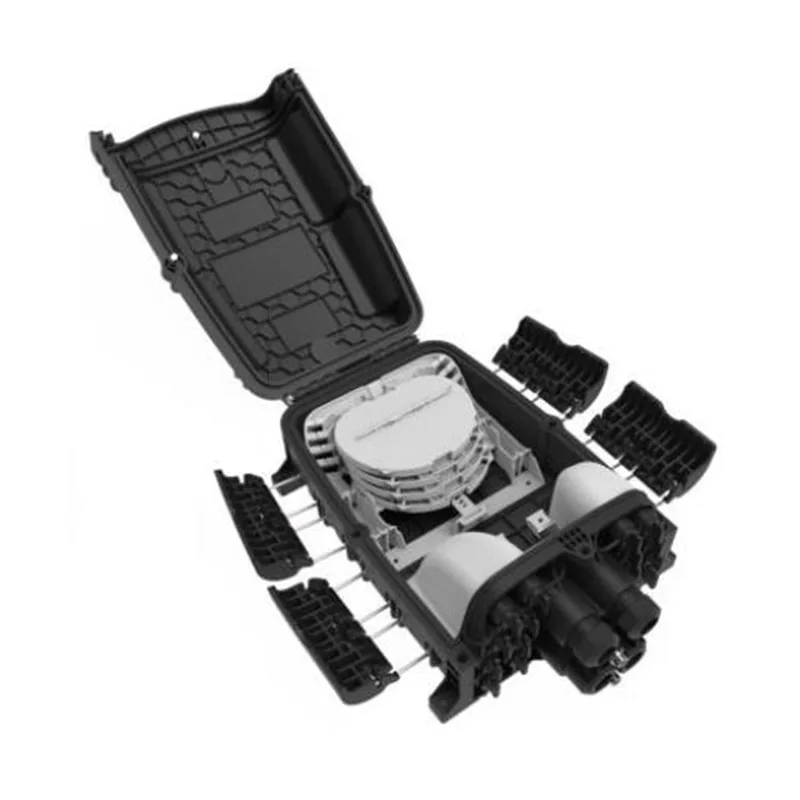

I-5. Imifanekiso yemveliso

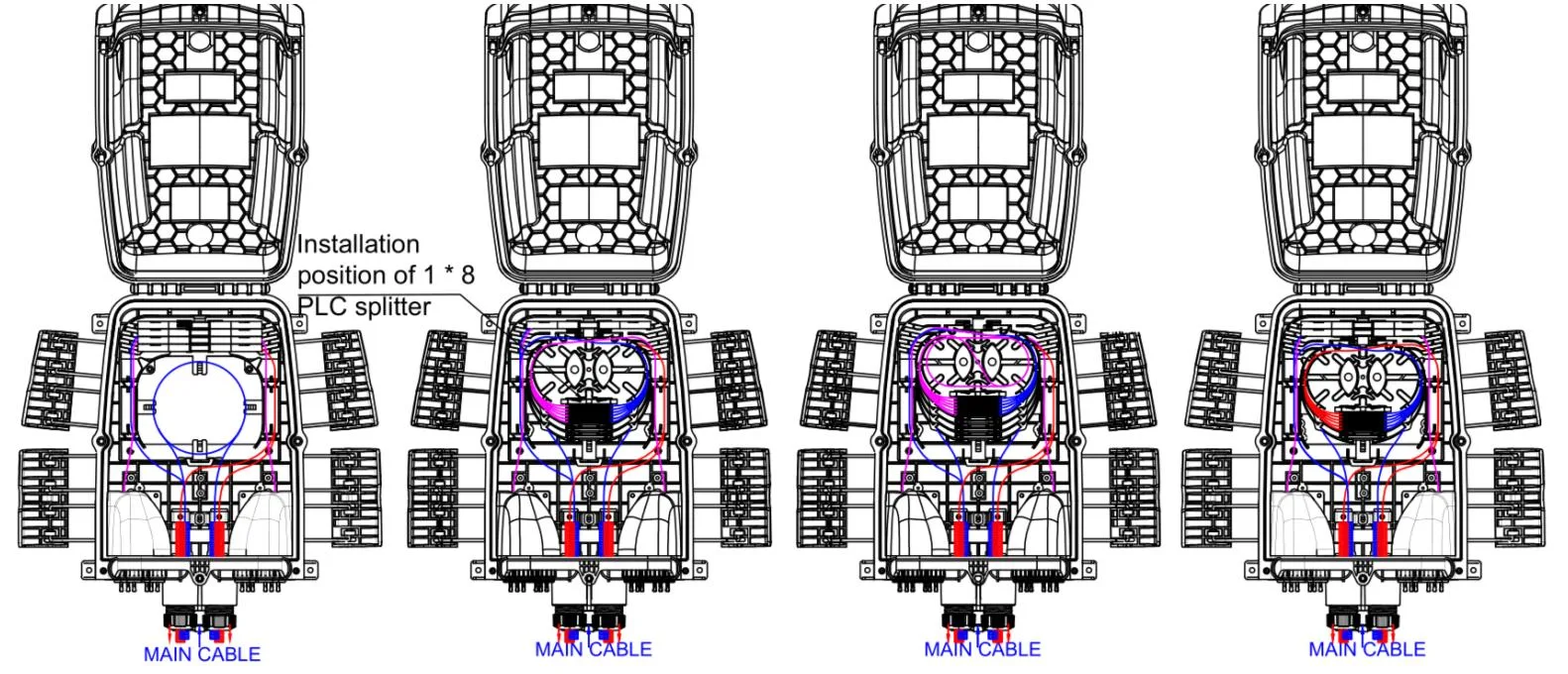

5.1 Iindlela zeMveliso zeMveliso:

I-GFS-16QX Riceram Diagram

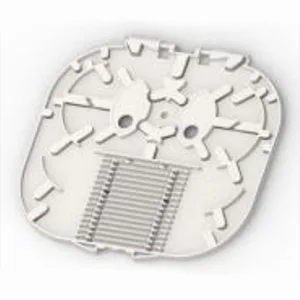

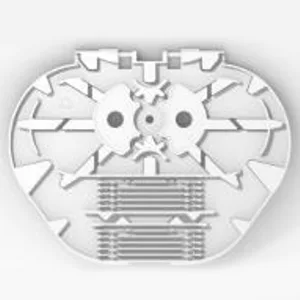

5.2 Itreyi

Into	Itreyi	Itreyi ye-b	I-splitter tray a-1	I-tray c
Ubukhulu (H * w * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8	136 * 104 * 4
Ubunzima bomnatha (kg)	0.021	0.015	0.021	0.018
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuxhoma komthamo wetreyi (ii-cores)	12 (Ii-2 zeengqokelela zobushushu ezikhuselweyo)	8 (I-1 yobushushu obushushu obukhuselekileyo)	6  (Ii-2 zeengqokelela zobushushu ezikhuselweyo)	12 (I-1 yobushushu obushushu obukhuselekileyo)
I-splitter yetreyi yetreyi (Ii-PC)	1  (Plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	/	1  (Plc 1x16, i-0.9mm fiber, i-60x12mm)	/
Ubuninzi (iiPC)	4	8	4	8
Ukungagqibeki (iiPC)	2	/	/	2
Qaphela: 1. Ezi zinto zingasentla zinokudityaniswa ngokweemfuno. 2. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1E = 2f I-3. Iindidi zeediski ze-fiber ziyanda ngokuqhubekayo

Into	Itreyi ye-d	Ukucoca itreyi e	Itreyi e-1	Ukucoca itreyi f
Ubungakanani (h * W * d, mm)	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8	135 * 125 * 4
Ubunzima bomnatha (kg)	0.024	0.033	0.033	0.021
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuxhoma komthamo wetreyi (ii-cores)	24 (I-2 yeengqokelela zobushushu obukhuselekileyo)	24 (I-2 yeengqokelela zobushushu obukhuselekileyo)	18 (I-2 yeengqokelela zobushushu obukhuselekileyo)	16 (I-1 yobushushu obushushu obukhuselekileyo)
I-splitter yetreyi yetreyi (Ii-PC)	/	1 (Plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	1 (Plc 1x16, i-0.9mm fiber, i-60x12mm)	/
Ubuninzi (iiPC)	4	4	4	8
Ukungagqibeki (iiPC)	/	/	/	/
Phawula: 1. Ezi ndlela zingasentla zinokudityaniswa ngokweemfuno. 4. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1E = 2f 3.Iziintlobo zeediski ze-fiber ziyanda ngokuqhubekayo

5.3 Izixhobo

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi

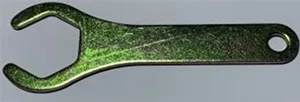

3	Isitshixo		IiPC	1	"D uhlobo
4	Ukhuseleko lokukhusela ubushushu		IiPC	16	L = 45mm, Inketho njengesicelo somthengi
5	I-nylon cable tie		IiPC	10	I-3x100mm

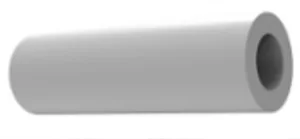

6	Ityhubhu yoKhuselo lweFiber		IiPC	1	I-OD5MM X 50cm

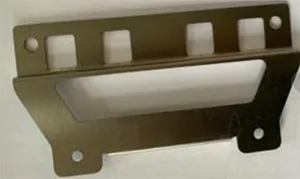

7	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi. Iplagi yeplastiki eyandisiweyo φ7.5x40mm, Phillips ngokwakho i-screws m5x40mm.

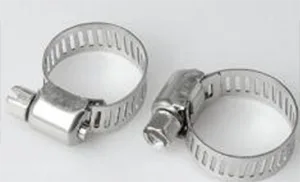

8	Hoop		IiPC	2	ᴓ13-19mmm
9	Intambo yokungena kwentambo		IiPC	2
10	Intambo ye-Brach itywina		IiPC	1

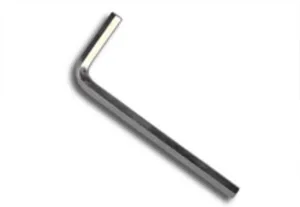

11	I-M6 i-allen iqhosha		IiPC	1	M6
12	Ikhithi yePole-A		seta	1	Inketho njengesicelo somthengi
13	Ikhithi yePole-B		seta	1	Inketho njengesicelo somthengi
14	Ikhithi ye-aerial enyukayo		seta	1	Inketho njengesicelo somthengi
15	Itreyi yentambo yentambo		IiPC	2	Inketho njengesicelo somthengi

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-Mercury, i-biphenyl ye-biphenyl (PBBE) kunye ne-Polybimined Deten Ether Other (PBDE) ayigqithi kumda.

7. Ukufakwa

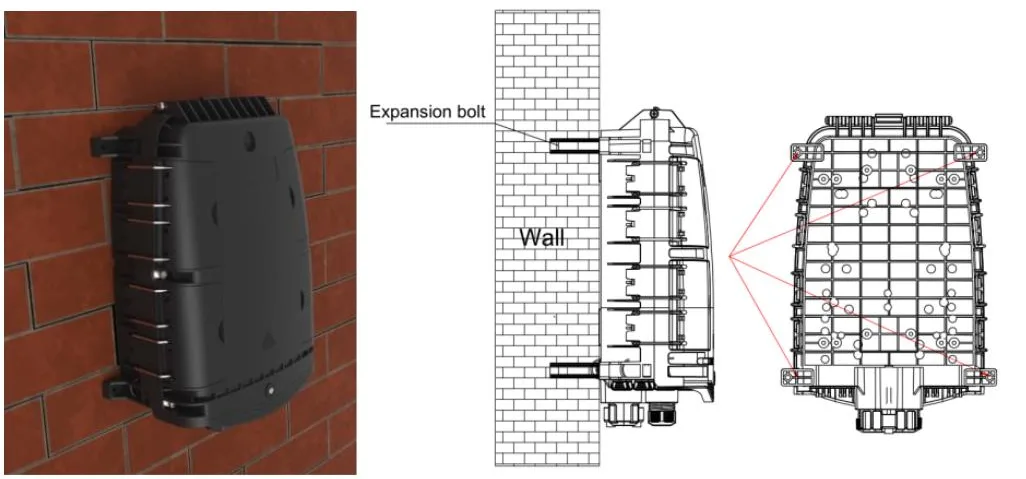

7.1. Ukufakwa kweWall

Drill imingxunya emi-4 eludongeni ngokobungakanani kwiTheyibhile 3.1, Beka iplagi yokwanda kweplagi7.5 * 40, Beka ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uqinisekise.

Ukufakwa kodonga

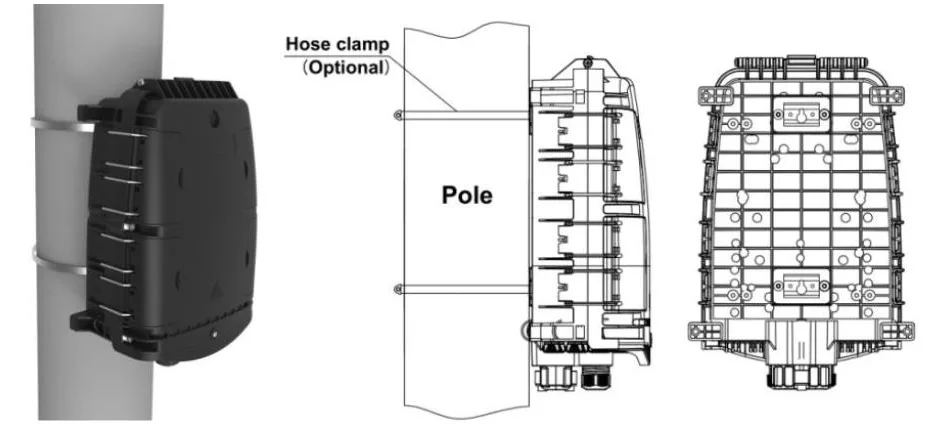

7.2. Ukufakwa kwePlale

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

I-Pole ikhuselwe

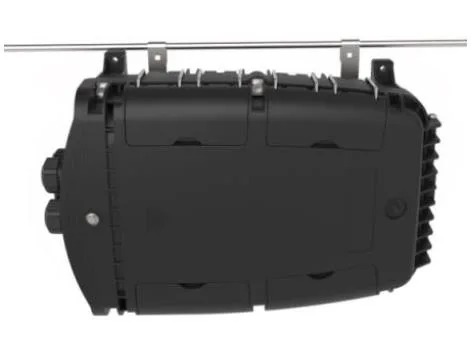

7.3 Isakhiwo esingaphezulu

Bopha ezi zinto zibini ezifakwe kwi-chassis yentloko egudileyo kwi-wire, kwaye emva koko ibotshwe, thintela ityala.

Isakhiwo esingaphezulu

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

8.6 I-Adaptha engaphambi kokuba i-Adaptha-SC

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

8.7 I-adaptha engaphambi kokuba idityaniswe-G

9. Iphakheji

I-1PC kwingxowa ye-bubble, i-400 * 480mm;

I-1pc kwibhokisi encinci, i-385 * 260 * i-150mm, ubunzima obukhulu yi-3.5kg;

I-8PCs kwibhokisi enkulu ye-cerragan, i-540 * 405 * 640 mm, ubunzima obukhulu yi-29kg.
