I-Piber Peber Piber Optic Hable yokuHanjiswa kweNcwadi yeBhokisi ye-GFS-16SX

1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEART njengeyona ncwadi iphambili yokusasaza i-FTTX yenethiwekhi, ukubonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwenethiwekhi ye-FTTX.

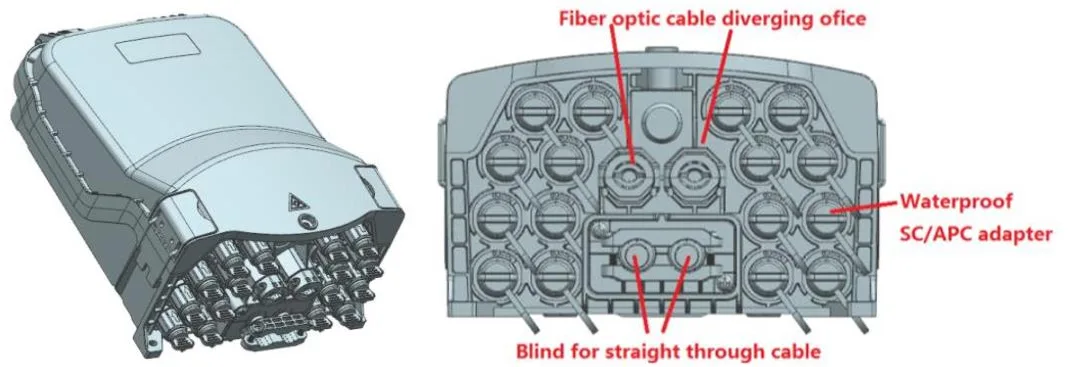

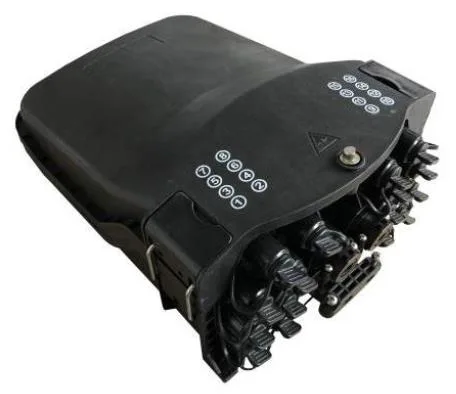

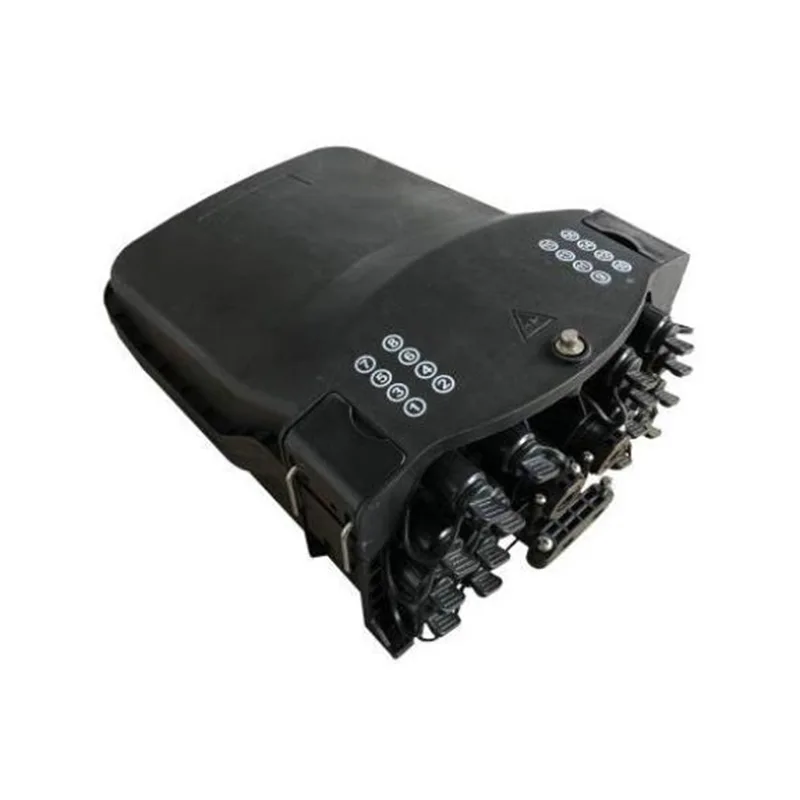

Imbonakalo ye-gfs-16sx

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

1.3 Imeko yezicelo

2. Iimpawu

1. Uyilo oluphambili, umsebenzi olulula kunye nokuhamba ngendlela efanelekileyo.

2. Impahla: PP + gf.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

I-4. Inqanaba lokhuseleko ukuya kwi-IP65.

I-5. I-1 Oval Cable yokungena kwentambo, isebe eli-2 lokungenisa intambo yentambo kunye neeadaptha zangaphambi kokuba zidityaniswe.

6. Iintlobo ngeentlobo zeetreyi ze-splice ziyafumaneka.

I-7. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poelial-I-Wall-ikhuselwe.

8. Ingaxhotyiswa ngetreyi yokugcina intambo ukuze ihlangane nokugcinwa kweemitha ezi-5mm 5mm.

3. Iinkcukacha

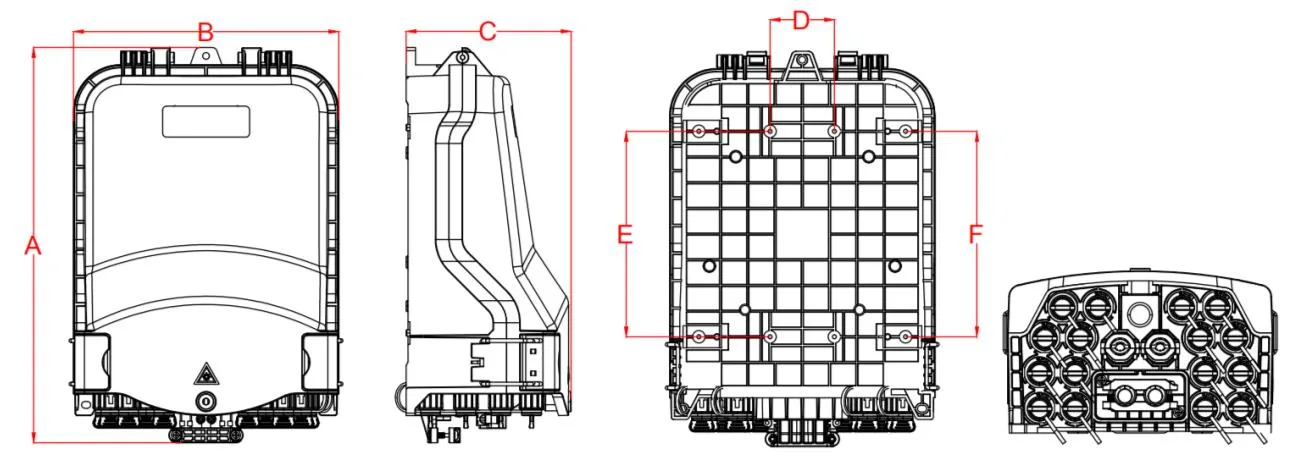

3.1 Inkcazo ngoomatshini

4. Isimo

4.1 Iiparameter eziphambili

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

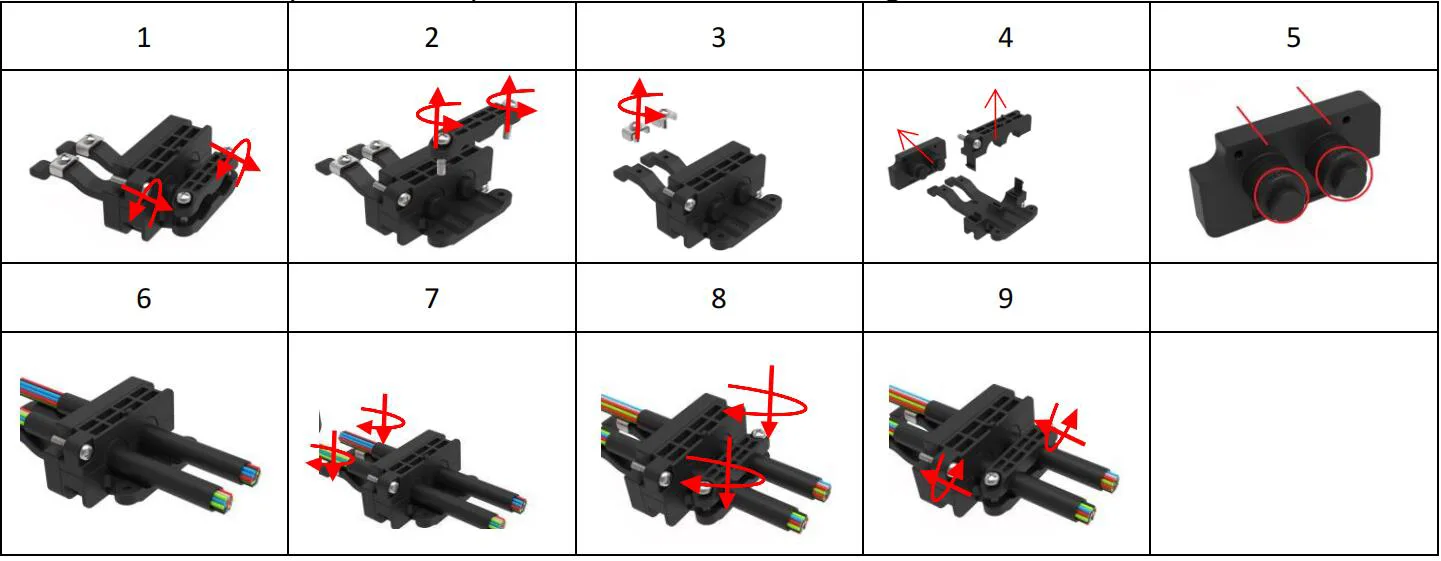

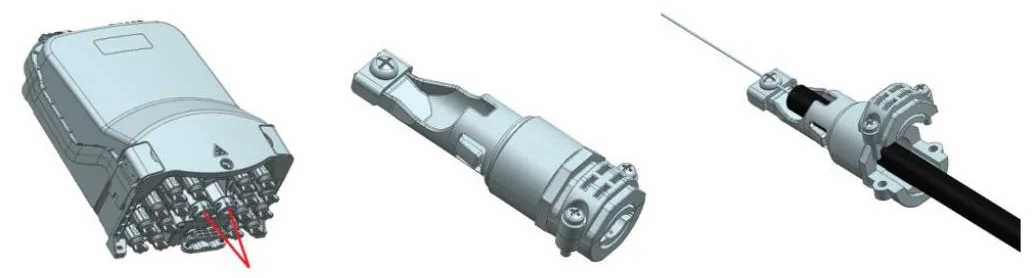

5.2 Iplagi ekhawulezayo

1. Khulula isikhafu kwaye ususe unxibelelwano.

2. Khulula isikhafu kwaye ususe iplate yoxinzelelo.

3. Khulula isikhafu kwiplate yoxinzelelo lwelungu lamandla.

4. Susa iplagi yerabha kunye neenxalenye zeplastiki.

5. Sika iplagi yerabha ngokobungakanani bentambo efunekayo.

I-6. Dlula intambo ehluthwe ngeplagi yerabha kwaye udibanise intambo ngeplagi yerabha.

7. Yazisa ilungu lamandla kwikhava, cinezela ipleyiti yoxinzelelo, kwaye uqinise i-screw ukulungisa ilungu lamandla.

8. Cinezela phantsi ipleyiti yoxinzelelo kwaye uqinise i-screw ukulungisa intambo yekhebhu.

9. Cofa amacandelo ngentambo yekhephu emazantsi kwaye uqinise izikrelem.

5.3 I-fiber optic bifurication

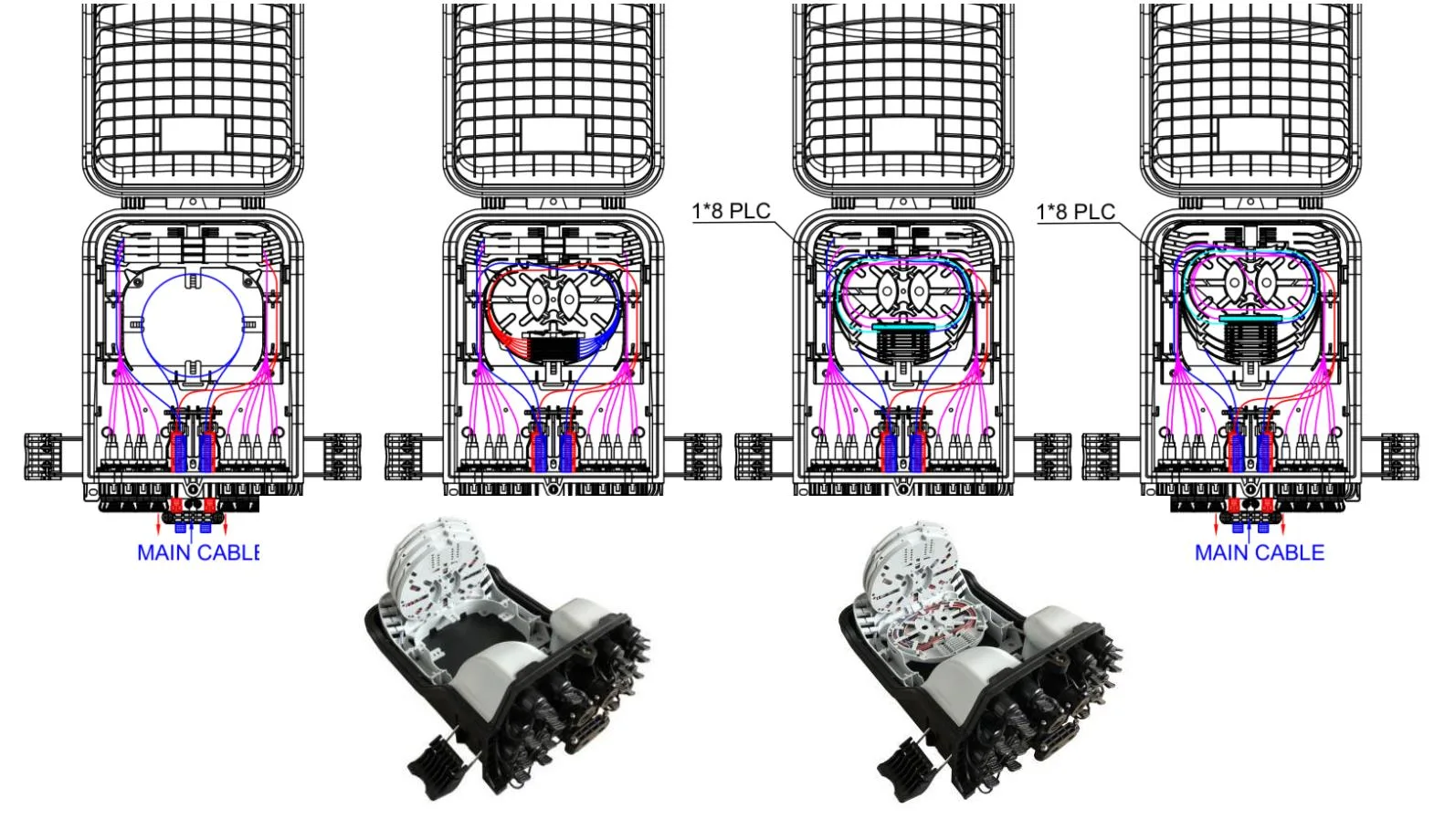

5.4 Iindlela zeCable zeMveliso

I-GFS-16SX Riam Diagram

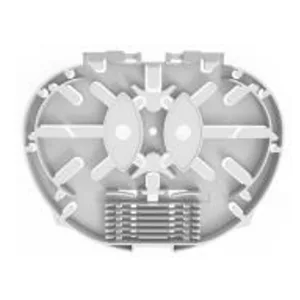

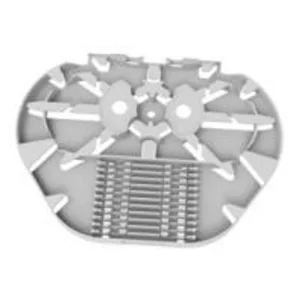

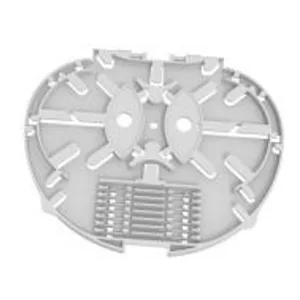

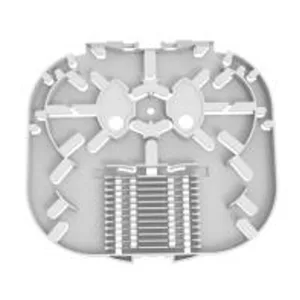

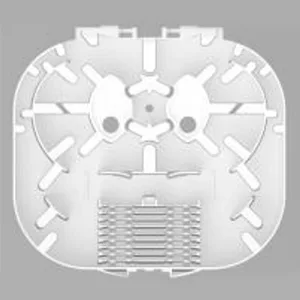

5.5 Itreyi

Into	Itreyi	Itreyi ye-b	I-splitter tray a-1	I-tray c
Ubukhulu (H * w * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8
Ubunzima bomnatha (kg)	0.021	0.015	0.021
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuxhoma komthamo wetreyi (ii-cores)	12 (Ii-2 zeengqokelela zobushushu ezikhuselweyo)	8 (I-1 yobushushu obushushu obukhuselekileyo)	6 (Ii-2 zeengqokelela zobushushu ezikhuselweyo)
I-splitter yetreyi yetreyi (Ii-PC)	1 (Plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	/	1  (Plc 1x16, i-0.9mm fiber, i-60x12mm)
Ubuninzi (iiPC)	4	8	4
Ukungagqibeki (iiPC)	2	/	/
Qaphela: 1. Ezi zinto zingasentla zinokudityaniswa ngokweemfuno. 2. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1E = 2f I-3. Iindidi zeediski ze-fiber ziyanda ngokuqhubekayo

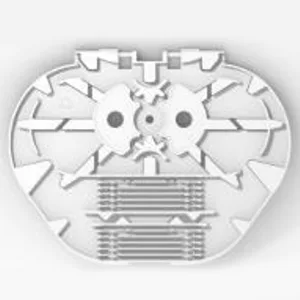

Into	I-tray c	Itreyi ye-d	Ukucoca itreyi e	Itreyi e-1
Ubungakanani (h * W * d, mm)	136 * 104 * 4	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8
Ubunzima bomnatha (kg)	0.018	0.024	0.033	0.033
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuxhoma komthamo wetreyi (ii-cores)	12 (I-1 yobushushu obushushu obukhuselekileyo)	24 (I-2 yeengqokelela zobushushu obukhuselekileyo)	24 (I-2 yeengqokelela zobushushu obukhuselekileyo)	18 (I-2 yeengqokelela zobushushu obukhuselekileyo)
I-splitter yetreyi yetreyi (Ii-PC)	/	/	1 (Plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	1 (Plc 1x16, i-0.9mm fiber, i-60x12mm)
Ubuninzi (iiPC)	8	4	4	4
Ukungagqibeki (iiPC)	/	/	/	/
Phawula: 1. Ezi ndlela zingasentla zinokudityaniswa ngokweemfuno. 4. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1E = 2f 3.Iziintlobo zeediski ze-fiber ziyanda ngokuqhubekayo

5.3 Izixhobo

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi

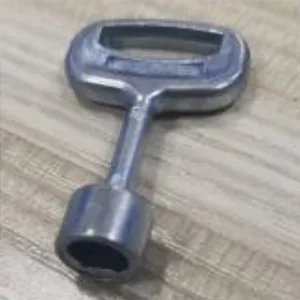

3	Isitshixo		IiPC	1	"D uhlobo

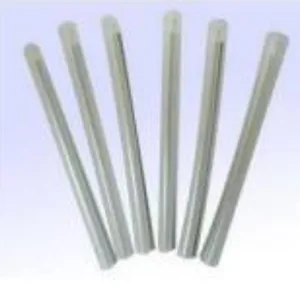

4	Ukhuseleko lokukhusela ubushushu		IiPC	16	L = 45mm, Inketho njengesicelo somthengi

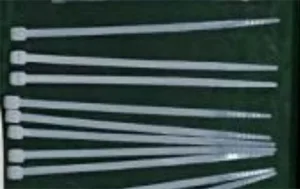

5	I-nylon cable tie		IiPC	10	I-3x100mm

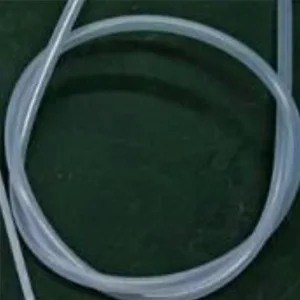

6	Ityhubhu yoKhuselo lweFiber		IiPC	1	I-OD5MM X 50cm
7	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi. Iplagi yeplastiki eyandisiweyo φ7.5x40mm, Phillips ngokwakho i-screws m5x40mm.

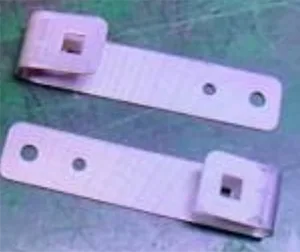

8	Ikhithi yePole		seta	1	Inketho njengesicelo somthengi
9	Ikhithi ye-aerial enyukayo		seta	1	Inketho njengesicelo somthengi
10	Itreyi yentambo yentambo		IiPC	2	Inketho njengesicelo somthengi

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-Mercury, i-biphenyl ye-biphenyl (PBBE) kunye ne-Polybimined Deten Ether Other (PBDE) ayigqithi kumda.

7. Ukufakwa

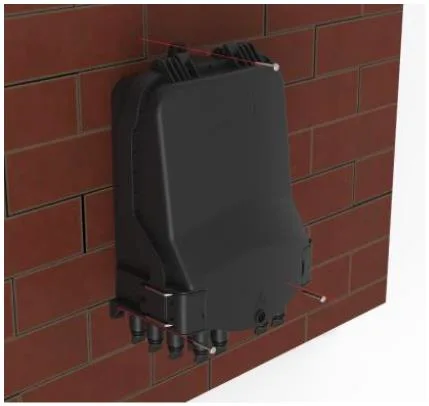

7.1. Ukufakwa kweWall

Drill imingxunya emi-3 eludongeni ngokobungakanani kwiTheyibhile 2, Beka iplagi yokwanda kweplagi ye-2, 40, yibambe ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uboshwe.

Ukufakwa kodonga

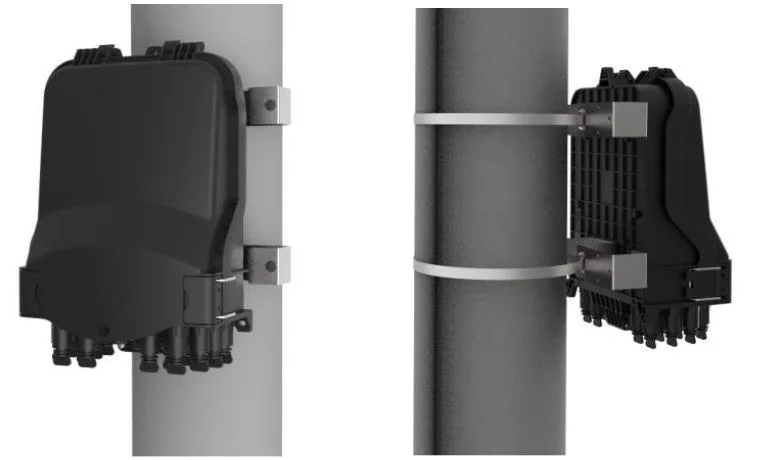

7.2. Ukufakwa kwePlale

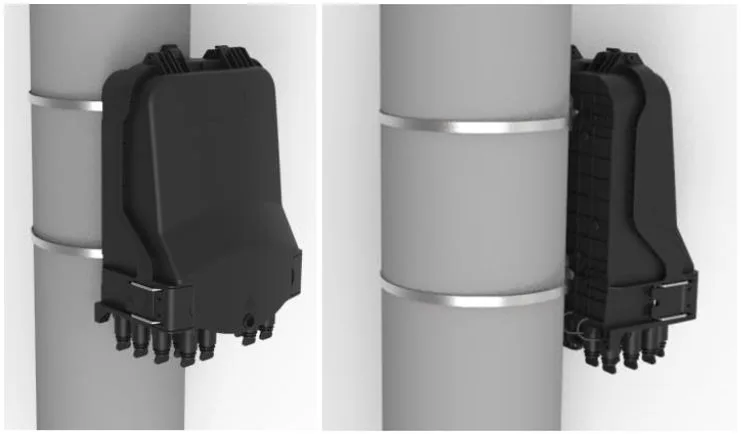

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

I-Pole ikhuselwe

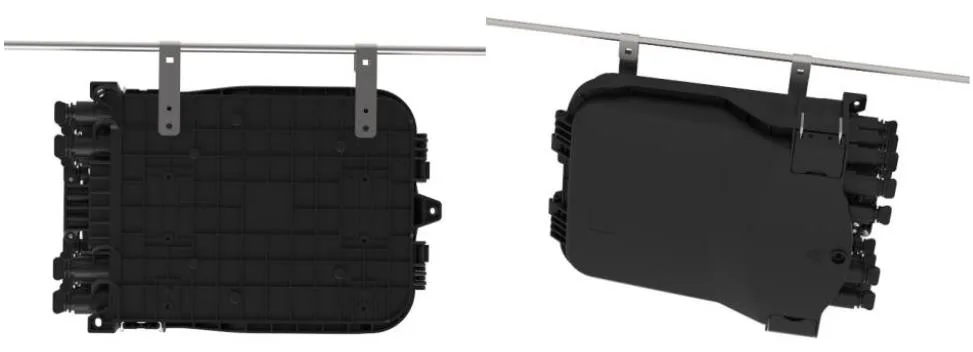

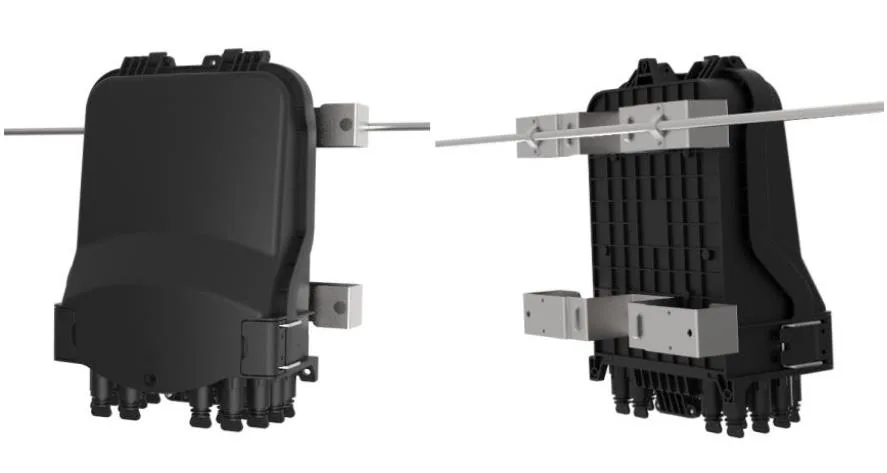

7.3 Isakhiwo esingaphezulu

Bopha ezimbini ezifakwe kwi-chassis yentloko egudileyo e-wire, kwaye emva koko ibotshwe, thintela imeko iwile. (I-6)

Isakhiwo esingaphezulu

7.4 Ufakelo olunyulwe ngudonga (ngetreyi yentambo yentambo)

Drill imingxunya ezi-4 eludongeni ngokobungakanani be-crey yentambo yentambo, beka iplagi yokwandiswa kweplagi

Ufakelo oluxhonywe eludongeni (ngetreyi yentambo yentambo)

7.5 Ufakelo oluPhezulu lwePole (ngetreyi yentambo yentambo)

Dlula i-Belt yentsimbi engenasitayile nge-slot yetreyi yentambo yentambo kwaye uyilungiselele kwi-bole enebhanti.

Ukufakwa kwe-Pole-Power (ngetreyi yentambo yentambo)

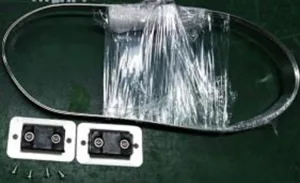

7.6. Ukufakwa kwe-aerial ephakathi (ngetreyi yentambo yentambo)

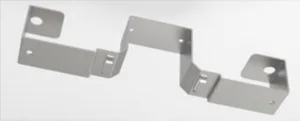

Sebenzisa ipleyiti encinci yentsimbi ukulungisa ibhokisi yokuhambisa kwisithunywa.

Ukufakwa kwe-aerial ephakathi (ngetreyi yentambo yentambo)

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

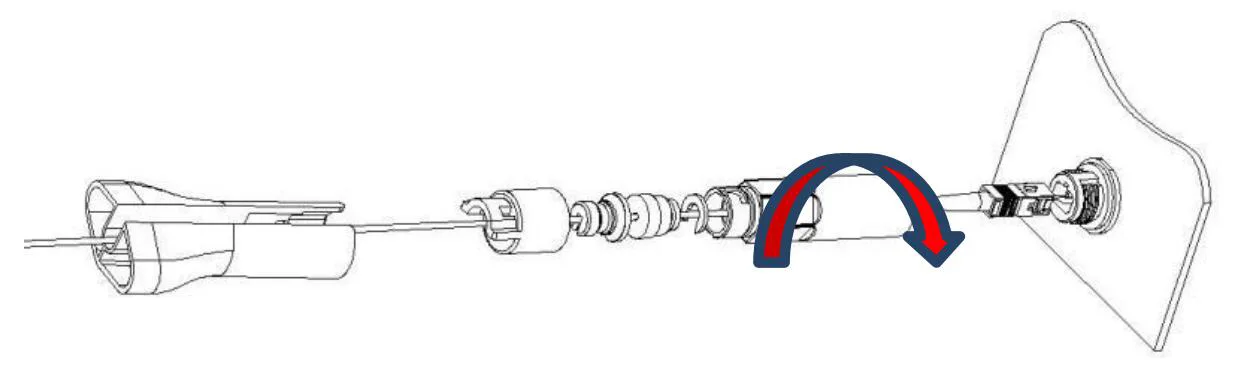

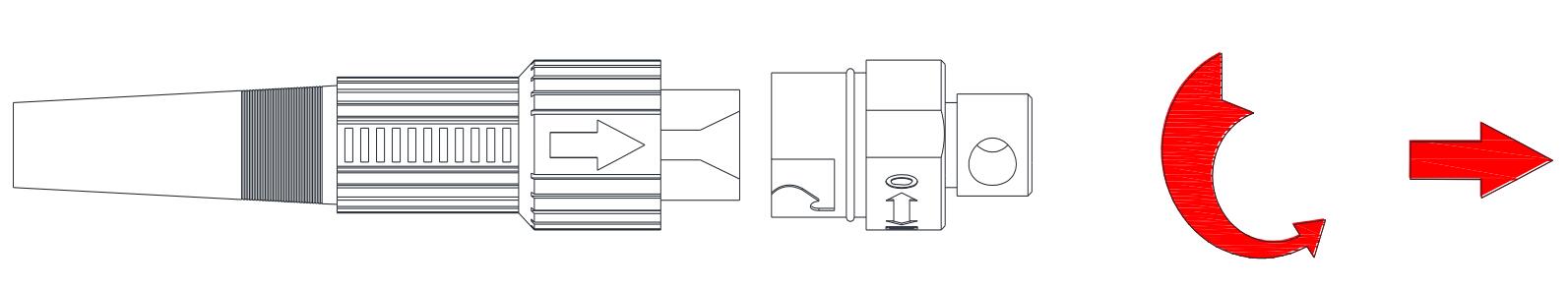

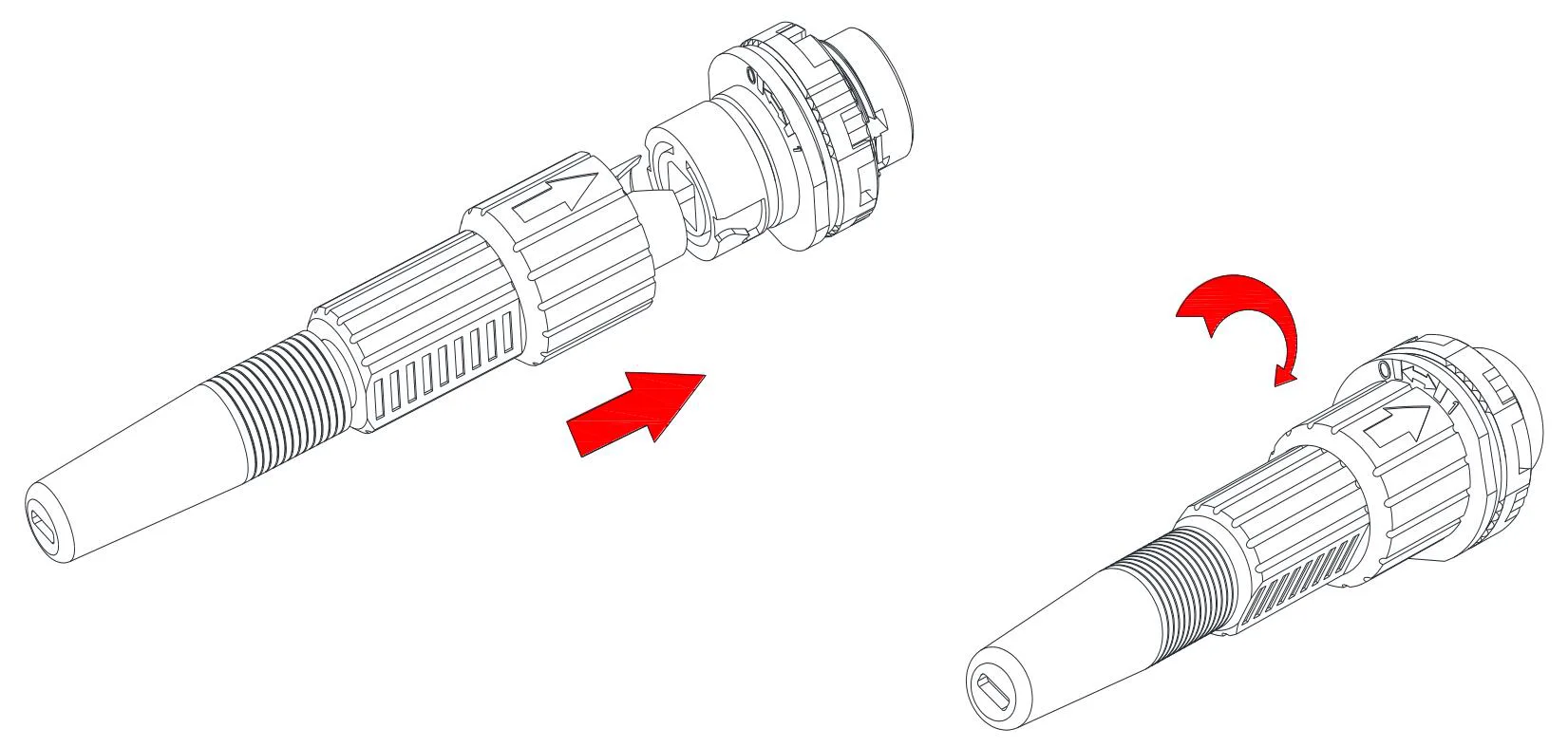

⚫ Jikeleza inxalenye ye-fiber changect

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

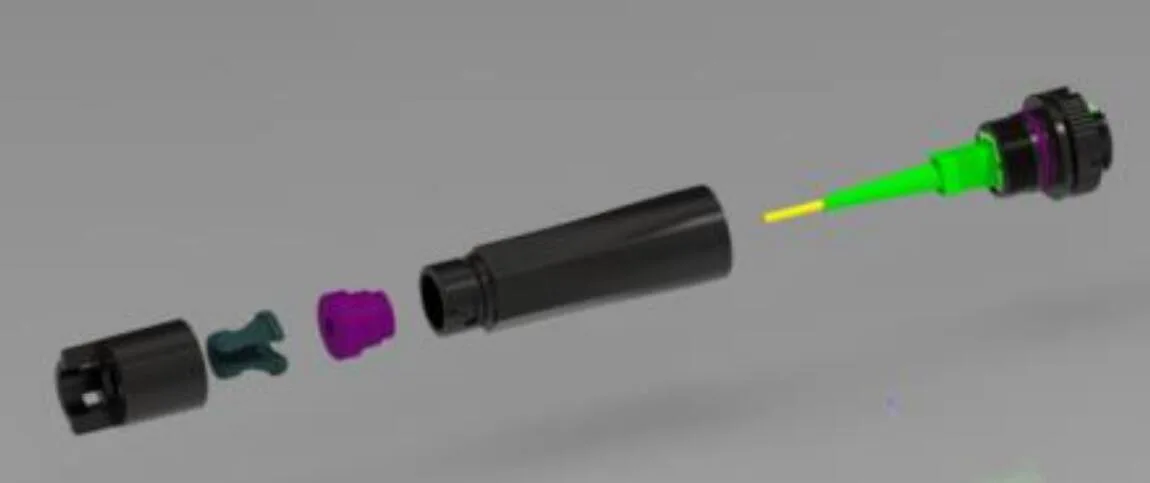

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

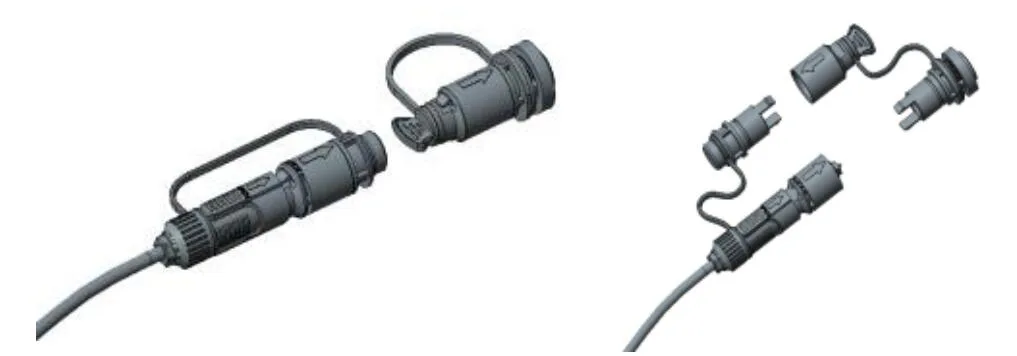

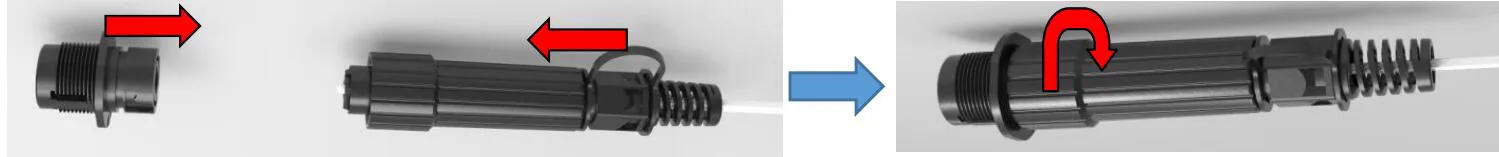

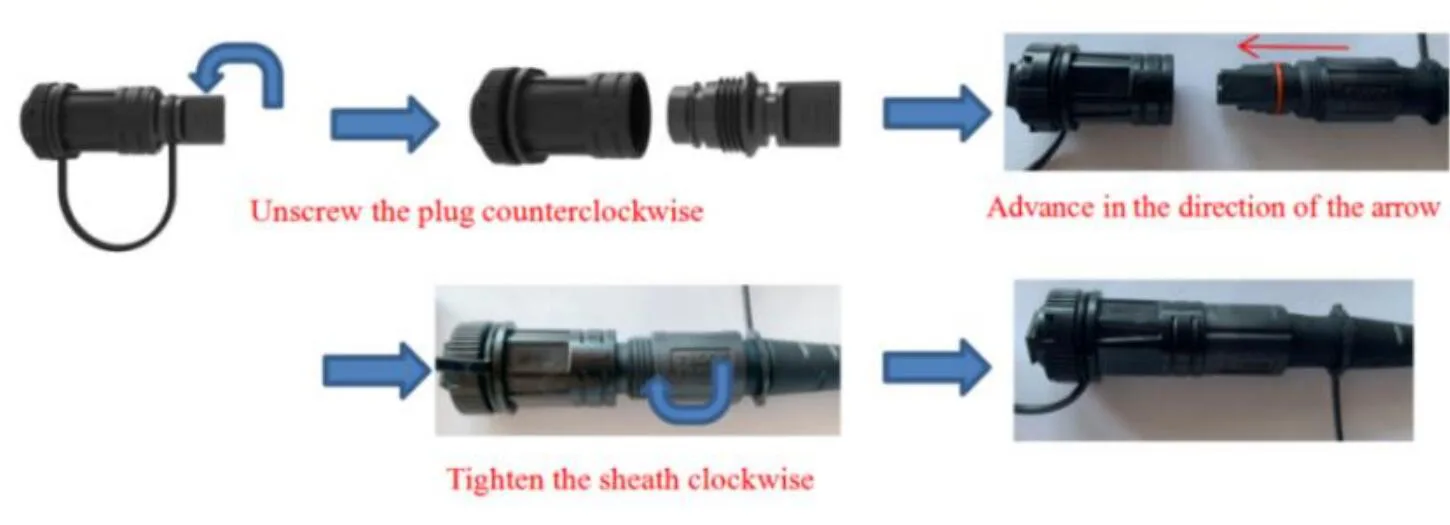

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

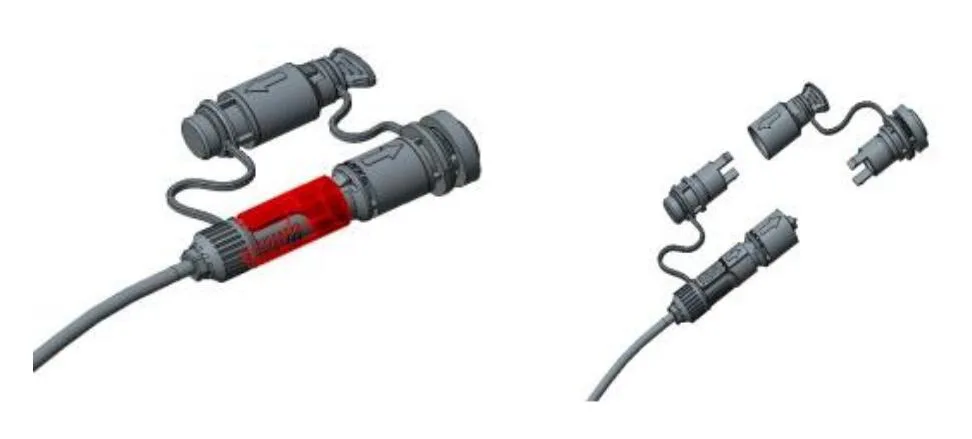

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

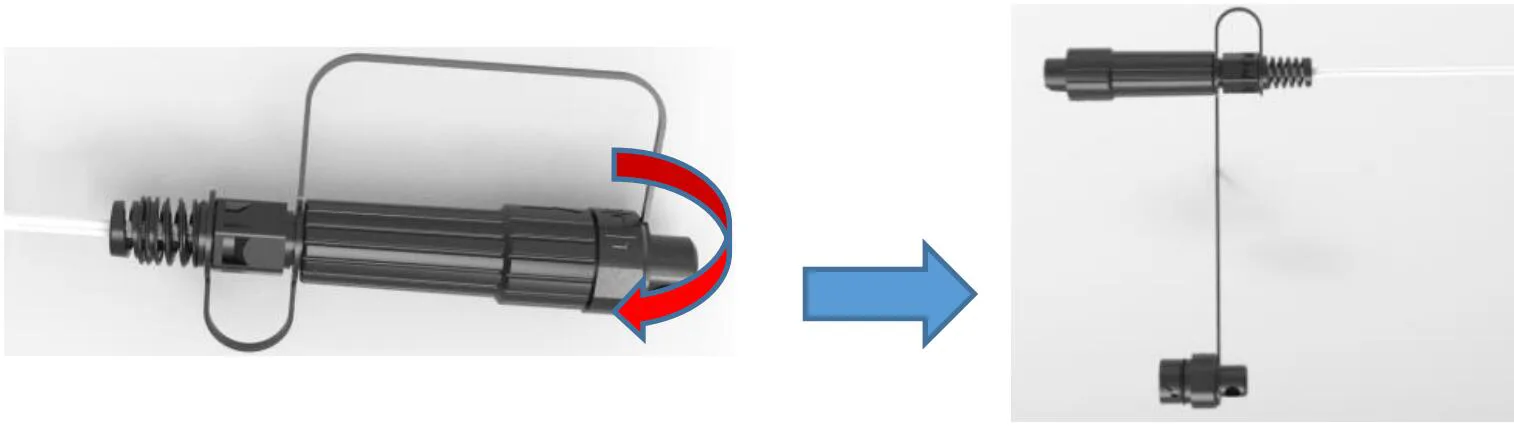

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

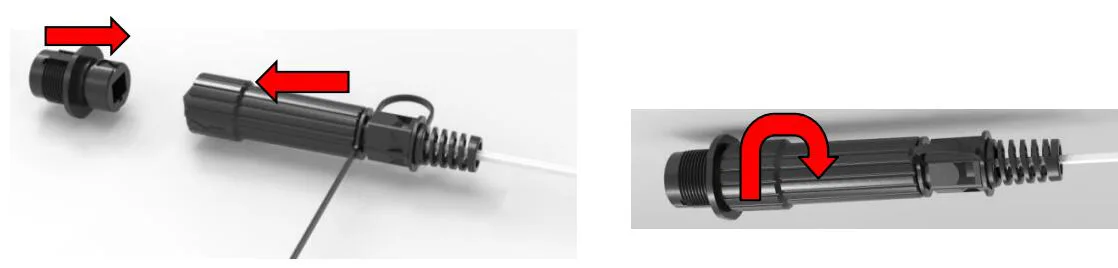

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

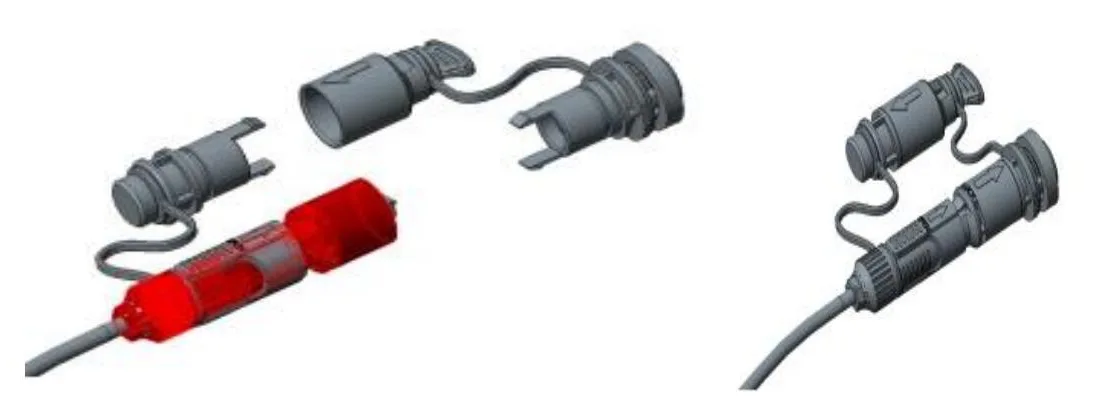

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

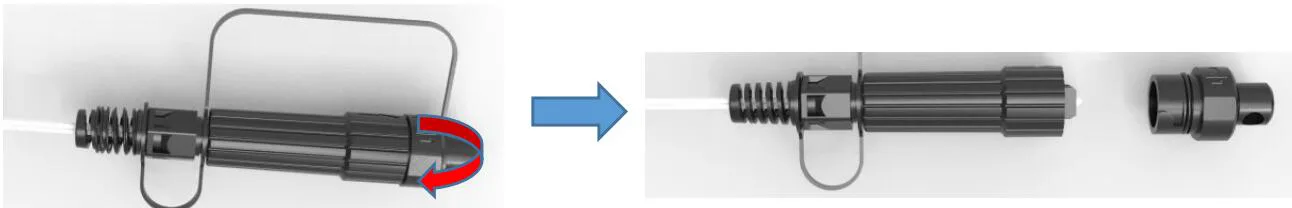

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

8.6 I-Adaptha engaphambi kokuba i-Adaptha-SC

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

8.7 I-adaptha engaphambi kokuba idityaniswe-G

9. Iphakheji

I-1PC kwingxowa ye-bubbble, i-420 * 350mm;

I-1PC kwibhokisi encinci, i-340 * 230 * I-150mm, ubunzima obukhulu yi-1.5kg;

I-10PCs kwibhokisi enkulu ye-cerragan, i-480 * 360 * 805 mm, ubunzima obukhulu yi-16kg.
