1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEXACHEATATION njengoko uninzi lwezixhobo zenethiwekhi ze-FTTX zenethiwekhi zihamba phambili, zibonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwe-FTTX inethiwekhi.

Uhlobo lwemveliso	Ukwahlulahlula
I-GFS-18Byk	Ibhokisi yokuhambisa i-fiber fib

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

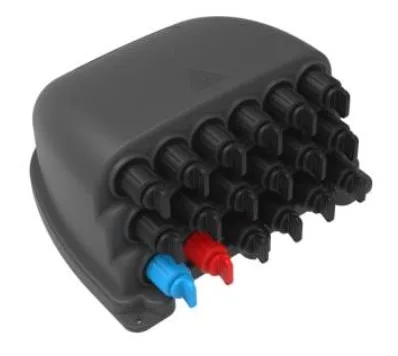

Imbonakalo ye-gfs-18byk

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

I-TY-T G.652	Iimpawu zemowudi enye ye-fiber yokukhanya
IEC 60794-1-1	I-fible yefibre ye-fiber-Icandelo 1-1: Ukulungiswa kwe-generic-geqe
IEC 60794-1-2	I-fible ye-fiber ye-fiber-Icandelo 1-2: I-generic fildition yenkqubo yovavanyo lwentambo

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 65 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-40ºc ~ + 65 ºc
Uxinzelelo lwe-otmospheric	I-70 ~ 106Kpa
Ubuntu bezizalwane	≤93% (+ 40 ℃)

2. Iimpawu

I-1. Iqokobhe elingezantsi kunye nekhasi elingaphezulu lixhonywe ngezikrelemnqa, zisuswe.

2. Izixhobo: iphe.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

5. I-Inter Inter ixhotywe nge-1x2 fbt splitter + 1x16 plcter splitter.

I-6. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poerial enyukayo, i-Wall-ikhuselwe.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

Into	Inkcazo	Intetho
Izixhobo zeZindlu	Iplastiki yePP eguqulweyo
Izixhobo zentsimbi	Intsimbi ephakathi ye-Staight

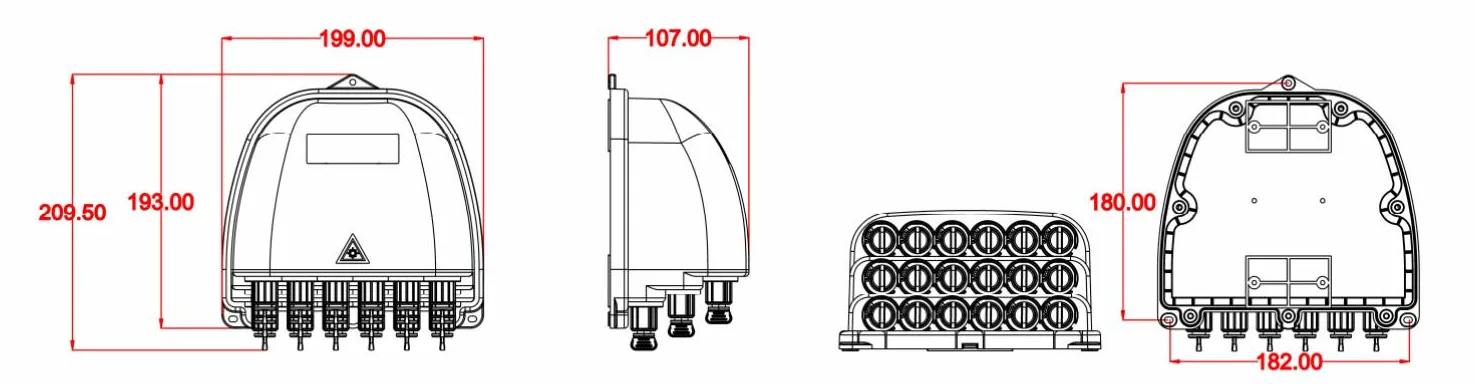

Ubungakanani bangaphandle (mm)	199 * 193 * 107mm	Ngaphandle kweadaptha
Umbala	Mnyama
Isikhundla seHick Hole (MM)	I-180 * 182
Inani leeadaptha zangaphambili	18
Hlula	I-1x2 fbt splitter + 1x16 plcter splitter
Ibanga le-IP	IP68
Ukuvutha	Il94-HB	Inokwenziwa ngokwezifiso ngokweemfuno.
I-Pict Sprey (NS)	48h	Inokwenziwa ngokwezifiso ngokweemfuno.

3.2 Inkcazo ye-Optical

I-splitter okanye i-pigtail	(DB)	I-RL (DB)	(DB)	Indlela yovavanyo
I-splitter okanye i-pigtail	I-pigtail / splitter		Ibhokisi yokuhambisa	Indlela yovavanyo
I-pigtail-sc / apc-00-sm-sx (1c1F) - Od0.9mm-pvc-g657a2-yentambo Umbala (ukusilela) -indoor-rohs-1.5m	≤0.3	≥55db	≤0.5	Il: I-IEC61300 Indlela B I-RL: IEC61300-3-6 Indlela yoku-1
I-1X2 plc splitter, nge-SCAPC isinxibelelanisi	≤4.0	≥55db	≤4.2
I-1x4 plc splitter, nge-SCAPC isinxibelelanisi	≤7.4	≥55db	≤7.6
I-1x 8 plc spropterter, nge-SCAPC isinxibelelanisi	≤10.5	≥55db	≤10.7
I-1x 16 plc splitter, nge-SCAPC isinxibelelanisi	≤13.5	≥55db	≤13.7

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

4. Umfanekiso wemveliso

Iindlela zemveliso yemveliso:

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

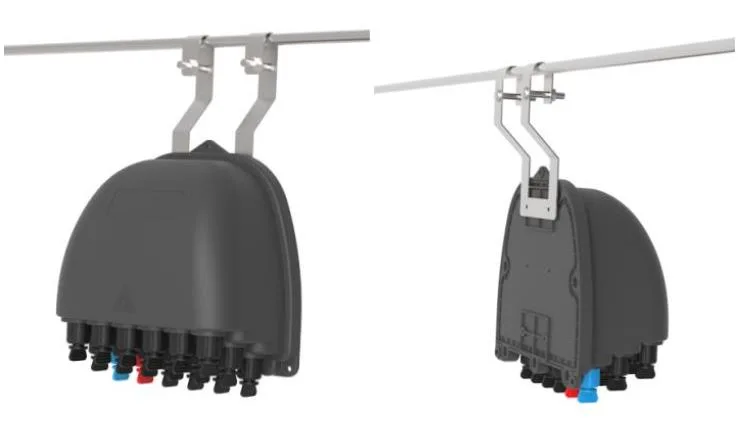

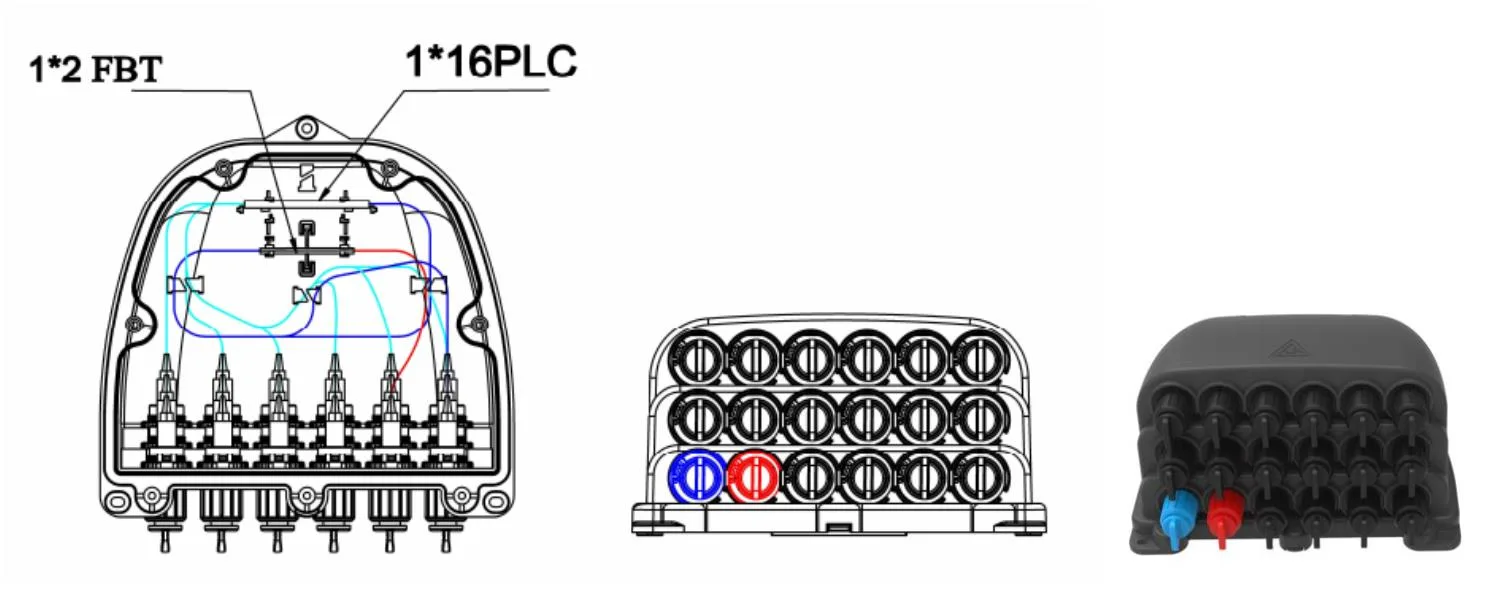

I-GFS-18byk (1 * 2FBT + 1 * 16 I-16 plc splittle yeendlela zentambo)

4.2 Isimo

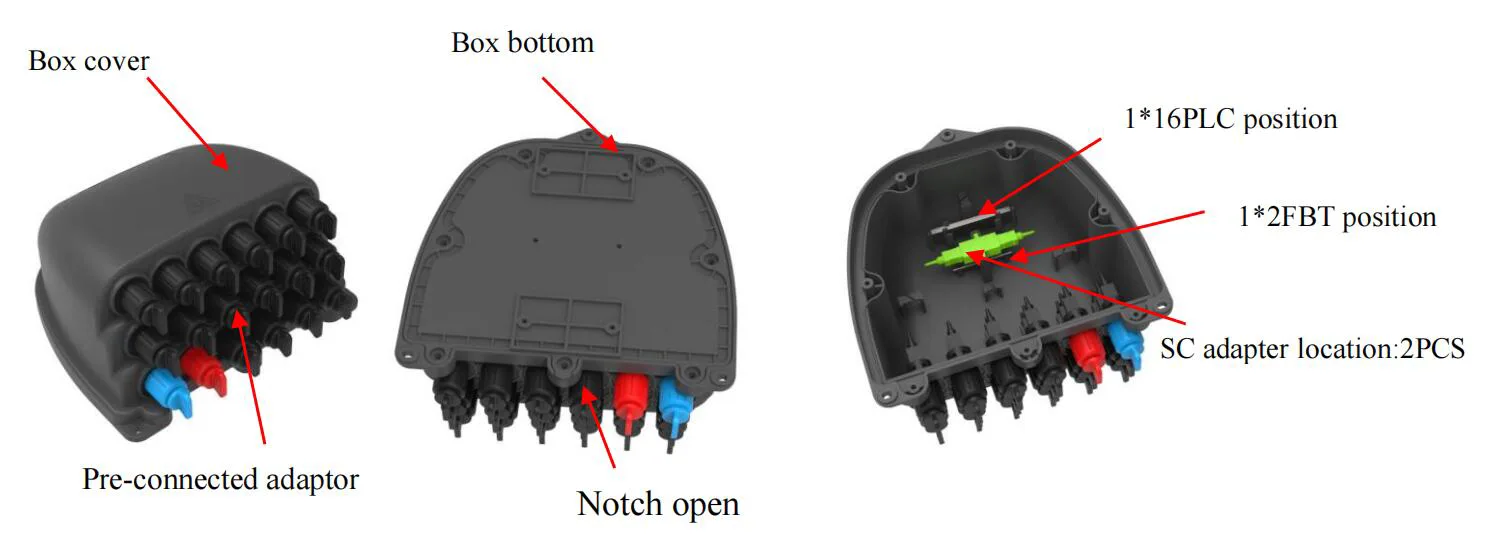

4.2.1 Iinxalenye eziphambili

Hayi.	Igama lenxalenye	Iyunithi	Ubungakanani	Intetho
1	Ibhokisi esezantsi	IiPC	1
2	Ikhava yebhokisi	IiPC	1
3	I-adaptha yangaphambi kokuba idityanisiwe	IiPC	18
4	I-1 * 2FBT + 1 * 16 plc splitter	IiPC	9

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

4.2.2 Izixhobo

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi
3	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi
4	Ikhithi yePole		seta	1	Inketho njengesicelo somthengi
5	Ikhithi ye-aerial enyukayo		seta	1	Inketho njengesicelo somthengi

I-5. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-pplium ye-biphenyl (pbb) i-biphhenyl (pbb) kunye ne-Polybde i-Polybimied I-Ether (PBDE) ayigqithi kumda.

I-6. Ukufakwa

6.1. Ukufakwa kweWall

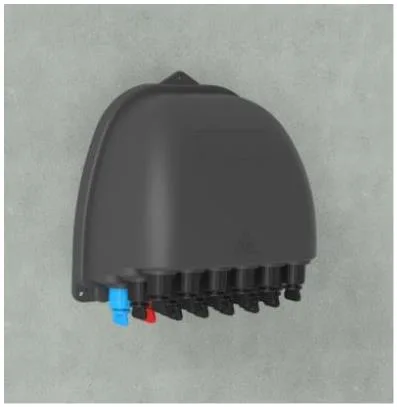

Drill imingxunya emi-3 eludongeni ngokobungakanani, beka iplagi yokwanda kweplagi φ7.5 * 40, Beka ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uqinisekise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

Ukufakwa kodonga

6.2. Ukufakwa kwePlale

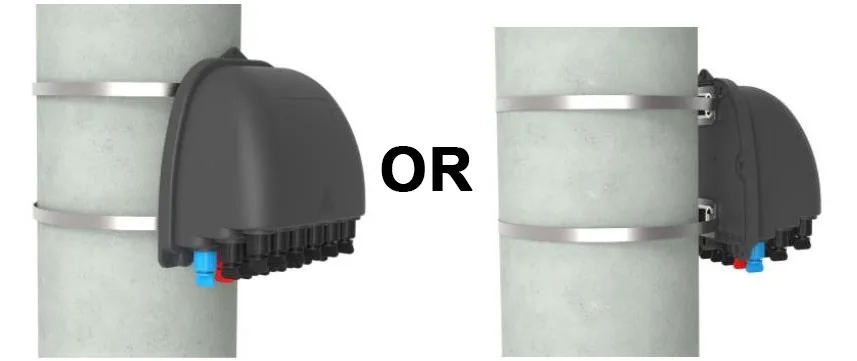

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

I-Pole ikhuselwe

6.3 Isakhiwo esingaphezulu

Bopha ezimbini ezifakwe kwi-chassis yentloko egudileyo e-wire, kwaye emva koko ibotshwe, thintela imeko iwile. (I-6)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-18BYK

Ukufakwa kwePlale

7. Umsebenzi wokunxibelelana

7.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Pre-connected adapter - A（ E）

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

7.2 I-Adaptha yangaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

Pre-connected adapter - B（XL）

7.3 I-Adaptha yangaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

Pre-connected adapter - C

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

Pre-connected adapter - C

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

Pre-connected adapter - C

7.4 I-Adaptha yangaphambi kokuba i-Adaptha-D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

Pre-connected adapter - D

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

Pre-connected adapter - D

7.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

Pre-connected adapter - E ( A )

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

Pre-connected adapter - E ( A )

7.6 I-Adaptha engaphambi kokuba i-adaptha-sc

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

Pre-connected adapter - SC

8. Iphakheji

Into	Izixhobo	Ubungakanani (mm)	Ubungakanani	Ubunzima bomzimba (kg)
Ukupakishwa kwemveliso ezimeleyo	Ibhokisi	I-220 * 210 * 120	1	0.9
Ibhokisi yokupakisha yangaphandle	Ibhokisi	I-460 * 440 * 635	20	19
Qaphela: Ngaphandle kwetreyi yokugcina intambo
