Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

I-TY-T G.652	Iimpawu zemowudi enye ye-fiber yokukhanya
IEC 60794-1-1	I-fible yefibre ye-fiber-Icandelo 1-1: Ukulungiswa kwe-generic-geqe
IEC 60794-1-2	I-fible ye-fiber ye-fiber-Icandelo 1-2: I-generic fildition yenkqubo yovavanyo lwentambo

1.3 Imeko yezicelo

Into	Ixabiso
Iqondo lobushushu	-40 ºc ~ + 65 ºc
Iqondo lokushisa	-5 ºc ~ + 40 ºc
Iqondo lokugcina	-40ºc ~ + 65 ºc
Uxinzelelo lwe-otmospheric	I-70 ~ 106Kpa
Ubuntu bezizalwane	≤93% (+ 40 ℃)

2. Iimpawu

I-1. Iqokobhe elingezantsi kunye nekhali elingaphezulu likhutshiwe ngeplate eshushu yedyling, engachaphazelekanga.

2. Izixhobo: iphe.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

4. Inqanaba lokhuseleko ukuya kwi-IP68.

5. I-Inter Inter ixhotywe nge-1x2 fbt splitter + 1x8 plc splitter okanye i-1x8 plcter splitter.

I-6. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poerial enyukayo, i-Wall-ikhuselwe.

7. Ingaxhotyiswa ngetreyi yokugcina intambo ukuze ihlangane nokugcinwa kweemitha ezi-5mm 5mm.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

Into	Inkcazo	Intetho
Izixhobo zeZindlu	Iplastiki yePP eguqulweyo
Izixhobo zentsimbi	Intsimbi ephakathi ye-Staight
Ubungakanani bangaphandle (mm)	171 * 179 * 66mm	A * B * c
Umbala	Mnyama
Isikhundla seHick Hole (MM)	52 * 142 * 165	D * e * f
Inani leeadaptha zangaphambili	10	I-GFS-8by (i-1 ebomvu, i-1 iBlue, 8 Mnyama)
Inani leeadaptha zangaphambili	9	I-GFS-8by-1 (1 ibomvu, 8 Mnyama)
Hlula	I-1x2 fbt splitter + 1x8 plc splitter	I-GFS-8by, umyinge ongagqibekanga we-1X2 fbt splitter yi-70% / 30% / 30%
Hlula	I-1x8 plc splitter	I-GFS-8by-1
Ibanga le-IP	IP68
Ukuvutha	Il94-HB	Inokwenziwa ngokwezifiso ngokweemfuno.
I-Pict Sprey (NS)	48h	Inokwenziwa ngokwezifiso ngokweemfuno.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

4. Isimo

Iiparameter eziphambili

Imodeli	Hlula	(DB)		I-RL (DB)	(DB)	Indlela yovavanyo
Imodeli	Hlula	Hlula			Ibhokisi yokuhambisa	Indlela yovavanyo
I-GFS-8by	I-1 * 2 fbt (90/10) + 1 * 8 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (90%)	≤8.3	≥55db	≤1.03	Il: IEC61300-41-4 INDLELA B I-RL: IEC61300-3-6 - 26 Indlela yoku-1
		I-1 * 2 fbt (10%) + 1 * 8 plc	≤21.7	≥55db	≤21.9
	I-1 * 2 fbt (80/20) + 1 * 8 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (80%)	≤1.4	≥55db	≤1.6
		I-1 * 2 fbt (20%) + 1 * 8 plc	≤18.3	≥55db	≤18.5
	I-1 * 2 fbt (70/30) + 1 * 8 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (70%)	≤2.1	≥55db	≤2.3
		I-1 * 2 fbt (30%) + 1 * 8 plc	≤16.5	≥55db	≤16.7
	I-1 * 2 fbt (60/40) + 1 * 8 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (60%)	≤2.8	≥55db	≤3.0
		I-1 * 2 fbt (40%) + 1 * 8 plc	≤15.2	≥55db	≤15.4
	I-1 * 2 fbt (50/50) + 1 * 8 plc spyterter, ngesinxibelelanisi se-SCAPC	I-1 * 2 fbt (50%)	≤3.8	≥55db	≤4.0
		I-1 * 2 fbt (50%) + 1 * 8 plc	≤14.3	≥55db	≤14.5
I-GFS-8by-1	I-1x8 plc splitter, ngesinxibelelanisi se-SCAPC	I-1 * 8 plc	≤10.5	≥55db	≤10.7

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

Plc ngaphezulu, fbt ezantsi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

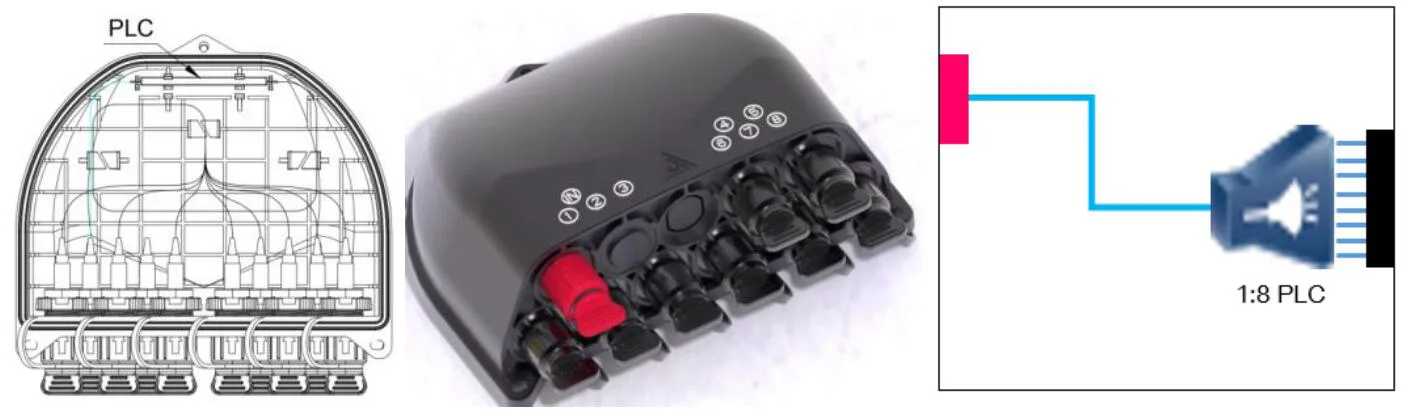

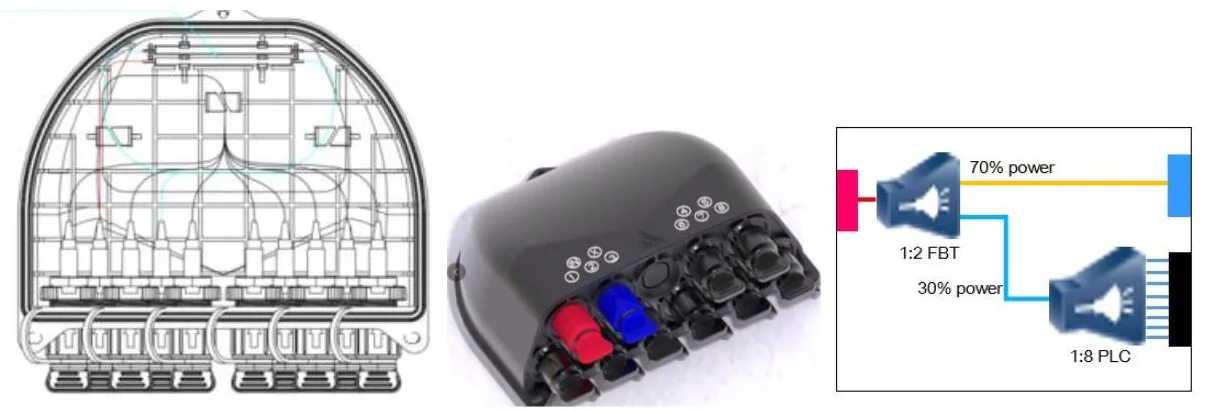

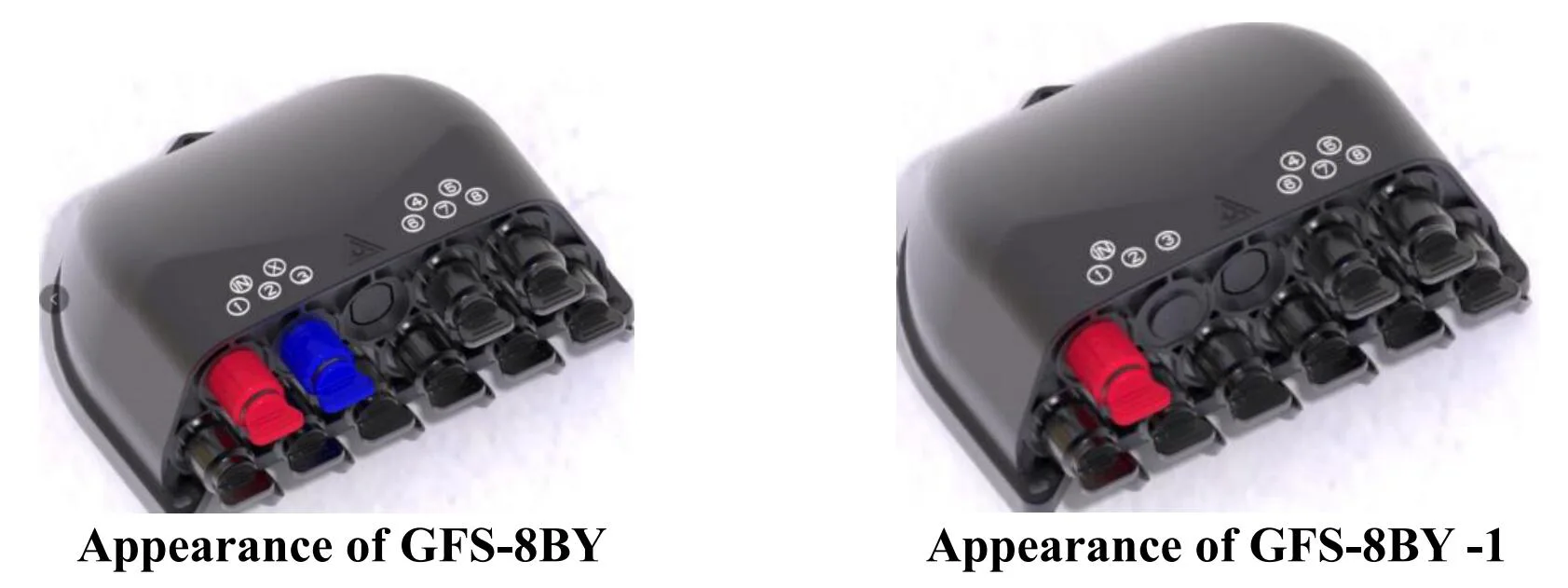

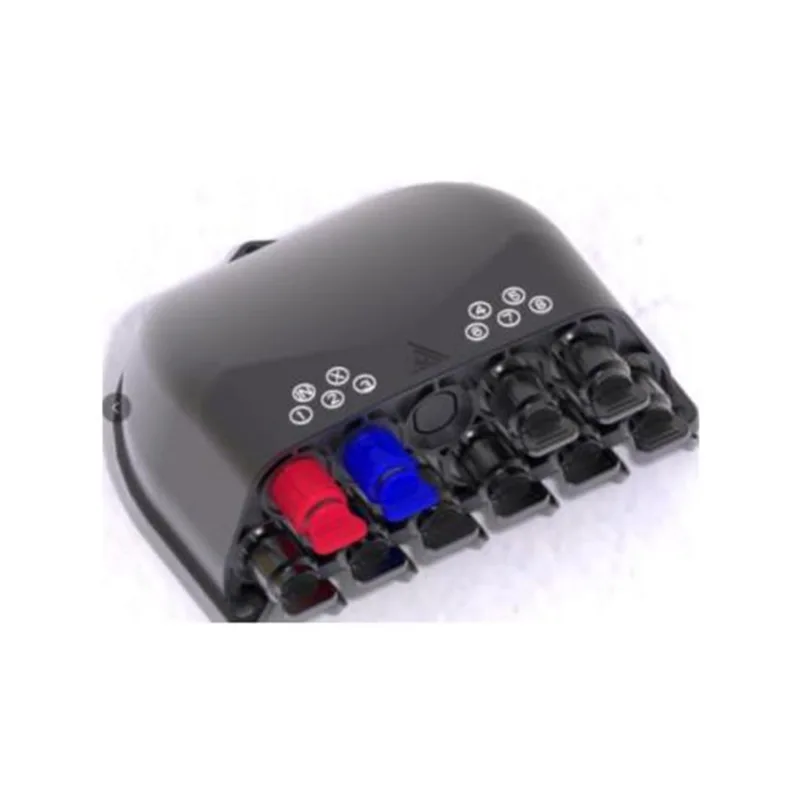

I-GFS-8by (1 * 2 fbt + 1 * 8 Plc splittle zentambo)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

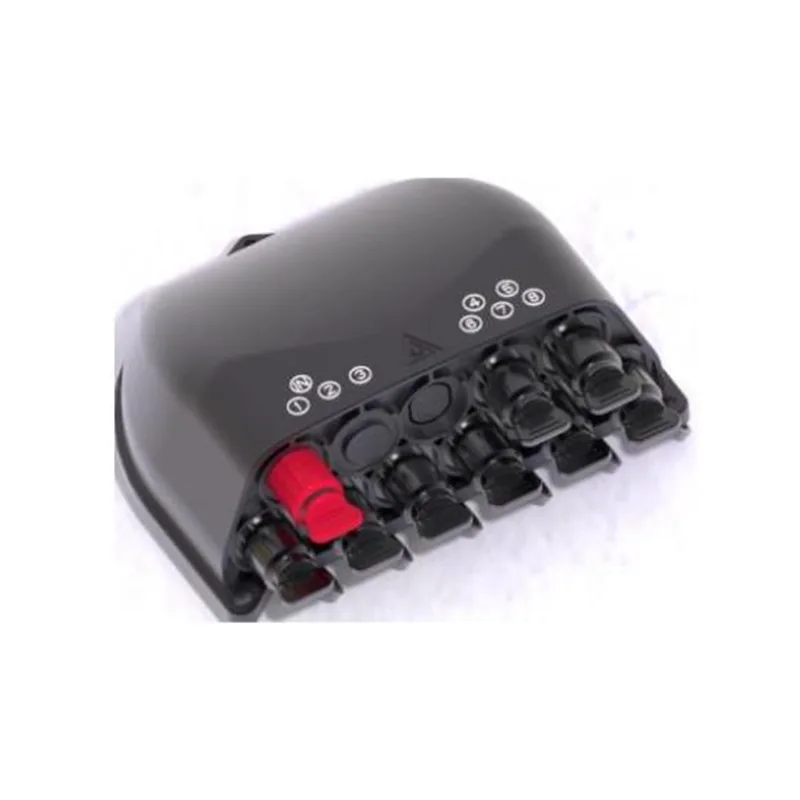

I-GFS-8by-1 (1 * 8 plc splittle zentambo)

5.2 Isimo

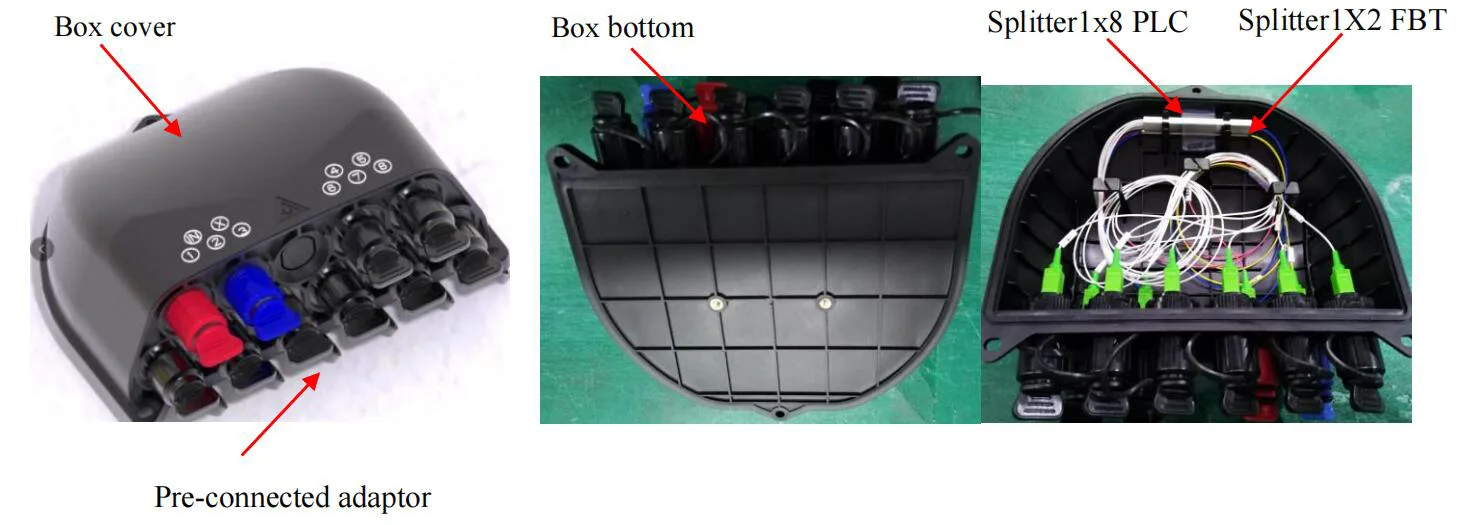

5.2.1 Iinxalenye eziphambili

Hayi.	Igama lenxalenye	Iyunithi	Ubungakanani	Intetho
1	Ibhokisi esezantsi	IiPC	1
2	Ikhava yebhokisi	IiPC	1
3	I-adaptha yangaphambi kokuba idityanisiwe	IiPC	10	I-GFS-8by
4	I-adaptha yangaphambi kokuba idityanisiwe	IiPC	9	I-GFS-8by-1
5	I-Splitter1x2 fbt	IiPC	1	Ifakwe kuphela kwi-GFS-8by
6	I-Splitter1x8 plc	IiPC	1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

5.2.2 Izixhobo

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi
3	Ikhithi ye-Wall		seta	1	Inketho njengomthengi isicelo
4	Ikhithi yePole		seta	1	Inketho njengomthengi isicelo
4	Ikhithi yePole		seta	1	Inketho njengomthengi isicelo
5	Ikhithi ye-aerial enyukayo		seta	1	Inketho njengomthengi isicelo
6	Intambo itreyi yokugcina		seta	1	Inketho njengomthengi isicelo
7	Intambo itreyi yokugcina		seta	1	Inketho njengomthengi isicelo

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-pplium ye-biphenyl (pbb) i-biphhenyl (pbb) kunye ne-Polybde i-Polybimied I-Ether (PBDE) ayigqithi kumda.

7. Ukufakwa

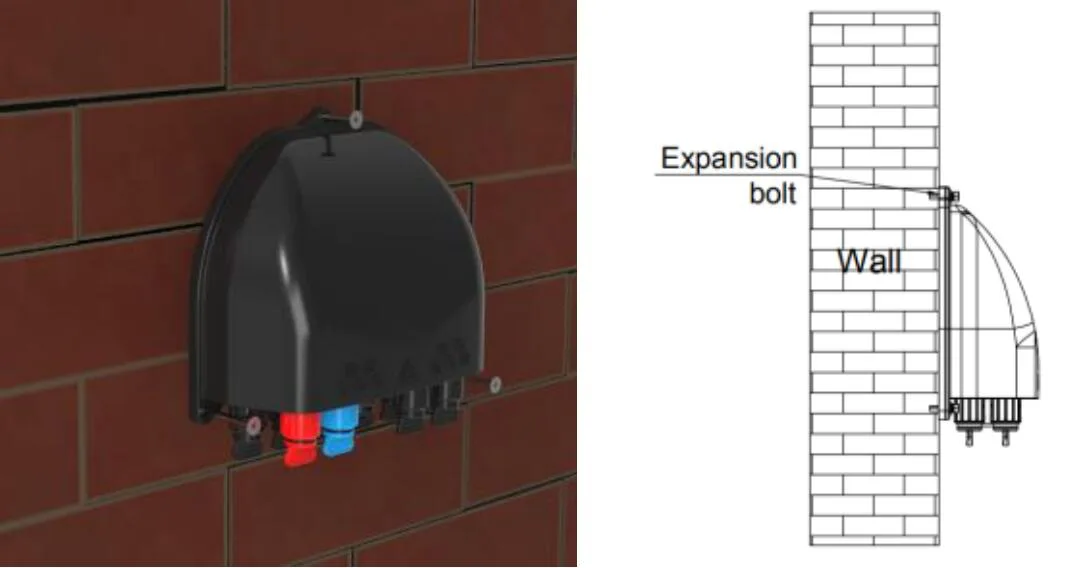

7.1. Ukufakwa kweWall

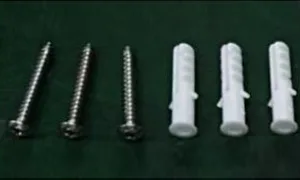

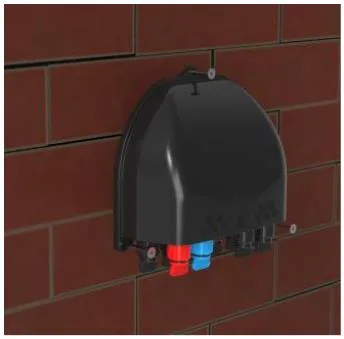

Drill imingxunya emi-3 eludongeni ngokobungakanani, beka iplagi yokwanda kweplagi φ7.5 * 40, Beka ibhokisi yokuthelekisa imingxunya kwaye usebenzise isikrelemnqa ukuze uqinisekise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa kodonga

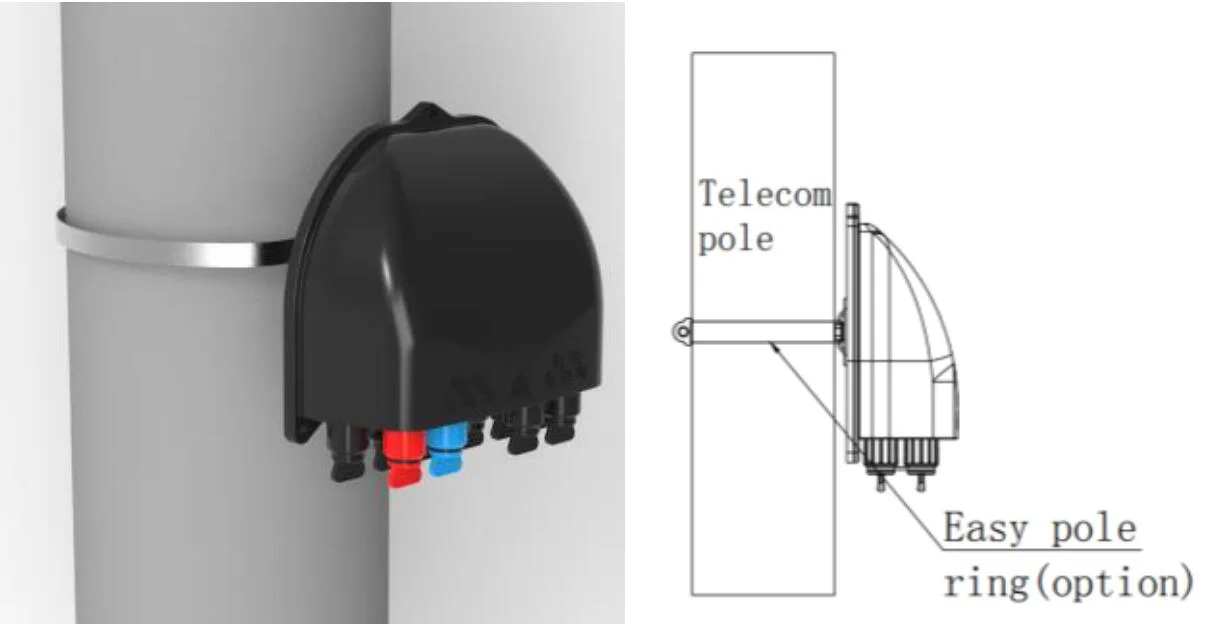

7.2. Ukufakwa kwePlale

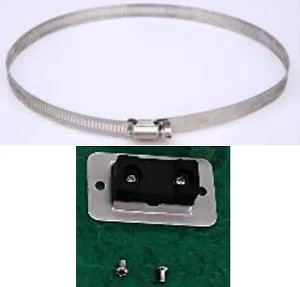

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

I-Pole ikhuselwe

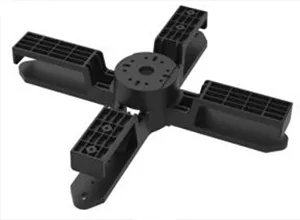

7.3. Ufakelo oluxhonywe eludongeni (ngetreyi yentambo yentambo)

I-Drill imingxunya ezi-4 eludongeni ngokobungakanani bentambo yokugcina intambo yentambo, beka iplagi yokwandiswa kweplagi ngesikere.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa kweWall

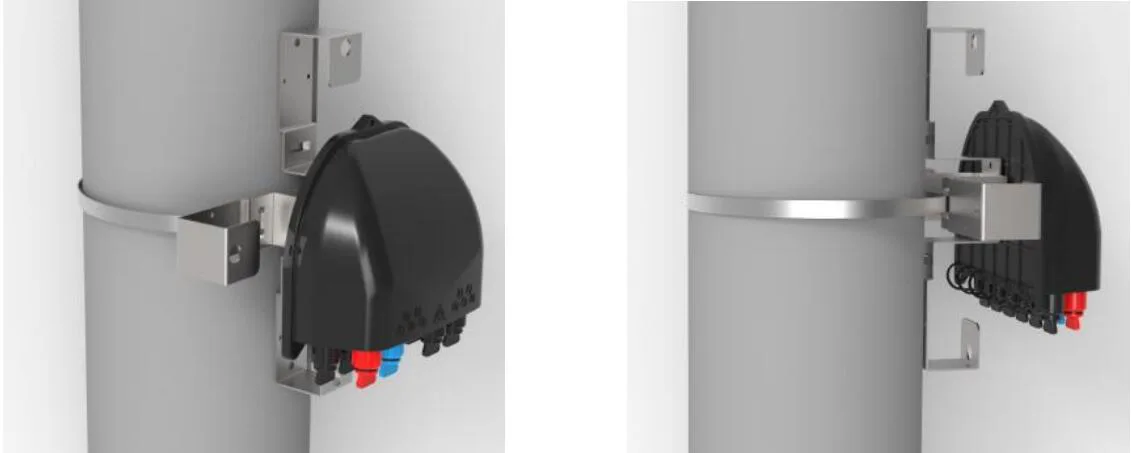

7.4. Ukufakwa kwe-Pole-Power (ngetreyi yentambo yentambo)

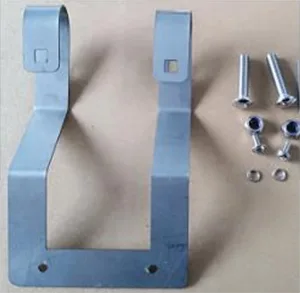

Dlula i-Belt yentsimbi engenasitayile nge-slot yetreyi yentambo yentambo kwaye uyilungiselele kwi-bole enebhanti.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa kwe-Pole-Power (ngetreyi yentambo yentambo)

7.5. Ukufakwa kwe-aerial ephakathi (ngetreyi yentambo yentambo)

Sebenzisa ipleyiti encinci yentsimbi ukulungisa ibhokisi yokuhambisa kwisithunywa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa kwe-aerial ephakathi (ngetreyi yentambo yentambo)

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.6 I-Adaptha engaphambi kokuba i-Adapter -f

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

9. Iphakheji

Into	Izixhobo	Ubungakanani (mm)	Ubungakanani	Ubunzima bomzimba (kg)
Ukupakishwa kwemveliso ezimeleyo	Ibhokisi	I-195x195X95	1	0.7
Ibhokisi yokupakisha yangaphandle	Ibhokisi	I-810x410x510	40	28.1
Qaphela: Ngaphandle kwetreyi yokugcina intambo
