I-fiber ficter fiber optic ibhokisi yokuhambisa ibhokisi ye-GFS-8sx

1. Ngokubanzi

1.1 Inkcazo

Ibhokisi yokusasaza kwangaphambili ye-PHEART njengeyona ncwadi iphambili yokusasaza i-FTTX yenethiwekhi, ukubonelela ngoqhagamshelo oluhle noluthembekileyo, ukhuselo olufanelekileyo, ukhuselo olufanelekileyo kunye nolawulo lwenethiwekhi ye-FTTX.

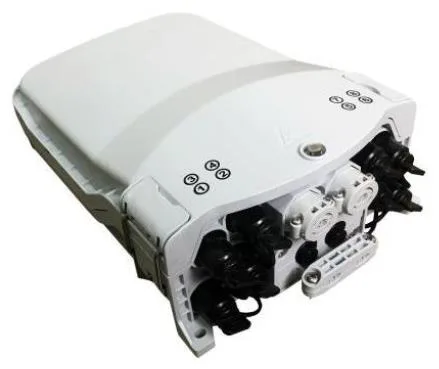

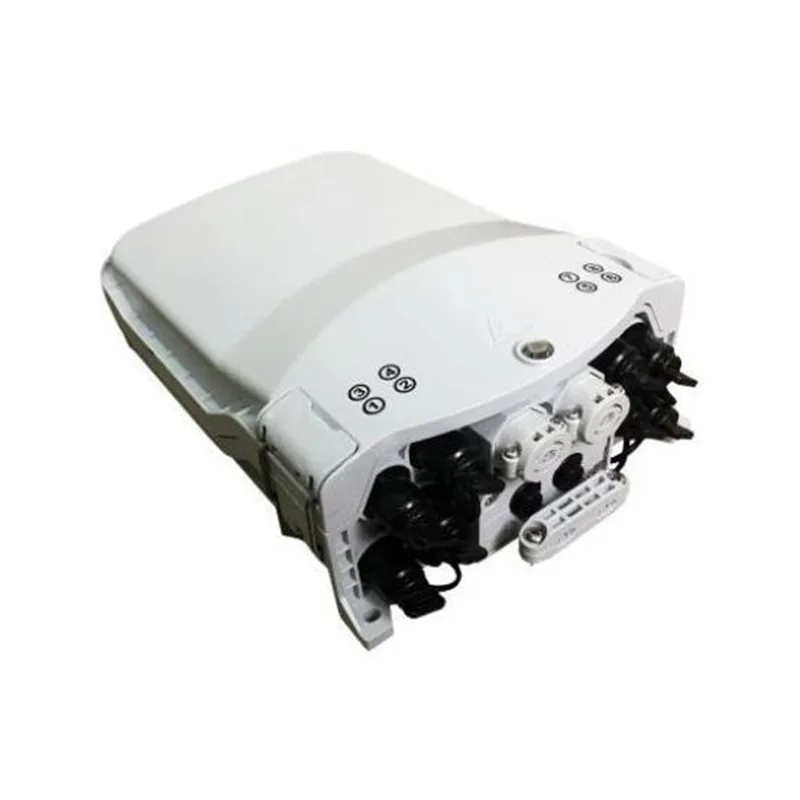

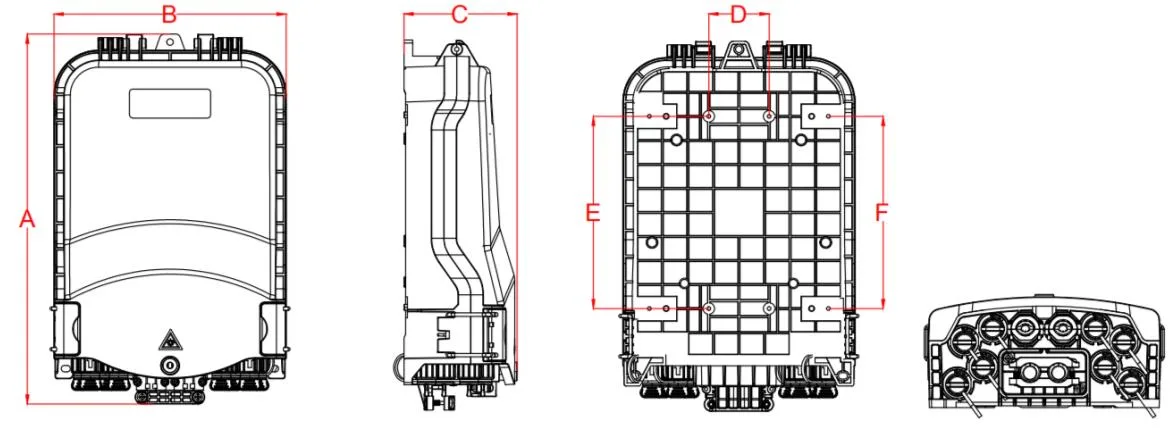

Imbonakalo ye-gfs-8sx

1.2 IMIGANGATHO EYENZIWEYO

Imveliso eyenziweyo yenziwa, yenziwa kwaye ivavanywe ngokwemigangatho oku kulandelayo:

1.3 Imeko yezicelo

2. Iimpawu

1. Uyilo oluphambili, umsebenzi olulula kunye nokuhamba ngendlela efanelekileyo.

2. Isixhobo: I-PC + ABS.

3. Ubungqina bokufuma, amanzi, ubungqina bothuli, ukuchasana nokwaluphala.

I-4. Inqanaba lokhuseleko ukuya kwi-IP65.

I-5. I-1 oval yentambo yokungena kwentambo, isebe eli-2 lokungenisa lekhephu yesebe kunye neeadaptha ezi-8.

I-6. Iindidi ezahlukeneyo zeetreyi ze-splice ziyafumaneka.

I-7. Indlela yokufaka: Pole-I-Pole-I-Pole-I-Poelial-I-Wall-ikhuselwe.

8. Ingaxhotyiswa ngetreyi yokugcina intambo ukuze ihlangane nokugcinwa kweemitha ezi-5mm 5mm.

3. Iinkcukacha

3.1 Inkcazo ngoomatshini

4. Isimo

Iiparameter eziphambili

Iiparamitha ezibonisiweyo eziboniswe kwitheyibhile engentla yixabiso eliphantsiyo, kwaye linokwenziwa ngokwezifiso ngokweemfuno.

I-5. Imifanekiso yemveliso

5.1 Iindlela zeMveliso zeMveliso:

5.2 Isimo

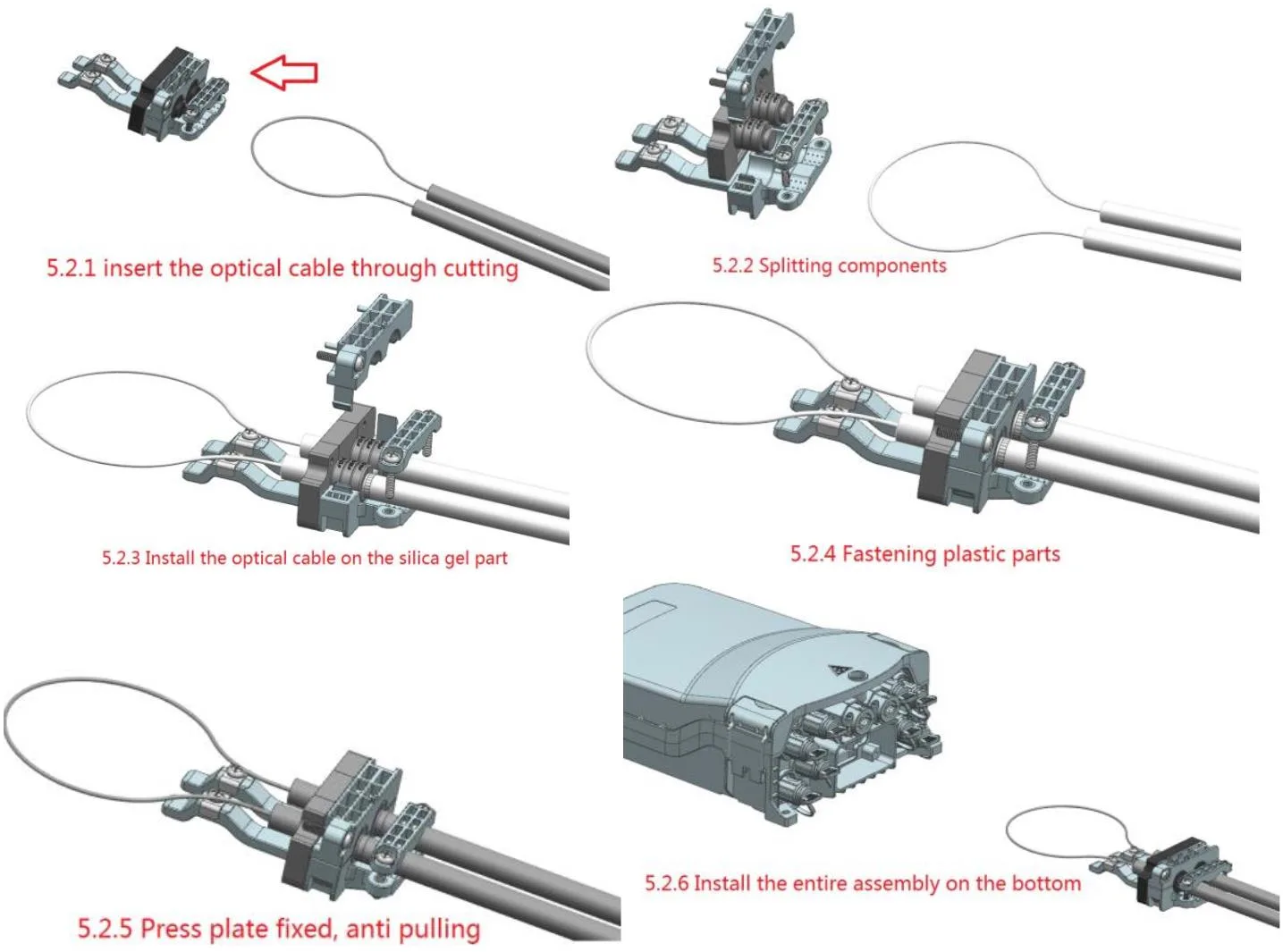

Ukufakelwa ngokukhawuleza, ukuqinisa, kunye nokutywinwa ngokuthe tye-ngentambo yekhephu ngeplagi ekhawulezayo.

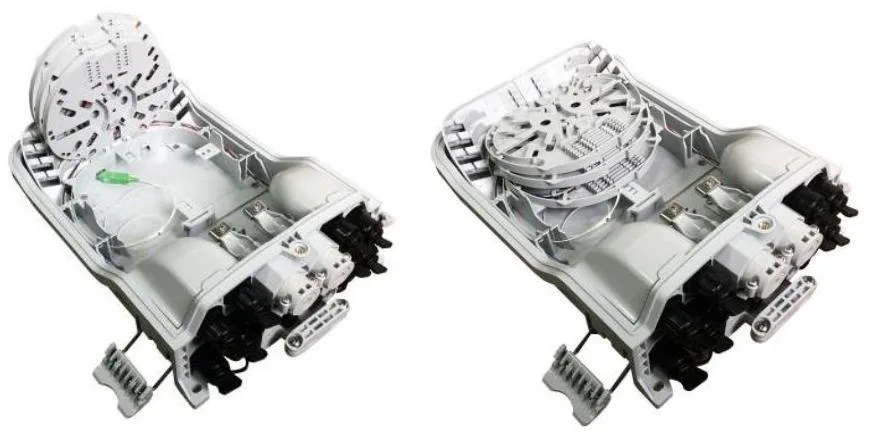

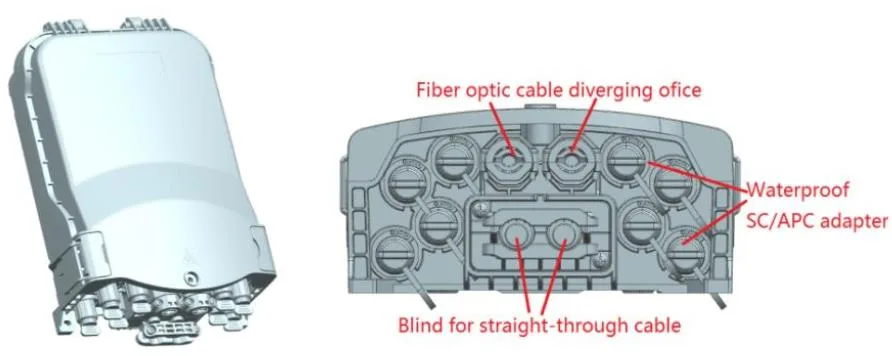

5.3 I-fiber optic bifurication

5.4 Iindlela zeCable zeMveliso

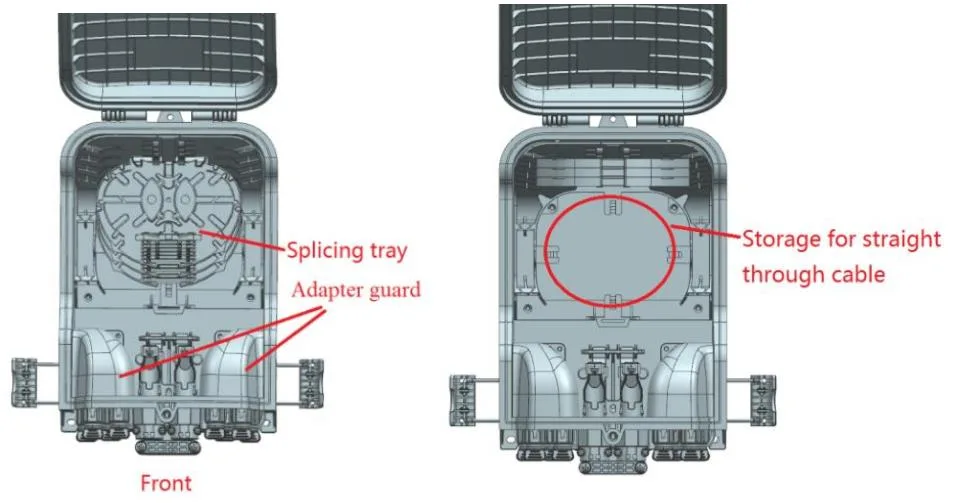

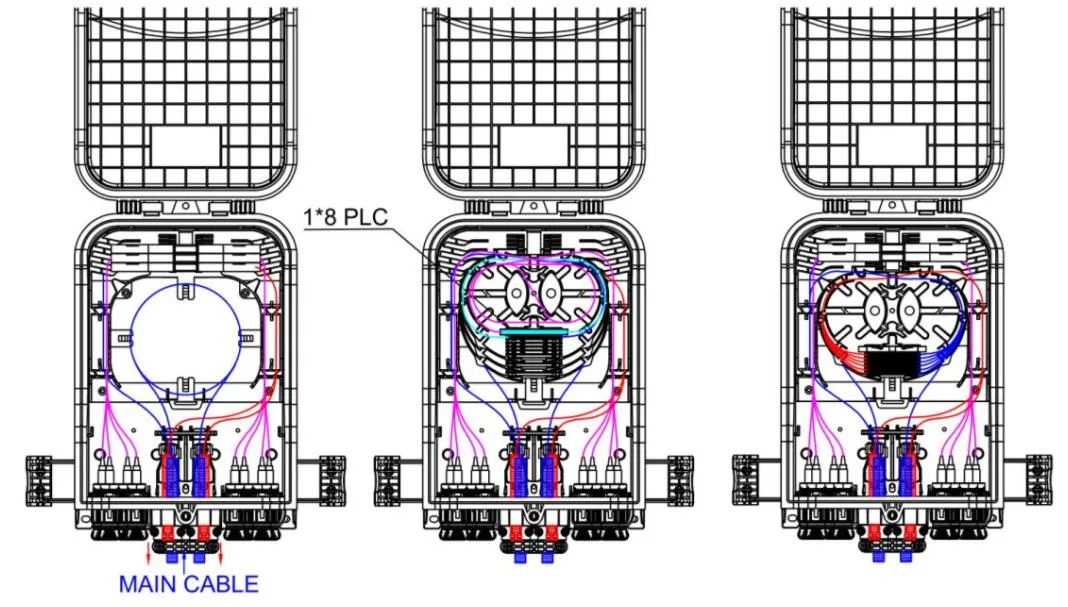

I-GFS-8SX Riam Diagram

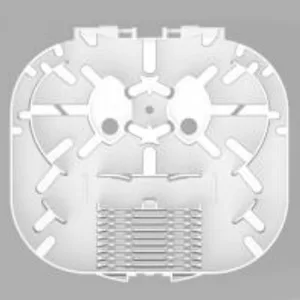

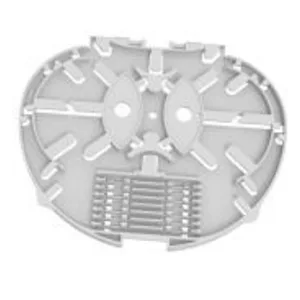

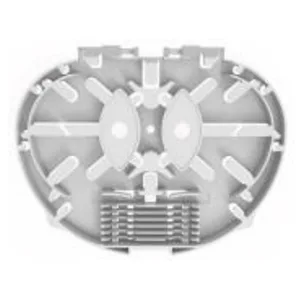

5.5 Itreyi

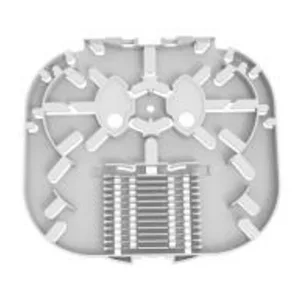

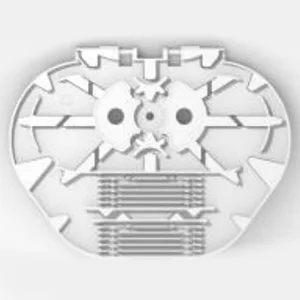

Into	Itreyi	Itreyi ye-b	I-splitter tray a-1
Ubungakanani (h * W * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8
Ubunzima bomnatha (kg)	0.021	0.015	0.021
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS
Isikhundla setreyini yetreyi (i-cores)	I-12 (2 yee-faider zobushushu obukhuselekileyo)	I-8 (i-1 yomaleko wobushushu obukhuselekileyo)	I-6 (i-2 yeengcambu zobushushu ezikhuselweyo)
Umthamo we-splitter yetreyi (i-PC)	I-1 (i-plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	/	I-1 (plc 1x16, i-0.9mm fiber, i-60x12mm)
Ubuninzi (iiPC)	4	8	4
Ukungagqibeki (iiPC)	1	/	/

Phawula:

1. Ezi ndlela zingasentla zinokudityaniswa ngokweemfuno.

2. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1e

3.Iziintlobo zeediski ze-fiber ziyanda ngokuqhubekayo

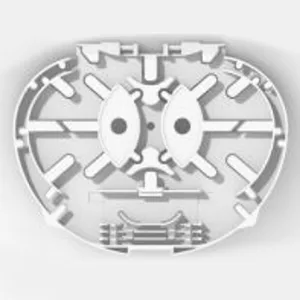

Into	I-tray c	Itreyi ye-d	Ukucoca itreyi e	Itreyi e-1
Ubungakanani (h * W * d, mm)	136 * 104 * 4	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8
Ubunzima bomnatha (kg)	0.018	0.024	0.033	0.033
Umfanekiso
Umbala	Ral7035	Ral7035	Ral7035	Ral7035
Izixhobo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Isikhundla setreyini yetreyi (i-cores)	I-12 (i-1 yobushushu obukhuselekileyo)	I-24 (2 yeengqokelela zobushushu obukhuselekileyo)	I-24 (2 yeengqokelela zobushushu obukhuselekileyo)	I-18 (2 yeengqokelela zobushushu obukhuselekileyo)
Umthamo we-splitter yetreyi (i-PC)	/	/	I-1 (i-plc 1x2, 1x4, 1x8, i-0.9mm fiber, i-60x7x4p4m)	I-1 (plc 1x16, i-0.9mm fiber, i-60x12mm)
Ubuninzi (iiPC)	8	4	4	4
Ukungagqibeki (iiPC)	2	/	/	/

Phawula:

1. Ezi ndlela zingasentla zinokudityaniswa ngokweemfuno.

I-3. Imithetho yoqwalaselo: 1a = 2b = 2c = 1d = 1E

3.Iziintlobo zeediski ze-fiber ziyanda ngokuqhubekayo

5.6 Izixhobo

Hayi.	Igama lenxalenye	Uphawu lwesalathiso	Iyunithi	Ubungakanani	Intetho
1	Abasebenzisi'Manyanisi	/	IiPC	1	Ngaphakathi
2	Ingxelo yovavanyo lweSplitter	/	IiPC	1	Ngaphakathi

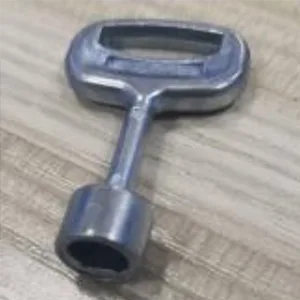

3	Isitshixo		IiPC	1	"D uhlobo

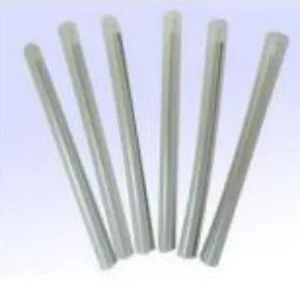

4	Ukhuseleko lokukhusela ubushushu		IiPC	8	L = 45mm

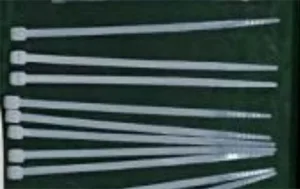

5	I-nylon cable tie		IiPC	10	I-3x100mm
6	Ityhubhu yoKhuselo lweFiber		IiPC	1	I-OD4mm X 50cm
7	Ikhithi ye-Wall		seta	1	Inketho njengesicelo somthengi. (Iplagi ehlulekileyo yeplastiki
8	Ikhithi yePole		seta	10	Inketho njengesicelo somthengi
9	Ikhithi ye-aerial enyukayo		seta	10	Inketho njengesicelo somthengi
10	Itreyi yentambo yentambo		seta	10	Inketho njengesicelo somthengi

I-6. Iimpawu zokusingqongileyo

Le mveliso ihambelana nomyalelo wokhuselo lwe-ROHS, kunye nomxholo wokukhokela, i-CADMIUM, i-Mercury, i-biphenyl ye-biphenyl (PBBE) kunye ne-Polybimined Deten Ether Other (PBDE) ayigqithi kumda.

7. Ukufakwa

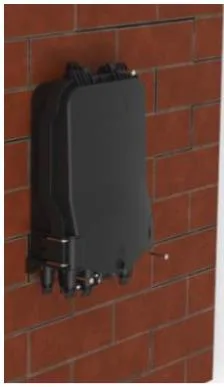

7.1. Ukufakwa kweWall

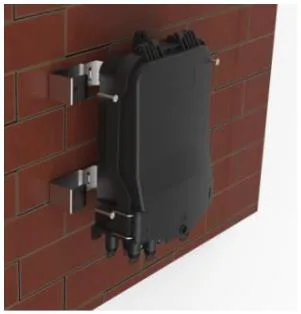

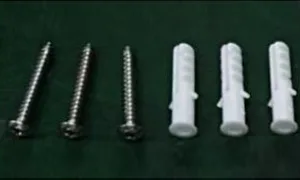

Drill imingxunya emi-3 eludongeni ngokobungakanani kwiTheyibhile 2, Beka iplagi yokwanda kweplagi

Ukufakwa kodonga

7.2. Ukufakwa kwePlale

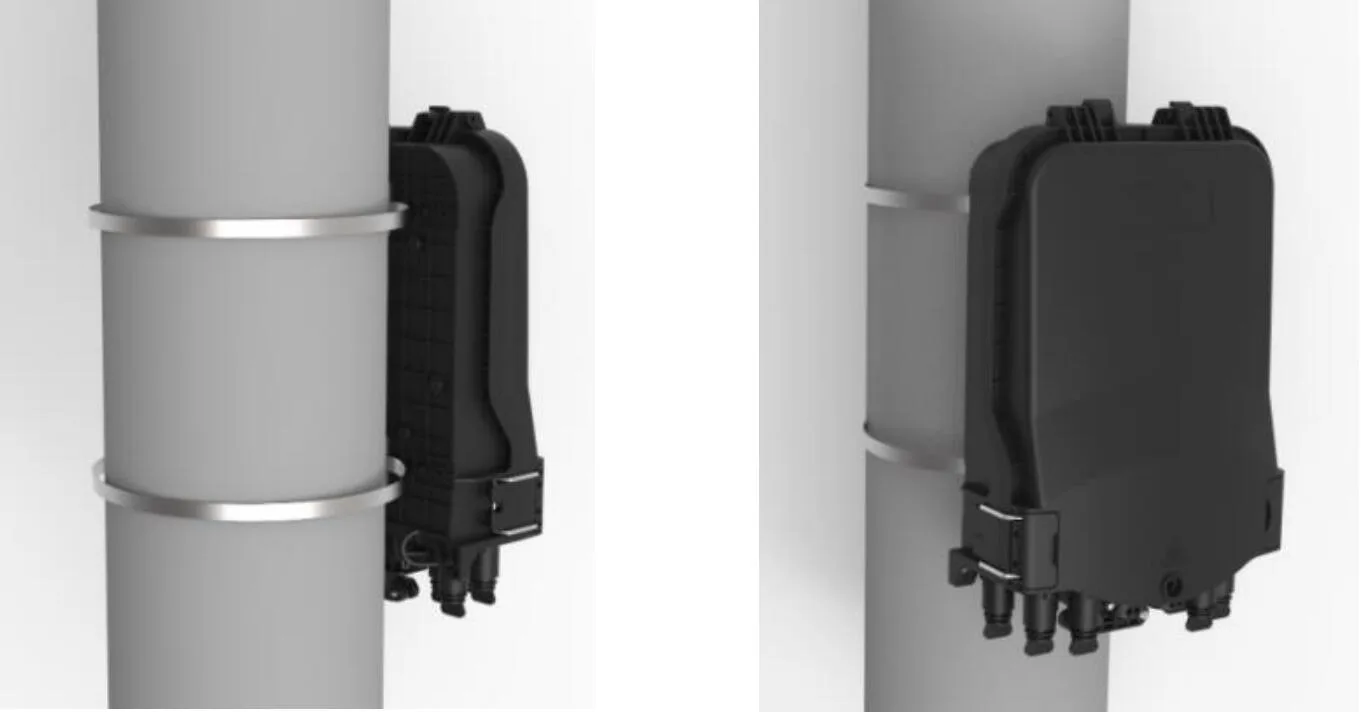

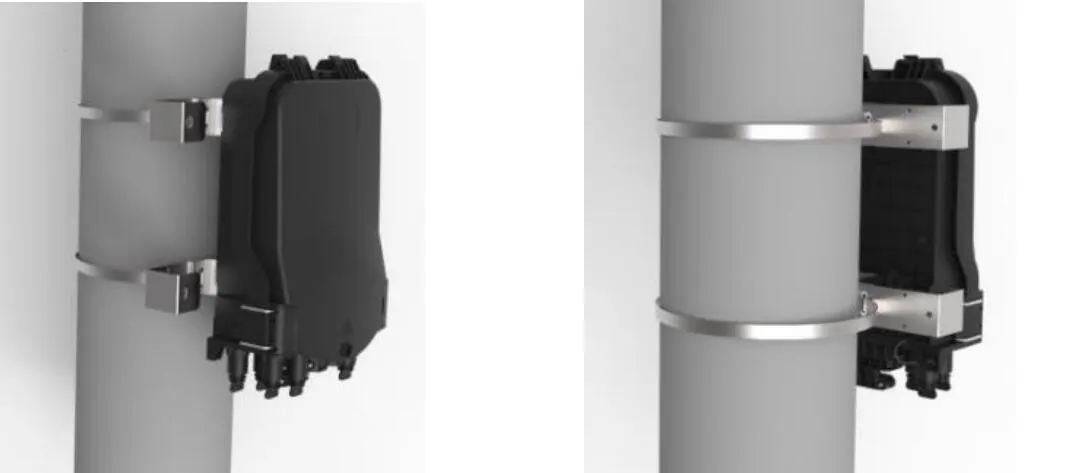

Dlula i-ring ye-hoop nge-slot yepleyiti yangasemva kwaye uyilungiselele kwiPole yoNxibelelwano

I-Pole ikhuselwe

7.3 Isakhiwo esingaphezulu

Bopha ezi zinto zibini ezifakwe kwi-chassis yentloko egudileyo kwi-wire, kwaye emva koko ibotshwe, thintela ityala.

Isakhiwo esingaphezulu

7.4 Ufakelo olunyulwe ngudonga (ngetreyi yentambo yentambo)

Drill imingxunya ezi-4 eludongeni ngokobungakanani be-crey yentambo yentambo, beka iplagi yokwandiswa kweplagi

Ufakelo oluxhonywe eludongeni (ngetreyi yentambo yentambo)

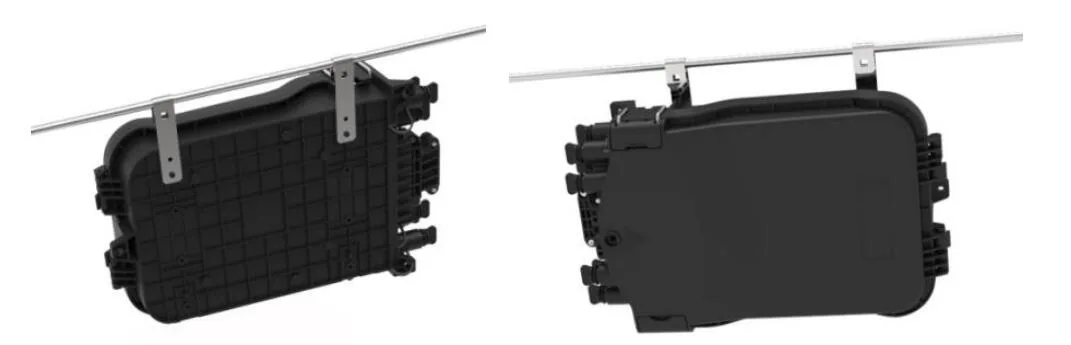

7.5 Ufakelo oluPhezulu lwePole (ngetreyi yentambo yentambo)

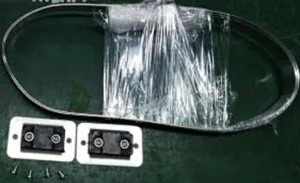

Dlula i-Belt yentsimbi engenasitayile nge-slot yetreyi yentambo yentambo kwaye uyilungiselele kwi-bole enebhanti.

Ukufakwa kwe-Pole-Power (ngetreyi yentambo yentambo)

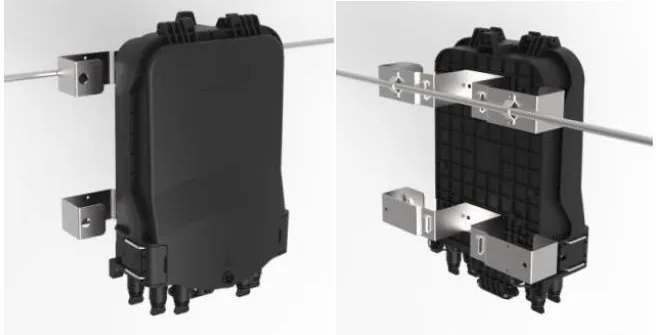

7.6 Ukufakwa kwe-aerial-ikhutshiwe (ngetreyi yentambo yentambo)

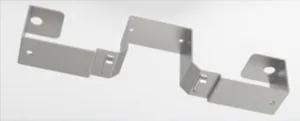

Sebenzisa ipleyiti encinci yentsimbi ukulungisa ibhokisi yokuhambisa kwisithunywa.

Ukufakwa kwe-aerial ephakathi (ngetreyi yentambo yentambo)

8. Ukusebenza kwesinxibelelanisi

8.1 I-adaptha engaphambi kokuba i-adaptha-a (e)

⚫ Jikeleza inxalenye ye-fiber changect

Inxalenye yokutolo ye-fiber finch ingentla, faka i-fiber qubring kwisokethi kwaye ujikeleze utolo Inxalenye yexesha eliphezulu.

8.2 I-Adaptha engaphambi kokuba i-Adaptha-B (XL)

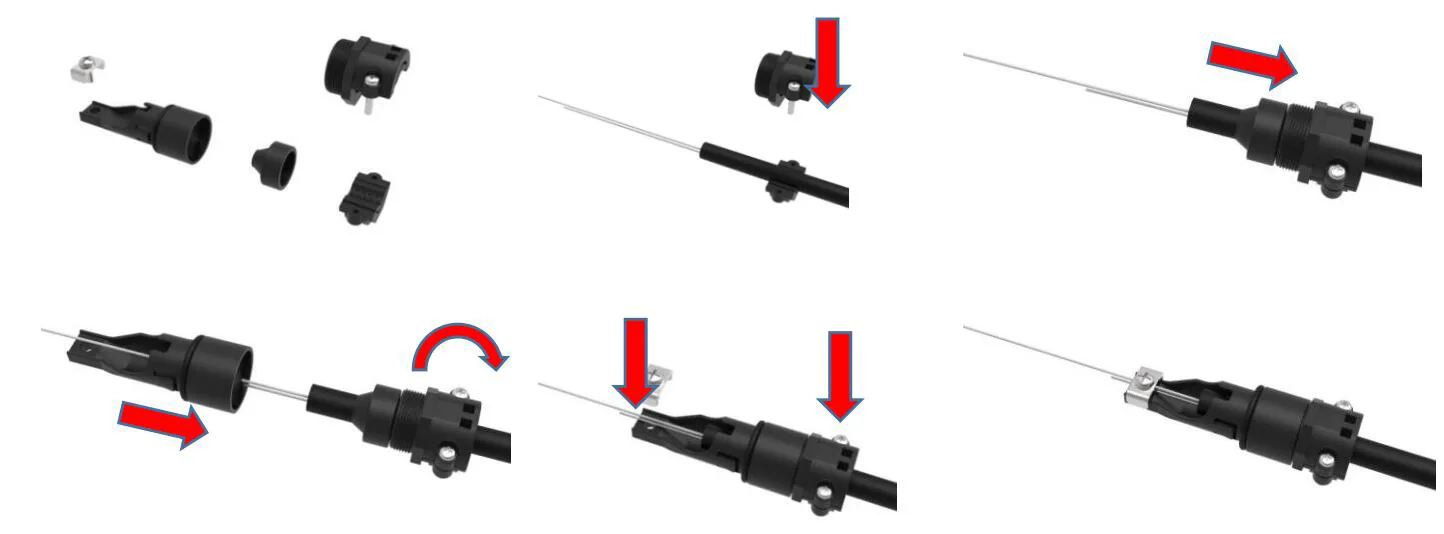

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Surker Cable ye-Suen Clamp ye-caping kwi-sheath bockete

8.3 I-adaptha engaphambi kokuba i-Adaptha-c

⚫ tyhala iringi yokutsala kwi-fiber fir fir fir fir firp plug yeplagi yokutowla utolo olususa i-cap yothuli; Cinezela iqhosha lokuthatha i-cap top kwi-adaptha kwicala lotolo.

⚫ Lungelelanisa umzimba weplagi ethintelweyo kunye ne-adaptha de ibe ifakwe. Qhagamshela uthuli ezimbini luthuli ngendlela efanayo.

⚫ Iplagi efakiweyo efakiweyo ityhila iringi yokutsala i-sliking yokukhulula i-buckle, emva koko ikhuphe umzimba ophambili ukuba uzahlulahlula.

8.4 I-Adaptha engaphambi kokuba idityaniswe - D

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi ye-plus exhunyiweyo kunye nekhava yothuli kwicala lotolo.

⚫ Qhagamshela iplagi yangaphambi kokuxhuma i-D kunye ne-adaptha yangaphambi kwe-d kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokulungisa.

8.5 I-Adaptha engaphambi kokuba i-adaptha-e (a)

⚫ Vula i-plug ye-plug ye-Antict Anti kwaye uvule iplagi yangaphambi kunye nekhava yothuli kwicala lotolo

⚫ Qhagamshela iplagi yangaphambi kokuxhuzulwa kunye ne-adaptha yangaphambi kwe-e kwicala lotolo, kwaye ujikeleze iplagi yeplagi yokuyilungisa.

8.6 I-Adaptha engaphambi kokuba i-Adapter -f

⚫ Faka i-SC Vible Dictional Fiveractor plag yeplagi yokwahlulahlula iindawo ezikhululekileyo, emva koko uyiphangeni kwi-adaptha;

⚫ Faka i-Adaptha ye-Adaptha ngaphambili ye-Adaptha kwi-adaptha ngesitshixo seplastiki;

⚫ Faka iplagi ye-Snap yentwasahlobo kwi-sheath;

⚫ Intambo yentambo iya kufakelwa kwaye umgca uya kusondela kwiplagi;

⚫ Screw Suen seble yentambo yentambo ye-clamp ye-cap kwi-sheaths.

8.7 I-adaptha engaphambi kokuba idityaniswe-G

9. Iphakheji
