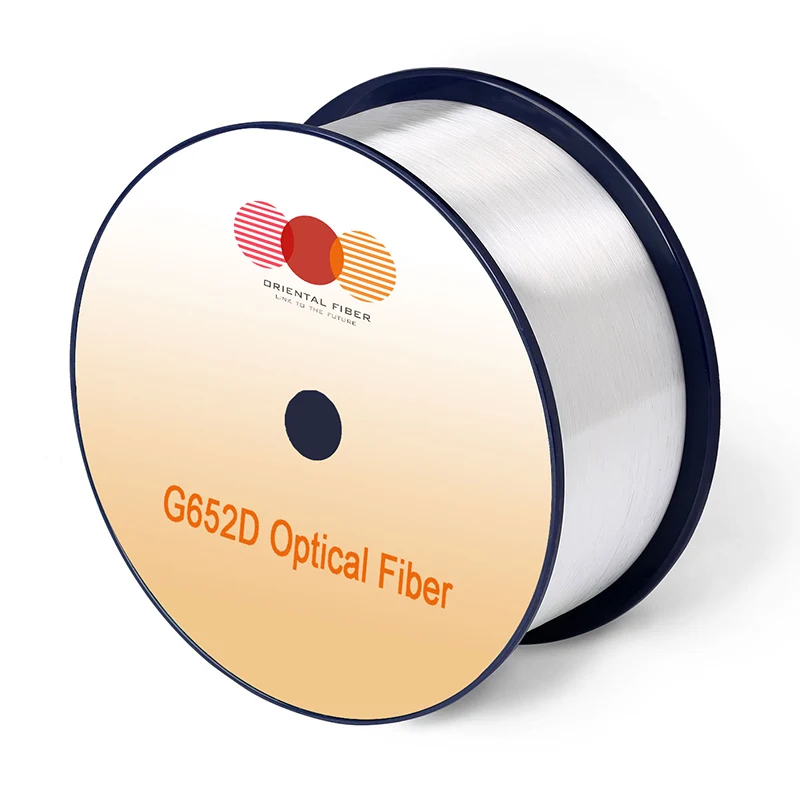

Imowudi enye ye-fiber fiber g.652D

Iimpawu

Iimeko

Amaxabiso achaziweyo

Iiyunithi

Iimpawu zokukhanya

I-atulwano

I-1310NM

≤0.34

[DB / KM]

I-1383nm (emva kokwaluphala)

≤0.34

[DB / KM]

I-1550NM

≤0.20

[DB / KM]

I-1625NM

≤0.24

[DB / KM]

I-Attinting vs. wavelength

UMax. α di ff icress

I-1285-1330NM, ngokubhekisele kwi-1310nm

≤0.03

[DB / KM]

I-1525-1575NM, ngokubhekisele kwi-1550NMM

≤0.02

[DB / KM]

Ukusasazeka kwe-fue ffied

I-1285-1340nm

-3.5 ukuya kwi-3.5

[IPS / (NM · k · km)]

I-1550NM

≤18

[IPS / (NM · k · km)]

I-1625NM

≤22

[IPS / (NM · k · km)]

Ukusasazeka kwe-zero

-

1300-1324

[nm]

I-Zero Ukusasazeka kwethambeka (s0)

-

≤0.092

[IPS / (NM2 ·3 · ki)

Ixabiso eliqhelekileyo

-

0.086

[IPS / (NM2 ·3 · ki

Pmd

I-fiber ephezulu

-

≤0.1

[IPS / √km]

Ikhonkco Longetion Ixabiso (M = 20, Q = 0.01%)

-

≤0.06

[IPS / √km]

Ixabiso eliqhelekileyo

-

0.04

[IPS / √km]

I-Cable cydo ff waveled (λcc)

-

≤1260

[nm]

Ububanzi beNdawo yeDomefo (i-MFD)

I-1310NM

8.7-9.5

[μm]

I-1550NM

9.8-10.8

[μm]

I-EFF Extional Group yeqela lokuQala (ne FF)

I-1310NM

1.466

-

I-1550NM

1.467

-

Inqaku lokungasebenzi

I-1310NM

≤0.05

[DB]

I-1550NM

≤0.05

[DB]

Iimpawu zejometri

Ububanzi be-cladding

-

I-125.0 ± 0.7

[μm]

Ukuvalela okungacacanga

-

≤1.0

[%]

Ububanzi beNtloko

-

235-250

[μm]

Impazamo yokuCoca

-

≤12.0

[μm]

Ukudibana okungacacanga

-

≤6.0

[%]

Impazamo ye-core-vanding yempazamo

-

≤0.6

[μm]

I-curl (iradius)

-

≥4

[M]

Ukuhanjiswa kobude

-

Ukuya kuthi ga kwi-50.4

[km / reel]

Iimpawu zokusiNgqongileyo

I-1310NM, i-1550NM & 1625nm

Iqondo lobushushu lokuxhomekeka

-60 ℃ ukuya + 85 ℃

≤0.05

[DB / KM]

I-checting-dayity yekratshi elangeniswa

-10 ° C ukuya kwi + 85 ° C, 98% rh

≤0.05

[DB / KM]

Ukuntywila kwamanzi kuxhomekeko

I-23 ° C, kwiintsuku ezingama-30

≤0.05

[DB / KM]

I-Hibit Heby deffeence deffeence

I-85 ° C kunye ne-85% ye-rh, kwiintsuku ezingama-30

≤0.05

[DB / KM]

Ubushushu obuqhelekileyo

85 ℃, kwiintsuku ezingama-30

≤0.05

[DB / KM]

Inkcazo yoomatshini

Uvavanyo lobungqina

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPI]

I-Macro-Begt ebambelele

I-100 ijika i-mandrel ye-30 mm radius

I-1625NM

≤0.05

[DB]

I-100 ijika i-mandrel ye-25 mm i-25 mm

I-1310NM kunye ne-1550NM

≤0.05

[DB]

1 jika ujikeleze i-jamel ye-16 mm radius

I-1550NM

≤0.05

[DB]

Ukudibana komzimba

Umgangatho oqhelekileyo oqhelekileyo

1.5

[N]

I-Peak Force

1.3-8.9

[N]

Iparamitha enamandla

-

≥20

-
