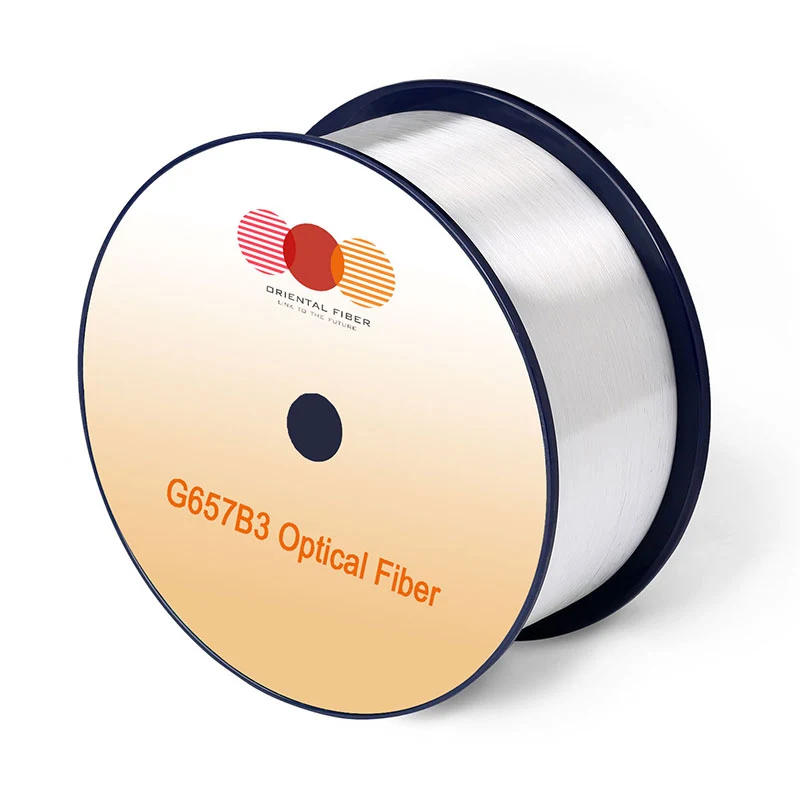

Imowudi enye ye-fiber fiber g.657.b3

Iimpawu

Iimeko

Cacing fi ed amaxabiso

Iiyunithi

I-optical Iimpawu

I-atulwano

I-1310NM

≤0.35

[DB / KM]

I-1383nm (emva kokwaluphala)

≤0.35

[DB / KM]

I-1550NM

≤0.21

[DB / KM]

I-1625NM

≤0.23

[DB / KM]

I-atulwano vs. wavelength

UMax. α di ff icress

I-1285-1330NM, kwi Ukubhekiswa kwi-1310nm

≤0.03

[DB / KM]

I-1525-1575nm, ngaphakathi Isalathiso kwi-1550NM

≤0.02

[DB / KM]

Unothi Ukusasazeka kwe-wavelength (λ0)

-

1300-1324

[nm]

Unothi Ukusasazeka kwethambeka (S0)

-

≤0.092

[IPS / (NM2 ·3 · ki)

Pmd

Ubuninzi I-fiber nganye

-

≤0.1

[IPS / √km]

Ikhonkco Longetion Ixabiso (M = 20, Q = 0.01%)

-

≤0.06

[IPS / √km]

Eqhelekileyo Ixabiso

-

0.04

[IPS / √km]

Intambo I-Cyo FF Waveleth (λcc)

-

≤1260

[nm]

Imowudi Ububanzi bemihlaba (i-MFD)

I-1310NM

8.2-9.0

[μm]

I-1550NM

9.1-10.1

[μm]

I-EFF Extional Group yeqela lokuQala (ne FF)

I-1310NM

1.468

-

I-1550NM

1.469

-

Inqaku Ukuyeka

I-1310NM

≤0.05

[DB]

I-1550NM

≤0.05

[DB]

Ijometri Iimpawu

Ukuvalwa Ububanzi

-

I-125.0 ± 0.7

[μm]

Ukuvalwa Kungengabi

-

≤0.7

[%]

Ukuthuthumela Ububanzi

-

235-245

[μm]

Ukudibana Impazamo yoncedo

-

≤12.0

[μm]

Ukuthuthumela Kungengabi

-

≤6.0

[%]

I-Core-Claddding Impazamo yoncedo

-

≤0.5

[μm]

I-curl (iradius)

-

≥4

[M]

Ukuhanjiswa Ubude

-

Phezulu ukuya kwi-25.2

[km / reel]

Iimpawu zokusiNgqongileyo

I-1310NM, i-1550NM & 1625nm

Ubushushu Ukuxhomekeka ukuba kuthathelwe ingqalelo

-60 ℃ ukuya + 85 ℃

≤0.05

[DB / KM]

Ubushushu-Ubushushu Ukuhamba ngebhayisikile

-10 ° C ukuya kwi-85 ° C, i-98% rh

≤0.05

[DB / KM]

Amanzi Ukuxhomekeka ukuba kuthathelwe ingqalelo

I-23 ° C, kwiintsuku ezingama-30

≤0.05

[DB / KM]

Mprop Ubushushu bokuxhomekeka kobushushu obuchaphazelekayo

I-85 ° C kunye ne-85% ye-rh, ye Iintsuku ezingama-30

≤0.05

[DB / KM]

Yomile Ubushushu

85 ℃, kwiintsuku ezingama-30

≤0.05

[DB / KM]

Umatshini I-Cace Fi Cation

Ubungqina Vavanyo

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPI]

I-Macro-Bend Ilahleko

I-1 jika ijikeleze i-mandrel ye I-10 mm radius

I-1550NM

≤0.03

[DB]

1 Vula i-randrel ye-10 mm radius

I-1625NM

≤0.1

[DB]

1 Vula i-mandrel ye-7.5 mm radius

I-1550NM

≤0.08

[DB]

I-1 jika ijikeleze i-mandrel ye I-7.5 mm radius

I-1625NM

≤0.25

[DB]

1 Ijika ijikeleze i-mandrel ye-5 mm radius

I-1550NM

≤0.15

[DB]

1 Ijika ijikeleze i-mandrel ye-5 mm radius

I-1625NM

≤0.45

[DB]

Ukuthuthumela Imigodi

eqhelekileyo umyinge

1.5

[N]

incopho amandla

1.3-8.9

[N]

I-Dynamic Ipharamitha yokudinwa (i-ND)

-

≥20

-
