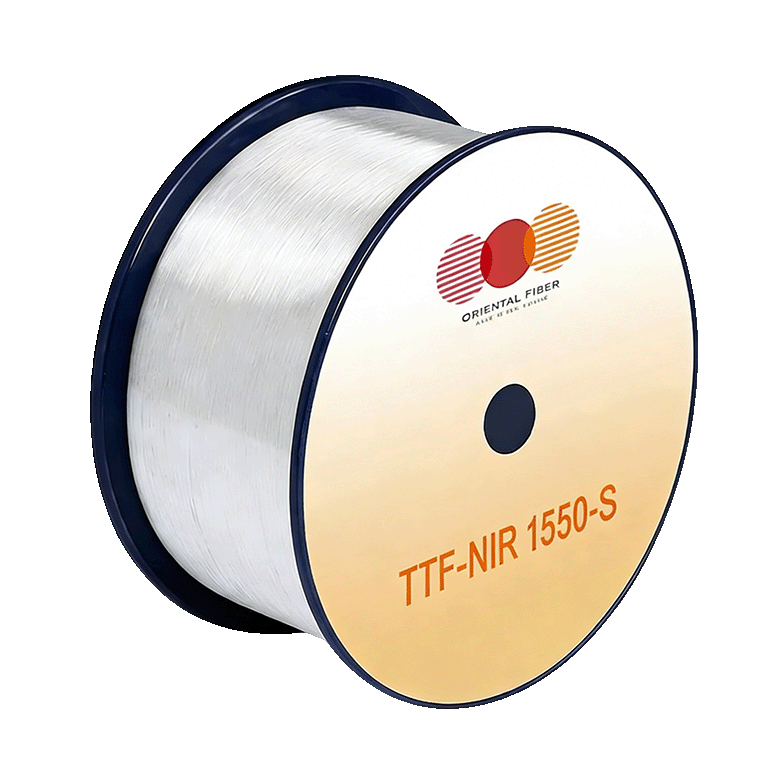

TTF-NIR 1550-S

I-TTF-NIR 1550-S i-hollow-core optical fiber ibonisa ukulahleka kokudluliselwa okungaphantsi kwe-1 dB / km kwi-C kunye ne-L bands, kunye nokulibaziseka kwexesha le-31% ephantsi kunelo le-fibers ye-solid-core optical fibers, eyinikezela ngokufanelekileyo kwi-inter-data center transmission optical and telecom networks.

Thumela uMbuzo

Ingcaciso yeMveliso

Iifiber ze-Orientalfiber eziphezulu ze-TTF-NIR 1550-S zenziwe ngokuchanekileyo-injineli e-China ukwenzela ukusebenza okuphezulu kwe-optical. Ebonisa i-air-core design, le micu ifezekisa ngaphantsi kwe-1 dB / km ilahleko yokuhanjiswa kwi-C kunye ne-L bands kunye ne-31% yokulibaziseka kwexesha eliphantsi xa kuthelekiswa neentambo eziqhelekileyo eziqinileyo, ezibenza zibe zilungele i-inter-data center links optical kunye ne-telecom networks.

Iimpawu eziphambili ziquka i-31 μm core diameter, i-coat-coat high-index acrylate, ububanzi be-1450-1700 nm transmission bandwidth, <5 ps / (nm·km) ukusabalalisa, kunye nokumelana nokugoba okugqwesileyo. I-Orientalfiber ibonelela ngobonelelo oluthembekileyo, oluthe ngqo kumzi-mveliso kwizicelo ezifuna isantya esiphezulu, i-low-latency optical transmission.

Iinkcukacha

Into	Inkcazo
Uhlobo lweFayibha	TTR-NIR 1550-SS
Ilungiselelwe	1550 nm
Izinto eziphathekayo	Undoqo womoya
Idayamitha engundoqo	31±2 μm
Uhlobo lokwaleka	Iidyasi ezimbini eziphakamileyo ze-acrylate
Ukuthotywa	<1 dB/km @ 1550 nm
Ugqithiso lwebandwidth	1450-1700 nm
Imodi yedayamitha yebala	21.5±2 μm
Ukusasazwa	<5 ps/(nm·km) @ 1550 nm
Umngxuma wamanani	0.03
Ukucinezelwa kwe-HOM	>30 dB
Ilahleko yokugoba @ 5 cm irediyasi (ukujika kwama-50)	<0.1 dB
