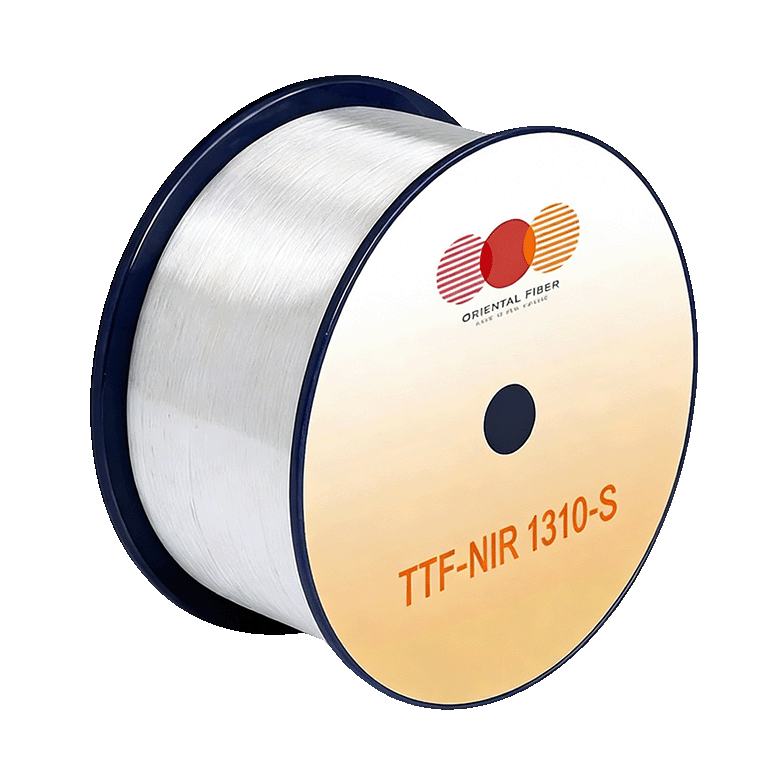

TTR-NIR 1310-S

I-TTR-NIR 1310-S i-fiber optical engenanto i-hollow-core optical fiber ibonisa ukulahleka kokudluliselwa okungaphantsi kwe-1 dB / km kwi-O-band, kunye nokulibaziseka kwexesha le-31% ephantsi kunelo le-fiber optical optical eqhelekileyo, okwenza kube yinto efanelekileyo kwi-intra-data center transmission optical transmission.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Orientalfiber TTR-NIR 1310-S yi-fiber ebonakalayo ene-hollow-core eyenzelwe ukuhanjiswa kweziko ledatha ye-intra-data. I-Jiangsu Xuben Photoelectric Technology Co., Ltd, njengomvelisi othembekileyo wase-China kunye nomthengisi, unikezela le mveliso ngokulawula umgangatho wobuchwephesha kunye nokusebenza okuthembekileyo. I-TTR-NIR 1310-S inikezela ngelahleko ephantsi yothumelo, i-latency encitshisiweyo, kunye nokusebenza kakuhle kwe-bandwidth, okwenza ukuba ilungele unxibelelwano lwangoku kunye nezicelo zedatha ephezulu.

Intshayelelo yeMveliso

ITTR-NIR 1310-Si-hollow-core optical fiber yenzelwe ukomeleza ukuhanjiswa kwedatha kumaziko edatha. Ngokungafani neentambo zendabuko eziqinileyo, i-TTR-NIR 1310-S ifezekisa ilahleko yokudluliselwa ngaphantsi kwe-1 dB / km kwi-O-band, kwaye ukulibaziseka kwexesha layo malunga ne-31% ephantsi kuneefayili eziqhelekileyo. Le mveliso evela kwi-Orientalfiber inokuhlanganiswa ngokulula kwiinethiwekhi ze-fiber optic ezikhoyo kwaye ixhasa isantya esiphezulu, unxibelelwano oluphantsi-latency olufunekayo kwiziseko ze-IT zanamhlanje. I-Jiangsu Xuben Photoelectric Technology Co., Ltd isebenza njengomthengisi othembekileyo, oqinisekisa ukuhambelana kunye nokuhanjiswa kwehlabathi jikelele.

Ingcaciso

I-TTR-NIR 1310-S i-fiber optical optical hollow-core ekhokelela ekukhanyeni ngokuyinhloko nge-core ezaliswe ngumoya, ukunciphisa ukulahleka kwesignali kunye ne-latency xa kuthelekiswa nemigangatho ye-silica fibers. Ifanelekile kwizicelo apho i-high-speed, i-short-distance transmission optical ibalulekile.

Iingenelo ezingundoqo

Ilahleko yokuThunyelwa okuPhantsi: <1 dB/km kwi-O-band, iqinisekisa ukuthotywa komqondiso omncinci.
Ukulibaziseka okuNcitshisiweyo: Ukulibaziseka kwexesha ngama-31% ngaphantsi kuneentsinga eziqhelekileyo eziqinileyo.
Ukuhambelana okuPhakamileyo: Ixhasa izixhumi zefayibha ezisemgangathweni kunye nezakhiwo zamaziko edatha.
Ukuthembeka koMveliso: Iveliswe kwiifektri ezilawulwa yi-Orientalfiber phantsi kwe-ISO9001 kunye ne-ISO45001 yokuqinisekisa.
Ukomelezwa kokuqina: Uyilo lwe-Hollow-core lunciphisa iziphumo ezingenanto kunye nokugqwesa umqondiso.

IiNgcaciso zobuGcisa

Ipharamitha	Inkcazo	Iyunithi
Uhlobo lweFayibha	Umgongxo-ongundoqo wendlela enye	-
Ilahleko yoThutho	<1	dB/km
UkuNcitshiswa kwexesha lokuLibazisa	31%	-
Ukusebenza kweWavelength	I-O-band (1260–1360 nm)	nm
I-Mode Field Diameter	~8.5	µm
Izinto zokugquma	Umaleko ombini we-UV onyanga i-acrylate	-
Ukuthotyelwa okusemgangathweni	IEC 60793-2	-

Usetyenziso

I-Intra-data center transmission optical
Uthungelwano lweseva yesantya esiphezulu
Ubume bekhompyuter obubambekayo obusezantsi
Telecommunication backbone networks
Uthungelwano lwe-industrial optical amandla ombane kunye nohambo lukaloliwe

Ukuthelekisa kunye neeFibers eziqhelekileyo eziQinisekileyo

Uphawu	TTR-NIR 1310-S	IFayibha yeSilid-Core eqhelekileyo
Ilahleko yoThutho	<1 dB/km	~2–3 dB/km
Ukubambezeleka	31% ngaphantsi	Umgangatho
Iimpembelelo ezingezizo	Nciphisiwe	Phezulu
Sebenzisa Ityala	Amaziko eenkcukacha, amanethiwekhi anesantya esiphezulu	I-telecom ngokubanzi, i-LAN

Ukuthenjwa koMthengi kunye neNkxaso yeBrand

I-Jiangsu Xuben Photoelectric Technology Co., Ltd ivelise izisombululo zefiber optic kwiimarike zasekhaya nezamazwe ngamazwe iminyaka, ixhasa abaqhubi beefowuni ezinkulu kunye nothungelwano lwemizi-mveliso. Iimveliso ze-Orientalfiber ezifanaTTR-NIR 1310-Sbathenjwa kwiiprojekthi zobunjineli ezininzi kwihlabathi liphela ngenxa yomgangatho ongaguqukiyo, ukuveliswa kobungcali, kunye nokuthotyelwa kwemigangatho ye-ISO.

I-TTF-NIR 1310-S i-hollow-core optical fiber ibonisa ukulahleka kokudluliselwa okungaphantsi kwe-1 dB / km kwi-O-band, kunye nokulibaziseka kwexesha le-31% ephantsi kunelo lesiqhelo le-fiber optical optical, eyenza ukuba ifaneleke kwi-intra-data center transmission optical transmission.

Iinkcukacha

Into	Inkcazo
Uhlobo lweFayibha	TTR-NIR 1310-S
Ilungiselelwe	1310 nm
Izinto eziphathekayo	Undoqo womoya
Idayamitha engundoqo	28±2 μm
Uhlobo lokwaleka	Iidyasi ezimbini eziphakamileyo ze-acrylate
Ukuthotywa	<1 dB/km @ 1310 nm
Ugqithiso lwebandwidth	1150-1500 nm
Imodi yedayamitha yebala	20±2 μm
Ukusasazwa	<5 ps/(nm·km) @ 1310 nm
Umngxuma wamanani	0.03
Ukucinezelwa kwe-HOM	>30 dB
Ilahleko yokugoba @ 5 cm irediyasi (ukujika kwama-50)	<0.1 dB

FAQ

I-Q1: Uthini umgama ophezulu wokudluliselwa kwelahleko ephantsi kunye ne-TTR-NIR 1310-S?

A: Ngaphakathi kwe-O-band, ilahleko yokudluliselwa ihlala ingaphantsi kwe-1 dB / km, ifanelekile kwimigama ye-intra-data center.

I-Q2: Ngaba i-TTR-NIR 1310-S iyahambelana nezixhumi zefayibha eziqhelekileyo?

A: Ewe, inokuhlanganiswa kunye ne-LC eqhelekileyo, i-SC, kunye nezixhumi ze-MPO ezisetyenziswa kumaziko edatha.

I-Q3: Ngaba le fiber ingasetyenziselwa izicelo zangaphandle?

A: I-TTR-NIR 1310-S ilungiselelwe iimeko ezilawulwayo zangaphakathi; ukuthunyelwa kwangaphandle kufuna i-cabling eyongezelelweyo yokukhusela.
