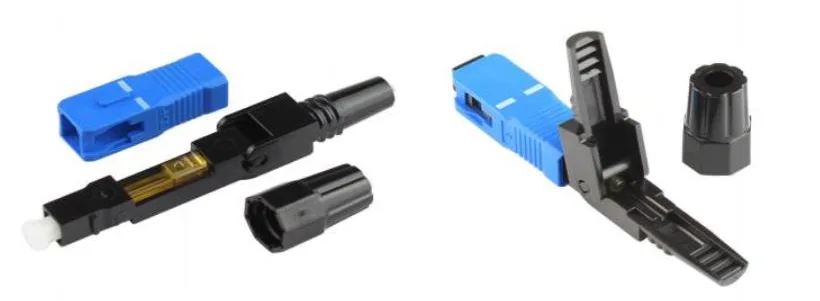

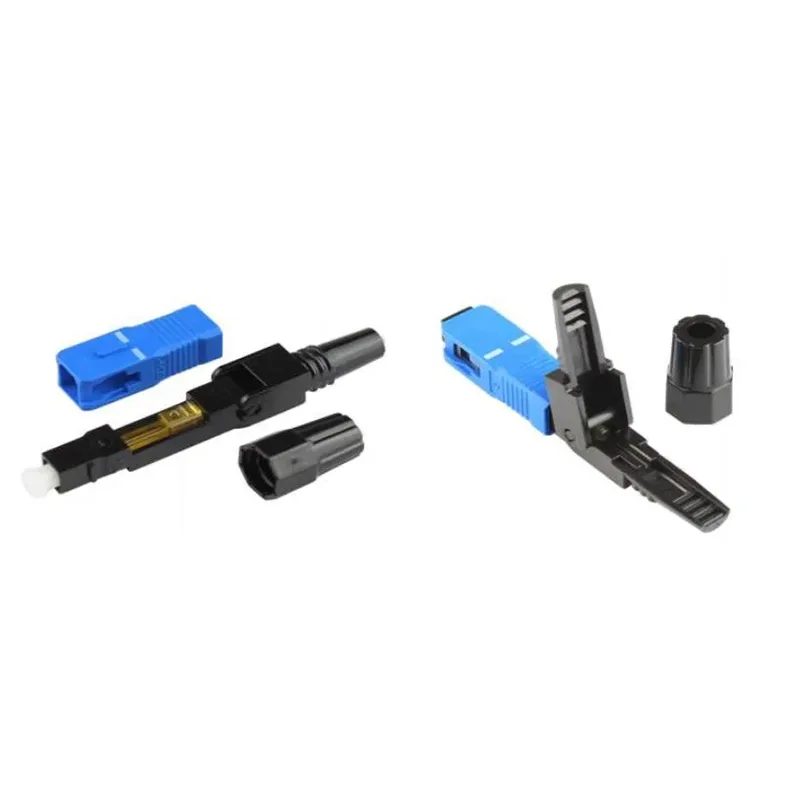

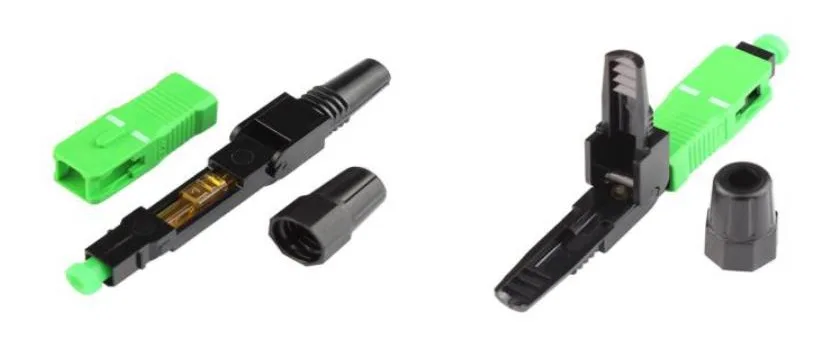

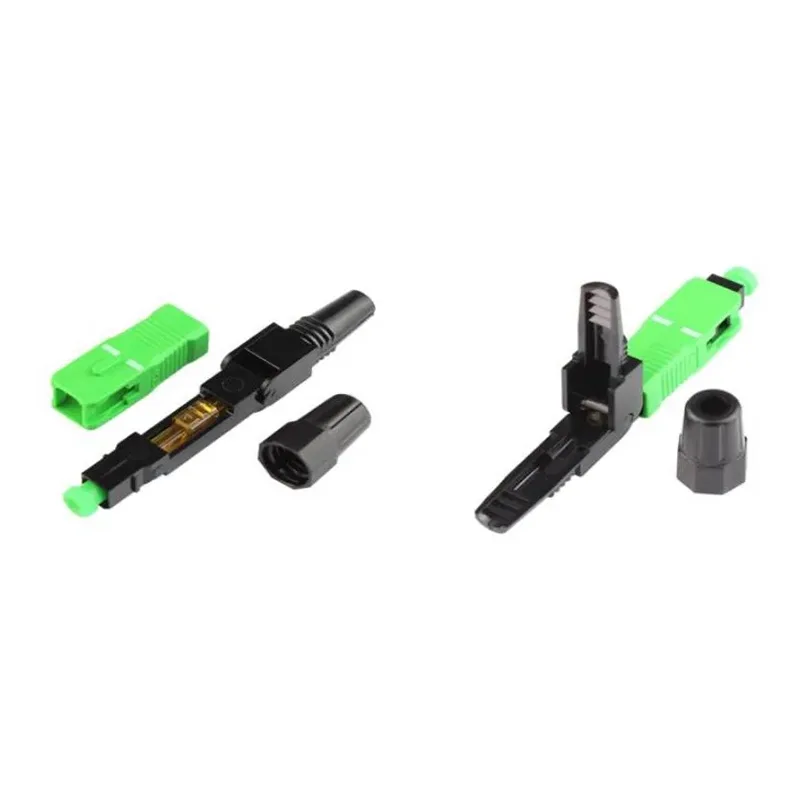

I-FAC-SC/APC-03 FAC-SC/UPC-03 Isidibanisi seNdibano yeNdawo

I-Orientalfiber i-FAC-SC / APC-03 kunye ne-FAC-SC / UPC-03 izixhumi zendibano zentsimi zenzelwe ukuphelisa imingeni eqhelekileyo yokufakela ifayibha yendabuko, kubandakanywa iinkqubo ezichitha ixesha, ubunzima, kunye namazinga aphezulu eempazamo. Ngezi ziqhagamshelo, amagcisa anokugqiba ukupheliswa kwefayibha enye malunga nemizuzwana eli-15 ngaphandle kokufuna ukudityaniswa kodityaniso okanye izixhobo ezikhethekileyo ezibizayo, ziphucula kakhulu ukusebenza kakuhle kokuthunyelwa kweeprojekthi ze-FTTH, ukuphuculwa kwegumbi ledatha, kunye nofakelo lwenethiwekhi yeshishini.

Ngubani Oyidingayo

Esi sidibanisi sifanelekile: -Iikontraki zeTelecom ezifuna ukufaka umthamo omkhulu wefiber ngokukhawuleza kwindawo. - Abaqhubi beziko ledatha abafuna ukuchaneka okuphezulu, ukuqhagamshelwa kwelahleko ephantsi. -Abalawuli bothungelwano lweshishini abafuna ukwenza lula ukuphuculwa kwegumbi ledatha okanye ukwandiswa kweLAN. -Amaqela ofakelo lwe-FTTH afuna ukuhanjiswa kwefayibha ngokukhawuleza nokuthembekileyo kuthungelwano lwendawo yokuhlala okanye yorhwebo.

Kutheni Kungcono

Izixhumi ze-Orientalfiber FAC zigqama ngenxa yezizathu ezininzi: -Ukusebenza okuphezulu kokukhanya:Ilahleko yokufaka ≤0.5dB (eqhelekileyo ≤0.3dB), ilahleko yokubuyisela ≥50dB (UPC) kunye ≥55dB (APC), iqinisekisa ukuhanjiswa komqondiso ozinzile. -Ukuqina komatshini kunye nokusingqongileyo:Imelana nemijikelo yokukhwelana engama-500, uvavanyo lwe-online tensile lwe-20N, kwaye isebenza kumaqondo obushushu ukusuka -40°C ukuya +85°C. -Isebenziseka kwakhona:Inokufakwa kwakhona ngaphezu kwamaxesha e-10 ngelixa igcina ukusebenza, ukunciphisa iindleko zokugcina. -Ukufakela ngokukhawuleza:Phantse imizuzwana ye-15 ngefayibha nganye, ukusebenza ngendlela enembileyo ngaphandle kwezixhobo zokuhlanganisa ukudibanisa. -I-ONU ethe ngqo kunye ne-86-standard socket ehambelanayo:Yehlisa imfuno yeeadaptha, yehlisa iindleko zeprojekthi iyonke.

Kusetyenziswa kwanjani

1. Lungisa i-fiber kwaye uqinisekise ukuba i-tip efakwe ngaphambili ihlambulukile. 2. Faka ifayibha kwisidibanisi se-FAC, ukhuseleke, kwaye uqinise ngobunono. 3. Qhagamshelana ngokuthe ngqo kwi-ONU okanye ipatch panel ukwenzela ukuhanjiswa kwesignali ekhawulezileyo, ezinzileyo. Ngaphambili: Ufakelo lweFayibha kudla ixesha, luthanda ukuba neempazamo, kwaye lufuna amanyathelo amaninzi. Emva: Ukudityaniswa okukhawulezileyo kwisiza, isignali ezinzileyo, kunye nofakelo olulula lugcina umsebenzi kunye nexesha leprojekthi.

Ingxelo yoMthengi

Iiprojekthi ezinkulu ze-FTTH e-China zichaze ukunyuka kwe-40% kwimpumelelo yofakelo kunye ne-15% yokunciphisa iindleko zizonke kusetyenziswa izixhumi ze-Orientalfiber FAC. - Uphuculo lwenethiwekhi yeziko ledatha lubonise ukufakwa okuzinzileyo kunye nelahleko yembuyekezo, kunye nokugcinwa okuncitshisiweyo kunye nokusebenza kwakhona. -Abaqhubi bezonxibelelwano bezizwe ngezizwe abaninzi bayaqhubeka nokwamkela ezi ziqhagamshelo zamandla, uloliwe, uhola wendlela, kunye nokusasazwa kothungelwano lwamashishini ngaphambili.

Iinkxalabo eziqhelekileyo

-Ukuhambelana:Ixhasa i-125μm i-fibers ye-single-mode, ehambelana ne-652 kunye nemigangatho ye-657, ehambelana ngqo ne-ONU kunye ne-cabling yangaphakathi. -Ukuqinisekisa umgangatho:Iqinisekiswe nge-ISO9001 yolawulo lomgangatho kunye ne-ISO45001 yezempilo kunye neenkqubo zokhuseleko emsebenzini. -Ubonelelo kunye noLungiselelo:I-Orientalfiber ineefektri ezine kunye nekhonkco lokubonelela elipheleleyo ukuqinisekisa ukuhanjiswa kwangethuba kwii-odolo ezininzi. -Ukusebenziseka kwakhona:Inokufakwa kwakhona ngaphezulu kwamaxesha e-10, ukunciphisa uxinzelelo oluqhubekayo lokusebenza.

Kutheni Uthatha Inyathelo Ngoku

Ukukhetha i-Orientalfiber FAC-SC/APC-03 okanye i-FAC-SC/UPC-03 iziqhagamshelo ikuvumela ukuba: -Kwangoko uphucule ukusebenza kakuhle kofakelo lwefayibha kwindawo - Ukunciphisa iindleko zeprojekthi kunye nobungozi bokusebenza kwakhona - Qinisekisa uzinzo lwenethiwekhi yexesha elide - Inzuzo kubonelelo lwefektri ngokuthe ngqo kunye nenkxaso yehlabathi Njengomboneleli wesisombululo se-fiber optic yobuchwephesha, i-Orientalfiber inikezela ngeziqhagamshelo ezithembekileyo, ezisebenza kakhulu kwi-telecom, i-FTTH, uthungelwano lwamashishini, kunye namaziko edatha, ukwenza ukufakelwa kwefiber entsonkothileyo kube lula kwaye kusebenze.

I-FAC-SC/APC-01

I-FAC-SC/UPC-01

Isicelo seFTTx, uGuqulo lweGumbi leDatha

Iinkcukacha zobugcisa:

Into	Ipharamitha
Umda weCable	3.0 x 2.0 mm
Ubungakanani:	59*8.7*8.3mm & 55*8.7*8.3mm
IFiber Diameter	125μm ( 652 & 657 )
I-Coating Diameter	250μm
Imowudi	SM
Ixesha lokuSebenza	malunga ne-15s (ngaphandle kokusetwa kwangaphambili kwefayibha)
Ilahleko yokuFaka	≤ 0.5dB Ubukhulu/Ngokwesiqhelo ≤0.3dB(1310nm & 1550nm)
Buyisela Ilahleko	≥50dB ye-UPC, ≥55dB ye-APC
Inqanaba lempumelelo	>98%
Amaxesha Anokusetyenziswa kwakhona	> amaxesha ali-10
Qinisa Amandla eFayibha eNze	>5 N
Tensile strength	>50 N
Ubushushu	-40 ~ +85 C
UVavanyo lwaMandla okuqina kwi-Intanethi (20 N)	Uluhlu lwe-IL≤0.3dB RL uluhlu≤5dB
Ukuqina koomatshini (500 amaxesha)	Uluhlu lwe-IL≤0.3dB RL uluhlu≤5dB
Uvavanyo lokulahla (4m umgangatho wekhonkrithi, kanye kwicala ngalinye, amaxesha amathathu ewonke)	Uluhlu lwe-IL≤0.3dB RL uluhlu≤5dB

Izisombululo ezifanelekileyo:

● Ukusebenza ngokulula, Isidibanisi sinokusetyenziswa ngokuthe ngqo kwi-ONU, kwakhona ngamandla okukhawuleza ngaphezu kwe-5 kg, isetyenziswa ngokubanzi kwiprojekthi ye-FTTH yokuguqulwa kwenethiwekhi. Kwakhona kunciphisa ukusetyenziswa kweesokethi kunye neeadaptha, gcina iindleko zeprojekthi.

● Nge-86 yesokethi esemgangathweni kunye ne-adapter, isidibanisi senza uxhumano phakathi kwentambo yokulahla kunye nentambo yokubopha. I-socket ye-86 esemgangathweni inika ukhuseleko olupheleleyo kunye noyilo olukhethekileyo.

● Isebenziseka ekudibaneni nentsimi yentambo yangaphakathi ekhweleyo, i-pigtail, intambo yesiziba kunye nokuguqulwa kwentambo yokubopha kwigumbi ledatha kwaye isetyenziswe ngokuthe ngqo kwi-ONU ethile.
