I-tecto-sc / apc-05 ye-SC / SC-SC-05 iNdibano yeNdibano

I-program-sc / apc-05I-program-sc / i-upc-05Isicelo: I-FTTX, igumbi ledatha yegumbiIzisombululo ezifanelekileyo:● Ukusebenza ngokulula, isinxibelelanisi sinokusetyenziswa ngokuthe ngqo kwi-OUU, kunye ne-Fidren ngaphezulu kwe-5 kg, isetyenziswe ngokubanzi kwiprojekthi ye-teteth yohlaziyo lwenethiwekh......

Thumela uMbuzo

Ingcaciso yeMveliso

I-program-sc / apc-05

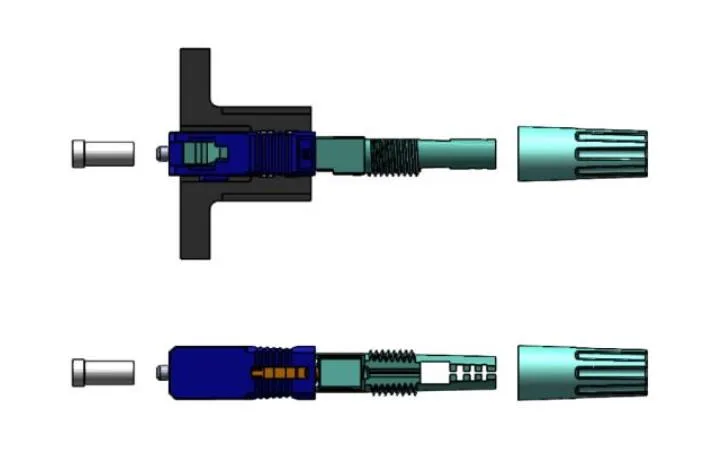

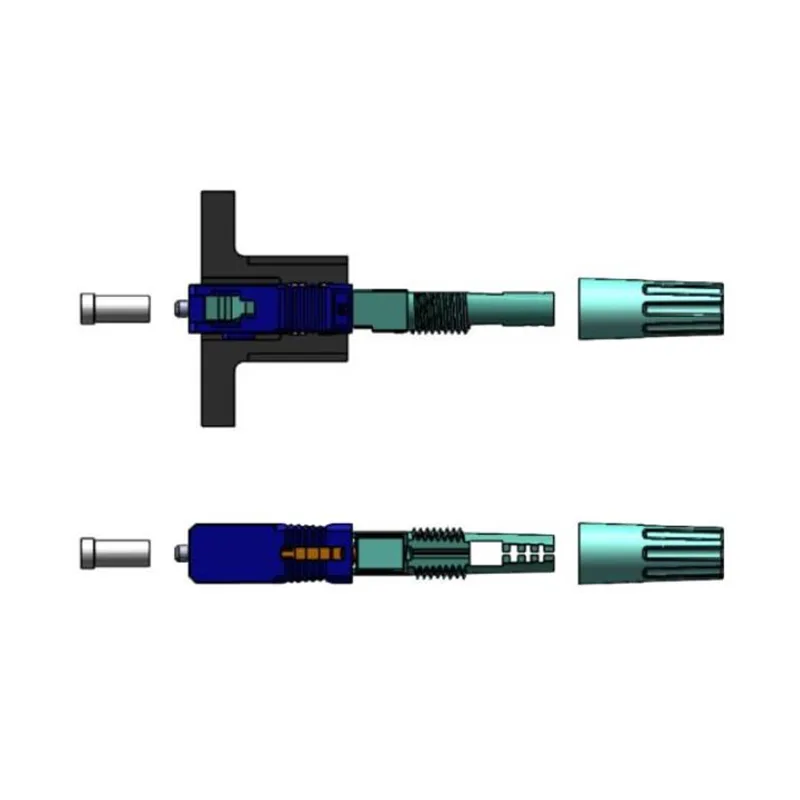

Field Assembly Connector-Fiber Pre-embeded Tech

I-program-sc / i-upc-05

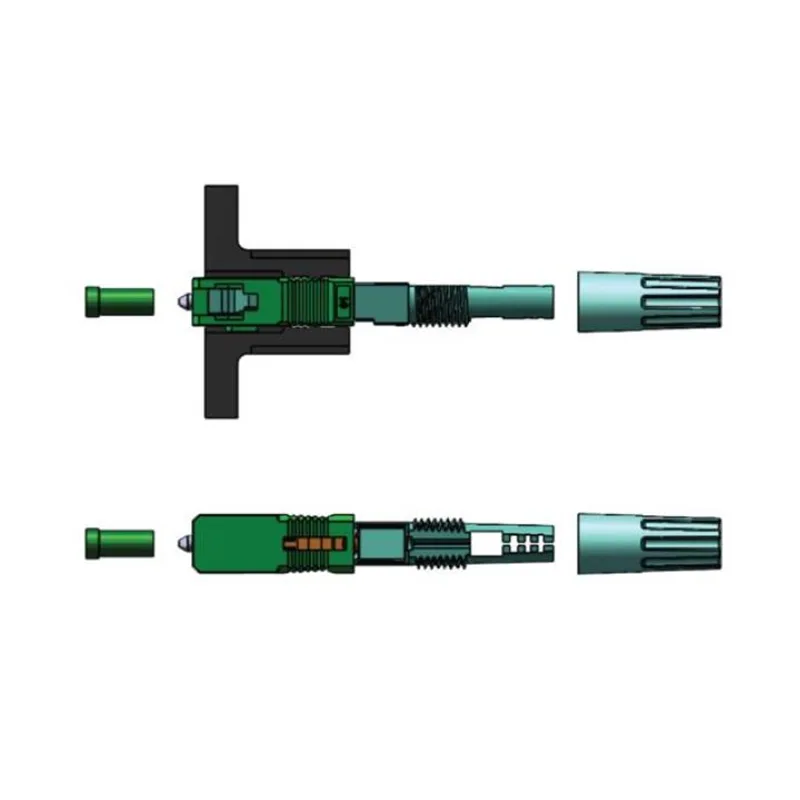

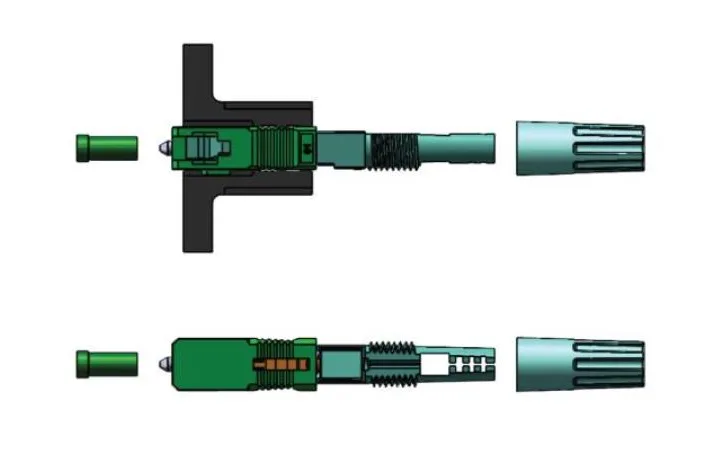

Field Assembly Connector-Fiber Pre-embeded Tech

Isicelo: I-FTTX, igumbi ledatha yegumbi

Izisombululo ezifanelekileyo:

● Ukusebenza ngokulula, isinxibelelanisi sinokusetyenziswa ngokuthe ngqo kwi-OUU, kunye ne-Fidren ngaphezulu kwe-5 kg, isetyenziswe ngokubanzi kwiprojekthi ye-teteth yohlaziyo lwenethiwekhi. Ikwanciphisa ukusetyenziswa kweziseko zeesekethe kunye nee-adapter, gcina iindleko zeprojekthi.

● NgeSosket esemgangathweni engama-86, i-adaptha, isinxibelelanisi senza unxibelelwano phakathi kwentambo yedrophu kunye ne-patch cord. Isokethi esemgangathweni ye-86 ibonelela ngokhuseleko olupheleleyo noyilo oluqhelekileyo.

Inkcazo yobugcisa:

Into	Iparameter
Umda wentambo	I-3.0 x 2.0 mm yentambo (i-2.0 & 3.0 yekhephu)
Ubungakanani:	55 * 8.9 * 8.3 mm
Ububanzi befibeber	125μm (G 652 & G 657)
Ububanzi beNtloko	250μm
Imowudi	Sm
Ixesha lokuSebenza	Malunga ne-15s (ngaphandle kwe-fiber esetyenzisiweyo)
Ukufakwa kwelahleko	≤ I-0.5DB Max / Ngokwesiqhelo ≤0.3DB (1310NM & 1550NM)
Buyisela ilahleko	≥50db ye-UPC, ≥55DB forapc
I-PREARE IXESHA	> I-98%
Amaxesha anokuphinda asebenze	> Amaxesha ali-10
Qinisa amandla e-fiber ye-nad	> 5 n
Tensile strength	> 40 n
Ubushushu	-40 ~ +85 c
Uvavanyo lwamandla e-on-mgca (20 n)	I-IL PREA0.3DB ye-RL
Ukuqina koomatshini (amaxesha ama-500)	I-IL PREA0.3DB ye-RL
Uvavanyo lweLou (4m lekhonkrithi, kanye nje ukuba kwicala ngalinye, kathathu lilonke)	I-IL PREA0.3DB ye-RL

Iithegi ezishushu: I-tecto-sc / apc-05 ye-SC / SC-SC-05 iNdibano yeNdibano
