I-tecto-sc / apc-01 ye-SC / I-SC / SCC-01 Indibano yeNdibano

I-program-sc / i-apc-01I-program-sc / i-upc-01Isicelo se-FTTX, inguqu yegumbi ledathaInkcazo yobugcisa:IntoIparameterUmda wentamboI-3.0 x 2.0 mmUbungakanani:I-59 * 8.7 * 8.3mm & 55 * 8.7 * 8.3mmUbubanzi befibeber125μm (G652 D & G657 A1 A2)Ububanzi beNtloko250μmImowudiSmIxesha lokuSebenzaMalu......

Thumela uMbuzo

Ingcaciso yeMveliso

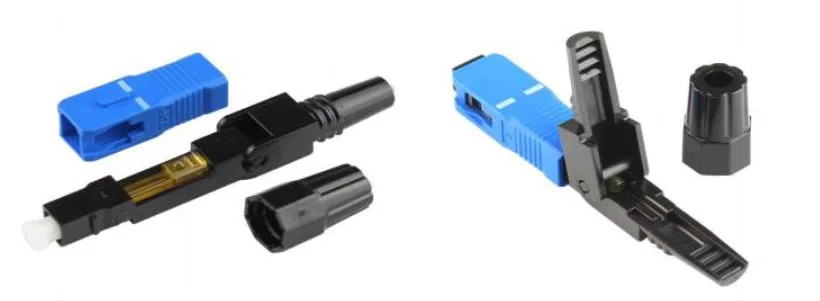

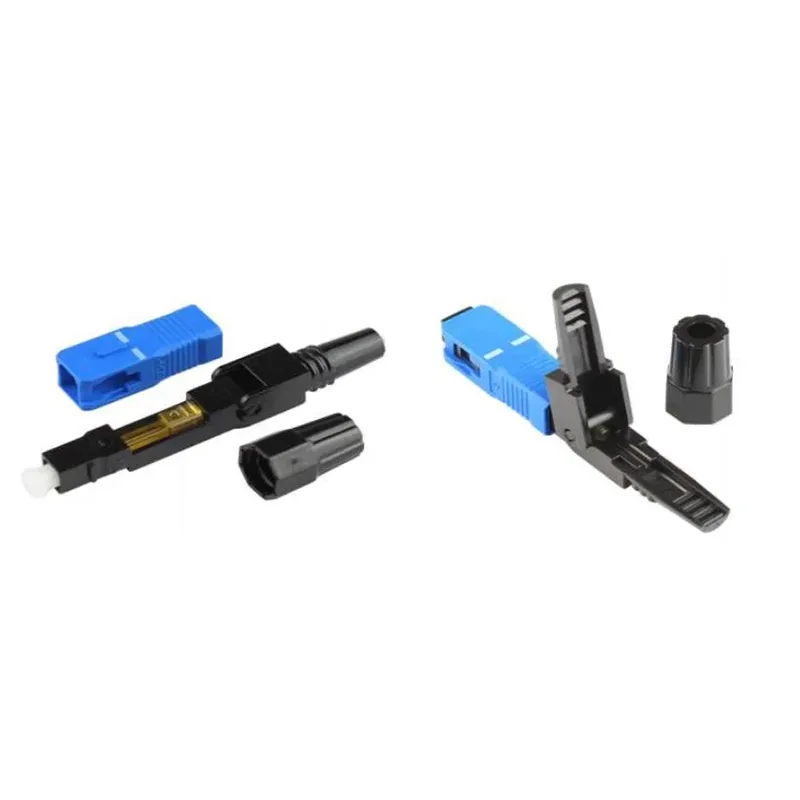

I-program-sc / i-apc-01

Field Assembly Connector-Fiber Pre-embeded Tech

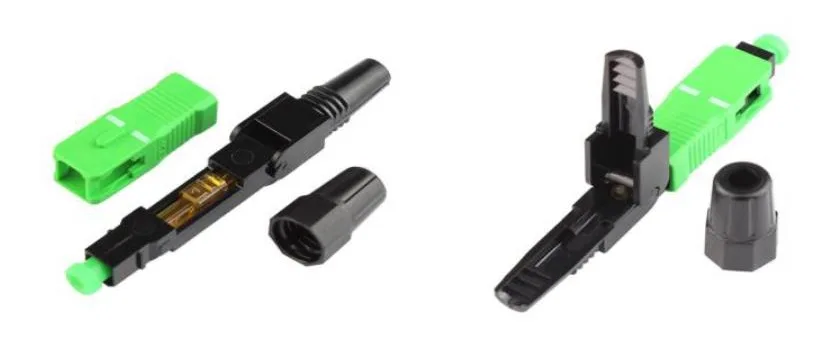

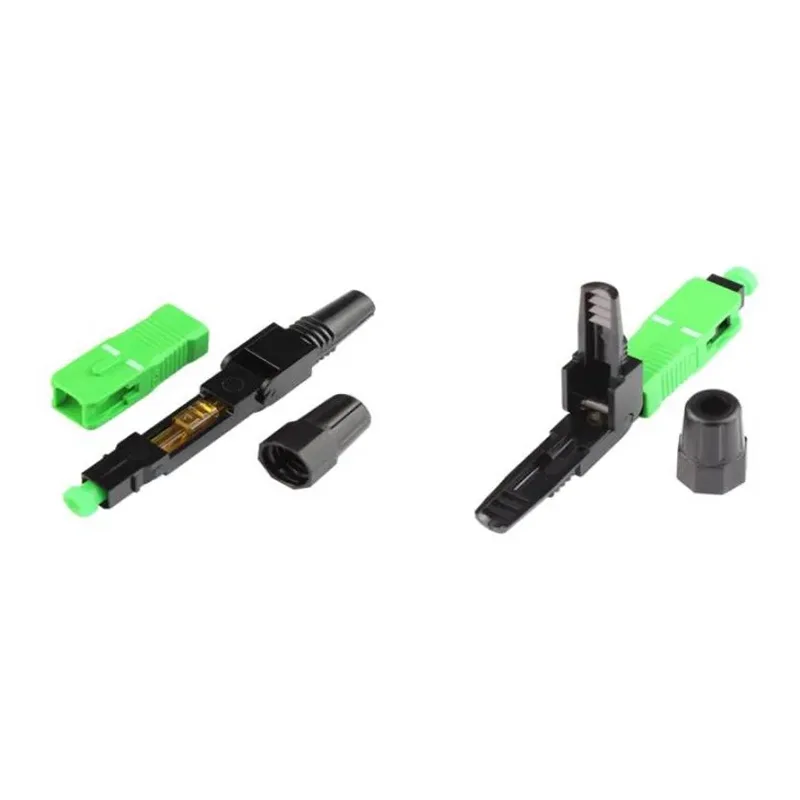

I-program-sc / i-upc-01

Field Assembly Connector-Fiber Pre-embeded Tech

Isicelo se-FTTX, inguqu yegumbi ledatha

Inkcazo yobugcisa:

Into	Iparameter
Umda wentambo	I-3.0 x 2.0 mm
Ubungakanani:	I-59 * 8.7 * 8.3mm & 55 * 8.7 * 8.3mm
Ububanzi befibeber	125μm (G652 D & G657 A1 A2)
Ububanzi beNtloko	250μm
Imowudi	Sm
Ixesha lokuSebenza	Malunga ne-15s (ngaphandle kwe-fiber esetyenzisiweyo)
Ukufakwa kwelahleko (1310nm & 1550NM)	≤ I-0.5DB Max / Ngokwesiqhelo ≤0.3DB
Buyisela ilahleko	≥50db ye-UPC, ≥55DB ye-APC
I-PREARE IXESHA	> I-98%
Amaxesha anokuphinda asebenze	> Amaxesha ali-10
Qinisa amandla e-fiber ye-nad	> 5 n
Tensile strength	> 50 n
Ubushushu	-40 ~ +85 c
Uvavanyo lwamandla e-on-mgca (20 n)	I-IL PREA0.3DB ye-RL
Ukuqina koomatshini (amaxesha ama-500)	I-IL PREA0.3DB ye-RL
Uvavanyo lweLou (4m lekhonkrithi, kanye nje ukuba kwicala ngalinye, kathathu lilonke)	I-IL PREA0.3DB ye-RL

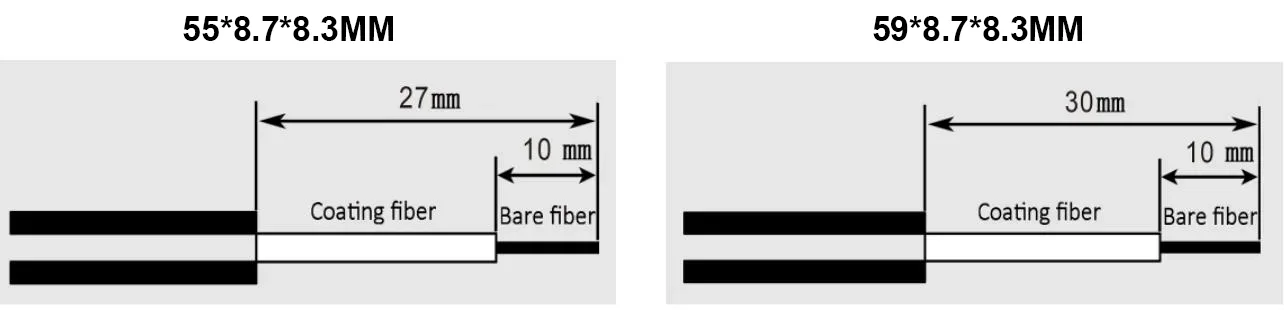

Ubude obunqumalayo (umfanekiso obonisiweyo bulungiselelwe):

Field Assembly Connector-Fiber Pre-embeded Tech

Izisombululo ezifanelekileyo:

● Ukusebenza ngokulula, isinxibelelanisi sinokusetyenziswa ngokuthe ngqo kwi-OUU, kunye ne-Fidren ngaphezulu kwe-5 kg, isetyenziswe ngokubanzi kwiprojekthi ye-teteth yohlaziyo lwenethiwekhi. Ikwanciphisa ukusetyenziswa kweziseko zeesekethe kunye nee-adapter, gcina iindleko zeprojekthi.

● NgeSosket esemgangathweni engama-86, i-adaptha, isinxibelelanisi senza unxibelelwano phakathi kwentambo yedrophu kunye ne-patch cord. Isokethi esemgangathweni ye-86 ibonelela ngokhuseleko olupheleleyo noyilo oluqhelekileyo.
