I-Pre-Ermed Round Round Fiber Optic Drop Cable

Iintambo ze-fiber optic zokulahla kwangaphambili ezinqamlekileyo zibonelela ngesisombululo esiqinileyo kunye nesitywiniweyo soqhagamshelwano lweFayibha kwiKhaya (FTTH) ngokusebenzisa inkqubo yokudibanisa ngokukhawuleza kunye nokuchanekileyo, ukunciphisa ixesha lofakelo, iimpazamo zobugcisa kunye nokugcinwa. Ukongeza, iqinisekisa ukuthembeka okuphezulu kunye nokuqina kwenethiwekhi.

Thumela uMbuzo

Ingcaciso yeMveliso

Udidi lweMveliso: IFayibha ukuya eKhaya (FTTH) Izisombululo zoQhagamshelwano
Umsebenzi oPhambili: Ukusasazwa ngokukhawuleza kweplagi-kunye-udlale intambo yokulahla kunye nokupheliswa kwe-SC/APC eqinisiweyo.
Ukuthotyelwa: Idibana nemigangatho ye-IEC 61754-4 yokusebenza kwe-optical interface.

I-Orientalfiber ibonelela nge-Pre-Terminated Round Fiber Optic Drop Cable njengesisombululo esiphezulu sokusebenza kwiindawo zokuhlala kunye nezorhwebo. Eyilwe nguJiangsu Xuben Photoelectric Technology Co., Ltd, le ntambo idibanisa ukhuseleko lomatshini olomeleleyo kunye neziqhagamshelo ezinobunjineli obuchanekileyo ukuqinisekisa ukuhanjiswa komqondiso ozinzileyo kwiimeko ezahlukeneyo zokusingqongileyo.

Inkcazo yeMveliso kunye noMda wokuSebenza

I-Pre-termination Round Fiber Optic Drop Cable yindibano ekhethekileyo ye-optical assembly ebandakanya i-high-tensile 5mm ejikeleza intambo ye-cable factory-eyenziwe nge-SC / APC ikhonkco eqinisiweyo. Ngokungafaniyo neentambo eziqhelekileyo ezipheliswe kwintsimi, esi sisombululo siqhagamshelwe kwangaphambili sisusa imfuno yokudibanisa kwisiza ekupheleni komrhumo, kusetyenziswa i-zirconium ferrule ephezulu yokugcina ilahleko ephantsi yokufakwa kunye nelahleko ephezulu yokubuyisela kuyo yonke inethiwekhi yokuphila.

Izinto eziluncedo ezingundoqo kunye nokuGqwesa kwezobuGcisa

1. Ubunjineli obuchanekileyo

I-Pre-Trminated Round Fiber Optic Drop Cable ifaka i-SC / APC idibansi eqinisiweyo kwi-Side A, iqinisekisa ukutywinwa, ukuxhamla kwimozulu. Ukusetyenziswa kwe-zirconium ferrules kuqinisekisa ukulungelelaniswa okuzinzile, ukunciphisa umngcipheko wokuthotywa kwesignali ngenxa yokuguquguquka kweqondo lokushisa okanye ukunyakaza komatshini.

2. Ukomelezwa koKuhlala ixesha elide

Yakhelwe ixesha elide, ulwakhiwo lwekhebula lubandakanya:

Ijacket yangaphandle ye-HDPE/LSZH: Ibonelela ngokumelana nemisebe ye-UV kunye noxinzelelo lwendalo.

Amacandelo okuthintela amanzi: I-fiberglass edibeneyo kunye neentambo ze-aramid zikhusela ukungena komswakama.

IFayibha ye-G657A1/A2: Inikezela ngokusebenza okuphezulu kokugoba, okubaluleke kakhulu kwindlela engqongqo kwindawo ye-FTTH yasezidolophini.

3. UFanekiso oluPhumelelweyo oluLungileyo

Ngokusebenzisa iCable ye-Pre-Terminated Round Fiber Optic Drop Cable, abaqhubi bezonxibelelwano banokunciphisa kakhulu ixesha lokufakela. "Isiphelo esivulekileyo" kwiCala B sivumela ukutsalwa lula kwimibhobho ngaphambi kokupheliswa kokugqibela kwindawo yokuhambisa.

Iinkalo zeSicelo

Ukuguquguquka kweCable ye-Pre-Terminated Round Fiber Optic Drop Cable iyenza ifaneleke kumacandelo ahlukeneyo anemfuno ephezulu:

Uthungelwano ngocingo: Uqhagamshelo lwemileyile yokugqibela yeFTTH kubanikezeli benkonzo ye-intanethi yokuhlala.

Usasazo: Usasazo lwemiqondiso koonomathotholo nomabonakude.

I-Industrial Infrastructure: Uqhagamshelo lwangaphambili lweegridi ezikrelekrele, uthutho lukaloliwe, kunye neenkqubo zokubeka iliso koohola bendlela.

Uthungelwano lweNdawo yeNgingqi (LAN): Ukuhanjiswa kwedatha ye-High-speed ye-campus okanye izakhiwo zeofisi.

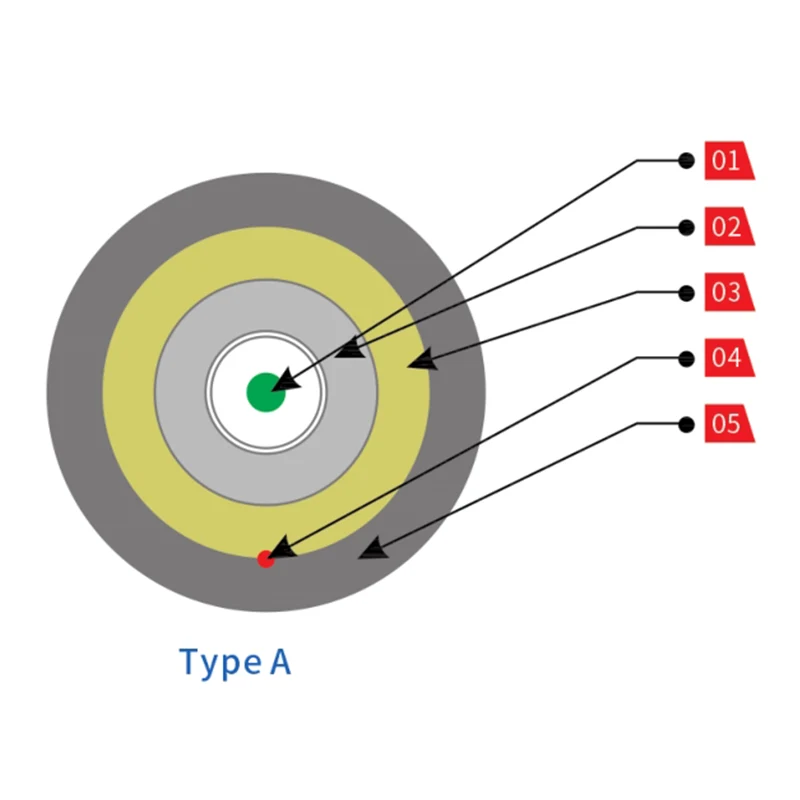

Umzobo wesakhiwo

900μm isithinteli

PBT ityhubhu

I-fiberglass yokuthintela amanzi kunye ne-aramid yarn fiber buffers

I-Ripcord

Ibhatyi yeLSZH

Pre-terminated Round Fiber Optic Drop Cable

Uhlobo A

900μm isithinteli

Isingxobo sangaphakathi

I-fiberglass yokuthintela amanzi kunye ne-aramid yarn fiber buffers

Ukomelela ilungu

I-Ripcord

Isingxobo sangaphandle

Blue Color Line

Pre-Terminated Round Fiber Optic Drop Cable

Uhlobo B

Iinkcukacha zoqhagamshelwano

Umzekelo: Uhlobo E

Umbala: Mnyama

Isixhobo: PC + ABS

Isidibanisi: SC/APC

Intambo esebenzayo: 5mm intambo yokulahla

Iimpawu

Uyilo lwemodyuli, kulula ukwandisa

Inokusebenza kwaye ifakwe ngaphandle

Isidanga soKhuselo: IP68

RL: ≥55dB

Pre-Terminated Round Fiber Optic Drop Cable

IiNkcazo ze-Optical

Ipharamitha	Ixabiso
Uhlobo lwesiqhagamshelo	Uhlobo lwe-E
Ilahleko yokuFaka isiDibanisi (dB)	I-IL: ≤0.3dB Max. 0.3dB + 0.4dB/km * L(km) @ 1310nm Max. 0.3dB + 0.35dB/km * L(km) @ 1550nm ngokwe-IEC 61300-3-4 Indlela ye-B
Ilahleko yokuBuyisa isiqhagamshelo (dB)	RL: ≥55dB Min. 60dB @ 1310&1550nm Ngokutsho kwe-IEC 61300-3-6
Ubude bentambo (m)	50, 100, 150, 200, 250, njl
Umgangatho woKhuselo	IP68

INdibano yeCable

Ilahleko yokuFaka: Max. 0.3dB + 0.35dB/km * L(km) @ 1310nm

Max. 0.3dB + 0.21dB/km * L(km) @ 1550nm

Ngokwe-IEC 61300-3-4 Indlela ye-B

Ilahleko yokuBuyisa: Min. 60 dB @ 1310&1550nm

Ngokutsho kwe-IEC 61300-3-6

Iinkcukacha zoomatshini

Into	Indlela yokuvavanya	Imfuneko
Tensile strength	IEC 60794-1-E1 (1000N/1h)	Ukwandiswa kweFayibha ≤0.40% Ukwandiswa okushiyekileyo ≤ 0.05% Ukutshintsha koxinzelelo≤ 0.1 dB @1550nm
Ukucaba	IEC 60794-1-E3 (1000 N/100mm kwimizuzu eyi-15)	Ukutshintsha koxinzelelo ≤ 0.1 dB @1550nm
Impembelelo	IEC 60794-1-2-E4 (impembelelo ye-5N.m kunye ne-D=300mm)	Ukutshintsha koxinzelelo ≤ 0.1 dB @1550nm
Torsion	IEC 60794-1-2-E7 (umthwalo we-25N kunye nemijikelo ye-10)	Ukutshintsha koxinzelelo ≤ 0.1 dB @1550nm
Igophe	IEC 60794-1-2-E6 (D=100mm kunye nomthwalo we-55N, imijikelo engama-25)	Ukutshintsha koxinzelelo ≤ 0.1 dB @1550nm
Uluhlu lobushushu	IEC 60794-1-2-F1 (-15°C ~ + 65°C)	Ukutshintsha koxinzelelo ≤ 0.2 dB @1550nm
Ukungena Amanzi	IEC 60794-1-2-F5A (3m ubude, 1m ubude, iiyure ezingama-24)	Phelisa ukuvuza kwamanzi
Ukuncipha kweSheath	EIA-RS-455-86 (85°C, 4HRS) EIA-RS-455-86(85°C,4小时）	≤ 5.0%
RoHs (2011/65/EU)	Iyahambelana
