I-Stranded Loose Tube engeyo-armored yeFiber Optic Cable Cable

Orientalfiber Stranded Loose Tube Non-Armored Fiber Optic Cable – 250μm iintsinga kwiityhubhu eziphezulu-modulus ezikhululekileyo ezinekhompawundi engangenwa manzi, ilungu lentsimbi ephakathi (PE extruded for high fiber counts), ukwakhiwa kwetyhubhu enezihluzi zokuvala amanzi, kunye nesheath ye-PE phezu kweplastiki egqunywe ialuminium/iteyiphu yentsimbi.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Stranded Loose Tube Non-armored Fiber Optic Cable yintambo yonxibelelwano ene-multi-fiber eyenzelwe iimeko zangaphandle. Uyilo lwayo lubandakanya ukubeka i-250μm i-fiber optical kwi-high-modulus loose tubes egcwele ijeli engenamanzi. Ezi ityhubhu zixinzelelwe malunga nelungu eliphakathi lamandla esinyithi (CSM) ukuqinisekisa ukuthembeka kwesakhiwo. Ukuthintela ukungena komswakama, izikhewu ezingundoqo zizaliswe ngamachiza okuthintela amanzi kwaye zikhuselwe yi-sheath eqinile yePolyethylene (PE).

Ukomelela koMveliso ongundoqo

I-Orientalfiber isebenza njengenxalenye yeqela elibanzi elinefektri ezine ezikhethekileyo. Oku kuvumela inkqubo yemveliso ethe nkqo edityanisiweyo:

Isikali: Iifektri ezine ezikhethekileyo ezigxile kwiintambo zangaphakathi / zangaphandle, amacandelo e-ODN, kunye nezixhobo zenethiwekhi.
Ukuthotyelwa: Imveliso ithobela ngokungqongqo i-ISO9001 yoLawulo loMgangatho kunye nemigangatho ye-ISO45001 yeMpilo yoMsebenzi kunye noKhuseleko.
Ukulawulwa koMgangatho: Imitha nganye ye-Stranded Loose Tube ye-Fiber Optic Cable ivavanywa ngokuqatha ukuhlangabezana nemigangatho ye-YD/T 901 kunye ne-IEC 60794-1.

Iimpawu eziphambili zeeCables ze-Orientalfiber

I-Hydrolysis Resistance: Iityhubhu ezivulekileyo ezinamandla aphezulu zikhusela iifiber ekuwohlokeni kweekhemikhali ngokuhamba kwexesha.

Ukhuseleko lwe-UV: I-PE sheath emnyama inika ukuchasana okuphezulu kwimitha ye-ultraviolet, yandisa ubomi benkonzo kufakelo lwangaphandle.

Isithintelo sokufuma: Isebenzisa i-APL (i-Aluminium Polyethylene Laminate) okanye i-PSP (i-Plastic Steel Player) ukubonelela ngesitywina esiphezulu somswakama.

Uzinzo lweMechanical: Isakhiwo esihlangeneyo kunye nelungu lamandla aphakathi likhusela iibhubhu ezikhululekileyo ekunciphiseni okanye ekutshintsheni phantsi kokutshintsha kweqondo lokushisa.

Ukusebenza kakuhle koomatshini kunye nobushushu

Ityhubhu enamandla aphezulu ekwazi ukumelana ne-hydrolysis

I-tube ekhethekileyo yokuzalisa i-compound iqinisekisa ukukhuselwa okubalulekileyo kwefiber

Ulwakhiwo oludityanisiweyo oluyilwe ngokukodwa lulungile ekuthinteleni iityhubhu ezixekileyo ekucutheni

I-PE sheath ikhusela intambo kwimitha ye-ultraviolet

La manyathelo alandelayo ayathathwa ukuqinisekisa ukuba intambo ayinamanzi:

-I-Steel wire isetyenziswe njengelungu lamandla asembindini

-Ikhompawundi yokuzalisa ityhubhu ekhululekile

-100% yokuzaliswa kwe-cable core

-APL okanye PSP umqobo ukufuma

Imigangatho

Intambo ye-GYTA/s ihambelana ne-Standard YD/T 901 kunye ne-IEC 60794-1.

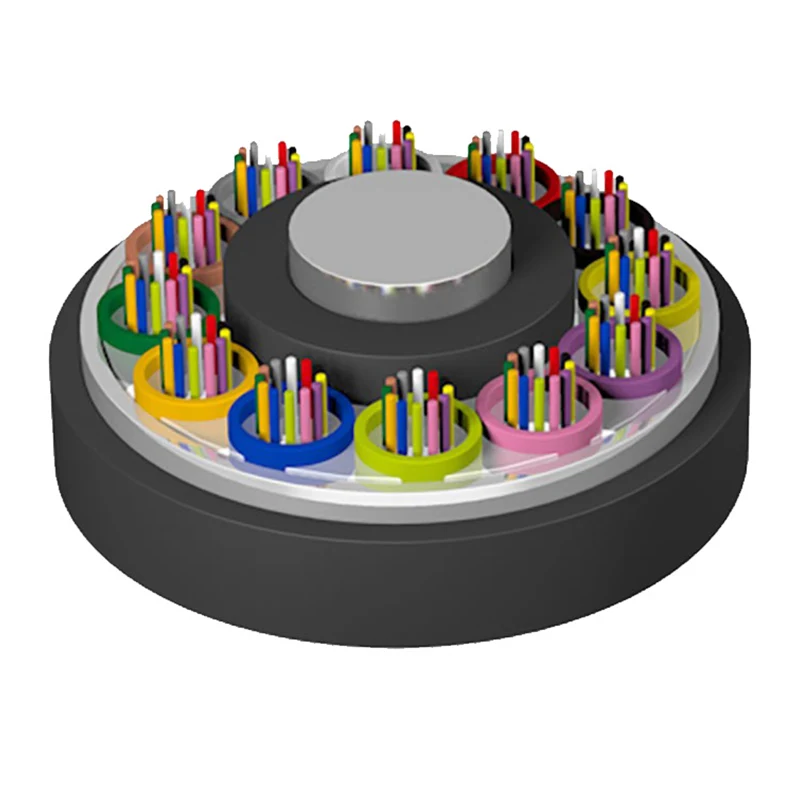

Umzobo wesakhiwo

1. Ifayibha

2. I-Tube Filling Compound

3. Umbhobho okhululekileyo

4. Ilungu leCentral Strength

5. I-Cable Filling Compound

6. APL psp

7. PE Sheath

Stranded Loose Tube Non-armored Fiber Optic Cable Cable

Iiparamitha zobuGcisa

Uhlobo lweCable (Unyuswe ngeefayibha ezi-2)	Ukubalwa kweFayibha	Imibhobho	Izigcwalisi	Ubunzima beCable (Ref) (kg/km)	Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi I-Static/Dynamic (mm)
GYTA/S-2~6Xn	2~6	1	4	76	600/1500	300/1000	10D/20D
GYTA/S -8~12Xn	8~12	2	3	76
GYTA/S -14~18Xn	14–18	3	2	76
GYTA/S -20~24Xn	20–24	4	1	76
GYTA/S -26~30Xn	26-30	5	0	76
GYTA/S -32~36Xn	32-36	6	0	85
GYTA/S -38~48Xn	38-48	4	1	90
GYTA/S -50~60Xn	50~60	5	0	90
GYTA/S -62~72Xn	62-72	6	0	113
GYTA/S -74~84Xn	74~84	7	1	136
GYTA/S -86~96Xn	86~96	8	0	136
GYTA/S -98~108Xn	98-108	9	1	163
GYTA/S -110~120Xn	110-120	10	0	163
GYTA/S -122~132Xn	122-132	11	1	190
GYTA/S -134~144Xn	134-144	12	0	190
GYTA/S -146~216Xn	146-216	13–18	5~0	190
I-GYTA/S -288Xn	288	24	0	239

UGcino/Ubushushu bokusebenza: -40℃-+70℃

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukuthotywa (+20℃)				Ububanzi		Umngxuma wamanani	Ubude beCable Cut-off λcc
Uhlobo lweFayibha	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Umngxuma wamanani	Ubude beCable Cut-off λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Phawula:

a. Isimamva Xn sibonisa uhlobo lwefayibha

b. Amalungiselelo ombala wefiber kunye netyhubhu achazwe kwitheyibhile yokuchonga umbala

c. Ityhubhu ephothiweyo ekhululekileyo engeyo-armored intambo ye-fiber optic cable akufuneki igcinwe kwindawo yangaphandle ngaphezulu kweenyanga ezi-6 ukuze igcine intambo yentambo ikwimo entle.

Usetyenziso: Umbhobho/umoya

Stranded Loose Tube Non-armored Fiber Optic Cable Cable

IiNgcaciso zobuGcisa

Ezi parameters zilandelayo zibalula iimetriki zokusebenza eziqhelekileyo zeI-Stranded Loose Tube engeyo-armored yeFiber Optic Cable :

Ipharamitha	Iinkcukacha zokucaciswa
Uhlobo lweFayibha	G.652D, G.657A1/A2, okanye i-Multimode
Ukubala okungundoqo	2 ukuya 144 Cores
Ukomelela iLungu	I-Phosphate Steel Wire (i-PE iyatyabeka ngokuzikhethela)
Ukuvala amanzi	I-100% ye-Core Filling Compound + i-Tube yokuZalisa iGel
Sheath Material	Ubuninzi bePolyethylene (HDPE) / MDPE
Ufakelo Tension	Ixesha elifutshane: 1500N / Ixesha elide: 600N
Ukuxhathisa ukutyumza	Ixesha elifutshane: 1000N / 100mm

Iinkalo ezahlukeneyo zeSicelo

II-Stranded Loose Tube engeyo-armored yeFiber Optic Cableukusuka kwi-Orientalfiber isasazwe kumacandelo ahlukeneyo:

Uthungelwano ngocingo: Iingcingo ezingundoqo zabasebenzi besizwe kunye nommandla.
Usasazo: Usasazo oluthembekileyo losasazo lwerediyo nomabonakude.
I-Industrial Infrastructure: Amakhonkco edatha ebalulekileyo kwiigridi zamandla ombane kunye neenkqubo zokubeka iliso zendlela.
UThutho lukaLoliwe: Iinkqubo zonxibelelwano olukwisantya esiphezulu somqondiso kaloliwe kunye nolawulo lwesikhululo.

Iingenelo zokuthelekisa

Xa kuthelekiswa nonikezelo loshishino olusemgangathweni, iOrientalfiberI-Stranded Loose Tube engeyo-armored yeFiber Optic Cableibonelela ngeenzuzo ezahlukeneyo:

Ukwenziwa kweMveliso eCokisiweyo: Ngokungafaniyo nabavelisi abancinci, iqela lethu elinemizi-mveliso emine liqinisekisa ukuba yonke icandelo (ukusuka kwi-ODN ukuya kwintambo) iyahambelana kwaye ivavanywa njengesisombululo esipheleleyo.
Ukuguquguquka kokusiNgqongileyo: Yenzelwe ngokukodwa ukuphatha imijikelo yobushushu kunye nokufuma okufumaneka kwiimozulu ezahlukeneyo zehlabathi.
Irekhodi yeGlobal Track: Iimveliso zethu okwangoku zidityaniswe kwiiprojekthi ezininzi zobunjineli ezinkulu, ezixhaswa yingxelo entle evela kubaqhubi be-telecom bamazwe ngamazwe.

Imibuzo Ebuzwa Rhoqo (FAQ)

Umbuzo: Ingaba ilungu lamandla asembindini lihlala liyintsimbi?

A: Uyilo oluqhelekileyo lusebenzisa ucingo lwentsimbi lwamandla aphezulu; nangona kunjalo, kwiindawo ezithile ze-electromagnetic, ilungu le-FRP engeyiyo-metallic (i-Fiber Reinforced Plastic) inokutshintshwa.

Umbuzo: Le ntambo ikuphatha njani ukungena kwamanzi?

A: II-Stranded Loose Tube engeyo-armored yeFiber Optic Cableisebenzisa i-double-layer defense: i-tube yokuzalisa i-compound ye-fibers kunye ne-100% ye-cable core yokuzalisa ikhompawundi ye-interstices.

Umbuzo: Yeyiphi imigangatho elandelwa yiOrientalfiber?

A: Zonke iintambo zangaphandle ziyahambelanaIEC 60794-1kwayeYD/T 901imigangatho, ukuqinisekisa ukuhambelana nehardware yenethiwekhi yehlabathi.
