I-Stranded Loose Tube Ilungu eliNgena-metallic Amandla ILungu elingelona-armored iFiber Optic Cable

Ulwakhiwo lwe-tube ephothiweyo ityhubhu engeyiyo-metallic amandla ilungu non-armored ifayibha optic intambo kukubeka 250μm ifayibha optical ibe ityhubhu ekhululekileyo eyenziwe ngezinto eziphezulu modulus, kwaye ityhubhu ekhululekileyo izaliswe ikhompawundi manzi. Umbindi we-cable core yi-FRP, kwaye ityhubhu evulekileyo (kunye nentambo yokuzalisa) ijikelezwe kwi-FRP ukuze yenze i-compact and round cable core. Izikhewu kwi-core cable zizaliswe ngokuzaliswa kokuthintela amanzi. Umaleko we-polyethylene sheath ucinezelwe ngaphandle kwentambo yentambo ukwenza intambo.

Thumela uMbuzo

Ingcaciso yeMveliso

II-Stranded Loose Tube Ilungu eliNgena-metallic Amandla ILungu elingelona-armored iFiber Optic Cableiqulethe i-250μm i-fiber optical efakwe kwiityhubhu ezivulekileyo ezenziwe kwi-high-modulus material, egcwele i-compound engenamanzi. Undoqo wekhebula ugxile kwilungu lamandla e-FRP elingeyiyo intsimbi, apho iityhubhu ezikhululekileyo kunye nezizalisi ziboshwe nge-helically stranded ukwenza i-compact, i-core round. Iifayili zokuvala amanzi zithatha naziphi na izikhewu, kwaye i-polyethylene sheath yangaphandle ikhusela isakhiwo sekhebula.

Ezona mpawu

Ukusebenza komatshini kunye nobushushu obunamandla
Imathiriyeli yetyhubhu ekhululekileyo enokumelana okuphezulu kwe-hydrolysis kunye namandla okuqina
I-tube ekhethekileyo yokuzalisa ikhompawundi yokukhusela i-fiber ebalulekileyo
Ukuxhathisa ukutyumza kudityaniswe noyilo oluguquguqukayo lofakelo
Amanyathelo okuthintela amanzi abanzi: Ilungu le-FRP eliphakathi, iikhompawundi zokuzalisa ityhubhu, i-100% yokuzaliswa kwengundoqo
Ukuthotyelwa kwemigangatho: YD / T 901 kunye ne-IEC 60794-1

IiNgcaciso zobuGcisa

Ukubalwa kweFayibha ye-Optical: Ulungelelwaniso oluninzi olukhoyo (umzekelo, i-6-144 fibers)
Uhlobo lweFayibha: Imowudi enye okanye i-multimode 250μm
Loose Tube Material: High-modulus polymer
I-Compound yokuzalisa: Ijeli yokuvala amanzi
Ilungu lamandla: intonga ye-FRP engeyiyo yentsimbi
Isingxobo sangaphandle: iPolyethylene (PE)
Ubushushu bokusebenza: -40°C ukuya +70°C
Ubuncinci beRadiyo yokugoba: 20× intambo yobubanzi (phantsi komthwalo)

Usetyenziso

Ezi ntambo zisetyenziswa kakhulu kwi:

Abaqhubi bezonxibelelwano ngomqolo kunye nokufikelela kuthungelwano
Iinkqubo zosasazo zikanomathotholo nomabonakude
Inethiwekhi yendawo yendawo (LAN) ukuhanjiswa kwedatha
Uqhagamshelo lwangaphambili lweshishini kumandla, uloliwe, kunye neeprojekthi zendlela
Ezinye iiprojekthi zobunjineli ezinkulu kunye neziseko zophuhliso

Iingenelo

Uyilo oluhlala ixesha elide olungeyontsimbi lunciphisa umngcipheko wokubola kwaye lwenza intambo ibe lula
Ubume obuxineneyo buphucula amandla okuqina kunye nokuguquguquka
Izinto zokuthintela amanzi ziqinisekisa ukuthembeka okuphezulu kwiindawo ezimanzi okanye ezimanzi
Ukuhambelana neendlela ezahlukeneyo zokufakela, kubandakanywa imibhobho kunye nokuthunyelwa emoyeni
Ukusebenza okungqiniweyo kuzo zonke iiprojekthi zasekhaya nezamazwe ngamazwe, ezixhaswa ngamava okwenziwa kwe-Orientalfiber

FAQ

Umbuzo: Ngaba le ntambo ingasetyenziswa kufakelo lwangaphandle?: A: Ewe, i-PE sheath kunye neekhompawundi zokuthintela amanzi zenza ukuba zilungele ukungcwatywa ngokuthe ngqo kunye nokuthunyelwa kwe-duct ngaphandle.
Q: Zingaphi iintsinga ezinokuthi ziqwalaselwe?: A: Intambo ingenziwa ngokwezifiso ukusuka kwi-6 ukuya kwi-144 fibers ngokuxhomekeke kwiimfuno zeprojekthi.
Umbuzo: Ngaba intambo ibandakanya amacandelo esinyithi?: A: Hayi, ilungu lamandla aliyi-metallic FRP, ukunciphisa ubunzima kunye nemiba ye-corrosion.
Umbuzo: Ngaba iyahambelana nezixhobo eziqhelekileyo zamehlo?: A: Ewe, i-250μm fiber kunye ne-standard loose design design iqinisekisa ukuhambelana kunye neendlela eziqhelekileyo zokuqhawula kunye neendlela zokuphelisa.

Imigangatho

Intambo ye-GYFTY ihambelana noMgangatho we-YD/T 901 kunye ne-IEC 60794-1

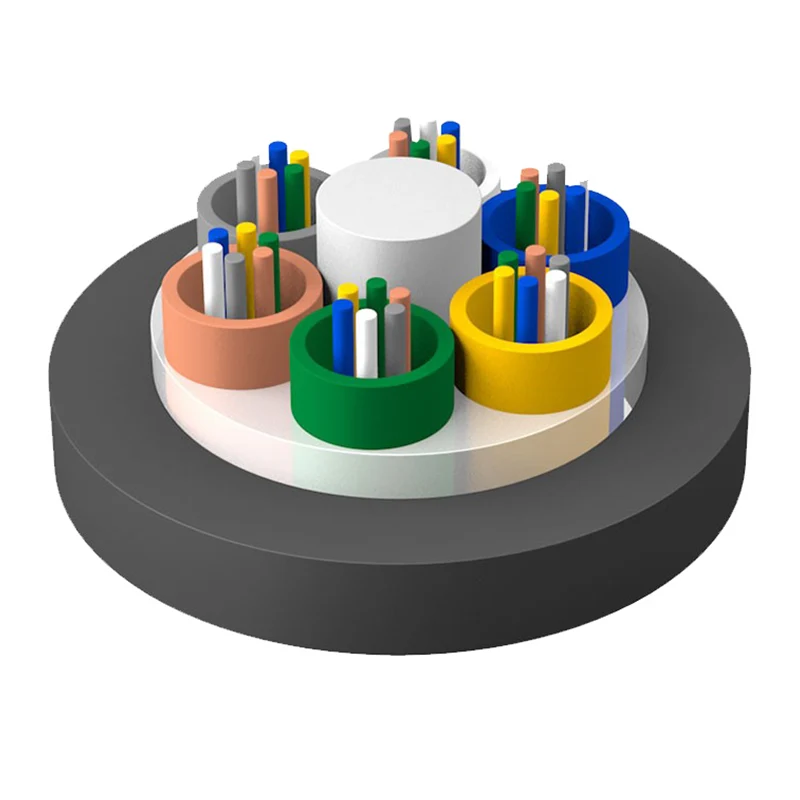

Umzobo wesakhiwo

1.IFayibha

I-2.I-Tube Filling Compound

3.IThubhu ekhululekileyo

I-4.I-Cable Filling Compound

Ilungu le-5.FRP lamandla

6.PE Sheath

Stranded Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable

IiParameters zobuGcisa

Uhlobo lweCable (Unyuswe ngeefayibha ezi-2)	Ukubalwa kweFayibha	Imibhobho	Izigcwalisi	Ubunzima beCable (Ref) (kg/km)	Tensile strength Ixesha elide/elifutshane (N)	Ukuxhathisa ukutyumza Ixesha elide/elifutshane (N/100mm)	Ukugoba iRadiyosi I-Static/Dynamic (mm)
IGYFTY-2~6Xn	2~6	1	5	86	400/1000	300/1000	12.5D/25D
IGYFTY-8~12Xn	8~12	2	4	86
IGYFTY-14~18Xn	14–18	3	3	86
IGYFTY-20~24Xn	20–24	4	2	86
GYFTY-26~30Xn	26-30	5	1	86
GYFTY-32~36Xn	32-36	6	0	86
IGYFTY-38~48Xn	38-48	4	2	109
GYFTY-50~60Xn	50~60	5	1	109
GYFTY-62~72Xn	62-72	6	0	109
IGYFTY-2~6Xn	2~6	1	6	98	600/1500
IGYFTY-8~12Xn	8~12	2	5	98
IGYFTY-14~18Xn	14–18	3	4	98
IGYFTY-20~24Xn	20–24	4	3	98
GYFTY-26~30Xn	26-30	5	2	98
GYFTY-32~36Xn	32-36	6	1	98
IGYFTY-38~42Xn	38-42	7	0	98
IGYFTY-44~48Xn	44-48	4	3	115
GYFTY-50~60Xn	50~60	5	2	115
GYFTY-62~72Xn	62-72	6	1	115
IGYFTY-2~6Xn	2~6	1	7	119	1000/3000
IGYFTY-8~12Xn	8~12	2	6	119
IGYFTY-14~18Xn	14–18	3	5	119
IGYFTY-20~24Xn	20–24	4	4	119
GYFTY-26~30Xn	26-30	5	3	119
GYFTY-32~36Xn	32-36	6	2	119
IGYFTY-38~42Xn	38-42	7	1	119
IGYFTY-44~48Xn	44-48	8	0	119
GYFTY-50~60Xn	50~60	5	3	125
GYFTY-62~72Xn	62-72	6	2	125
IGYFTY-74~84Xn	74~84	7	1	125
IGYFTY-86~96Xn	86~96	8	0	125
GYFTY-98~108Xn	98-108	9	1	149
I-GYFTY-110 ~ 120Xn	110-120	10	0	149
I-GYFTY-122 ~ 132Xn	122-132	11	1	179
I-GYFTY-134 ~ 144Xn	134-144	12	0	179

UGcino/Ubushushu bokusebenza: -40℃-+70℃

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukunciphisa (+20℃)				Ububanzi		Umngxuma wamanani	Ubude beCable Cut-off λcc
Uhlobo lweFayibha	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Umngxuma wamanani	Ubude beCable Cut-off λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Phawula:

a. Isimamva Xn sibonisa uhlobo lwefayibha

b. Amalungiselelo ombala wefiber kunye netyhubhu achazwe kwitheyibhile yokuchonga umbala

c. Intambo akufuneki igcine kwindawo yangaphandle ngaphezulu kweenyanga ezi-6 ukuze igcine intambo yentambo ikwimo entle

Usetyenziso: Umbhobho/umoya

Stranded Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable
