I-Uni-tube engeyiyo eyentsimbi Engafakwanga intambo yeFiber Optic Cable

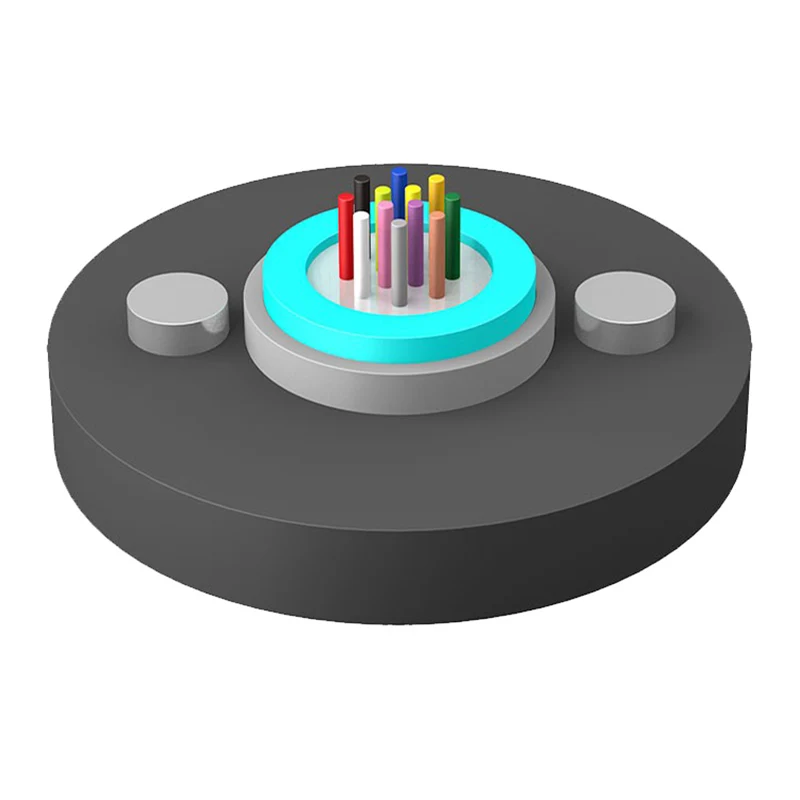

Ubume be-uni-tube non-metallic non-armored fiber optic cable GYFXY kukubeka i-250μm i-fiber optical ibe ityhubhu ekhululekile eyenziwe ngezinto eziphezulu zemodulus, kwaye ityhubhu ekhululekile izaliswe ngekhompawundi engenamanzi. Izinto zokuthintela amanzi zongezwa kwi-tube evulekileyo ukuze kuqinisekiswe ukusebenza kokuthintela amanzi kwintambo ye-optical cable. Iiplastiki ezimbini zeglasi ezihambelanayo zefayibha eziqinisiweyo (FRP) zibekwe kumacala omabini kwaye emva koko zikhutshelwe kwi-polyethylene sheath ukwenza intambo.

Thumela uMbuzo

Ingcaciso yeMveliso

Uyilo olungundoqo lwe-Uni-tube Non-metallic Non-armored Fiber Optic Cable (GYFXY) isebenzisa uyilo lwetyhubhu evulekileyo esembindini. Ngaphakathi kule ityhubhu ephezulu ye-modulus, i-250μm i-fiber optical ikhuselwe yi-compound ekhethekileyo engenamanzi. Ukugcina ingqibelelo yesakhiwo ngaphandle kokusetyenziswa kwesinyithi, iiplastiki ezimbini ezifanayo ze-Glass Fiber Reinforced Plastics (FRP) zibekwe kumacala ahlukeneyo ombhobho. Olu lungelelwaniso luvalwe kwi-sheath ye-Polyethylene (PE) eyomeleleyo, ebonelela ngolungelelwaniso lokuguquguquka kunye namandla okuqina.

IiNkcazelo ezingundoqo kunye noKuqulunqwa kwezinto

I-Fiber ye-Optical: Imigangatho ye-250μm ye-fibers egcinwe kwi-tube ekhuselekileyo yokukhusela.
Amalungu Amandla: I-FRP ehambelana kabini (engeyiyo-metallic) yokuphazamiseka kwe-electromagnetic interference (EMI) ukumelana.
Ukuvinjwa kwamanzi: Izinto ezidibeneyo zokuthintela amanzi kunye ne-tube-filling compound ukukhusela ukungena komswakama.
Ukhuseleko lwangaphandle: I-PE sheath ekwaziyo ukumelana ne-UV ilungele iimeko ezahlukeneyo zokusingqongileyo.
Ukuthobela: Ukuthobela ngokupheleleyo imigangatho ye-YD/T 769 yonxibelelwano ngefowuni.

Izinto eziluncedo zokuSebenza kwiZibonelelo zoThungelwano

1. Uyilo olungelulo lweMetali loThutho olungaPhazamiyo

Ekubeni i-Uni-tube Non-metallic Non-armored Fiber Optic Cable isebenzisa i-FRP endaweni yentsimbi, i-dielectric ngokupheleleyo. Eli linqanaba elibalulekileyo lexabiso leeprojekthi zobunjineli kufutshane neentambo zamandla okanye kwimimandla ethandwa ngumbane, njengoko isusa umngcipheko wokunyanzelwa kwangoku.

2. Ukufakela okuLungelweyo nokuPhathwa

Idayamitha encinci kunye nobunzima obuncitshisiweyo bentambo ye-Orientalfiber GYFXY ivumela ubude obude bokuhanjiswa kunye nokutsalwa lula kwimibhobho emxinwa. Oku kunciphisa inani leenxalenye eziyimfuneko, ukuthoba zombini iindleko zabasebenzi kunye nokunciphisa umqondiso.

3. Ukomelela kwendalo

I-PE sheath kunye ne-hydrolysis-resistant loose tube materials iqinisekisa i-Uni-tube Non-metallic Non-armored Fiber Optic Cable ihlala isebenza phantsi kwamaqondo obushushu ahlukeneyo kunye nokuvezwa kwe-UV. I-ointment yangaphakathi inika i-buffer yesibini, ikhusela iifibers kuxinzelelo lomzimba kunye nokufuma.

Uni-tube Non-metallic Non-armored Fiber Optic Cable

Iiparamitha zobuGcisa

Uhlobo lweCable

(Unyuswe ngeefayibha ezi-2)

Ukubalwa kweFayibha

Ubunzima beCable (Ref)

(kg/km)

Tensile strength

Ixesha elide/elifutshane

(N)

Ukuxhathisa ukutyumza

Ixesha elide/elifutshane

(N/100mm)

Ukugoba iRadiyosi

I-Static/Dynamic

(mm)

GYFXY-2~12Xn

2~12

400/1000

300/1000

10D/20D

GYFXY-14~24Xn

14–24

UGcino/Ubushushu bokusebenza: -40℃-+70℃

Iimpawu ze-Optical

Uhlobo lweFayibha	Ukunciphisa (+20℃)				Ububanzi		Umngxuma wamanani	Ubude beCable Cut-off λcc
Uhlobo lweFayibha	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Umngxuma wamanani	Ubude beCable Cut-off λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Phawula:

a. Isimamva Xn sibonisa uhlobo lwefayibha

b. Amalungiselelo ombala wefiber kunye netyhubhu achazwe kwitheyibhile yokuchonga umbala

c. Intambo akufuneki igcine kwindawo yangaphandle ngaphezulu kweenyanga ezi-6 ukuze igcine intambo yentambo ikwimo entle

Isicelo: I-eriyali

Uni-tube Non-metallic Non-armored Fiber Optic Cable

Intengo kunye noMongo wesicelo

Kubathengi beevenkile kunye nabaphathi beprojekthi, iI-Uni-tube engeyiyo eyentsimbi Engafakwanga intambo yeFiber Optic Cableimele isisombululo esingabizi kakhulu kuthungelwano lwendawo yendawo (i-LAN), iinkqubo zokubeka iliso kuhola wendlela, kunye nonxibelelwano lukaloliwe.Ifayibha yaseMpumainikeza ikhonkco epheleleyo yokubonelela-ukusuka kwiifektri zentambo zangaphakathi / zangaphandle ukuya kumacandelo e-ODN-ukuqinisekisa ukuba intambo idibanisa ngokungenamthungo kunye nezixhobo zenethiwekhi ezikhoyo.

Imibuzo eqhelekileyo yokuThenga izinto (FAQ)

Iyintoni inzuzo ephambili yesakhiwo se-GYFXY?

Ulwakhiwo lwe-GYFXY lwenzelwe ngokukodwa iindawo ezisingqongileyo apho kufuneka izinto ezikhaphukhaphu kunye nezingaqhubekiyo. Yenza lula ukufakwa kwe-eriyali okanye umbhobho ngelixa ibonelela ngamandla aneleyo okuqina nge-FRP ehambelanayo.

Ingaba iOrientalfiber iqinisekisa njani umgangatho kuzo zonke iiodolo ezinkulu?

Njengenkampani yeqela enemveliso yonyaka yezigidi ezingama-20 zeedola, siphumeza imigangatho ye-ISO9001 kunye ne-ISO45001 kuzo zonke ezine zeefektri zethu ezikhethekileyo. Yonke ibhetshi ye-Uni-tube Non-metallic Non-armored Fiber Optic Cable ivavanywa amandla okuqina, ukuxhathisa, kunye nokungena kwamanzi.

Ngaba le ntambo ingasetyenziswa kuqhagamshelo lwangaphambili lweshishini?

Ewe. Iintambo zethu zisetyenziswa ngokubanzi kwiinkqubo zamandla ombane kunye ne-automation ye-industrial apho ukhuseleko lwe-EMI lunyanzelekile.
