Ingcaciso yeMveliso

I-1x12 / 1 × 24 prolc splitter tube yentsimbi ye-7x12μm:

Inkcazo yokusebenza:

Iiparamitha	Isimboli	Inkcazo		Iyunithi
Inombolo ye-Chanel	Ch	1 × 12	1 × 24
Ukusebenza kwe-wavelength		1260 ~ 1650		nm
Uvavanyo lwavelength		1310/1550		nm
Umlinganiso obonakalayo		8.333%	4.166%	%
Ukufakwa kwelahleko1	Il	≤12.5	≤16.0	db
Ukufana	I-UNI	≤1.2	≤1.6	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤0.35	≤0.40	db
Buyisela ilahleko	Rl	≥55		db
I-CORFEIT2	Dir	≥55		db
Igalelo loThic Amandla	P	I-100		mw
Uhlobo lweFiber		I-IT657 A1 fiber
Uhlobo lwe-pigtail		Zonke izibuko: mhlophe 9001m ityhubhu ekhululekileyo
Ubude begalelo		1.0 + 0.1 / 0		m
Ubude bemveliso		1.0 + 0.1 / 0		m
Isinxibelelanisi		Zonke izibuko: I-SC / APC
Uphawu lwentambo		I-1x12 plc: in, 1,2 ... ... 11, 12 1x24 plc: in, 1,2 ... ... 23, 24
Ubukhulu bephakeji (l) (w) (h) (h)	Pkg	I-1x12 plc: 60x12x4 I-1x24 plc: 80x20X6		mm
Iqondo lobushushu	Phezulu	-40 ~ +85		℃
Iqondo lokugcina	Tst	-40 ~ +85		℃

* Amanqaku: 1. Zonke izinto zokupakisha ilahleko zibandakanya ukuphulukana nesinxibelelanisi.

Imephu yesketch:

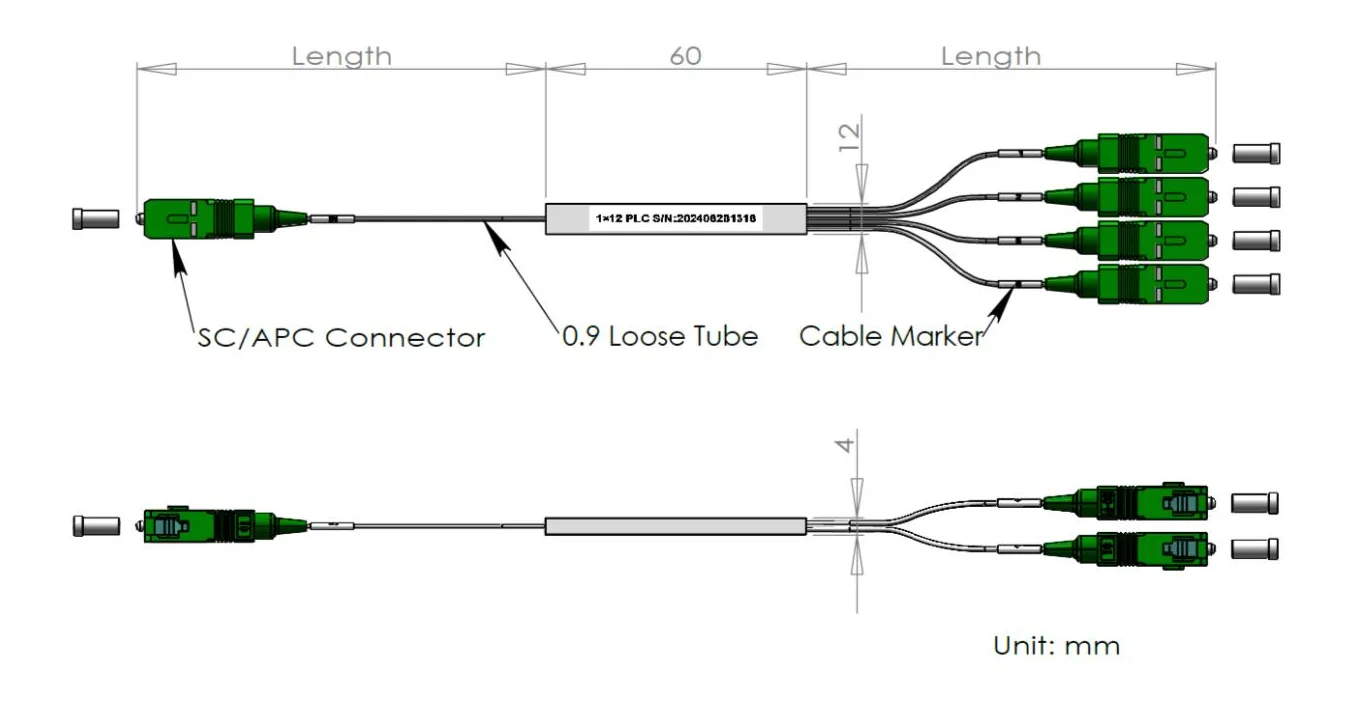

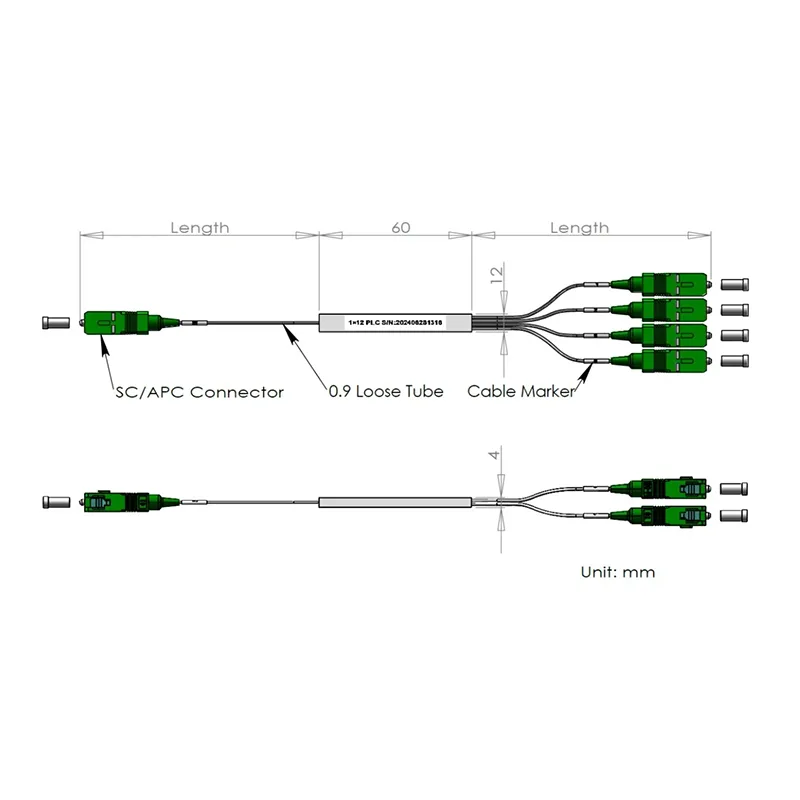

I-1x12 plc splitter

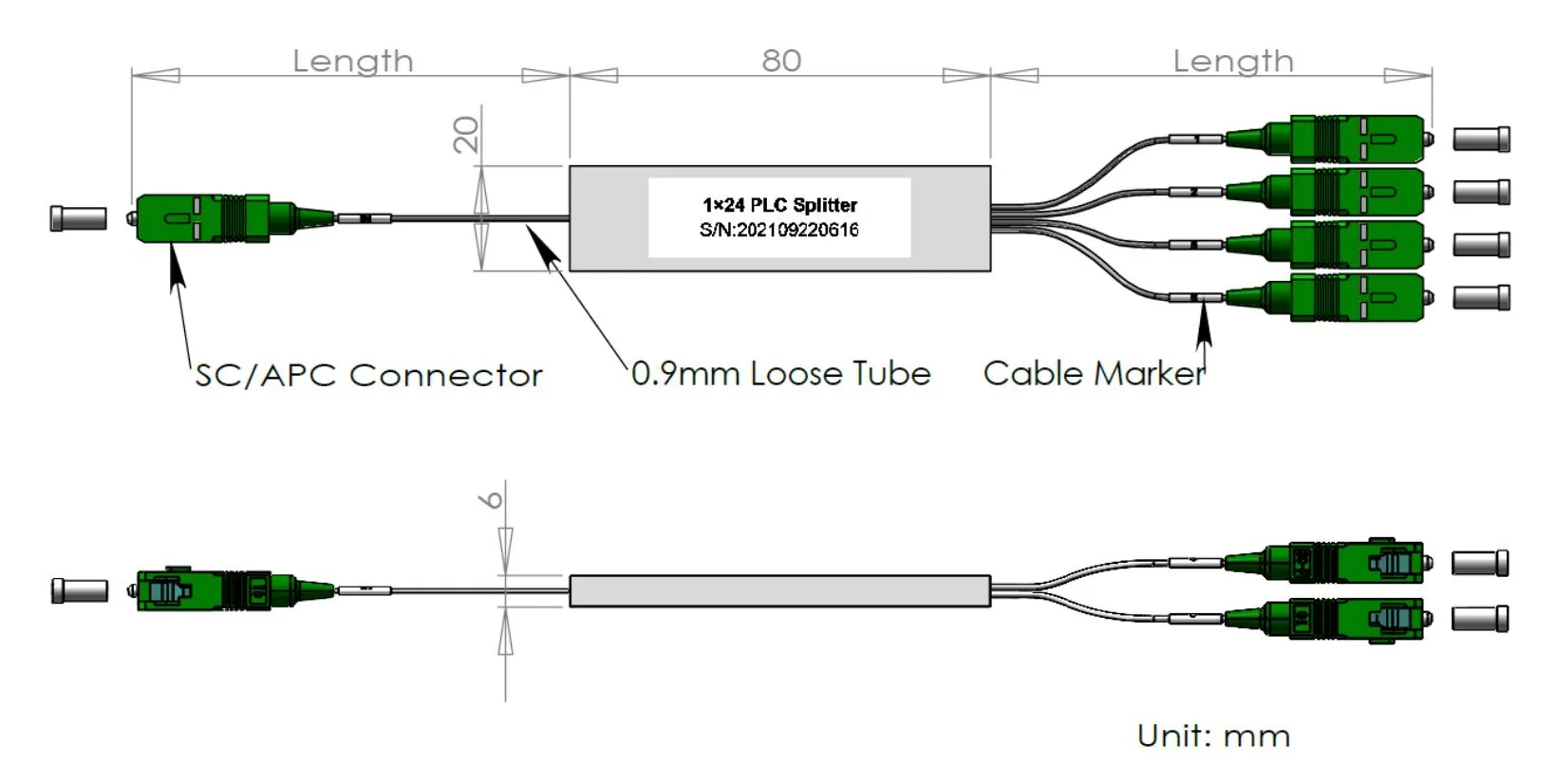

I-1x24 plc splitter

Ingxelo yovavanyo:

1. Ingxelo yovavanyo ngamaxabiso achanekileyo ukuba ibandakanywe ekupakisheni.

Umzekelo Ingxelo yeNgxelo: 1x12 Mini 0

Ukusebenza kwe-wavelength (NM)	1260-1650	Umhla ohloliweyo	2024/11/30
P / n:	I-1x12-0.999-kwi-1.0m-ngaphandle i-1.0m-scapc	Isono:	21113000001
Uhlobo lweFiber	G657a2	Ubude beFibber (m)	I-in≥1.0m / ngaphandle> 1.0m
Uhlobo lomnxibelelanisi	I-Sciapc	Ubukhulu bephakeji (mm)	I-60x12X4
Iqondo lokugcina	-40 ~ + 85 ℃	Iqondo lokusebenza	-40 ~ + 85 ℃

lmp	(DB)		I-PDL (DB)		I-RL (DB)
I-Wavelength (NM)	@ 1310	@ 1550	@ 1310	@ 1550	@ 1310	@ 1550
Proper.	UMax.12.50		Max.0.35		≥55
Izibuko 1	12.43	12.38	0.14	0.07	Dlula	Dlula
Port 2	12.24	12.35	0.16	0.06	Dlula	Dlula
Izibuko 3	12.22	12.20	0.12	0.07	Dlula	Dlula
Izibuko 4	12.30	12.24	0.04	0.04	Dlula	Dlula
Izibuko 5	12.24	12.25	0.11	0.05	Dlula	Dlula
Izibuko 6	12.35	12.29	0.11	0.01	Dlula	Dlula
Izibuko 7	12.42	12.44	0.21	0.11	Dlula	Dlula
Izibuko 8	12.23	12.18	0.11	0.01	Dlula	Dlula
Izibuko 9	12.27	12.19	0.21	0.10	Dlula	Dlula
I-Port 10	12.38	12.17	0.02	0.04	Dlula	Dlula
Izibuko 11	12.29	12.21	0.11	0.06	Dlula	Dlula
Izibuko 12	12.42	12.27	0.08	0.07	Dlula	Dlula
Igalelo	N / A				N / A
Max	12.43	12.44	0.21	0.11	N / A
Imiz.	12.22	12.18	0.04	0.01	N / A
Umndilili	12.30	12.29	0.13	0.05	N / A
Ukufana (≤0.8db)	0.21	0.27	Isikhokelo (DB)		> 55
