I-1 * 4 1 * 8 plc splitter

I-1x4 / 1 × 8 plc splitter tube yentsimbi ye-7x7x4m, ene-900m ityhefu ityhubhu 1.0 + 0.1Inkcazo yokusebenza:IiparamithaIsimboliInkcazoIyunithiInombolo ye-ChanelCh1 × 41 × 8Ukusebenza kwe-wavelength1260 ~ 1650nmUvavanyo lwavelength1310/1550nmUmlinganiso obonakalayoI-25%12.5%%Ukufakwa k......

Thumela uMbuzo

Ingcaciso yeMveliso

I-1x4 / 1 × 8 plc splitter tube yentsimbi ye-7x7x4m, ene-900m ityhefu ityhubhu 1.0 + 0.1

Inkcazo yokusebenza:

Iiparamitha	Isimboli	Inkcazo		Iyunithi
Inombolo ye-Chanel	Ch	1 × 4	1 × 8
Ukusebenza kwe-wavelength		1260 ~ 1650		nm
Uvavanyo lwavelength		1310/1550		nm
Umlinganiso obonakalayo		I-25%	12.5%	%
Ukufakwa kwelahleko1	Il	≤7.2	≤10.5	db
Ukufana	I-UNI	≤0.8	≤1.0	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤0.30	≤0.30	db
Buyisela ilahleko	Rl	≥55		db
I-CORFEIT2	Dir	≥55		db
Igalelo loThic Amandla	P	100		mw
Uhlobo lweFiber		G657 A1 fiber
Uhlobo lwe-pigtail		Com port: mhlophe 9001m ityhubhu ekhululekileyo
Uhlobo lwe-pigtail		I-1 ~ 8CH Port: White 9001m ityhubhu ekhululekileyo
Ubude begalelo		1.0 + 0.1 / 0		m
Ubude bemveliso		1.0 + 0.1 / 0		m
Isinxibelelanisi		Zonke izibuko: I-SC / APC
Uphawu lwentambo		I-1x4 plc: in, 1,2 ... ... 3, 4 1x8 plc: in, 1,2 ... ... 7, 8
Ubukhulu bephakeji (l) (w) (h) (h)	Pkg	I-60X7X4X4		mm
Iqondo lobushushu	Phezulu	-40 ~ +85		℃
Iqondo lokugcina	Tst	-40 ~ +85		℃

* Amanqaku:. Zonke izinto ezilahlekileyo aziquki ilahleko yesinxibelelanisi, zibandakanya ilahleko + 0.3DB.

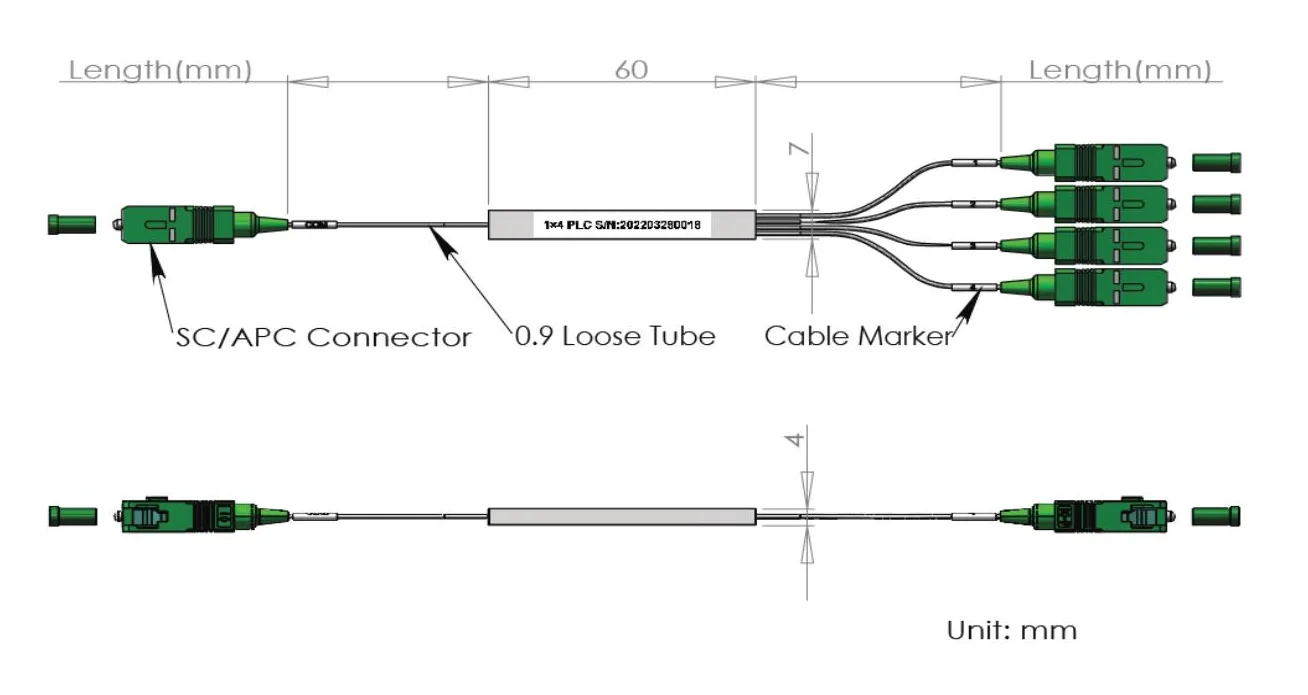

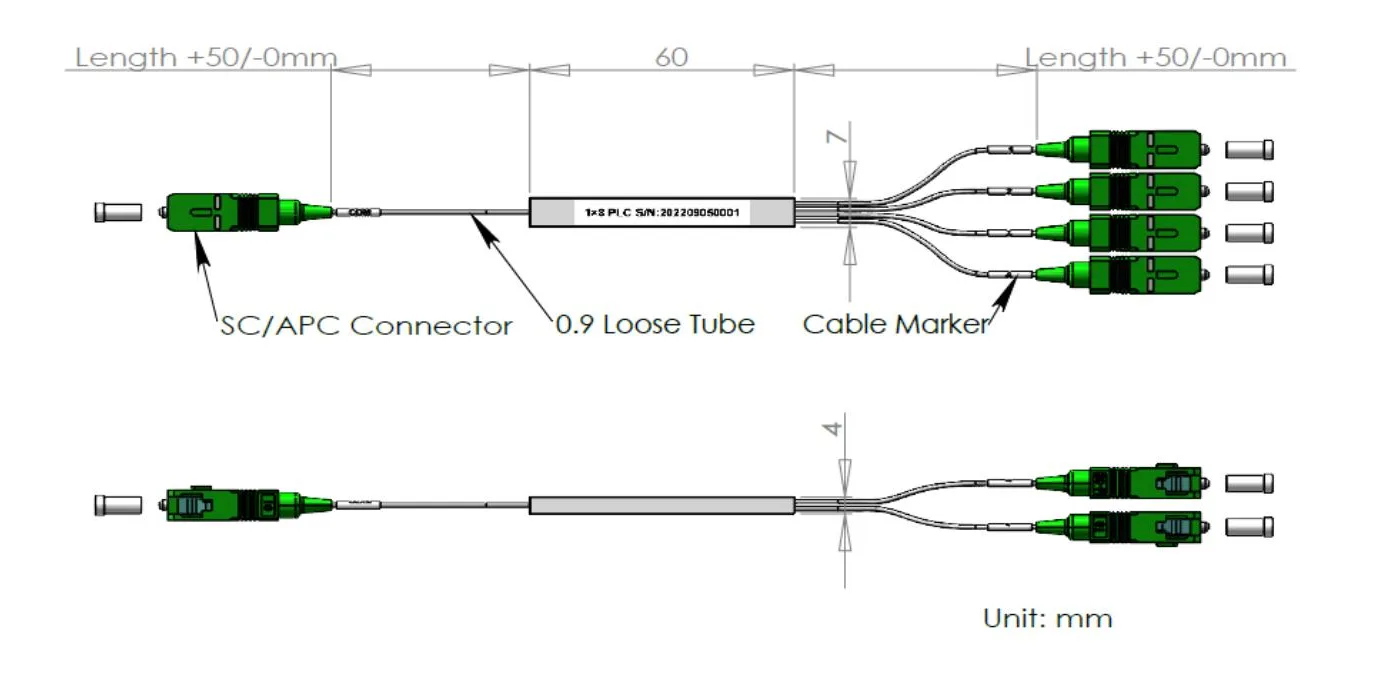

Imephu yesketch:

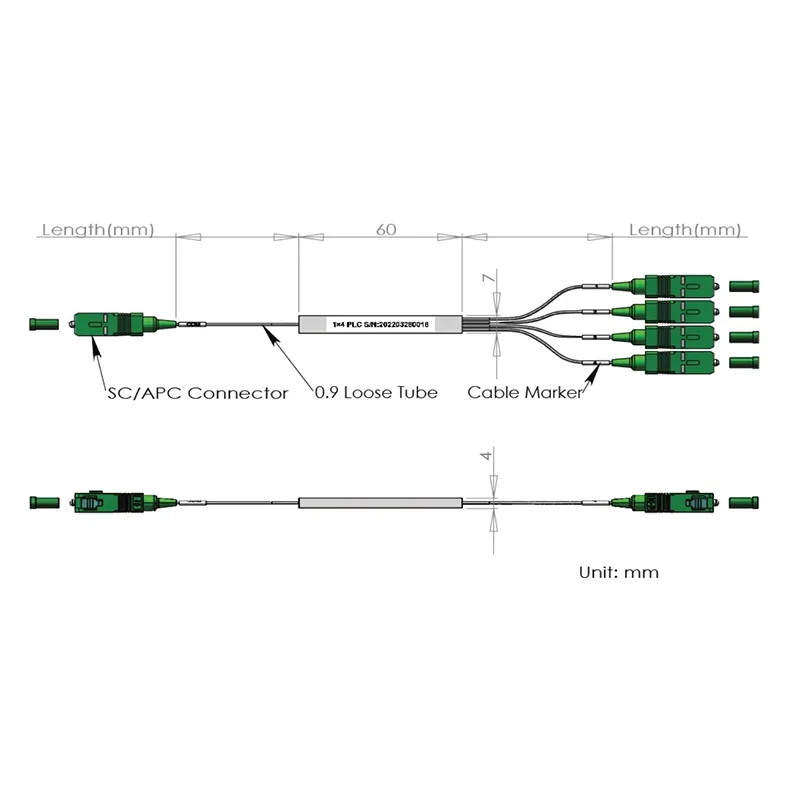

1x4 / 1×8 PLC Splitter Specification

Uku-odola ulwazi

Plc

Uhlobo lwePlC

Wavelength

Uhlobo lwebhokisi

Uhlobo lweFiber

Ubude befibeber

Isinxibelelanisi

Plc splitter

I-102 = 1x2

I-104 = 1x4

I-108 = 1x8

I-116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = I-1310NM

2 = 1550NM

3 = 1310 & 1550NM

4 = 1260 ~ 1650NM

X = ekhethekileyo

I-1 = ityhubhu yensimbi + ye-fiber

I-1 = ityhubhu yentsimbi + ityhubhu

2 = 90X20X10 ABS

I-3 = 100x80x10 ABS

I-4 = i-120x80x18 yebhokisi

I-5 = i-140x120x20x10E Ibhokisi ye-ABS

I-6 = ibhokisi yensimbi

I-7 = 1ru 19 "intaba ye-rack

X = ekhethekileyo

1 = g652D

2 = G657A1

3 = g657a2

X = ekhethekileyo

1 = 0.5m

2 = 1m

3 = 2m

4 = 3m

I-5 = i-adapter

X = ekhethekileyo

1 = akukho 2 = fc / upc

I-3 = fc / apc

I-4 = LC / i-UPC

I-5 = LC / APC

6 = SC / upc

7 = I-SC / APC

X = ekhethekileyo

Iithegi ezishushu: I-1 * 4 1 * 8 plc splitter
