I-1 * 4 1 * 8 plc splitter (uhlobo lwefibeber)

I-1x4 / 1 × 8 plc splitter tube ye-tube ye-teel ye-40x4x4mm, ene-250MMM, nge-250m i-250m i-fiber 2.5 + 0.1 / 30m, akukho nxibelelwano.Inkcazo yokusebenza:IiparamithaIsimboliInkcazoIyunithiInombolo ye-ChanelCh1 × 41 × 8Ukusebenza kwe-wavelength1260 ~ 1650nmUvavanyo lwavelength1310/1550......

Thumela uMbuzo

Ingcaciso yeMveliso

I-1x4 / 1 × 8 plc splitter tube ye-tube ye-teel ye-40x4x4mm, ene-250MMM, nge-250m i-250m i-fiber 2.5 + 0.1 / 30m, akukho nxibelelwano.

Inkcazo yokusebenza:

Iiparamitha	Isimboli	Inkcazo		Iyunithi
Inombolo ye-Chanel	Ch	1 × 4	1 × 8
Ukusebenza kwe-wavelength		1260 ~ 1650		nm
Uvavanyo lwavelength		1310/1550		nm
Umlinganiso obonakalayo		I-25%	12.5%	%
Ukufakwa kwelahleko1	Il	≤7.0	≤10.5	db
Ukufana	I-UNI	≤0.60	≤0.80	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤0.20	≤0.20	db
Buyisela ilahleko	Rl	≥55		db
I-CORFEIT2	Dir	≥55		db
Igalelo loThic Amandla	P	100		mw
Uhlobo lweFiber		G657 fiber
Uhlobo lwe-pigtail		I-Inport: 250μ0 fiber
Uhlobo lwe-pigtail		I-1 ~ 4ch outport: 1 * i-4 * i-250um fiber ribbon I-1 ~ 8CHES OKANYE I-2 * I-4 * i-40um fiber ribbon
Ubude begalelo		2.5 + 0.1 / 0		m
Ubude bemveliso		2.5 + 0.1 / 0		m
Isinxibelelanisi		Zonke izibuko: akukho nxibelelwano
Umbala wefayibha		I-Inport: umbala wendalo
		I-1 ~ 4ch i-Outport: I-Blue, orenji, iGreen, Brown,
		I-1 ~ 8C-i-Outport: Blue, orenji, luhlaza, brown, Ngwevu, mhlophe, bomvu, mnyama
Ubukhulu bephakeji	Pkg	(L) × 4 (W) × 4 (h)		mm
Iqondo lobushushu	Phezulu	-40 ~ +85		℃
Iqondo lokugcina	Tst	-40 ~ +85		℃

* Amanqaku:. Zonke izinto ezilahlekileyo aziquki ilahleko yesinxibelelanisi, zibandakanya ilahleko + 0.3DB.

Imephu yesketch:

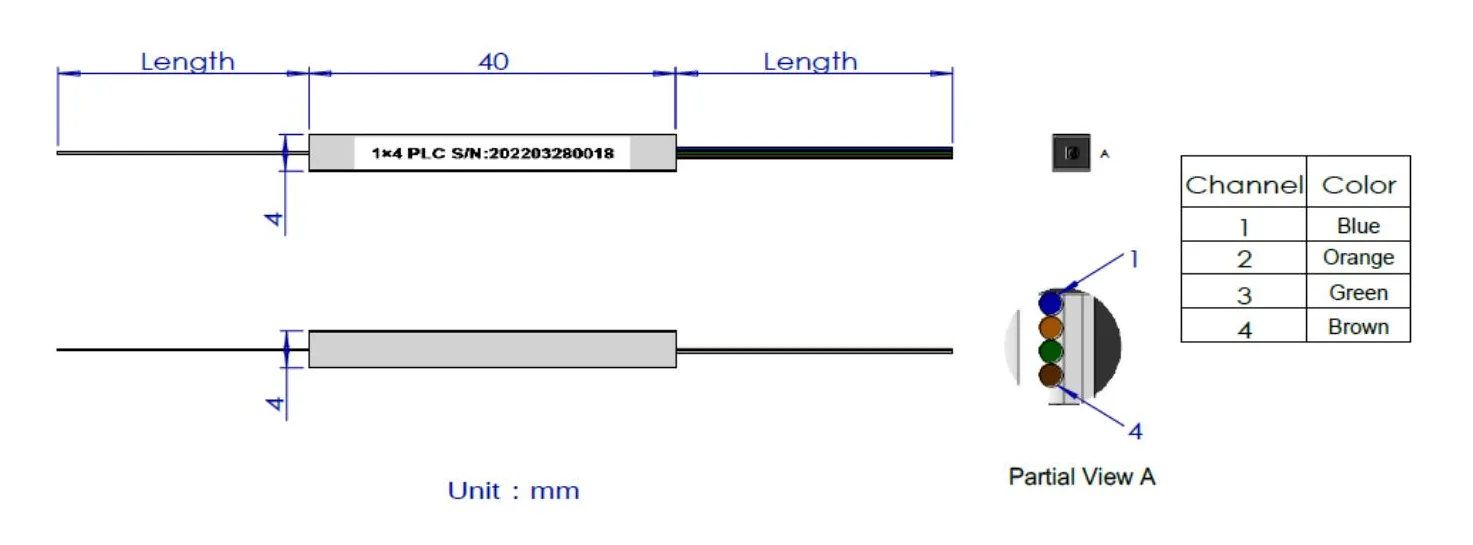

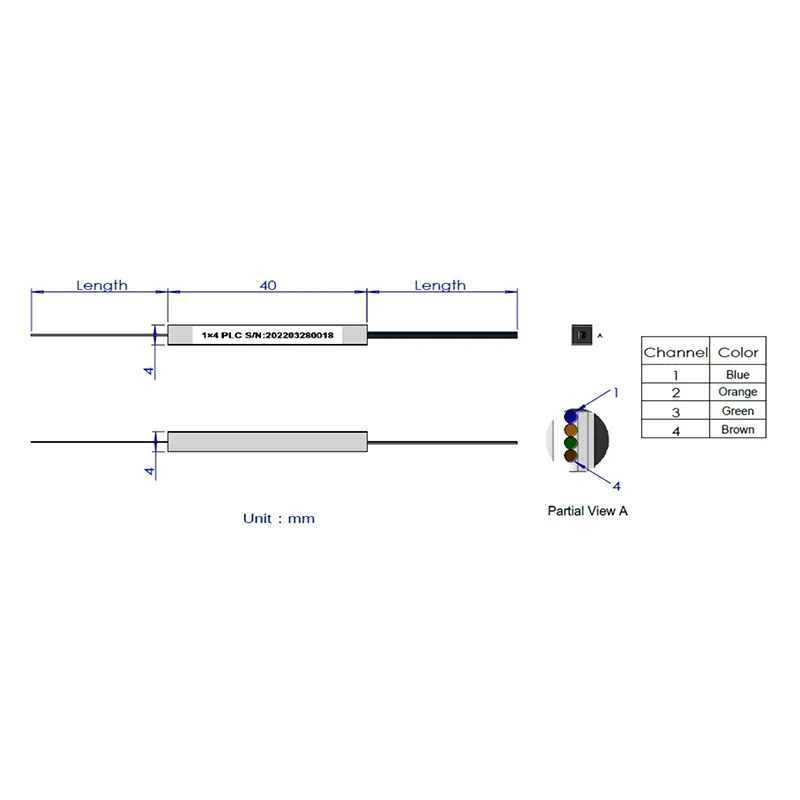

I-1x4 plc splitter

1x4 PLC Splitter

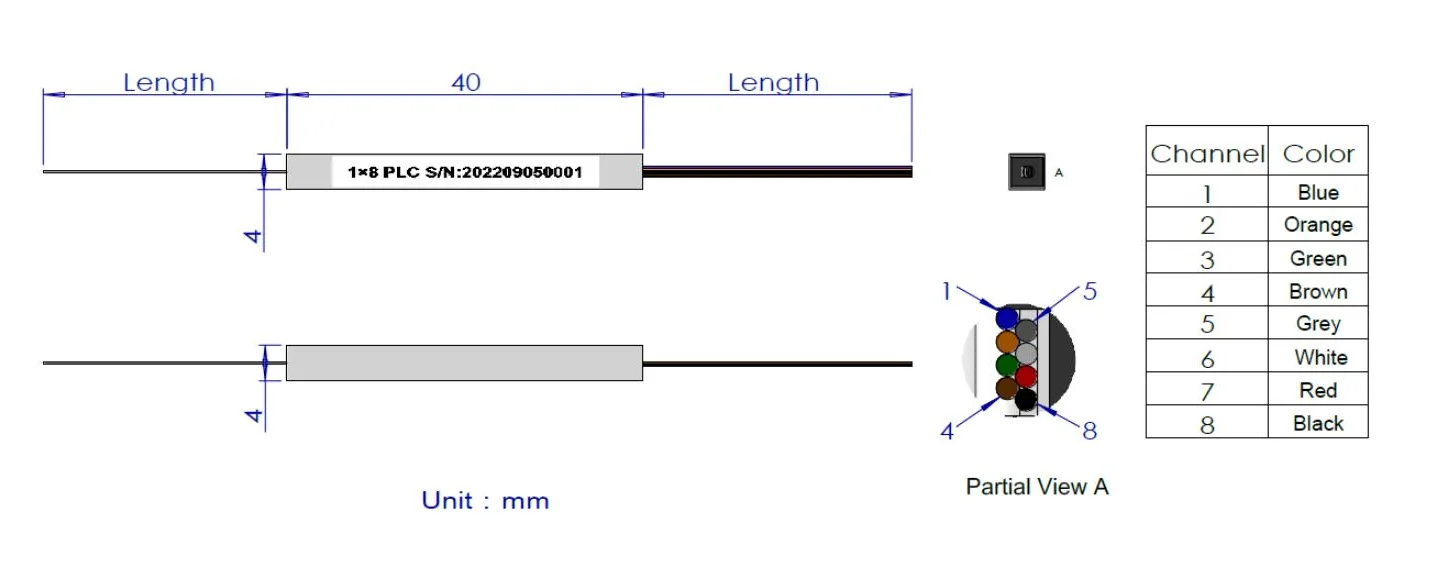

I-1x8 plc splitter

1x8 PLC Splitter

Uku-odola ulwazi

Plc

Uhlobo lwePlC

Wavelength

Uhlobo lwebhokisi

Uhlobo lweFiber

Ubude befibeber

Isinxibelelanisi

Plc splitter

I-102 = 1x2

I-104 = 1x4

I-108 = 1x8

I-116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = I-1310NM

2 = 1550NM

3 = 1310 & 1550NM

4 = 1260 ~ 1650NM

X = ekhethekileyo

I-1 = ityhubhu yensimbi + ye-fiber

I-1 = ityhubhu yentsimbi + ityhubhu

2 = 90X20X10 ABS

I-3 = 100x80x10 ABS

I-4 = i-120x80x18 yebhokisi

I-5 = i-140x120x20x10E Ibhokisi ye-ABS

I-6 = ibhokisi yensimbi

I-7 = 1ru 19 "intaba ye-rack

X = ekhethekileyo

1 = g652D

2 = G657A1

3 = g657a2

X = ekhethekileyo

1 = 0.5m

2 = 1m

3 = 2m

4 = 3m

I-5 = i-adapter

X = ekhethekileyo

1 = akukho 2 = fc / upc

I-3 = fc / apc

I-4 = LC / i-UPC

I-5 = LC / APC

6 = SC / upc

7 = I-SC / APC

X = ekhethekileyo
