I-1 * 4 plc castte splitter

I-1x4 Sicer Shopt Shopte yekhassette yekhasethi ye-Cassette ye-100x80x10mmm, i-φ2.0 ubude be-2,0 + 0.1 / 0PC, i-5PC, i-5PC.Inkcazo yokusebenza:IiparamithaIsimboliInkcazoIyunithiInombolo ye-ChanelCh1 × 4Ukusebenza kwe-wavelength1260 ~ 1650nmUvavanyo lwavelength1310/1550nmUmlinganiso obonakalayoI......

Thumela uMbuzo

Ingcaciso yeMveliso

I-1x4 Sicer Shopt Shopte yekhassette yekhasethi ye-Cassette ye-100x80x10mmm, i-φ2.0 ubude be-2,0 + 0.1 / 0PC, i-5PC, i-5PC.

Inkcazo yokusebenza:

Iiparamitha	Isimboli	Inkcazo	Iyunithi
Inombolo ye-Chanel	Ch	1 × 4
Ukusebenza kwe-wavelength		1260 ~ 1650	nm
Uvavanyo lwavelength		1310/1550	nm
Umlinganiso obonakalayo		I-25%	%
Ukufakwa kwelahleko1	Il	≤7.2	db
Ukufana	I-UNI	≤0.8	db
Ilahleko yokuxhomekeka kwendalo	I-pdl	≤0.30	db
Buyisela ilahleko	Rl	≥50	db
I-CORFEIT2	Dir	≥55	db
Igalelo loThic Amandla	P	I-100	mw
Uhlobo lweFiber		G657 fiber
Uhlobo lwe-pigtail		I-φ2.0 ye-pvc ye-pvc
Ubude begalelo		2.0 + 0.1 / 0	m
Ubude bemveliso		2.0 + 0.1 / 0	m
Uhlobo lomnxibelelanisi		I-SC / UPC
Uphawu lwentambo		1xs plc: in, 1,2 ... ... 3,4
Ubukhulu bephakeji (l) (w) (h) (h)	Pkg	(L) × (W) × (h) I-100 × 80 × 10	mm
Iqondo lobushushu	Phezulu	-10 ~ +70	℃
Iqondo lokugcina	Tst	-40 ~ +85	℃

* Amanqaku:. Zonke izinto ezilahlekileyo aziquki ilahleko yesinxibelelanisi, zibandakanya ilahleko + 0.3DB.

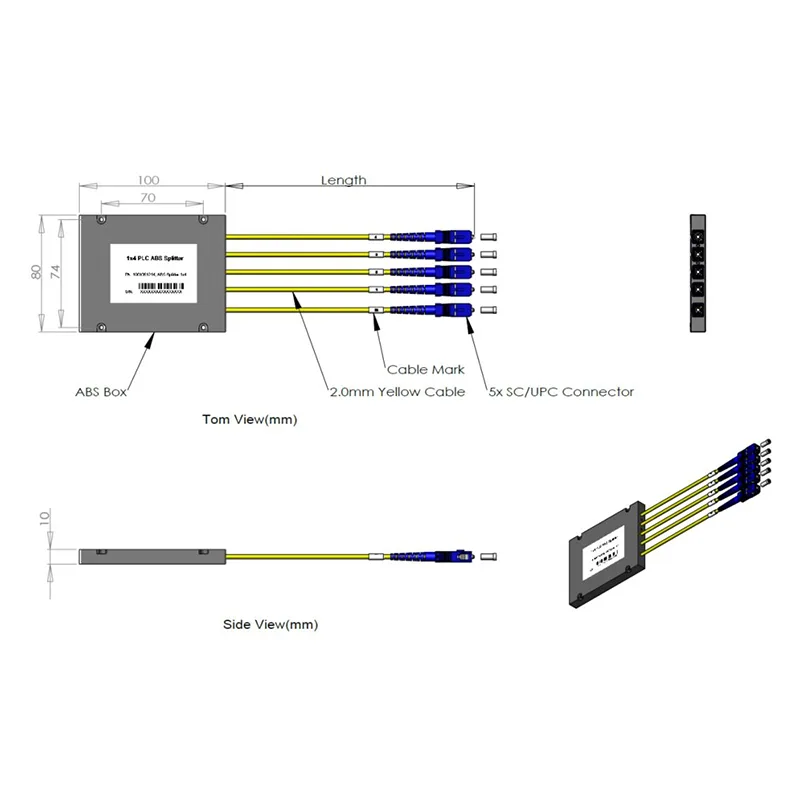

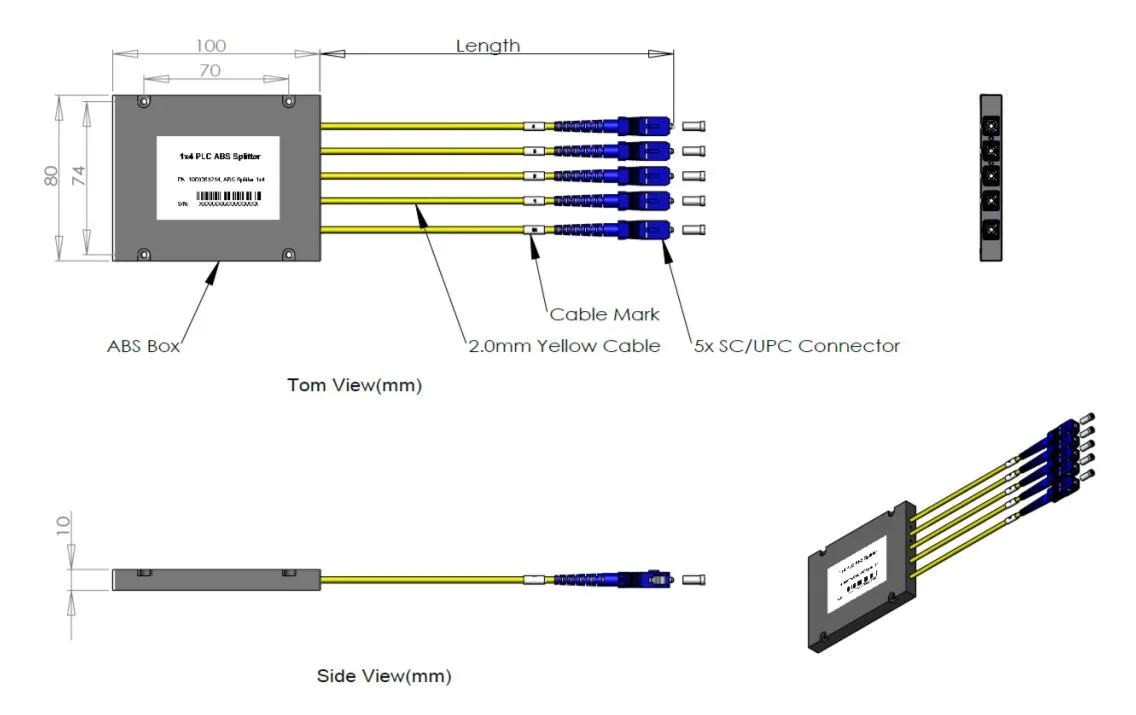

Imephu ye-Sketch (Icandelo: MM):

I-1x4 plc castsete splittle

1x4 PLC Cassette Splitter Spec

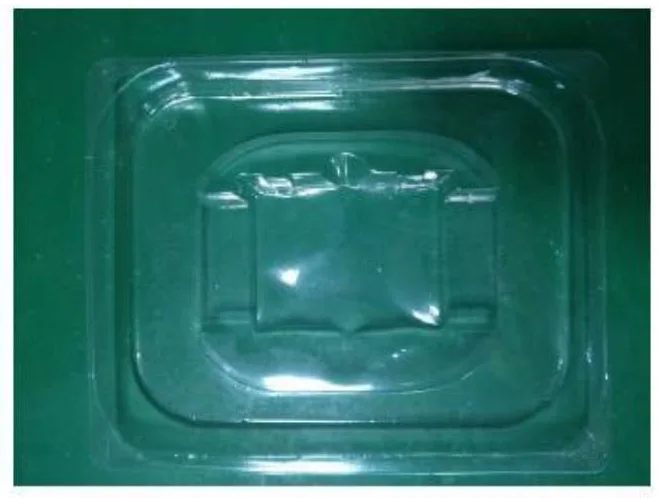

Ukupakisha imfuneko:

I-1pc / blister

1x4 PLC Cassette Splitter Spec

Iithegi ezishushu: I-1 * 4 plc castte splitter
