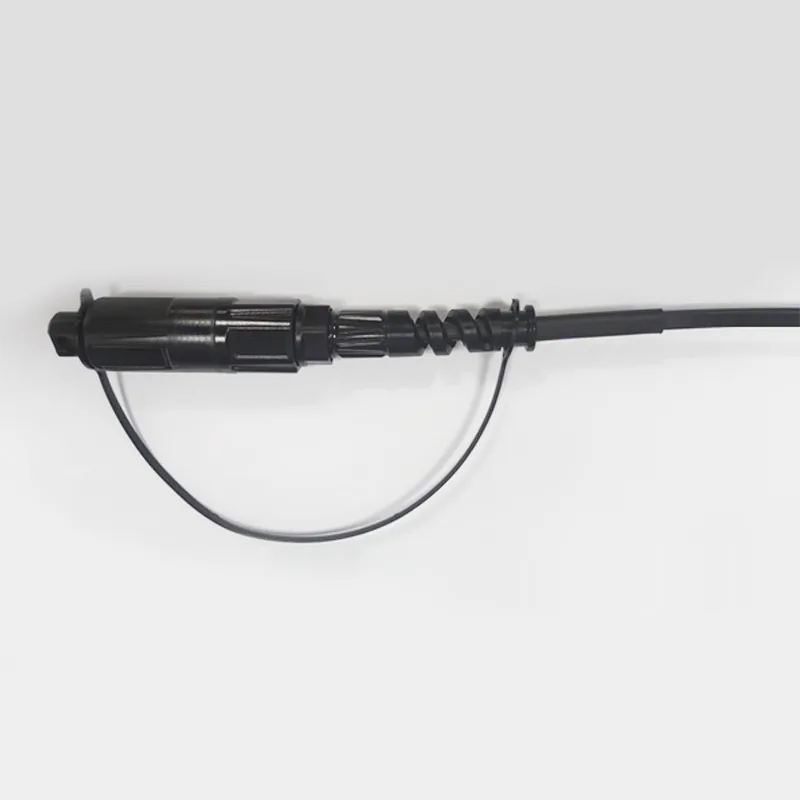

I-φ5mm ye-fiber fiber ye-Optiber ye-SCB / APC Connect Catch Perd

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

I-patch cords yobugcisa

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.50 (eqhelekileyo: 0.3)
Buyisela ilahleko	db	≥55 (APC)
Umbala wentambo yentambo		Mnyama
I-Cable yangaphandle	mm	Φ5.0 (± 0.2)
Imowudi ye-fiber		Imowudi enye: G657 A2
I-jable yentambo		I-lszh (ukhuseleko lwe-UV kunye nokuxhathisa komlilo)
Ubunzima bekhebula	Kg / km	I-28 (i-Apps)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	50, 100, 2000, 250, 300, 400, 600, 600 (Ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo: Ashitap Sc / APC
Uhlobo lomnxibelelanisi		Iziphumo: I-Apting Aptitap SC / APC
Ibanga lamanzi		IP68
Tensile strength	N	200
Iqondo lokusebenza	℃	-20 ~ +65

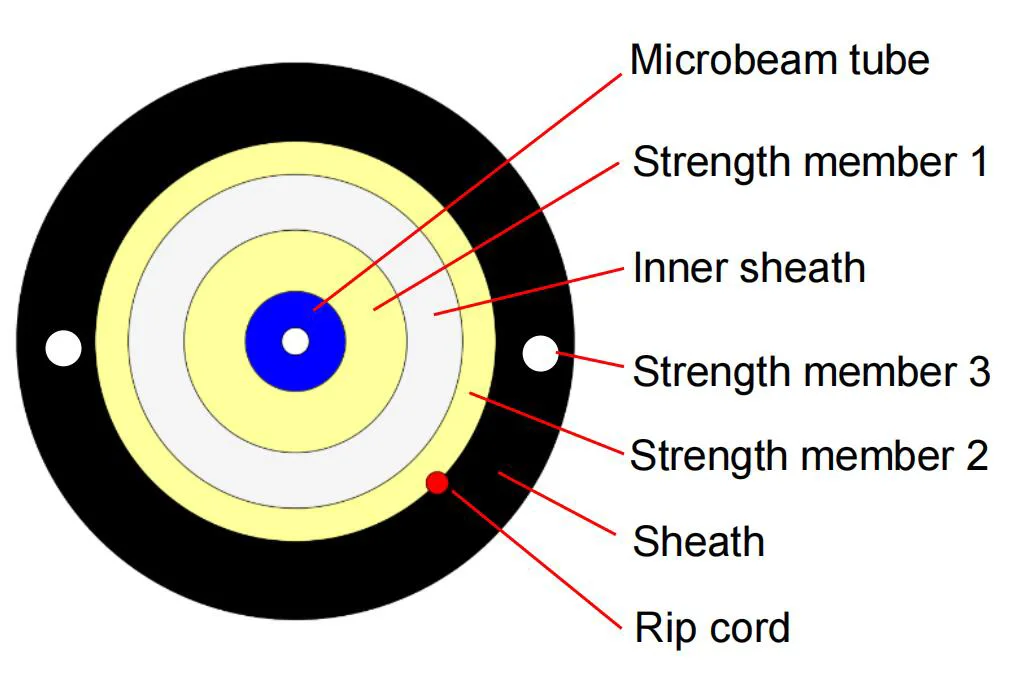

I-Cable yeCable

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

Isakhiwo seCable ubungakanani

Into	IZIQULATHO	Inkcazo
Ifayibha	Inombolo	1
	Uhlobo	G.657A2
	Umbala	LUHLAZA
I-Microbeam Tube	Izixhobo	Lszh
	Umbala	LUHLAZA
	Ububanzi (mm)	I-0.9 ± 0.05
I-Sheith	Ububanzi (mm)	2.2 ± 0.05
	Ubukhulu (mm)	I-0.4 ± 0.05
	Umbala	Indlovu / mhlophe / i-beige
	Izixhobo	Lszh
	Ilungu lamandla 1	I-Aramid Yarn 1100d * 3
Ilungu lamandla 2	Izixhobo	I-Aramid Yarn
Ilungu lamandla 2	Ubungakanani	I-1100d * 7
Ilungu lamandla 3	Izixhobo	Glued frp
Ilungu lamandla 3	Ububanzi (mm)	I-0.5 * 2
I-RIP Cord	Inombolo	1
I-RIP Cord	Umbala	Bomvu
Sheath	Izixhobo	I-lszh (ukhuseleko lwe-UV kunye nokuxhathisa komlilo)
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	Mnyama
Ubunzima bekhebula	Kg / km	I-28 ± 3

Ukwenziwa kwentambo ye-fible

Zonke iimpawu ze-fiber yentambo (ifayile yecable egqityiweyo) iya kuba, ubuncinci, ngokungqinelana nengcebiso ye-ITU-T.657a2 kwaye iya kuba ngolu hlobo lulandelayo.

Into	Ukucaciswa
Uhlobo lweFiber	Imowudi enye
I-fiber impahla	Isilica esifungelweyo
I-Attential I-Act Appling @ 1310 NM @ 1383nm @ 1490nmm @ 1550 NM @ 1625nmm Emva kokuqulunqwa kwentambo @ 1310 NM @ 1550 NM	I-0.36 i-DB / km I-0.36 i-DB / km I-0.25 dB / km I-0.22 dB / km I-0.25 dB / km I-0.36 i-DB / km I-0.22 dB / km
I-Cable inqunyulwe i-wavelength	≤ 1260 NM
I-zero-diverandy wavelength	1300 ~ 1324 NM
Ithambeka lokusasazeka	≤ I-0.092 ps / (nm2.km)
I-PMD @ 1550 NM	≤0.1.1 ps / km1 / 2
Ukusasazeka kwe-chromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 NM @ 1550 NM @ 1625 NM	≤3 I-PS / (NM. Km) ≤5.3 ps / (nm) ≤18.0 ps / (nm) ≤22 PS / (NM)
I-Dome Domer Biameter @ 1310 NM	8.5-9.3.3.3
Impazamo engundoqo	≤ 0.5
Ububanzi be-cladding	I-125.0 ± 0.7
Ukuvalela okungacacanga	≤5%
Ububanzi beNtloko	242 ± 7 enye
I-discietrity iphambili	≤10 μm
Ukudibana okungacacanga	≤0.7%
I-ATTONUNTIONS ngentambo yokulungisa ilahleko I-1 jika i-1ndrel 7.5mm I-10 ijika i-1mml 15mm 15mm	I-1550NM ≤ δ i-0.10 dB / km I-1550NM ≤ δ δ i-0.03 dB / km

Uluhlu lobushushu lwesicelo

Ukusebenza kweqondo lobushushu	: -20 ℃ ukuya + 65 ℃
Ugcino / uluhlu lobushushu bezothutho	: -20 ℃ ukuya + 65 ℃
Uluhlu lobushushu	: -20 ℃ ukuya + 65 ℃

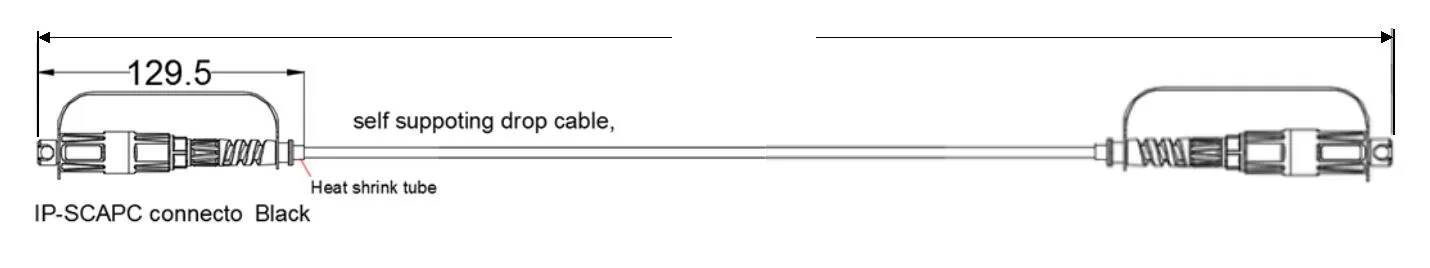

Umzobo wobungakanani

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

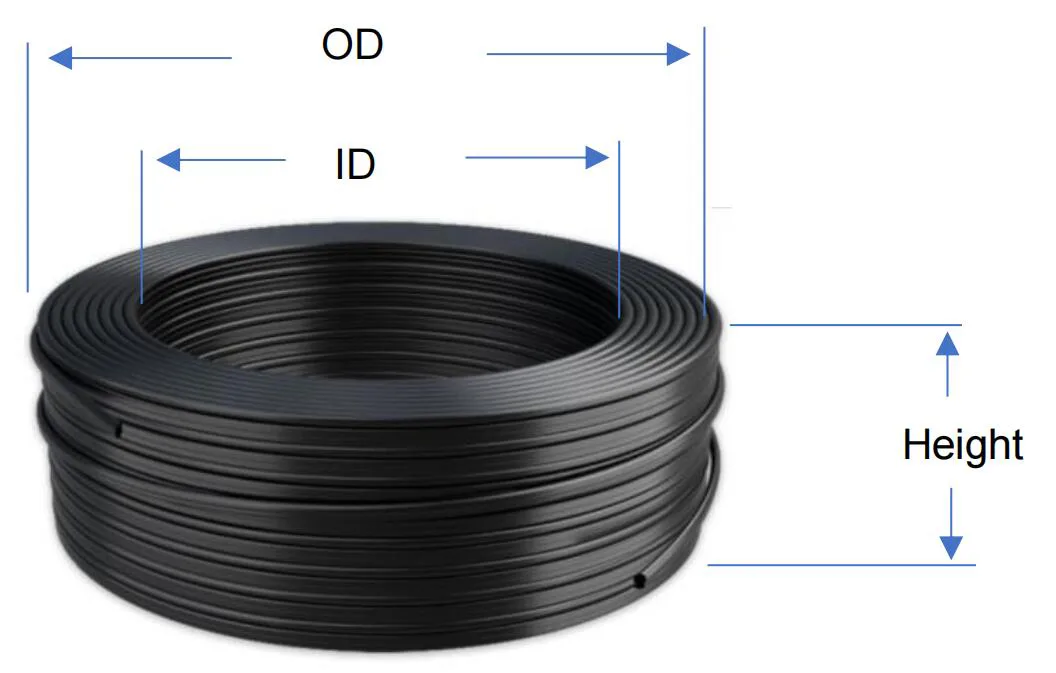

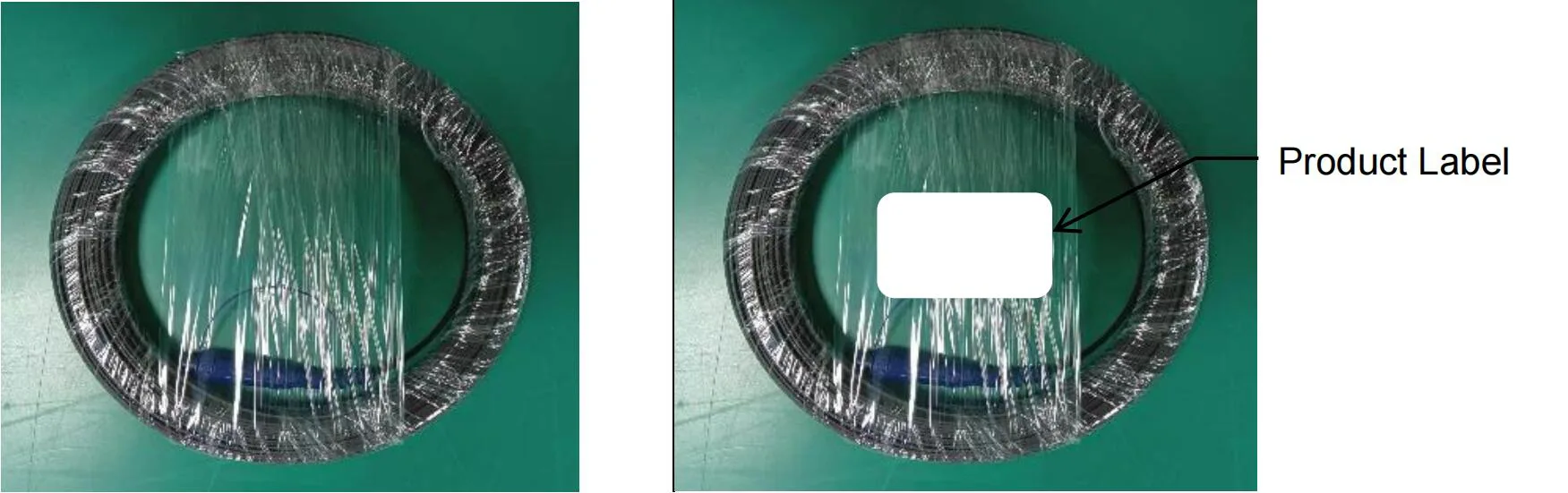

Iphakheji

I-Diber Coming Duing:

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

Iithegi ezishushu: I-φ5mm ye-fiber fiber ye-Optiber ye-SCB / APC Connect Catch Perd
