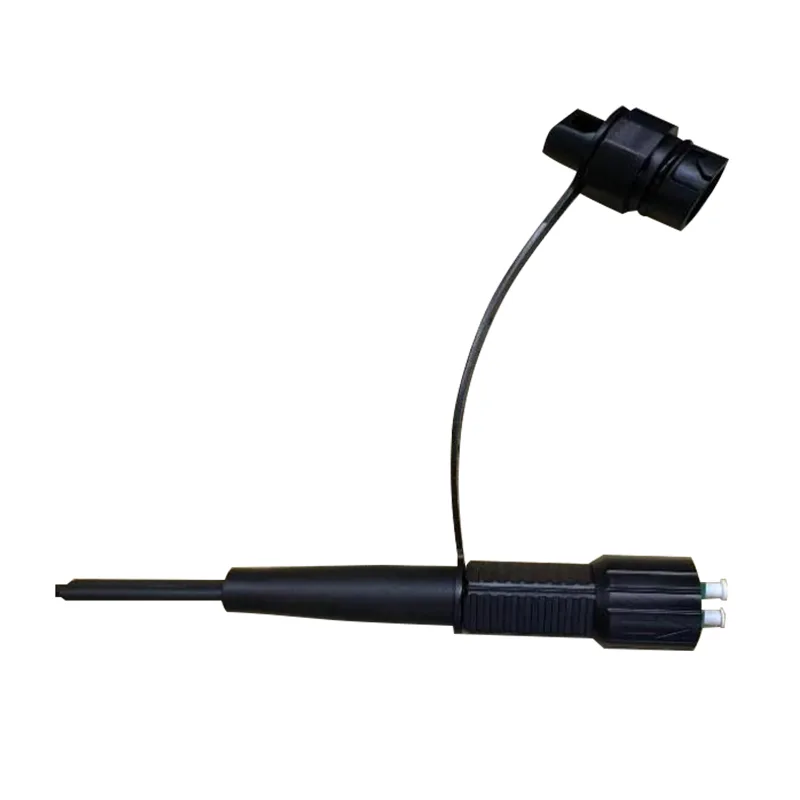

I-Deplex LC / APC ye-APCOOF ye-SPLEOF ye-fiber figtail ye-figtail ye-figtail (i-Accord Hw Dlc Dictionary)

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		I-duppex
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥55 (APC)
Umbala wentambo yentambo		Ngwevu
I-Cable yangaphandle	mm	5.2 (± 0.2) x2.0 (± 0.1)
Imowudi ye-fiber		Imowudi enye: G657 A2
I-jable yentambo		Lszh
Ubunzima bekhebula	Kg / km	I-17 (i-Apps)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	30, 50, 100, 150, 200 okanye ngokufihlakeleyo (ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo:	Imvume ye-HW DLC / APC Connector
		Iziphumo:	Akukho nxibelelwano
Ibanga lamanzi		Ip67
Iqondo lokusebenza	℃	-0 ° C ~ + 65 ℃
Iqondo lokugcina	℃	-0 ° C ~ + 65 ℃

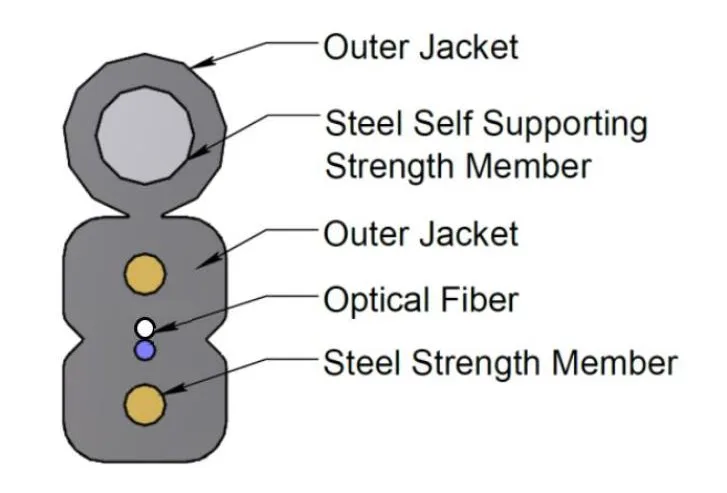

Isakhiwo sentambo:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)

Ukuchazwa kwentambo:

I-fiber offical	Uhlobo	G657 A2
	I-FIBERS	2
	Umbala	Luhlaza okwesibhakabhaka kunye nemhlophe
	Ubukhulu	Ф250m
	I-atulwano	@ 1310NM ≤0.35 dB / km
	I-coandes	@ 1550NM ≤0.22db / km
Phandle	Izixhobo	Lszh
	Umbala	Ngwevu
	Ubukhulu	≥0.4mm
	Ubukhulu	2.0 (± 0.1) x5.2 (± 0.2)
Ilungu lamandla	Materia	I-phosfide cire wire
Ilungu lamandla	Ububanzi	Φ0.40m * 2ea
Ilungu lentsimbi	Materia	I-phosfide cire wire
Ilungu lentsimbi	Ububanzi	1.0mm
Ubunzima		I-18 kg / km
Uvavanyo loluliweyo (n)		Ixesha elide: 300 n IXABISO Elifutshane: 600 N
Uvavanyo lokuhlala phantsi (N / 10cm)		Ixesha elide: 800 N / 10cm IXABISO Elifutshane: 1600 N / 10cm
Imiz. Ukugoba iradius		I-15xh (i-Static); I-30xh (inamandla)
Iqondo lokushisa		-2 ° C ukuya kwi + 65 ° C
Iqondo lokugcina		-2 ° C ukuya kwi + 65 ° C
Ukumakisha (IK Jet)		Mhlophe, ukumakisha kuprintwe yonke imitha enye

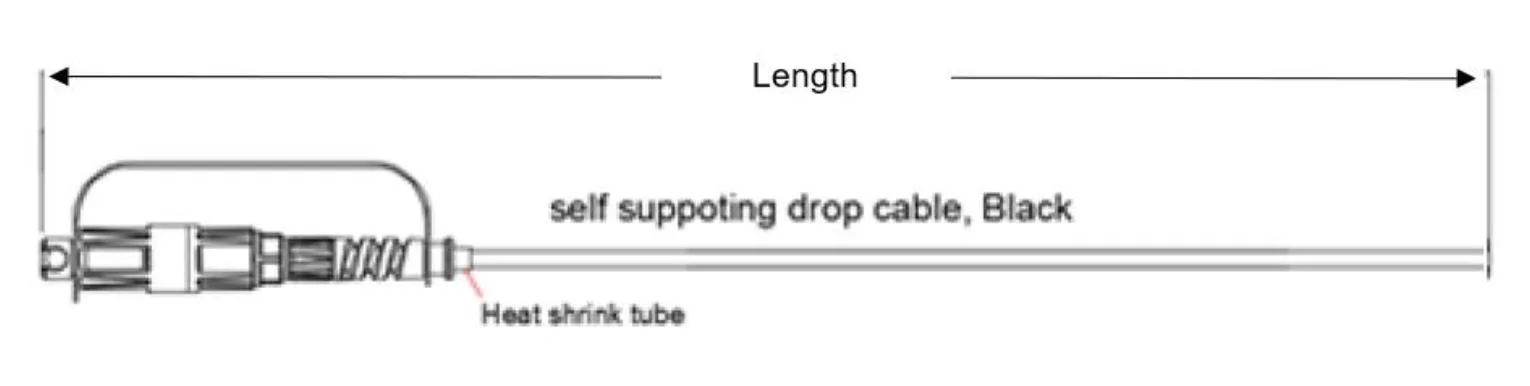

Umzobo wobungakanani:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)

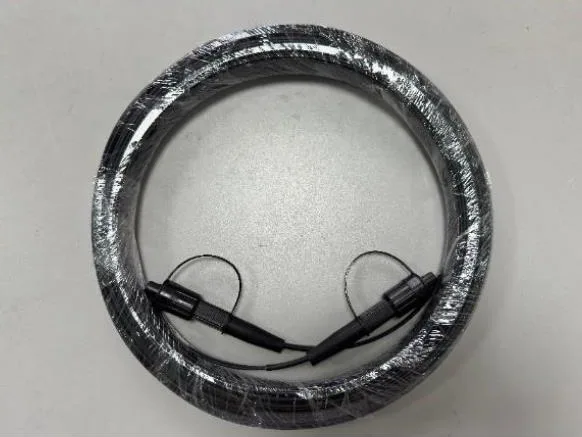

Iphakheji:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)
