I-5x2mm ye-5x2mm ye-Cablproof ye-Yofc yofc yofc ye-fiber fiber pigtail

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30 (eqhelekileyo: 0.20)
Buyisela ilahleko	db	≥ 55
Uhlobo lonxibelelwano		I-SC / APC
Ferrule		I-ceramic
Imijikelezo yoqhagamshelo		I-500
Umbala wentambo yentambo		Ngwevu
I-Cable yangaphandle	mm	5.0 (± 0.1) x2.0 (± 0.1)
Imowudi ye-fiber		Imowudi enye: G657A2
I-jable yentambo		I-LSZH
Ubunzima bekhebula	Kg / km	((Approx)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	80 okanye ngokufihlakeleyo (ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo: I-Accord Yofc SC / APC
Uhlobo lomnxibelelanisi		Iziphumo: Ngaphandle kwesinxibelelanisi
Itreyitha (i-axial phakathi Intambo kunye nesinxibelelanisi)	N	I-100
Ibanga lamanzi		IP68
Iqondo lokusebenza	℃	-0 ° C ~ + 65 ℃
Iqondo lokugcina	℃	-20 ℃ ~ + 65 ℃

Isakhiwo sentambo:

I-fiber offical	Uhlobo	G-657 A2.
	I-FIBERS	1
	Umbala	Luhlaza
Phandle	Ubukhulu	2.0 (± 0.1) x5.0 (± 0.1)
	Izixhobo	Lszh
	Umbala	Ngwevu
Amandla entsimbi	Materia	I-wire yentsimbi
Amandla entsimbi	Ububanzi	I-0.4mm
Ilungu lentsimbi	Materia	I-wire yentsimbi
Ilungu lentsimbi	Ububanzi	I-1.0 mm
Ubunzima		I-18 kg / km
I-TIILE (n)		Ixesha elide: 300n IXABISO Elifutshane: 600 N
Ukunganyangeki		I-5N / mm, imijikelezo emi-3
Ukubambelela kunyango (n)		I-70mm yokuqinisa into ye-0,4mm:> 50
Ukubambelela kunyango (n)		Inqaku elixhasa i-1,00mm:> 100
Imiz. Ukugoba iradius		I-15xd (ayimisi); I-30XD (i-Dynamic)
Uluhlu lobushushu		-2 ° C ukuya kwi + 65 ° C

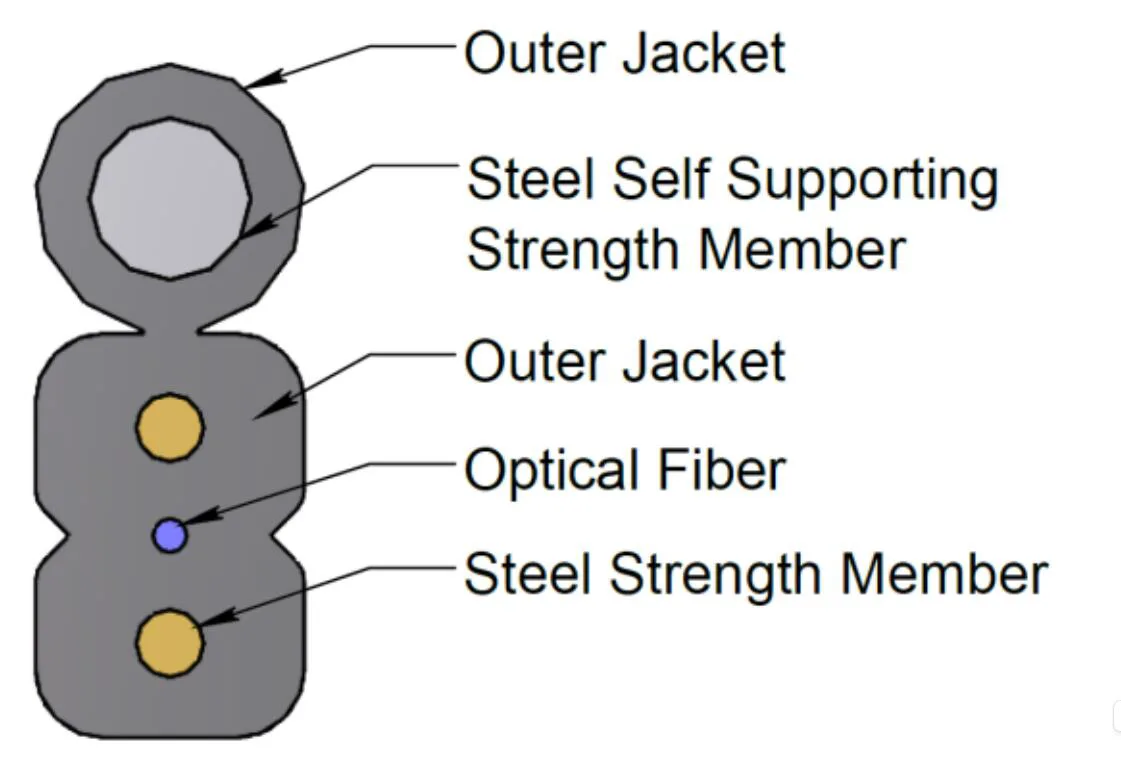

Ulwakhiwo lwentambo:

5x2mm Waterproof Drop Cable Mini SC~SC/APC Connector Optical Patch Cords

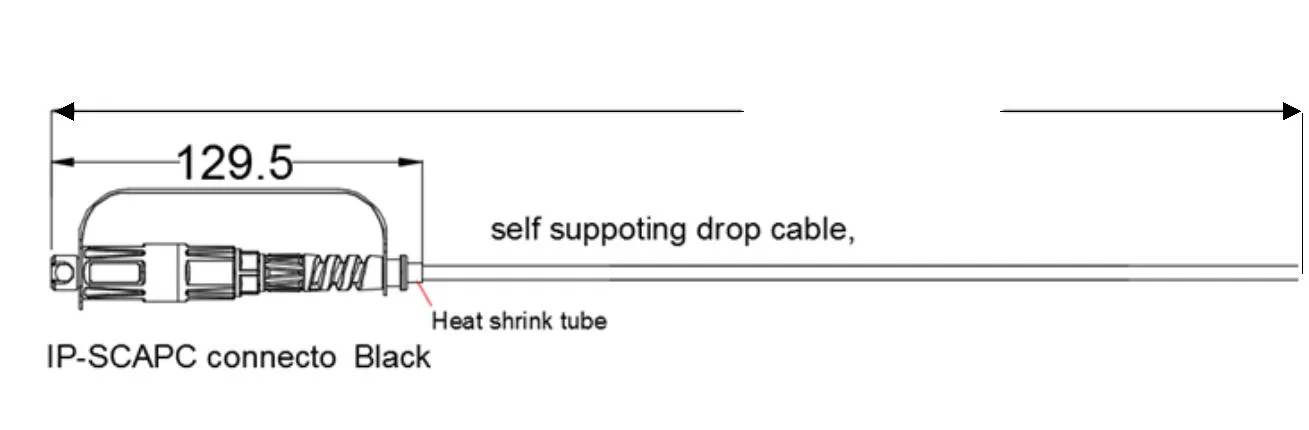

Umzobo wobungakanani:

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

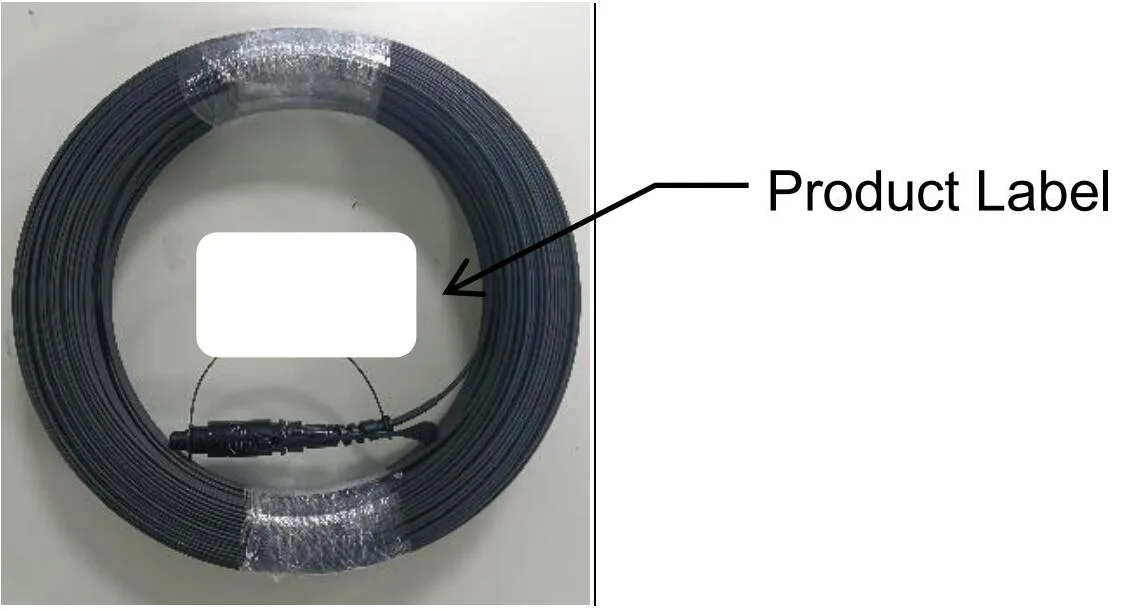

Iphakheji:

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

Iimfuneko zePakeji:

Ubungakanani bebhokisi: 600 * 320 * 2600mm, i-Tape ebonakalayo "i" font font ibhokisi yokutywina.

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

Iithegi ezishushu: I-5x2mm ye-5x2mm ye-Cablproof ye-Yofc yofc yofc ye-fiber fiber pigtail
