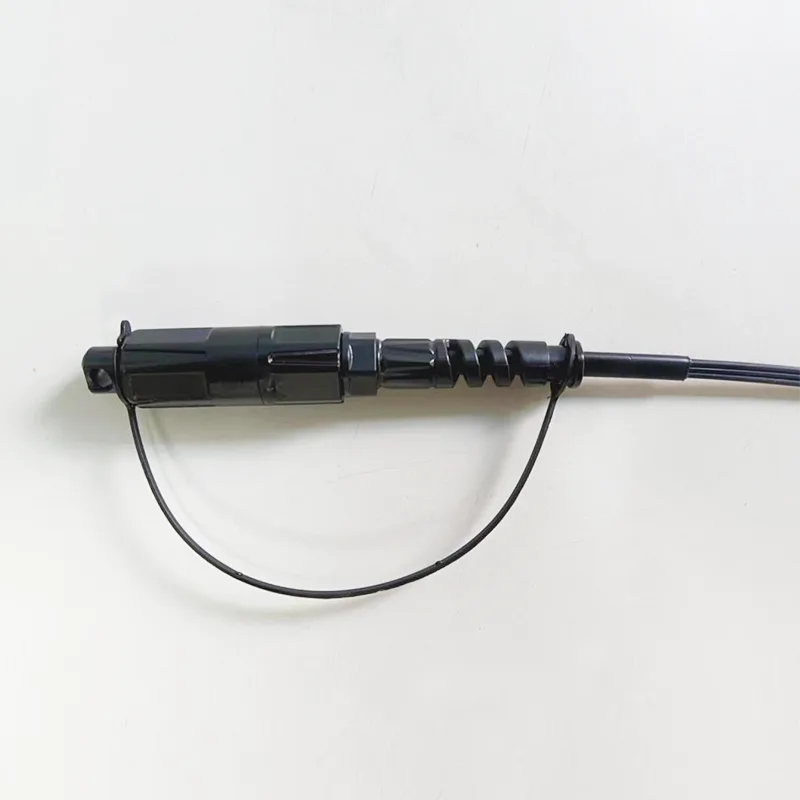

I-5x2mm ye-WordProof ye-SCB ye-SCB / I-APC ye-APC ye-fiber fiber

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥ 60
Uhlobo lonxibelelwano		I-SC / APC
Ferrule		I-ceramic
Imijikelezo yoqhagamshelo		500
Umbala wentambo yentambo		Mnyama
I-Cable yangaphandle	mm	(5.2x2.0) * ± 0.2mm (3.0x2.0) * ± 0.2mm (ngaphandle komthunywa)
Imowudi ye-fiber		Imowudi enye: G657A2
I-jable yentambo		Lszh
Ubunzima bekhebula	Kg / km	I-20 ± 3
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	I-100 okanye ngokufihlakeleyo (Ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo: I-Accord H Aptic SC / APC
Uhlobo lomnxibelelanisi		Iziphumo: Ngaphandle kwesinxibelelanisi
Itrasti (i-axial phakathi kwentambo kunye nesinxibelelanisi)	N	100
Ibanga lamanzi		IP68
Iqondo lokusebenza	℃	-0 ° C ~ + 65 ℃
Iqondo lokugcina	℃	-0 ° C ~ + 65 ℃

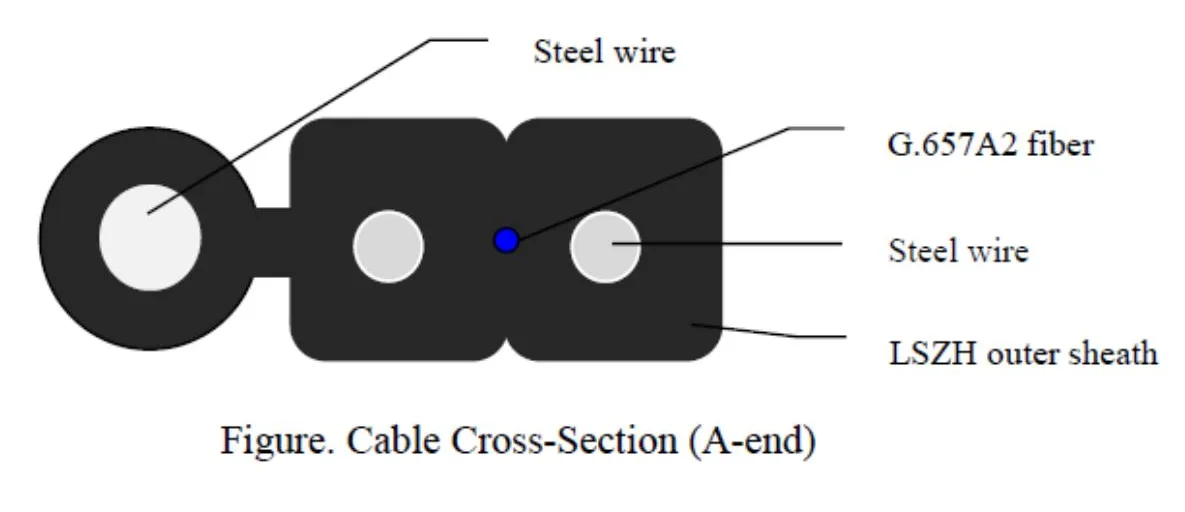

Isakhiwo sentambo:

5x2mm Waterproof Drop Cable SC/APC Connector Optical Fiber Pigtail

I-fiber offical	Uhlobo	G-657 A2.
	I-FIBERS	1
	Umbala	Luhlaza
Phandle	Ubukhulu	(5.2x2.0) * ± 0.2mm (3.0x2.0) * ± 0.2mm (ngaphandle komthunywa)
	Izixhobo	Lszh
	Umbala	Mnyama
Amandla entsimbi	Materia	I-wire yentsimbi
Amandla entsimbi	Ububanzi	I-0.45mm
Ilungu lentsimbi	Materia	I-wire yentsimbi
Ilungu lentsimbi	Ububanzi	I-1.2 mm
Ubunzima		I-20 ± 3 kg / km
I-TIILE (n)		Ixesha elide: 300n IXABISO Elifutshane: 600 N
Kutyumza		I-1000n / 10cm
Imiz. Ukugoba iradius		I-15xd (ayimisi); I-30XD (i-Dynamic)
Uluhlu lobushushu		-2 ° C ukuya kwi + 65 ° C

I-fiber phrist:

Zonke iimpawu ze-fiber yentambo (ifayile yecable egqityiweyo) iya kuba, ubuncinci, ngokungqinelana nengcebiso ye-ITU-T.657a2 kwaye iya kuba ngolu hlobo lulandelayo.

Iparameter		Ukucaciswa
I-Attential I-Act Appling	@ 1310 NM @ 1383 nm @ 1550 NM @ 1625 NM	I-0.36 i-DB / km I-0.36 i-DB / km I-0.22 dB / km I-0.24 i-DB / km
I-ATTIONS (emva kwentambo)	@ 1310NM	≤0.40DB / km
	@ 1550NM	≤0.30dB / km
Ukufana kwe-antenunts kwi-1310nmm		≤0.05DB
Ukufana kwe-antenutions kwi-1550NM		≤0.05DB
I-Cable yokusika-off waveleler (λcc)		≤ 1260 NM
I-zero-diverandy wavelength		1300 ~ 1324 NM
Ithambeka lokusasazeka		≤ I-0.092 ps / (nm ^ 2km)
Ixabiso elipheleleyo lokusasazeka kwe-1288nn ~ 1339nm		≤3.5PS / (NM · km)
Ixabiso elipheleleyo lokusasazeka kwe-1271nn ~ 1360nm		≤5.3ps / ph · km)
Ukusasazeka kwi-1550NM		≤18PS / (NM · km)
Ukusasazeka kwi-1625nm		≤23PS / (NM · k · km)
Ububanzi beNdlela yeNdlela (MFD) kwi-1310nm		8.60 ± 0.4mm
Ububanzi beNdlela yeNdlela (MFD) nge-1550NM		9.4-10.4mm
Ukusasazeka kwemozulu yokusasazeka (i-PMD) fiber		≤0.1255ps / km^1/2
Intambo yemozulu yokusasazeka (i-PMD) yentambo		≤0.200PS / km^1/2
I-PMD isebenze	M	Iintambo ezingama-20
	Q	I-0.01%
	I-PMDQ	≤0.20PS / km^1/2
Iimpawu zejometri
Ububanzi be-cladding		I-125 ± 0.8mm
Ukuvalela okungacacanga		≤1.0%
I-Core / i-claddding impazamo yobuchule		≤0.8mm
Ububanzi befibeber ngokudibana (ngaphandle)		245 ± i-10μ0m
Ububanzi befibeber ngokudibana (imibala)		I-250 ± i-10μm
Impazamo yoncedo /		≤12.0mmm
Uvavanyo lwempikiswano		I-100kpsi okanye i-0.69gpa
Ukususwa kweCoight (n)		1.0 ~ 9.0
Iimpawu zoomatshini
Ilahleko ye-Macrobend nge-1550NM	R = 15mm, i-10 ijika	≤0.03db
	R = 10mm, 1t	≤0.10db
	R = 7.5mm, 1Turn	≤0.5DB
Ilahleko ye-Macrobend nge-1625nm	R = 15mm, i-10 ijika	≤0.10db
	R = 10mm, 1t	≤0.20db
	R = 7.5mm, 1Turn	≤1.0db

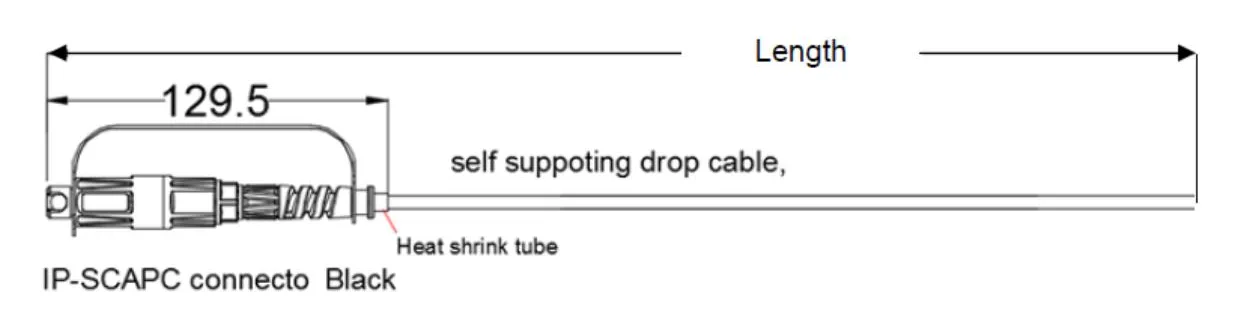

Umzobo wobungakanani:

5x2mm Waterproof Drop Cable SC/APC Connector Optical Fiber Pigtail

Iphakheji:

5x2mm Waterproof Drop Cable SC/APC Connector Optical Fiber Pigtail

Iimfuneko zePakeji:

Ubungakanani bebhokisi: 600 * 320 * 2600mm, i-Tape ebonakalayo "i" font font ibhokisi yokutywina.

5x2mm Waterproof Drop Cable SC/APC Connector Optical Fiber Pigtail

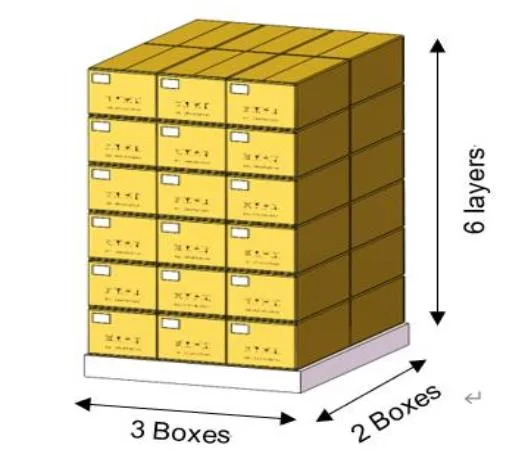

Umzobo we-Schematic weplate yeplanga:

Ubungakanani beplate yeplate: 1200 * 1000mmm.

IIMFUNO ZOKUGQIBELA

Ikhuselo le-4 le-Angle ephezulu, kwaye emva koko isebenzise "#" ifonti yokupakisha ngebhanti ngokuqinileyo.

5x2mm Waterproof Drop Cable SC/APC Connector Optical Fiber Pigtail

Iithegi ezishushu: I-5x2mm ye-WordProof ye-SCB ye-SCB / I-APC ye-APC ye-fiber fiber
