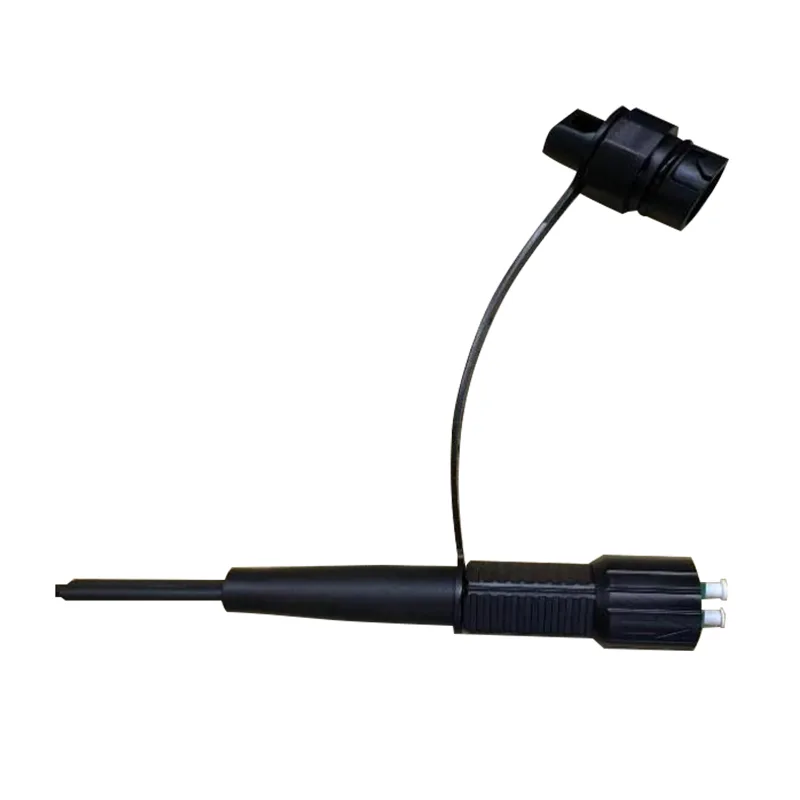

I-Dupex LC / I-UPC AterProof Rible intambo ye-fiber fible pards (i)

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		I-duppex
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥50 (i-upc)
Umbala wentambo yentambo		Mnyama
I-Cable yangaphandle	mm	7.0 ± 0.2
Imowudi ye-fiber		Imowudi enye: G657 A2
I-jable yentambo		Lszh
Ubunzima bekhebula	Kg / km	38 (malunga)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	50, 75, 100, 150, 200,250, 300 okanye ngokufihlakeleyo (ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo:	Imvume ye-mini dlc / i-upc
		Iziphumo:	Imvume ye-dupplex lc / i-procecctor
Ibanga lamanzi		IP68
Iqondo lokusebenza	℃	-40 ° C ~ + 70 ℃
Iqondo lokugcina	℃	-40 ° C ~ + 70 ℃

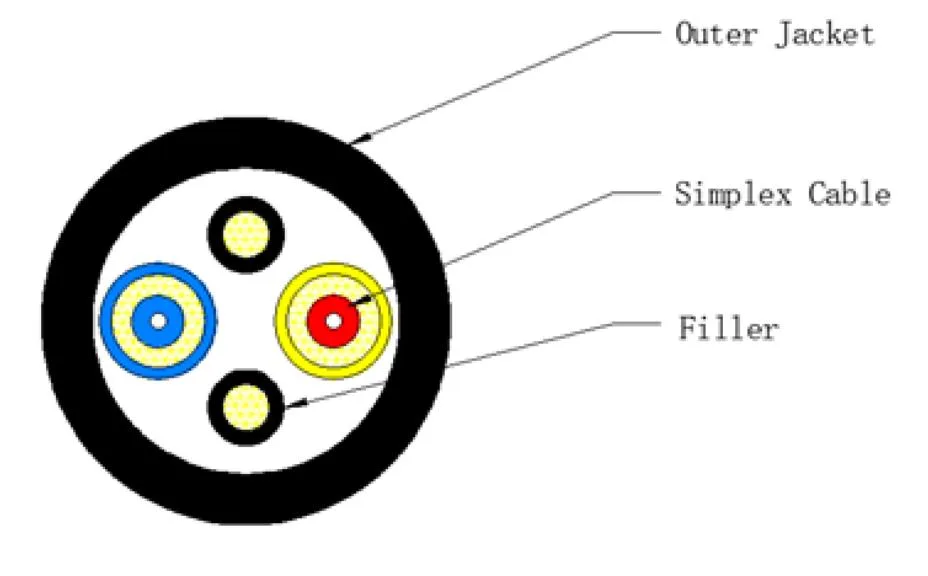

Isakhiwo sentambo:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

Ukuchazwa kwentambo:

Into	IZIQULATHO	Ixabiso
Qinisa i-buffer fiber	Inombolo	2
	Uhlobo	G.657A2
	Ububanzi (mm)	I-0.90 ± 0.05
	Izixhobo	Lszh
	Umbala	MHLOPHE
I-cleyx yentambo	Izixhobo	Lszh
	Ububanzi (mm)	2.0 ± 0.1
	Umbala	Luhlaza okwesibhakabhaka kwaye tyheli
Intonga	Izixhobo	Lszh
	Ububanzi (mm)	1.3 ± 0.1
	Umbala	Mnyama
Ijacket yangaphandle	Izixhobo	Lszh
	Ububanzi (mm)	7.0 ± 0.2
	Umbala	Mnyama
	Ubukhulu (mm)	1.0 ± 0.1
Ubunzima be-Cable (kg / km).		I-38 ± 3
Uvavanyo loluliweyo (n)		Ixesha elide: 400 n IXABISO Elifutshane: 800 N
Uvavanyo lokuhlala phantsi (N / 10cm)		Ixesha elide: I-1000 N / 10cm IXABISO Elifutshane: I-2200 N / 10cm
Imiz. Ukugoba iradius		I-10XOD (Static); I-20XOD (i-Dynamic)
Iqondo lokushisa		-40 ° C ukuya kwi-70 ° C
Iqondo lokugcina		-40 ° C ukuya kwi-70 ° C

Ukusebenza kwe-fiber ye-fiber

Ukwenziwa kwe-fiber ye-fiber ye-fiber (i-ITU-T Her. G.657A2)

Into	Ukucaciswa
Uhlobo lweFiber	Imowudi enye
I-fiber impahla	Isilica esifungelweyo
I-Attential I-Act Appling @ 1310 NM @ 1383nm @ 1460nm @ 1550 NM @ 1625nmm	I-0.35 dB / km I-0.35 dB / km I-0.25 dB / km I-0.21 i-DB / km I-0.23 dB / km
I-Cable inqunyulwe i-wavelength	≤ 1260 NM
I-zero-diverandy wavelength	1300 ~ 1324 NM
Ithambeka lokusasazeka	≤ I-0.092 ps / (nm2.km)
I-PMD @ 1550 NM	≤0.1.1 ps / km1 / 2
Ukusasazeka kwe-chromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 NM @ 1550 NM @ 1625nmm	≤3 I-PS / (NM. Km) ≤5.3 ps / (nm) ≤18.0 ps / (nm) ≤22 PS / (NM)
I-Dome Domer Biameter @ 1310 NM	8.5-9.3.3.3
Impazamo engundoqo	≤ 0.5
Ububanzi be-cladding	I-125.0 ± 0.7
Ukuvalela okungacacanga	≤5%
Ububanzi beNtloko	242 ± 7 enye
I-discietrity iphambili	≤10 μm
Ukudibana okungacacanga	≤0.7%
I-ATTONUNTIONS ngentambo yokulungisa ilahleko I-10 jika i-1mrel 15mm 15mm I-1 Jika i-Mandrel 10mm I-1 jika i-1ndrel 7.5mm	I-1550NM ≤ δ δ i-0.03 dB / km I-1550NM ≤ δ I-0.1 DB / Km I-1550NM ≤ ≤ ≤ ≤ i-0.5 dB / km

Umzobo wobungakanani:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

Hayi	Inkcazo	Qty
1	I-sm g.657A2 2 I-2 biber nge-2.0mm fiber. Od7.0mm, mnyama lszh	1
2	I-mini dlc divenect emnyama	1
3	I-LC3.0 i-dupplex nge-fiber ye-fiber enye, i-beige, ityhubhu ye-IC Connector, emhlophe	2
4	I-rubber yobushushu ityhubhu, emnyama, i-OD 8.5mm L = 17MM	1
5	I-rubber yobushushu ityhubhu, emnyama, i-OD 8.5m l-30mm	2
6	Ukukhusela okuguquguqukayo nge-tube yentsimbi, i-OD 2.8mm L = 52mm	2
8	I-sub crube efihliweyo, emhlophe / ye-Od3.0mm L = 5mm	2

Iithegi ezishushu: I-Dupex LC / I-UPC AterProof Rible intambo ye-fiber fible pards (i)
