I-ф5mm ye-ф5mm manzi ye-wible ye-Cable ye-SCB / APC Chrintation Patch Perd

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥ 60
Uhlobo lonxibelelwano		I-SC / APC
Ferrule		I-ceramic
Imijikelezo yoqhagamshelo		500
Umbala wentambo yentambo		Mnyama
I-Cable yangaphandle	mm	5.0 ± 0.2
Imowudi ye-fiber		Imowudi enye: G657A2
I-jable yentambo		I-HDPE
Ubunzima bekhebula	Kg / km	35 (Approx)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	30, 50, 100, 150, 200,250, 300, 400 500 okanye ngokufihlakeleyo (Ukunyamezelana: ± 1.0m)
Uhlobo lomnxibelelanisi		Igalelo: I-Accic H Aptic Minic SC
Uhlobo lomnxibelelanisi		Iziphumo: Vavanya i-SC / APC
Itreyitha (i-axial phakathi Intambo kunye nesinxibelelanisi)	N	200
Ibanga lamanzi		Igalelo: IP68
Iqondo lokusebenza	℃	-40 ° C ~ + 70 ℃
Iqondo lokugcina	℃	-40 ° C ~ + 70 ℃

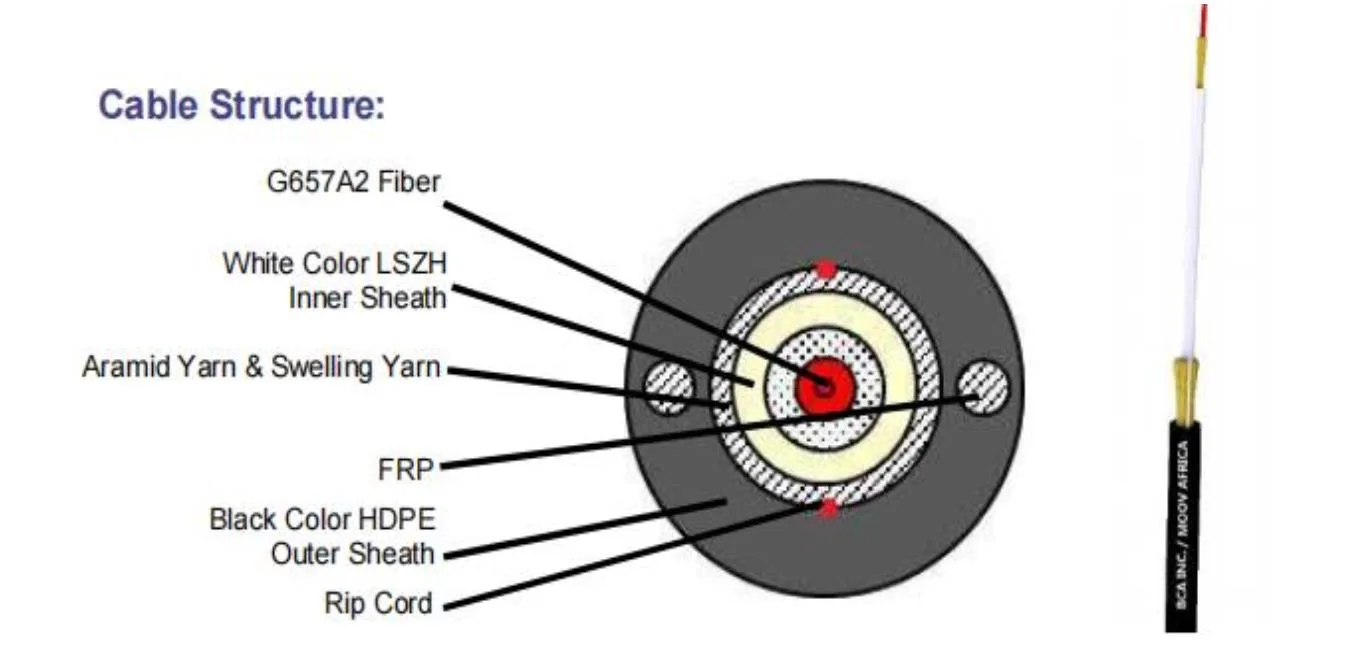

Ulwakhiwo lwentambo:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Isakhiwo sentambo:

Into	IZIQULATHO	Inkcazo
Qinisa i-buffer fiber	Inombolo	1
	Uhlobo	G.657A2
	Izixhobo	Lszh
	Qinisa umbala we-buffer	Mhlophe
	Ububanzi (mm)	I-0.90 ± 0.05
Ilungu lamandla 1	Izixhobo	I-Aramid Yarn
I-Sheith	Ububanzi (mm)	2.8 ± 0.2
	Ubukhulu (mm)	I-0.25 ± 0.1
	Umbala	Mhlophe
	Izixhobo	Lszh
Ilungu lamandla 2	Izixhobo	Frip
Ilungu lamandla 2	Ubungakanani	I-0.5 * 2
Ilungu lamandla 3	Izixhobo	I-Aramid Yarn + Amanzi okuvala iglasi yeglasi
I-RIP Cord	Ukucaciswa kunye nombala	I-600d ibomvu
Phandle	Izixhobo	Hd
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	Mnyama
Intambo ye-seagth	Kg / km	I-35 ± 3
Uxinzelelo	N	I-400 (ixesha elide)
Uxinzelelo	N	I-800 (ixesha elifutshane)
Kutyumza	N / 10cm	200 (ixesha elide)
Kutyumza	N / 10cm	I-1000 (ixesha elifutshane)
Imiz. Ukugoba irediyo	mm	I-10xd (Static)
Imiz. Ukugoba irediyo	mm	I-20xd (inamandla)
Uluhlu lobushushu olusebenzayo:		-20 ℃ ukuya + 60 ℃
Uluhlu lobushushu / lokuThuka kweTrafiki:		-20 ℃ ukuya + 60 ℃

I-fiber offical:

Zonke iimpawu ze-fiber yentambo (ifayile yecable egqityiweyo) iya kuba, ubuncinci, ngokungqinelana nengcebiso ye-ITU-T.657a2 kwaye iya kuba ngolu hlobo lulandelayo.

Into	Ukucaciswa
Uhlobo lweFiber	Imowudi enye
I-fiber impahla	Isilica esifungelweyo
I-Attential I-Act Appling @ 1310 NM @ 1383nm	I-0.36 i-DB / km I-0.36 i-DB / km
@ 1490nmm @ 1550 NM @ 1625nmm Emva kokuqulunqwa kwentambo @ 1310 NM @ 1550NM	I-0.25 dB / km I-0.22 dB / km I-0.25 dB / km I-0.36 i-DB / km I-0.22 dB / km
I-Cable inqunyulwe i-wavelength	≤ 1260 NM
I-zero-diverandy wavelength	1300 ~ 1324 NM
Ithambeka lokusasazeka	≤ I-0.092 ps / (nm2.km)
I-PMD @ 1550 NM	≤0.1.1 ps / km1 / 2
Ukusasazeka kwe-chromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 NM @ 1550 NM @ 1625nmm	≤3 I-PS / (NM. Km) ≤5.3 ps / (nm) ≤18.0 ps / (nm) ≤22 PS / (NM)
I-Dome Domer Biameter @ 1310 NM	8.5-9.3.3.3
Impazamo engundoqo	≤ 0.5
Ububanzi be-cladding	I-125.0 ± 0.7
Ukuvalela okungacacanga	≤5%
Ububanzi beNtloko	242 ± 7 enye
I-discietrity iphambili	≤10 μm
Ukudibana okungacacanga	≤0.7%
I-ATTONUNTIONS ngentambo yokulungisa ilahleko I-1 jika i-1ndrel 7.5mm I-10 ijika i-1mml 15mm 15mm	I-1550NM ≤ δ i-0.10 dB / km I-1550NM ≤ δ δ i-0.03 dB / km

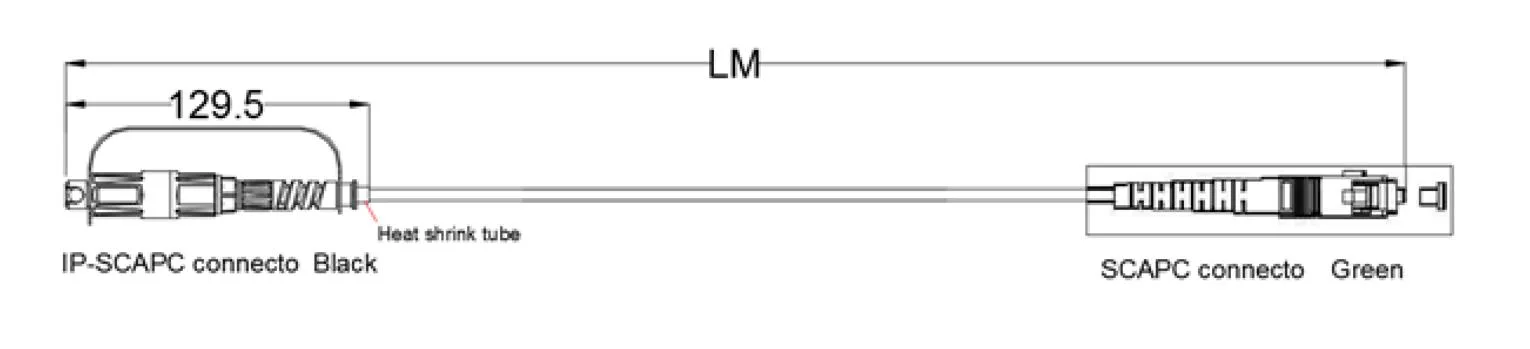

Umzobo wobungakanani:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Iphakheji:

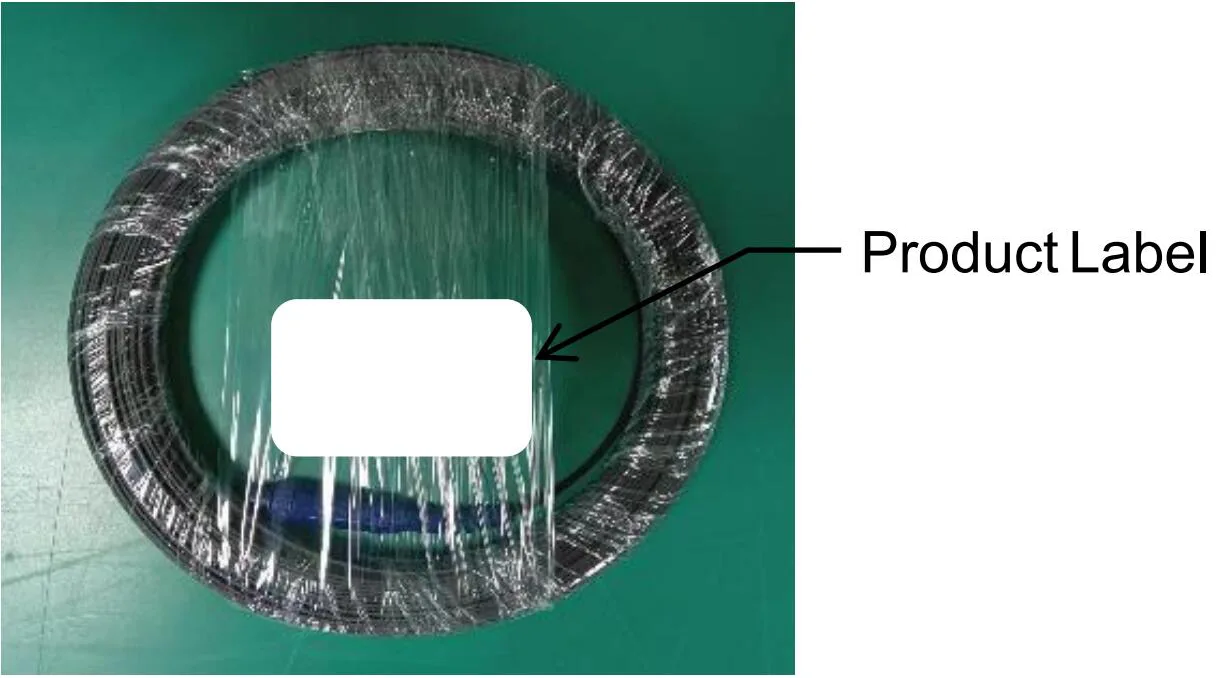

I-Diber Coming Duing:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

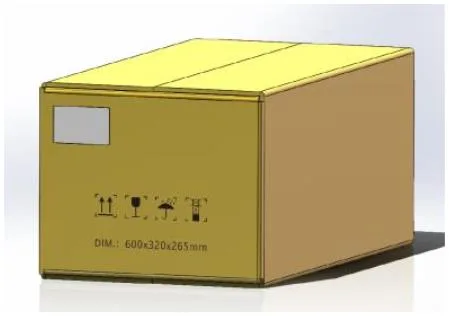

Iimfuneko zePakeji:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Iithegi ezishushu: I-ф5mm ye-ф5mm manzi ye-wible ye-Cable ye-SCB / APC Chrintation Patch Perd
