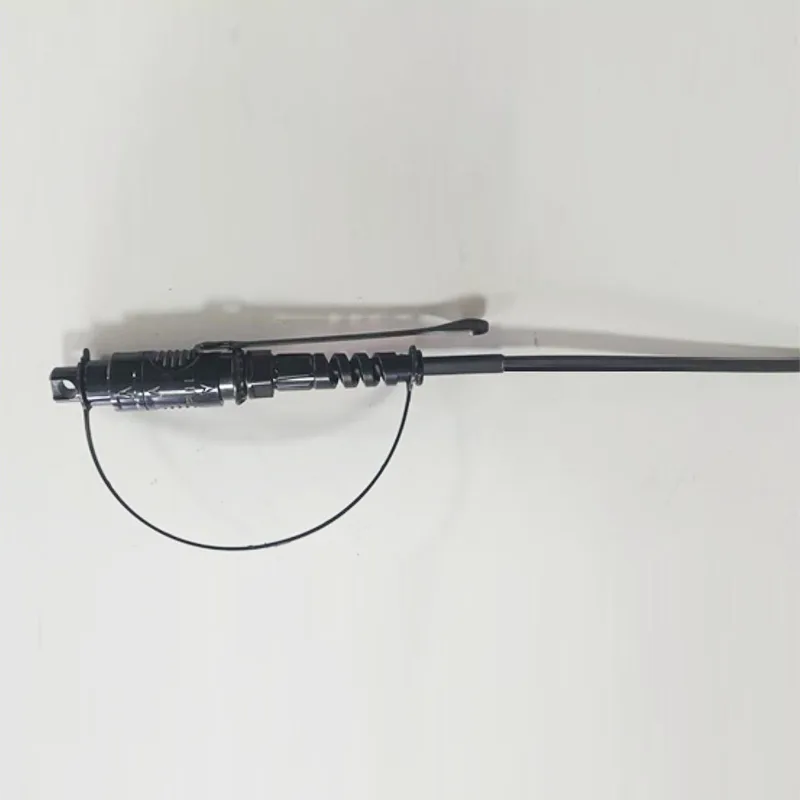

I-φ5mm ye-φ5mm manzi intambo ye-CABLE YOFC YOFC

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

I-1. I-Patch Cord yobugcisa

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30 (eqhelekileyo: 0.15)
Buyisela ilahleko	db	≥ 55
Uhlobo lonxibelelwano		I-SC / APC
Ferrule		I-ceramic
Imijikelezo yoqhagamshelo		500
Umbala wentambo yentambo		Mnyama
I-Cable yangaphandle	mm	5.0 ± 0.2
Imowudi ye-fiber		Imowudi enye: G657A1 okanye G657A
I-jable yentambo		I-HDPE
Ubunzima bekhebula	Kg / km	22 (i-Apps)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	I-50 okanye ngokufihlakeleyo (Ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo: I-Accord H Aptic SC / APC
Uhlobo lomnxibelelanisi		Iziphumo: I-Accicic H Aptic SC / APC
Itreyitha (i-axial phakathi Intambo kunye nesinxibelelanisi)	N	200
Ibanga lamanzi		IP68
Iqondo lokusebenza	℃	-25 ° C ~ + 70 ℃
Iqondo lokugcina	℃	-25 ° C ~ + 70 ℃

I-2. I-Cable yeCable

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

I-3. Ubungakanani be-cable

Into	IZIQULATHO	Inkcazo
Qinisa i-buffer fiber	Inombolo	1
	Uhlobo	G.657A1 okanye G.657A2
	Umbala	Luhlaza
	Izixhobo	Lszh
	Ububanzi (mm)	I-0.90 ± 0.05
I-Sheith	Ububanzi (mm)	2.8 ± 0.2
	Ubukhulu (mm)	I-0.25 ± 0.05
	Umbala	Mhlophe
	Izixhobo	Lszh
Ilungu lamandla 1	Izixhobo	Glued frp
Ilungu lamandla 1	Ubungakanani	I-0.5 * 2
Ilungu lamandla 2	Izixhobo	I-Aramid Yarn + Amanzi okuvala iglasi yeglasi
I-RIP Cord	Inombolo	1
I-RIP Cord	Umbala	Bomvu
Sheath	Izixhobo	I-HDPE
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	Mnyama
Intambo ye-seagth	Kg / km	I-22 ± 3
I-TIILE (n)		Ixesha elide: I-400n IXABISO Elifutshane: 800 N
Imiz. Ukugoba iradius		I-15xd (ayimisi); I-30XD (i-Dynamic)
Uluhlu lobushushu olusebenzayo:	℃	-25 ℃ ukuya + 70 ℃
Uluhlu lobushushu / lokuThuka kweTrafiki:	℃	-25 ℃ ukuya + 70 ℃
Uluhlu lobushushu lofakelo:	℃	-25 ℃ ukuya + 70 ℃

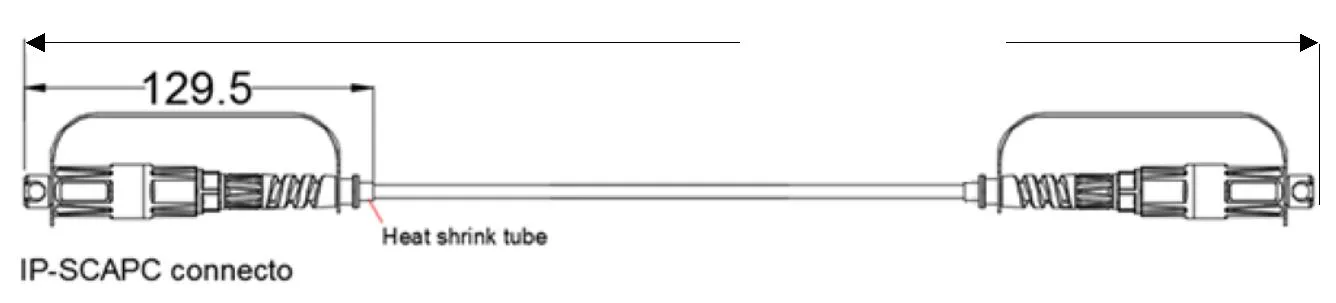

4. Umzobo we-patch cord

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

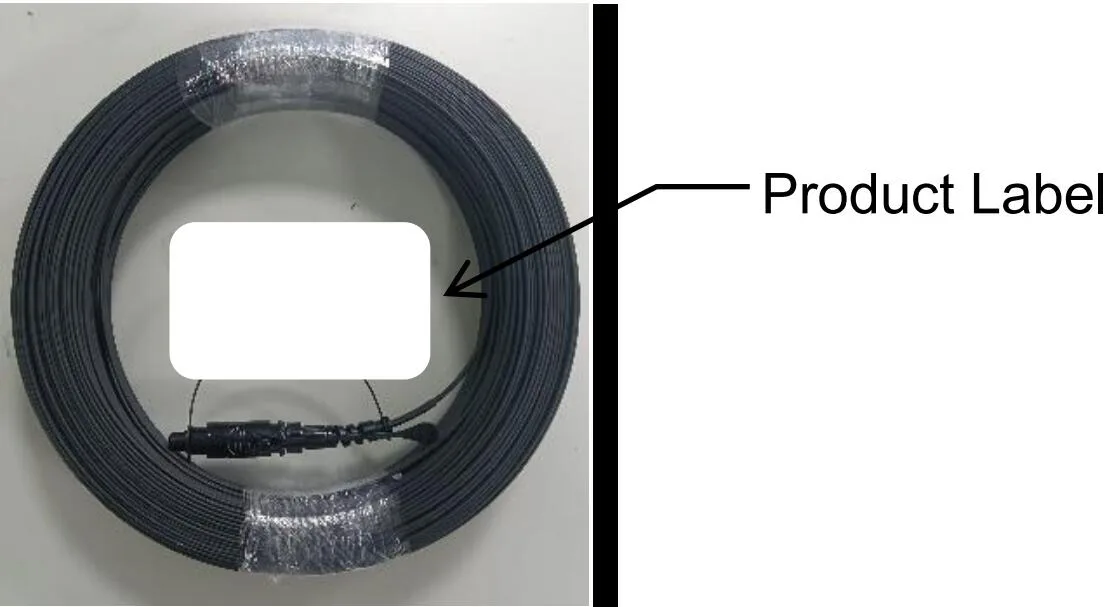

I-5. Iphakheji

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

Iimfuneko zePakethi

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

Iithegi ezishushu: I-φ5mm ye-φ5mm manzi intambo ye-CABLE YOFC YOFC
