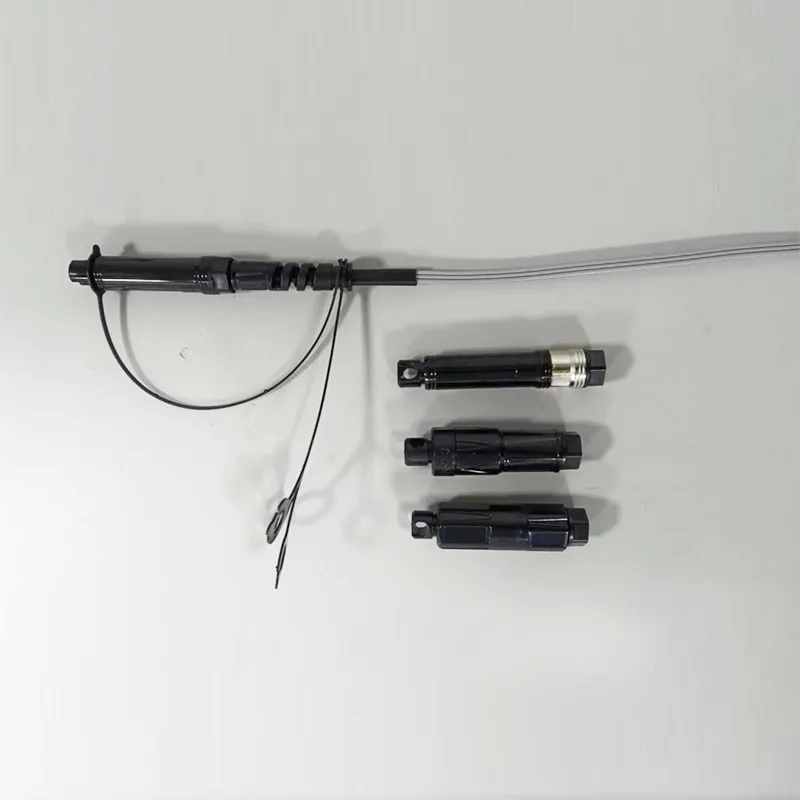

I-3 kathathu kwi-CABHIOF PATATROOF ye-CORD SCRO (I-APPINE WINITAP / MINC SC / SLIM SC Isinxibelelanisi)

Isicelo:● Iinkqubo ze-FTTX / zeTship● Ukusetyenziswa kwe-Ethernet● I-Catv inxibelelanisa● Ukuhanjiswa kwesibonakaliso sokukhanya● Unxibelelwano olukhethekileyo (pon)● I-BackBone, iPhezulu kwaye iphakame isebenza● Iibhokisi ze-terminal zehlela● Iindawo zangaphandle; Imeko engqongqoIimbonakalo:● Ukula......

Thumela uMbuzo

Ingcaciso yeMveliso

Isicelo:

● Iinkqubo ze-FTTX / zeTship

● Ukusetyenziswa kwe-Ethernet

● I-Catv inxibelelanisa

● Ukuhanjiswa kwesibonakaliso sokukhanya

● Unxibelelwano olukhethekileyo (pon)

● I-BackBone, iPhezulu kwaye iphakame isebenza

● Iibhokisi ze-terminal zehlela

● Iindawo zangaphandle; Imeko engqongqo

Iimbonakalo:

● Ukulahleka okuphantsi kwelahleko, ukubuyiswa okuphezulu.

● Kulungile ukuphindaphinda kunye nokutshintshana.

● I-100% yokufakwa, ukubuya ilahleko, ubuso bokuphela kunye.

● Ukuhlolwa kokuphazamisa.

● Unyamezelo oluhle kakhulu.

● Ukuthobela i-telcordia Gr-326-core.

● Ukuqinisekisa ukusebenza okuphezulu kunye nokuthembeka kulawulo lwe-cabling.

● Ukukhawuleza kunye nokufakwa ngokulula kunye nokuqwalaselwa kwakhona.

● ukuphatha ngokulula, akukho mfuneko yesixhobo esikhethekileyo.

● I-IP68 yamanzi.

Inkcazo yobugcisa:

Ukwakha	Iyunithi	Iinkcazo
I-fiber ibala		Ilulaxx
Wavelength	nm	1310/1550
Ukufakwa kwelahleko	db	≤0.30
Buyisela ilahleko	db	≥60 (APC)
Umbala wentambo yentambo		Ngwevu
I-Cable yangaphandle	mm	5.0x2.0
Imowudi ye-fiber		Imowudi enye: G657A2
I-jable yentambo		I-LSZH
Ubunzima bekhebula	Kg / km	22 (i-Apps)
Ukuprinta imixholo		Ngokuqinisekileyo
Ubude	m	50, 100, 150, 250, 300 okanye ngokufihlakeleyo (Ukunyamezelana: ± 0.5m)
Uhlobo lomnxibelelanisi		Igalelo:	I-Apcitiap Rsc Rsc / APC Connector I-accocic ____ optic mini ye-SC / APC I-accords SCIM SC / APC
		Iziphumo:	I-SC / APC
Ibanga lamanzi		Ip67
Iqondo lokusebenza	℃	-0 ° C ~ + 65 ℃
Iqondo lokugcina	℃	-20 ℃ ~ + 65 ℃

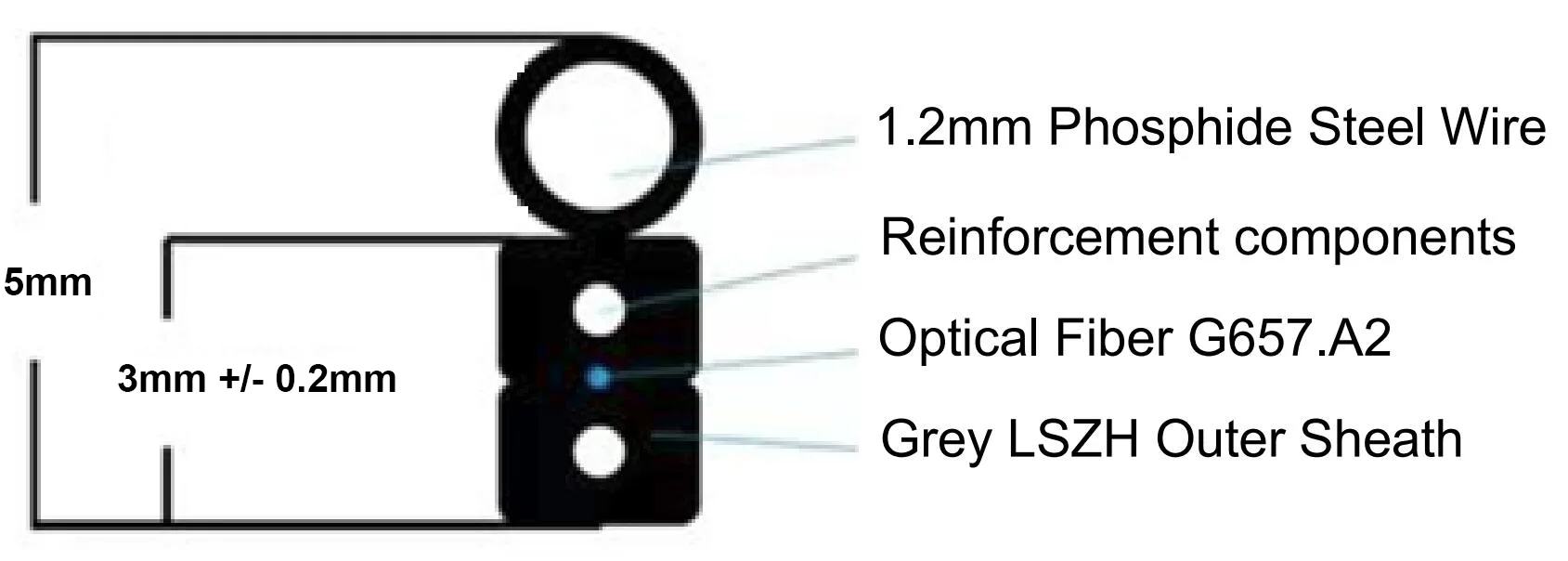

Isakhiwo sentambo:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)

I-Cabb yobugcisa:

I-fiber offical	Uhlobo	Imowudi enye: G657 A2
	I-FIBERS	1
	Umbala	Luhlaza
	I-Attential I-Act Appling	@ 1310NM ≤0.32 DB / Km @ 1550NM ≤0.20 DB / Km
	Ububanzi beNdlela yeNdlela	I-1310NM ≤9.2 μm I-1550 NM ≤9.2 μm
	Ububanzi be-cladding	I-125 ± 0.7 μm
	Ububanzi beNtloko	242 ± 5 μm
	Ukudibana Ubuchule	≤0.5%
	I-Cable cydoff wavelength	I-sm: λcc ≤1258 NM
	I-Macro Bell ilahleko (DB)	R = 10mm, 1 Jika: ≤0.10 @ 1550NM R = 10mm, 1 jika: ≤0.20 @ 1625nm R = 7.5mm, 1 jika: ≤0.20 @ 1550NM
Ilungu lamandla	Materia	Kfrp
Ilungu lamandla	Ububanzi	Φ0.50mm * 2ea
Ilungu lentsimbi	Materia	I-phosphide cire wire
Ilungu lentsimbi	Ububanzi	1.2mm
Phandle	Izixhobo	I-LSZH
	Umbala	Ngwevu
	Ubukhulu	2.0 × 5.0 (± 0.1) mm
Ubunzima		I-22 kg / km
Amandla e-sunsle (n)		Ixesha elide: 400 n IXABISO Elifutshane: 800 N
Ukunganyangeki (n / 100mm)		Ixesha elide: I-1000 N / 10cm Ithuba Elifutshane: 2000 N / 10cm
Imiz. Ukugoba iradius		I-10D (i-Static); I-20D (inamandla)
Iqondo lobushushu		-0 ° C ~ + 65 ℃
Ukuhamba kunye nokuGcina		-20 ℃ ~ + 65 ℃
Ukumakisha (IK Jet)		Mnyama imakishi iprintwe yonke imitha enye

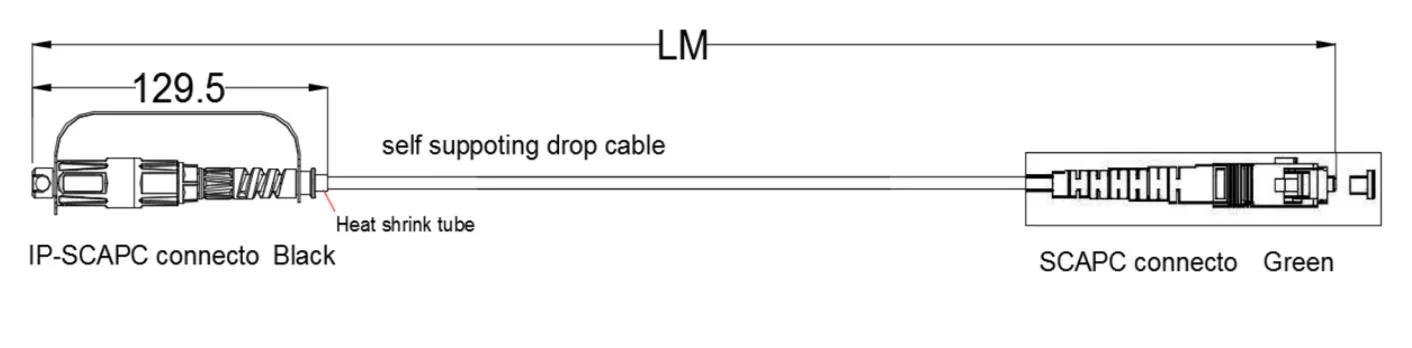

Umzobo wobungakanani:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)

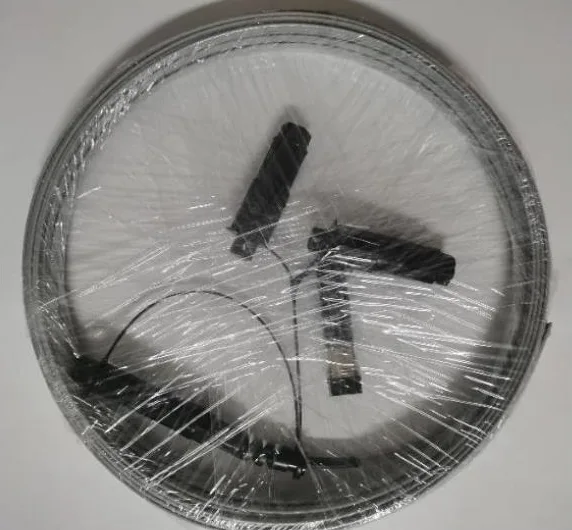

Iphakheji:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)
